| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

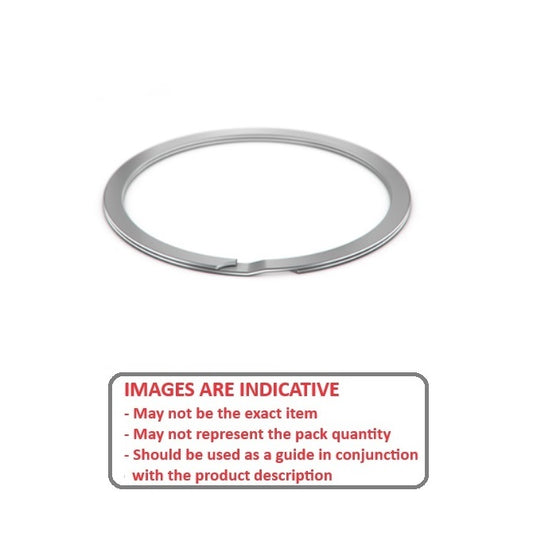

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip OD (Dr)
79.86
mm + 0.64 / - 0.00 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.00
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71.84 + 0.07 / - 0.00

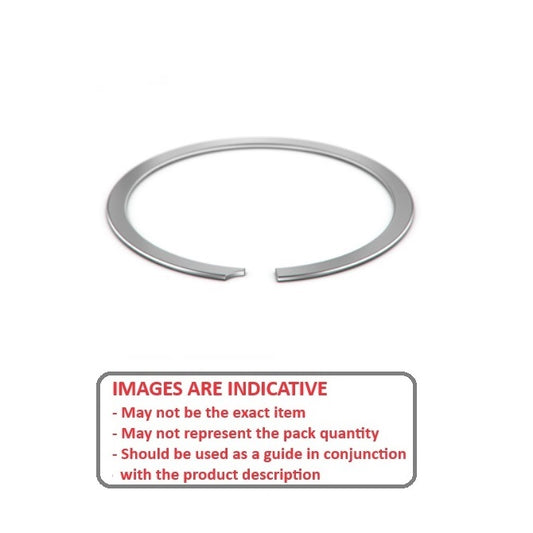

Category: Retaining Rings - Internal - Spiral Rings - Light Duty |
||||||
|
Part Number: UR-300 (PK-25)
Internal Retaining Rings - 76.2x0.79x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$196.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip OD (Dr)
79.86
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.00 mm +/- 0.15
Approx. Loose Clip ID: 71.84 + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings - Light Duty |
||||||
|
Part Number: UR-300 (PK-25)
Internal Retaining Rings - 76.2x0.79x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$196.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
78.64
mm (Equiv. 3.096 in.) |
Approx. Loose Circlip OD (Dr)
79.55
mm + 0.64 / - 0.00 |
Radial Wall (S) Approx.
4.27
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71.01 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-300 (Each)
Internal Retaining Rings - 76.2x1.55x78.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring 85 Available Now | Item Discontinued - Up to 85 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
78.64
mm (Equiv. 3.096 in.) |
Approx. Loose Circlip OD (Dr)
79.55
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.27 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 71.01 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-300 (Each)
Internal Retaining Rings - 76.2x1.55x78.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring 85 Available Now | Item Discontinued - Up to 85 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.39
mm (Equiv. 3.165 in.) |
Approx. Loose Circlip OD (Dr)
80.92
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.78
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71.36 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 519 |
||||||
|
Part Number: RRT-300 (PK-8)
Internal Retaining Rings - 76.2x2.37x80.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.39
mm (Equiv. 3.165 in.) |
Approx. Loose Circlip OD (Dr)
80.92
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.78 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Approx. Loose Clip ID: 71.36 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 519 |
||||||
|
Part Number: RRT-300 (PK-8)
Internal Retaining Rings - 76.2x2.37x80.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.83
mm (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.31
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 69.87 +/- 0.06

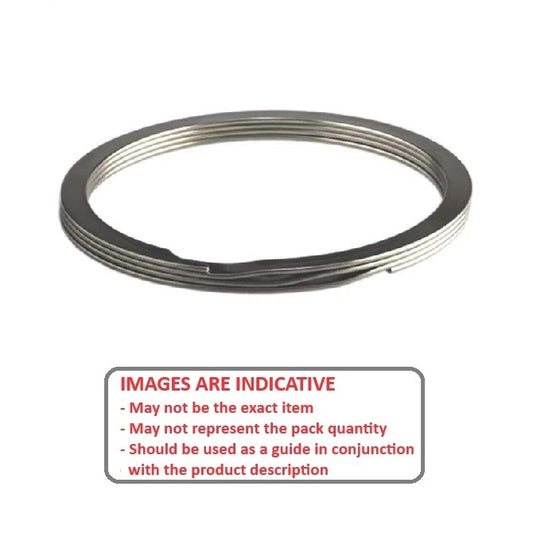

Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 2 |
||||||
|
Part Number: RRN-300 (PK-2)
Internal Retaining Rings - 76.2x2.37x80.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$28.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.83
mm (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.31
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.16
Approx. Loose Clip ID: 69.87 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 2 |
||||||
|
Part Number: RRN-300 (PK-2)
Internal Retaining Rings - 76.2x2.37x80.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$28.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
79.98
mm (Equiv. 3.149 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
82.48
mm (Equiv. 3.247 in.) |
Approx. Loose Circlip OD (Dr)
83.50
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.52
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 74.46 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 40 |
||||||
|
Part Number: RR-314 (Each)
Internal Retaining Rings - 79.98x1.55x82.48 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$10.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
79.98
mm (Equiv. 3.149 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
82.48
mm (Equiv. 3.247 in.) |
Approx. Loose Circlip OD (Dr)
83.50
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.52 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip ID: 74.46 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 40 |
||||||
|
Part Number: RR-314 (Each)
Internal Retaining Rings - 79.98x1.55x82.48 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$10.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
80.95
mm (Equiv. 3.187 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
83.39
mm (Equiv. 3.283 in.) |
Approx. Loose Circlip OD (Dr)
84.51
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.52
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 75.47 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 816 |
||||||
|
Part Number: RR-318 (Each)
Internal Retaining Rings - 80.95x1.55x83.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring 23 Available Now | Further orders can be expected around Tue, Jan 27, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
80.95
mm (Equiv. 3.187 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
83.39
mm (Equiv. 3.283 in.) |
Approx. Loose Circlip OD (Dr)
84.51
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.52 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 75.47 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 816 |
||||||
|
Part Number: RR-318 (Each)
Internal Retaining Rings - 80.95x1.55x83.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring 23 Available Now | Further orders can be expected around Tue, Jan 27, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
85.09
mm (Equiv. 3.35 in.) |
Approx. Loose Circlip OD (Dr)
86.18
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.52
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 77.14 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 1332 |
||||||
|
Part Number: RR-325 (PK-100)
Internal Retaining Rings - 82.55x1.55x85.09 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$754.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
85.09
mm (Equiv. 3.35 in.) |
Approx. Loose Circlip OD (Dr)
86.18
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.52 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 77.14 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 1332 |
||||||
|
Part Number: RR-325 (PK-100)
Internal Retaining Rings - 82.55x1.55x85.09 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$754.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
84.12
mm (Equiv. 3.312 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
86.77
mm (Equiv. 3.416 in.) |
Approx. Loose Circlip OD (Dr)
87.82
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.78
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 78.26 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-331 (Each)
Internal Retaining Rings - 84.12x1.55x86.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring 785 Available Now | Item Discontinued - Up to 785 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$9.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
84.12
mm (Equiv. 3.312 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
86.77
mm (Equiv. 3.416 in.) |
Approx. Loose Circlip OD (Dr)
87.82
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.78 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip ID: 78.26 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-331 (Each)
Internal Retaining Rings - 84.12x1.55x86.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring 785 Available Now | Item Discontinued - Up to 785 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$9.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
87.30
mm (Equiv. 3.437 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
89.99
mm (Equiv. 3.543 in.) |
Approx. Loose Circlip OD (Dr)
91.14
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.78
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 81.58 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-343 (Each)
Internal Retaining Rings - 87.3x1.55x89.99 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
87.30
mm (Equiv. 3.437 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
89.99
mm (Equiv. 3.543 in.) |
Approx. Loose Circlip OD (Dr)
91.14
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.78 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 81.58 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-343 (Each)
Internal Retaining Rings - 87.3x1.55x89.99 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
91.59
mm (Equiv. 3.606 in.) |
Approx. Loose Circlip OD (Dr)
92.81
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.78
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 83.25 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 26 |
||||||
|
Part Number: RR-350 (Each)
Internal Retaining Rings - 88.9x1.55x91.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$10.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
91.59
mm (Equiv. 3.606 in.) |
Approx. Loose Circlip OD (Dr)
92.81
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.78 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 83.25 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 26 |
||||||
|
Part Number: RR-350 (Each)
Internal Retaining Rings - 88.9x1.55x91.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$10.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
92.79
mm (Equiv. 3.653 in.) |
Approx. Loose Circlip OD (Dr)
93.95
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
5.03
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 83.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-354 (PK-8)
Internal Retaining Rings - 89.99x1.55x92.79 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$222.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
92.79
mm (Equiv. 3.653 in.) |
Approx. Loose Circlip OD (Dr)
93.95
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.03 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip ID: 83.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-354 (PK-8)
Internal Retaining Rings - 89.99x1.55x92.79 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$222.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
95.38
mm (Equiv. 3.755 in.) |
Approx. Loose Circlip OD (Dr)
96.02
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
7.14
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 81.74 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 674 |
||||||
|
Part Number: RRN-354 (Each)
Internal Retaining Rings - 89.99x2.82x95.38 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
95.38
mm (Equiv. 3.755 in.) |
Approx. Loose Circlip OD (Dr)
96.02
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.14 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.16
Approx. Loose Clip ID: 81.74 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 674 |
||||||
|
Part Number: RRN-354 (Each)
Internal Retaining Rings - 89.99x2.82x95.38 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
90.47
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
93.27
mm (Equiv. 3.672 in.) |
Approx. Loose Circlip OD (Dr)
94.45
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
5.03
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 84.39 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 73 |
||||||
|
Part Number: RR-356 (Each)
Internal Retaining Rings - 90.47x1.55x93.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
90.47
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
93.27
mm (Equiv. 3.672 in.) |
Approx. Loose Circlip OD (Dr)
94.45
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.03 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 84.39 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 73 |
||||||
|
Part Number: RR-356 (Each)
Internal Retaining Rings - 90.47x1.55x93.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
90.47
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
93.27
mm (Equiv. 3.672 in.) |
Approx. Loose Circlip OD (Dr)
94.45
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
5.03
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 84.39 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 395 |
||||||
|
Part Number: RR-356-S02 (Each)
Internal Retaining Rings - 90.47x1.55x93.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
90.47
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
93.27
mm (Equiv. 3.672 in.) |
Approx. Loose Circlip OD (Dr)
94.45
mm + 0.76 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 5.03 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 84.39 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 395 |
||||||
|
Part Number: RR-356-S02 (Each)
Internal Retaining Rings - 90.47x1.55x93.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
107.19
mm (Equiv. 4.22 in.) |
Approx. Loose Circlip OD (Dr)
107.90
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 95.2 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 3195 |
||||||
|
Part Number: RRT-400 (PK-42)
Internal Retaining Rings - 101.6x2.82x107.19 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$15.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 42 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
107.19
mm (Equiv. 4.22 in.) |
Approx. Loose Circlip OD (Dr)
107.90
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.15
Approx. Loose Clip ID: 95.2 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 3195 |
||||||
|
Part Number: RRT-400 (PK-42)
Internal Retaining Rings - 101.6x2.82x107.19 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$15.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 42 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
111.25
mm (Equiv. 4.38 in.) |
Approx. Loose Circlip OD (Dr)
112.70
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
5.79
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 101.12 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 24 |
||||||
|
Part Number: RR-425 (PK-2)
Internal Retaining Rings - 107.95x1.55x111.25 mm Spiral Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$49.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
111.25
mm (Equiv. 4.38 in.) |
Approx. Loose Circlip OD (Dr)
112.70
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.79 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip ID: 101.12 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 24 |
||||||
|
Part Number: RR-425 (PK-2)
Internal Retaining Rings - 107.95x1.55x111.25 mm Spiral Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$49.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
113.54
mm (Equiv. 4.47 in.) |
Approx. Loose Circlip OD (Dr)
114.64
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
7.93
mm +/- 0.16 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 98.78 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty |
||||||
|
Part Number: RRT-425 (PK-20)
Internal Retaining Rings - 107.95x2.82x113.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$1,713.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
113.54
mm (Equiv. 4.47 in.) |
Approx. Loose Circlip OD (Dr)
114.64
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.93 mm +/- 0.16
Groove Width (W): 3.12 mm +/- 0.15
Approx. Loose Clip ID: 98.78 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty |
||||||
|
Part Number: RRT-425 (PK-20)
Internal Retaining Rings - 107.95x2.82x113.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$1,713.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
109.98
mm (Equiv. 4.33 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
113.29
mm (Equiv. 4.46 in.) |
Approx. Loose Circlip OD (Dr)
114.82
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
5.79
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 103.24 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 1 |
||||||
|
Part Number: RR-433 (Each)
Internal Retaining Rings - 109.98x1.55x113.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
109.98
mm (Equiv. 4.33 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
113.29
mm (Equiv. 4.46 in.) |
Approx. Loose Circlip OD (Dr)
114.82
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.79 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip ID: 103.24 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 1 |
||||||
|
Part Number: RR-433 (Each)
Internal Retaining Rings - 109.98x1.55x113.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
109.98
mm (Equiv. 4.33 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
115.72
mm (Equiv. 4.556 in.) |
Approx. Loose Circlip OD (Dr)
117.35
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
7.93
mm +/- 0.16 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 101.49 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: RRN-433 (PK-5)
Internal Retaining Rings - 109.98x2.82x115.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$236.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
109.98
mm (Equiv. 4.33 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
115.72
mm (Equiv. 4.556 in.) |
Approx. Loose Circlip OD (Dr)
117.35
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.93 mm +/- 0.16
Groove Width (W): 3.12 mm +/- 0.15
Approx. Loose Clip ID: 101.49 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: RRN-433 (PK-5)
Internal Retaining Rings - 109.98x2.82x115.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$236.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
111.13
mm (Equiv. 4.375 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
114.43
mm (Equiv. 4.505 in.) |
Approx. Loose Circlip OD (Dr)
116.02
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
5.79
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 104.44 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-437 (PK-6)
Internal Retaining Rings - 111.13x1.55x114.43 mm Spiral Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$155.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
111.13
mm (Equiv. 4.375 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
114.43
mm (Equiv. 4.505 in.) |
Approx. Loose Circlip OD (Dr)
116.02
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.79 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip ID: 104.44 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-437 (PK-6)
Internal Retaining Rings - 111.13x1.55x114.43 mm Spiral Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$155.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
120.65
mm (Equiv. 4.75 in.) |
Clip Thickness (T)
1.83
mm +/- 0.08 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
124.21
mm (Equiv. 4.89 in.) |
Approx. Loose Circlip OD (Dr)
125.96
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
2.01
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 113.26 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: RR-475 (Each)
Internal Retaining Rings - 120.65x1.83x124.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$25.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
120.65
mm (Equiv. 4.75 in.) |
Clip Thickness (T)
1.83
mm +/- 0.08 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
124.21
mm (Equiv. 4.89 in.) |
Approx. Loose Circlip OD (Dr)
125.96
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 2.01 mm +/- 0.16
Approx. Loose Clip ID: 113.26 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: RR-475 (Each)
Internal Retaining Rings - 120.65x1.83x124.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$25.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
130.66
mm (Equiv. 5.144 in.) |
Approx. Loose Circlip OD (Dr)
132.59
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 119.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 25 |
||||||
|
Part Number: RR-500 (PK-25)

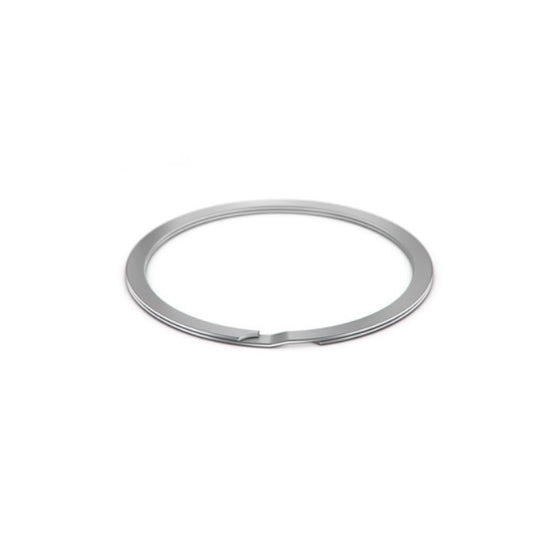

Internal Retaining Rings - 127x1.83x130.66 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$600.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
130.66
mm (Equiv. 5.144 in.) |
Approx. Loose Circlip OD (Dr)
132.59
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.15
Approx. Loose Clip ID: 119.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 25 |
||||||
|
Part Number: RR-500 (PK-25)
Internal Retaining Rings - 127x1.83x130.66 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$600.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
143.44
mm (Equiv. 5.647 in.) |
Approx. Loose Circlip OD (Dr)
145.85
mm + 1.14 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.18 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 133.15 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 50 |
||||||
|
Part Number: RR-550 (Each)
Internal Retaining Rings - 139.7x1.83x143.44 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
143.44
mm (Equiv. 5.647 in.) |
Approx. Loose Circlip OD (Dr)
145.85
mm + 1.14 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.18
Approx. Loose Clip ID: 133.15 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 50 |
||||||
|
Part Number: RR-550 (Each)
Internal Retaining Rings - 139.7x1.83x143.44 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.23
mm +/- 0.11 (Equiv. 0.127 in.) |
Groove Dia. (Dg)
152.91
mm (Equiv. 6.02 in.) |
Approx. Loose Circlip OD (Dr)
155.11
mm + 1.02 / - 0.00 |
Radial Wall (S) Approx.
9.53
mm +/- 0.16 |
Groove Width (W)
3.61
mm +/- 0.18 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 136.05 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 47 |
||||||
|
Part Number: RRT-575 (Each)
Internal Retaining Rings - 146.05x3.23x152.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$28.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.23
mm +/- 0.11 (Equiv. 0.127 in.) |
Groove Dia. (Dg)
152.91
mm (Equiv. 6.02 in.) |
Approx. Loose Circlip OD (Dr)
155.11
mm + 1.02 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 9.53 mm +/- 0.16
Groove Width (W): 3.61 mm +/- 0.18
Approx. Loose Clip ID: 136.05 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 47 |
||||||
|
Part Number: RRT-575 (Each)
Internal Retaining Rings - 146.05x3.23x152.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$28.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
