Collection: Retaining Rings - Internal - Spiral Rings
Retaining Rings -> Internal -> Spiral RingsThere are 103 products in the sub-categories of Retaining Rings - Internal - Spiral Rings. Scroll down or follow the link to Retaining Rings - Internal - Spiral Rings in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

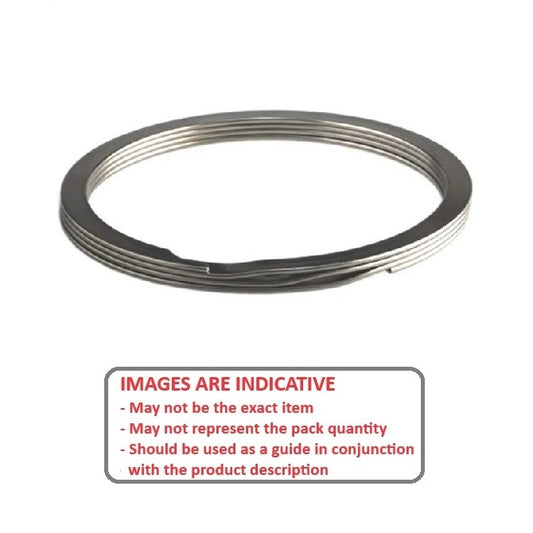

Retaining Rings - Internal - Spiral Rings - Heavy Duty
This category includes various types of internal retaining rings.An expanded range may...

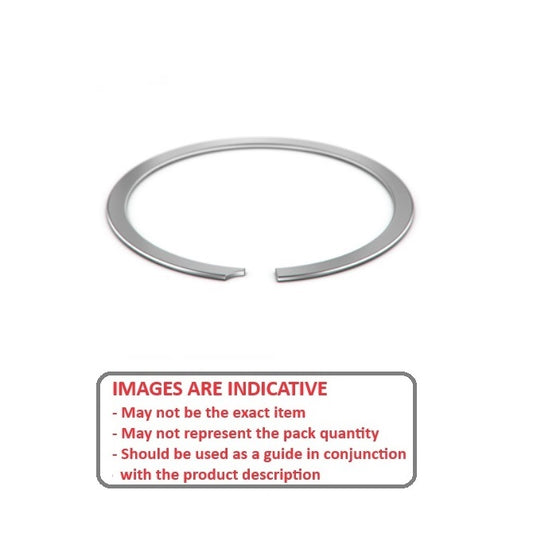

Retaining Rings - Internal - Spiral Rings - Light Duty
This category includes various types of internal retaining rings.An expanded range may...

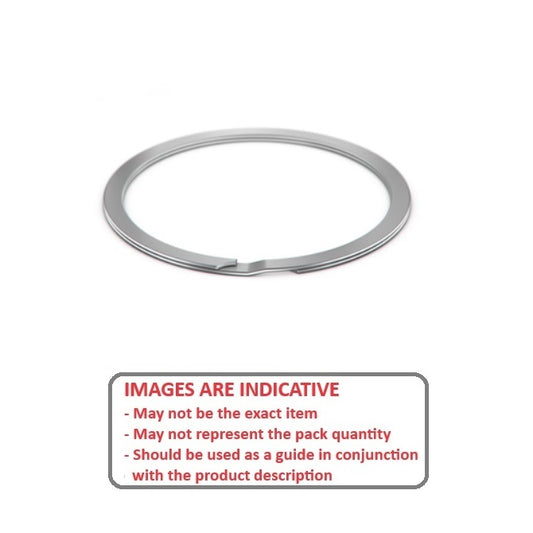

Retaining Rings - Internal - Spiral Rings - Medium Duty
This category includes various types of internal retaining rings.An expanded range may...
Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
This category includes various types of internal retaining rings.An expanded range may...
Category Details
This category includes various types of internal retaining rings.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings category on the Small Parts & Bearings online store.
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 12.7x0.46x13.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
13.41
mm (Equiv. 0.528 in.) |
Approx. Loose Circlip OD (Dr)
13.31
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm + 0.08 / - 0.13 |
Groove Width (W)
0.56
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 11.03 + + 0.05 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings - Light Duty Additional stock available from USA subject to Prior Sale = 1913 |
||||||
|
Part Number: UR-050-S02 (PK-8)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 12.7x0.46x13.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
13.41
mm (Equiv. 0.528 in.) |
Approx. Loose Circlip OD (Dr)
13.31
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.14 mm + 0.08 / - 0.13
Groove Width (W): 0.56 mm +/- 0.05
Approx. Loose Clip ID: 11.03 + + 0.05 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings - Light Duty Additional stock available from USA subject to Prior Sale = 1913 |
||||||
|
Part Number: UR-050-S02 (PK-8)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

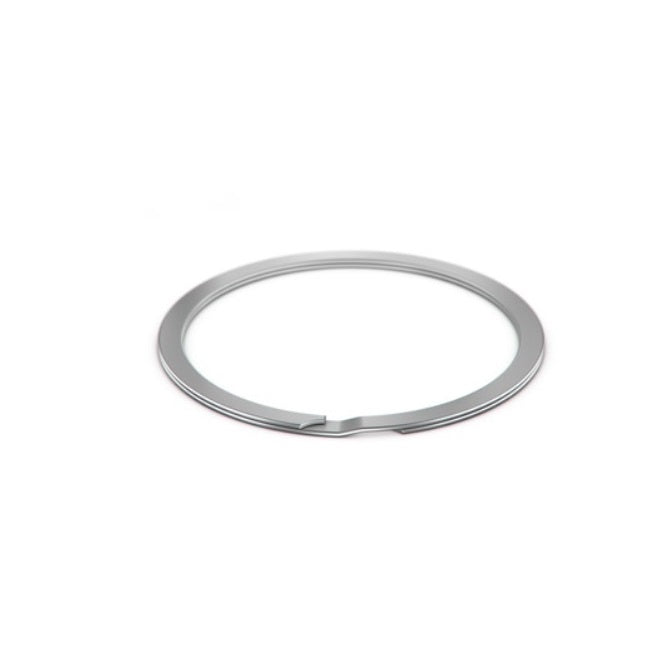

| Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
13.35
mm (Equiv. 0.526 in.) |
Approx. Loose Circlip OD (Dr)
13.26
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 10.98 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 17962 |
||||||
|
Part Number: RR-050 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$21.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
13.35
mm (Equiv. 0.526 in.) |
Approx. Loose Circlip OD (Dr)
13.26
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip ID: 10.98 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 17962 |
||||||
|
Part Number: RR-050 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$21.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

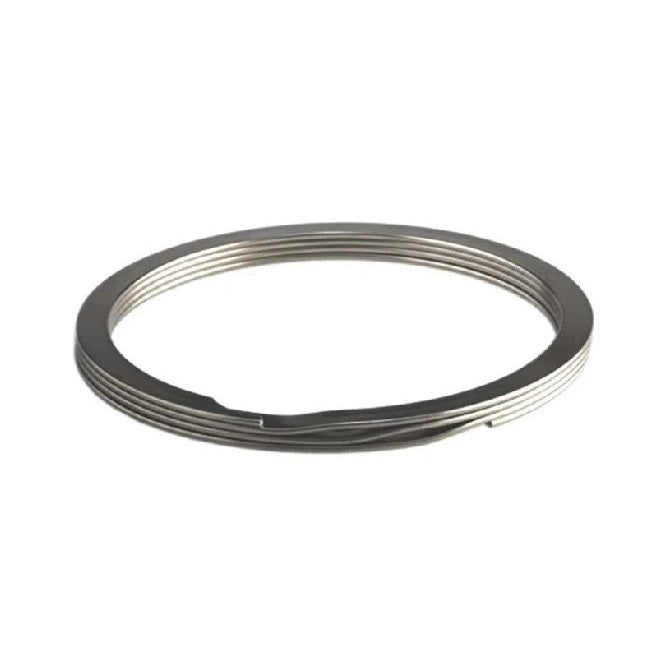

| Internal Retaining Rings - 12.7x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip OD (Dr)
13.55
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 11.27 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 5840 |
||||||
|
Part Number: RRN-050-S02 (PK-9)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 9 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 12.7x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip OD (Dr)
13.55
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 11.27 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 5840 |
||||||
|
Part Number: RRN-050-S02 (PK-9)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 9 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
14.29
mm (Equiv. 0.563 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
14.70
mm (Equiv. 0.579 in.) |
Approx. Loose Circlip OD (Dr)
14.92
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 12.64 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-056 (PK-5)
3 units (15 pcs) Available Now | Further orders can be expected around Mon, Mar 30, 2026 Regular price
$14.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
14.29
mm (Equiv. 0.563 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
14.70
mm (Equiv. 0.579 in.) |
Approx. Loose Circlip OD (Dr)
14.92
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip ID: 12.64 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-056 (PK-5)
3 units (15 pcs) Available Now | Further orders can be expected around Mon, Mar 30, 2026 Regular price
$14.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.09
mm (Equiv. 0.594 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.72
mm (Equiv. 0.619 in.) |
Approx. Loose Circlip OD (Dr)
15.75
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 13.47 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-059 (PK-98)
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 27, 2026 Regular price
$129.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 98 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.09
mm (Equiv. 0.594 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.72
mm (Equiv. 0.619 in.) |
Approx. Loose Circlip OD (Dr)
15.75
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip ID: 13.47 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-059 (PK-98)
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 27, 2026 Regular price
$129.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 98 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 15.88x0.46x16.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
16.59
mm (Equiv. 0.653 in.) |
Approx. Loose Circlip OD (Dr)
16.64
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm + 0.08 / - 0.13 |
Groove Width (W)
0.56
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 14.36 + 0.05 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings - Light Duty Additional stock available from USA subject to Prior Sale = 2569 |
||||||
|
Part Number: UR-062 (PK-13)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 13 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 15.88x0.46x16.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.46
mm +/- 0.04 (Equiv. 0.018 in.) |
Groove Dia. (Dg)
16.59
mm (Equiv. 0.653 in.) |
Approx. Loose Circlip OD (Dr)
16.64
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm + 0.08 / - 0.13
Groove Width (W): 0.56 mm +/- 0.05
Approx. Loose Clip ID: 14.36 + 0.05 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings - Light Duty Additional stock available from USA subject to Prior Sale = 2569 |
||||||
|
Part Number: UR-062 (PK-13)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 13 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.53
mm (Equiv. 0.651 in.) |
Approx. Loose Circlip OD (Dr)
16.58
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 14.3 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 3193 |
||||||
|
Part Number: RR-062-S02 (PK-10)
48 units (480 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$3.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.53
mm (Equiv. 0.651 in.) |
Approx. Loose Circlip OD (Dr)
16.58
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip ID: 14.3 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 3193 |
||||||
|
Part Number: RR-062-S02 (PK-10)
48 units (480 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$3.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.53
mm (Equiv. 0.651 in.) |
Approx. Loose Circlip OD (Dr)
16.58
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 14.3 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 19403 |
||||||
|
Part Number: RR-062 (PK-2)
141 units (282 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$2.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.53
mm (Equiv. 0.651 in.) |
Approx. Loose Circlip OD (Dr)
16.58
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip ID: 14.3 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 19403 |
||||||
|
Part Number: RR-062 (PK-2)
141 units (282 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$2.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 14.14 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RRN-062-S02 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Feb 06, 2026 Regular price
$454.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 14.14 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RRN-062-S02 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Feb 06, 2026 Regular price
$454.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 14.14 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 4394 |
||||||
|
Part Number: RRN-062 (PK-40)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$9.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 14.14 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 4394 |
||||||
|
Part Number: RRN-062 (PK-40)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$9.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
17.45
mm (Equiv. 0.687 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
18.11
mm (Equiv. 0.713 in.) |
Approx. Loose Circlip OD (Dr)
18.22
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 15.94 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 472 |
||||||
|
Part Number: RR-068 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$10.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
17.45
mm (Equiv. 0.687 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
18.11
mm (Equiv. 0.713 in.) |
Approx. Loose Circlip OD (Dr)
18.22
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip ID: 15.94 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 472 |
||||||
|
Part Number: RR-068 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$10.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
19.86
mm (Equiv. 0.782 in.) |
Approx. Loose Circlip OD (Dr)
19.89
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 16.59 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-075-S02 (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 12, 2026 Regular price
$1,360.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
19.86
mm (Equiv. 0.782 in.) |
Approx. Loose Circlip OD (Dr)
19.89
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.05
Approx. Loose Clip ID: 16.59 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty |
||||||
|
Part Number: RR-075-S02 (PK-500)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 12, 2026 Regular price
$1,360.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 17.03 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 20531 |
||||||
|
Part Number: RRN-075 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$13.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 17.03 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 20531 |
||||||
|
Part Number: RRN-075 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$13.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 17.03 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 117 |
||||||
|
Part Number: RRN-075-S02 (PK-3)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$21.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 17.03 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 117 |
||||||
|
Part Number: RRN-075-S02 (PK-3)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$21.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
22.94
mm (Equiv. 0.903 in.) |
Approx. Loose Circlip OD (Dr)
22.97
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 19.67 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 188 |
||||||
|
Part Number: RR-086 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
22.94
mm (Equiv. 0.903 in.) |
Approx. Loose Circlip OD (Dr)
22.97
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.08
Approx. Loose Clip ID: 19.67 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 188 |
||||||
|
Part Number: RR-086 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
23.17
mm (Equiv. 0.912 in.) |
Approx. Loose Circlip OD (Dr)
23.21
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 19.91 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 2402 |
||||||
|
Part Number: RR-087 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
23.17
mm (Equiv. 0.912 in.) |
Approx. Loose Circlip OD (Dr)
23.21
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip ID: 19.91 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 2402 |
||||||
|
Part Number: RR-087 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 22.23x1.07x23.42 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.42
mm (Equiv. 0.922 in.) |
Approx. Loose Circlip OD (Dr)
23.61
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 20.31 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RRT-087 (PK-6)
15 units (90 pcs) Available Now | Further orders can be expected around Mon, Mar 30, 2026 Regular price
$5.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 22.23x1.07x23.42 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.42
mm (Equiv. 0.922 in.) |
Approx. Loose Circlip OD (Dr)
23.61
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip ID: 20.31 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RRT-087 (PK-6)
15 units (90 pcs) Available Now | Further orders can be expected around Mon, Mar 30, 2026 Regular price
$5.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 22.23x1.07x23.65 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.65
mm (Equiv. 0.931 in.) |
Approx. Loose Circlip OD (Dr)
23.72
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 19.4 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 22162 |
||||||
|
Part Number: RRN-087 (PK-4)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 22.23x1.07x23.65 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.65
mm (Equiv. 0.931 in.) |
Approx. Loose Circlip OD (Dr)
23.72
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Approx. Loose Clip ID: 19.4 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 22162 |
||||||
|
Part Number: RRN-087 (PK-4)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
24.77
mm (Equiv. 0.975 in.) |
Approx. Loose Circlip OD (Dr)
24.88
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 21.58 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 2682 |
||||||
|
Part Number: RR-093 (PK-40)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$9.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
24.77
mm (Equiv. 0.975 in.) |
Approx. Loose Circlip OD (Dr)
24.88
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip ID: 21.58 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 2682 |
||||||
|
Part Number: RR-093 (PK-40)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$9.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 23.83x1.07x25.12 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
25.12
mm (Equiv. 0.989 in.) |
Approx. Loose Circlip OD (Dr)
25.31
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 21.49 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 47 |
||||||
|
Part Number: RRT-093 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 23.83x1.07x25.12 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
25.12
mm (Equiv. 0.989 in.) |
Approx. Loose Circlip OD (Dr)
25.31
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip ID: 21.49 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 47 |
||||||
|
Part Number: RRT-093 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 23.83x1.07x25.4 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
25.40
mm (Equiv. 1 in.) |
Approx. Loose Circlip OD (Dr)
25.43
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 21.11 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 20793 |
||||||
|
Part Number: RRN-093 (PK-42)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$9.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 42 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 23.83x1.07x25.4 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
25.40
mm (Equiv. 1 in.) |
Approx. Loose Circlip OD (Dr)
25.43
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip ID: 21.11 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 20793 |
||||||
|
Part Number: RRN-093 (PK-42)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$9.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 42 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 22.7 +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 25907 |
||||||
|
Part Number: RR-100 (PK-2)
96 units (192 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$4.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Approx. Loose Clip ID: 22.7 +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 25907 |
||||||
|
Part Number: RR-100 (PK-2)
96 units (192 pcs) Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$4.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 22.7 +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 80 |
||||||
|
Part Number: RR-100-S02 (Each)
80 Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$4.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm (Equiv. 1.043 in.) |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Approx. Loose Clip ID: 22.7 +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 80 |
||||||
|
Part Number: RR-100-S02 (Each)
80 Available Now | Further orders can be expected around Sat, Jan 24, 2026 Regular price
$4.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 22.78 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 17059 |
||||||
|
Part Number: RRN-100 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Approx. Loose Clip ID: 22.78 +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty Additional stock available from USA subject to Prior Sale = 17059 |
||||||
|
Part Number: RRN-100 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 24, 2026 Regular price
$5.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
