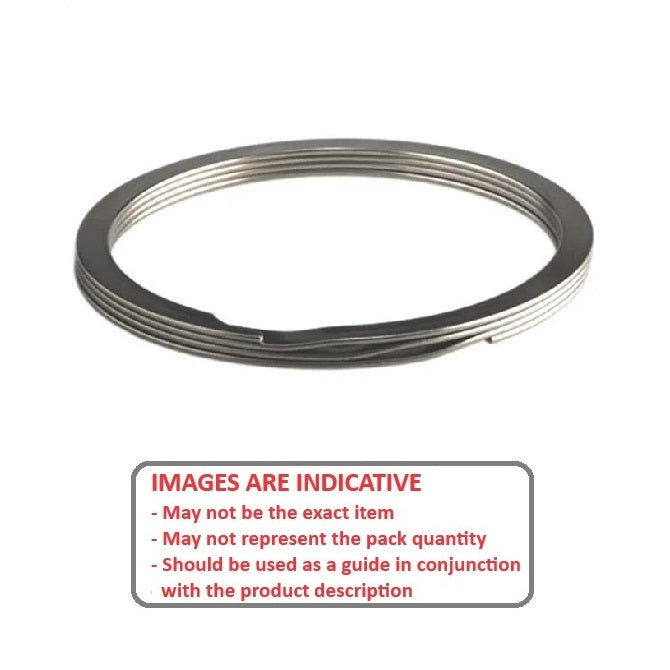

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

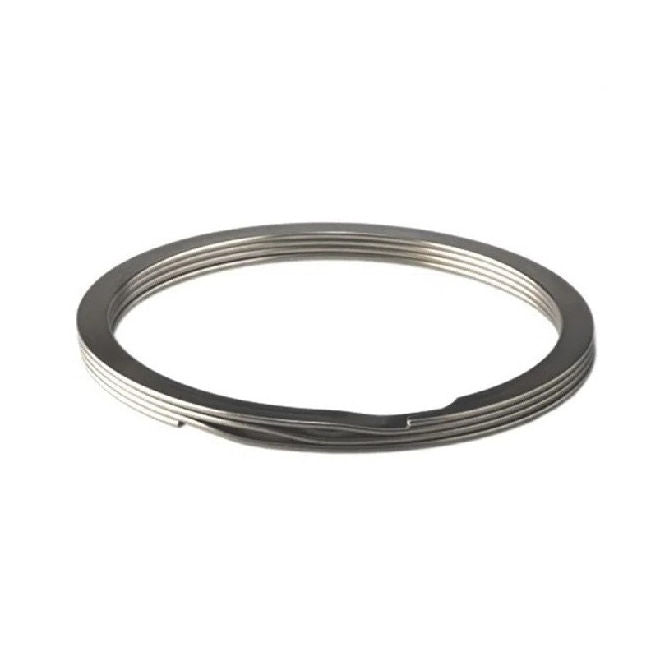

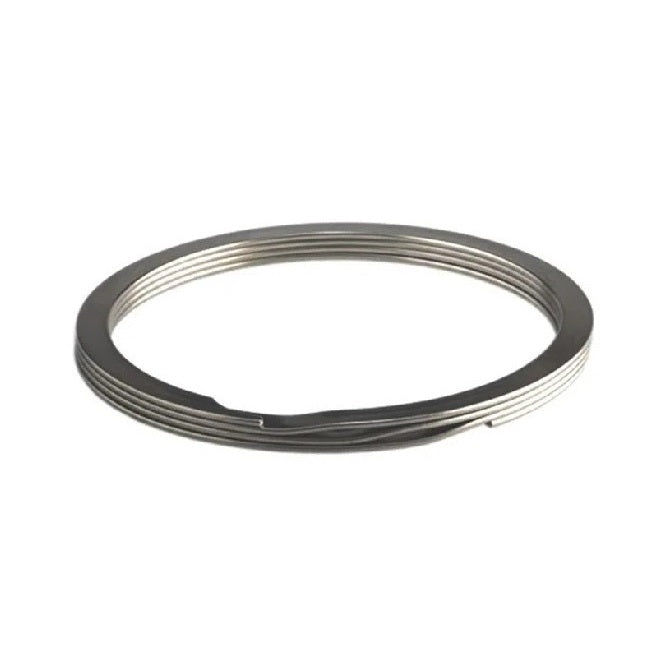

Spiral - 109.98 mm x 2.82 mm x 101.49 mm
RRN-433 (5 Pcs)

MBA

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Price:
$279.68 AUD
$279.68 AUD
per 5
Out Of Stock
Order 50 or more (250 pcs) for $251.71 AUD per 5
Pre-Order now! Backorders for more than the stock quantity are expected before Mar 06, 2025

Base Category: Spiral Rings - Internal

Top Level Category: Spiral Rings - Internal - Heavy Duty - Carbon Steel

Product Details:

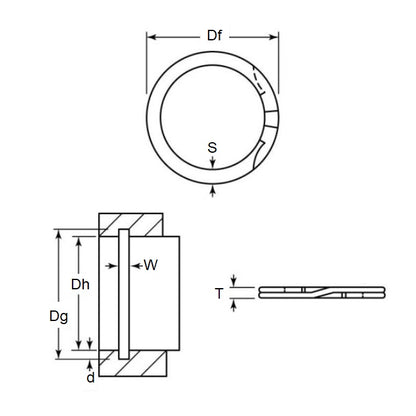

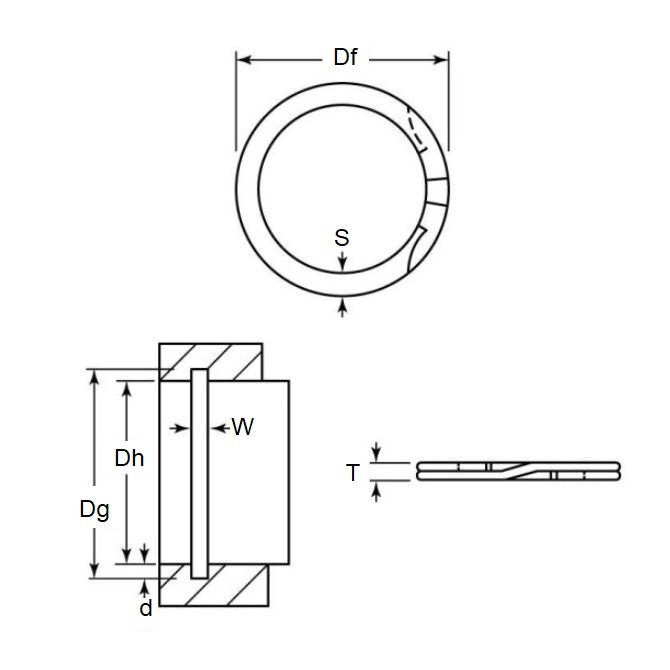

Bore (Db): 109.98mm
Spring Steel
  • Thickness (T): 2.82mm
    +/-0.08
  • Approx. Free ID: 101.49mm
  • Free OD Max. (Dr): 117.35mm
    +0.89/-0.00
  • Radial Wall (S): 7.93mm
    +/-0.16
  • Groove Dia. (Dg): 115.72mm
    +/-0.15
  • Groove Width (W): 3.12mm

  • +/-0.07
  • Groove Depth (d): 3.05

Brand: MBA
Country of Origin: US

Alternatives: AHI-433, WHM-433

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
