RR-437 (PK-6)

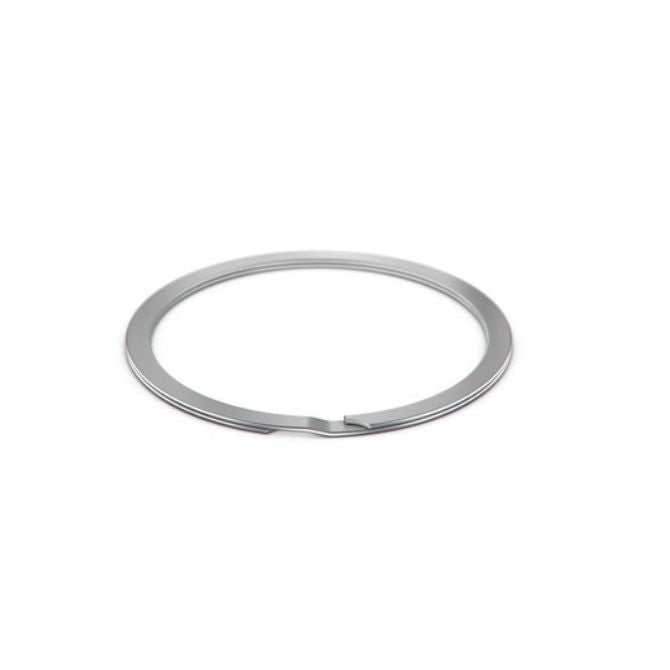

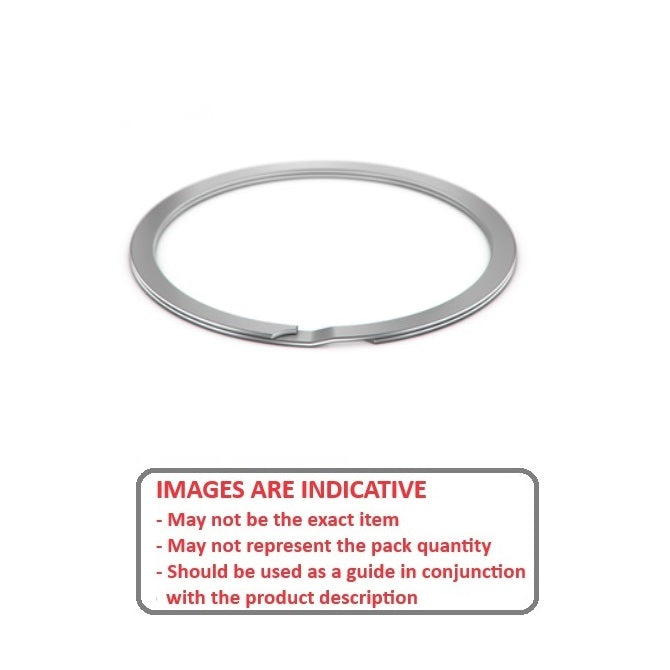

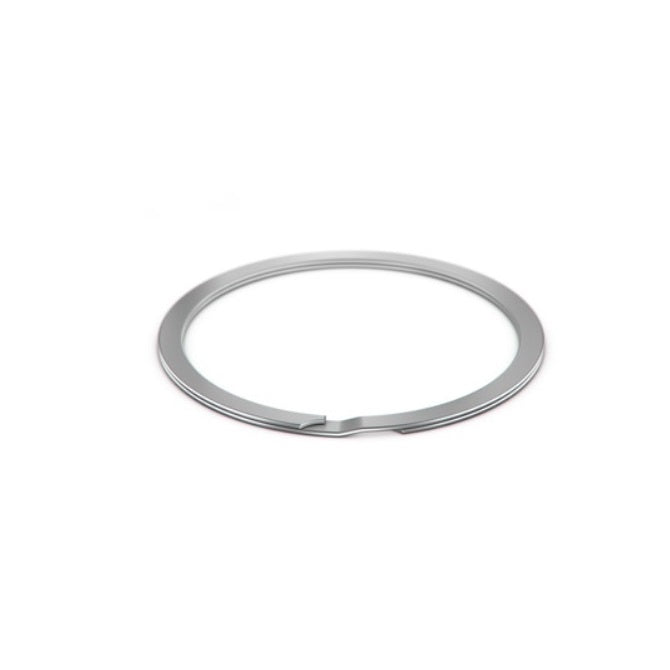

Internal Retaining Rings - 111.13x1.55x114.43 mm Spiral Rings - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 6 (300 pcs)
for $147.65 AUD per 6 pack
4-3/8x4-1/2 inch Spiral - 111.13x1.55x114.43 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 6:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Product Details

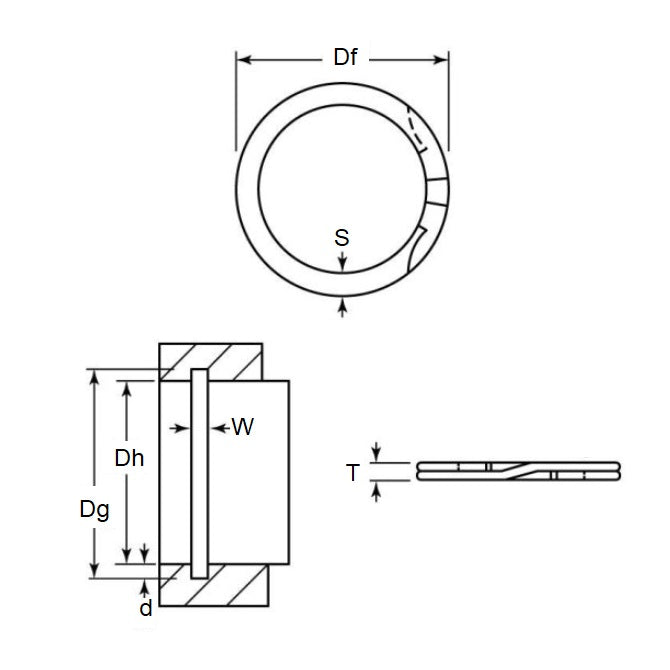

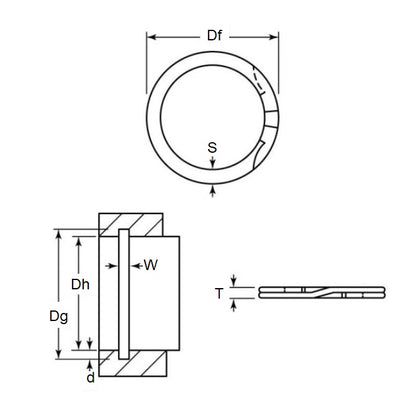

Housing Bore (B): 111.13mm(111.13mm is 4.375 in.)
Carbon Spring Steel
- Housing Bore (B): 111.13mm
(111.13mm is 4.375 in.)
- Clip Thickness (T): 1.55mm
+/- 0.08
(1.55mm is 0.061 in.)
- Groove Dia. (Dg): 114.43mm
(114.43mm is 4.505 in.)
- Approx. Loose Circlip OD (Dr): 116.02mm
+ 0.89 / - 0.00
- Radial Wall (S) Approx.: 5.79mm
+/- 0.13
- Groove Width (W): 1.79mm
+/- 0.16
- Approx. Loose Clip ID: 104.44
+/- 0.06
- Groove Depth (d): 1.65
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Associated Spring® AI-437
- Huyett® RR-437
- Smalley® WH-437
- Spirolox® WH-437
- WH437
- AI437
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RR437,
