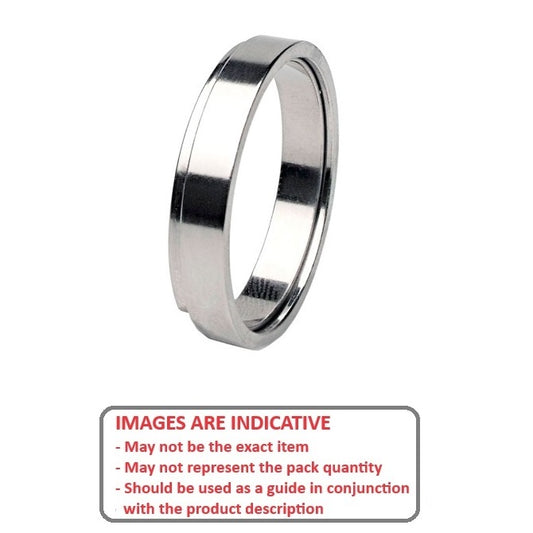

Locking Elements

1 Item Available
  • 2.4 to 2200 Nm, 6-80mm Bores
  • ETG 100 High Strength Steel for sizes up to 55mm bore
  • C60 Steel for sizes over 55mm bore
  • Recommended machining tolerances Shaft h8, Hub H8
Additional resources:
A more concise listing may be found on the Smallparts store at Locking Elements. Smallparts promote the most popular MBA products.
B D Torque Nm L L1 Shaft Pw Indicative
16
mm 		20
mm 		27.30
Nm 		6.30
mm 		5
105.0
1114794 | OKSD50-16X20-OUK (2 Pcs) --- Locking Elements - 16x20 mm - 27.3 Nm
Hub N/mm: 85.00    Tension FA: 25400
Part Number: OKSD50-16X20-OUK (2 Pcs) Locking Elements - 16x20 mm - 27.3 Nm
1 pack (2 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$24.00 AUD
$45.60 AUD $24.00 AUD
Per 2
B D Torque Nm L Indicative
16
mm 		20
mm 		27.30
Nm 		6.30
mm 		1114794 | OKSD50-16X20-OUK (2 Pcs) --- Locking Elements - 16x20 mm - 27.3 Nm
L1: 5    Shaft Pw: 105.0    Hub N/mm: 85.00    Tension FA: 25400
Part Number: OKSD50-16X20-OUK (2 Pcs) Locking Elements - 16x20 mm - 27.3 Nm
1 pack (2 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$24.00 AUD
$45.60 AUD $24.00 AUD
Per 2
