Collection: Shaft - Extenders
- Shaft (With Images)
- Extenders
3 Products in this selection
- Miniature and large shaft extenders and reducers. Used to increase or reduce the diameter, or increase the length of shafts.
- Also known as shaft increasers or shaft reducers.
Additional resources:
A more concise listing may be found on the Smallparts store at Shaft - Extenders. Smallparts promote the most popular MBA products.
| Bore (B) | Shaft Diameter (C) | Overall Length (L) | Shaft Length (E) | Bore Depth (D) | Outside Diameter (OD) |
Indicative Image |
|---|---|---|---|---|---|---|
|
6.350
mm + 0.051 / - 0.000 |
12.7
mm + 0.051 / - 0.000 |
44.45
mm |
31.75
mm |
11.13
mm |
12.70
mm |
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Configuration: Set Screw Type | ||||||
|

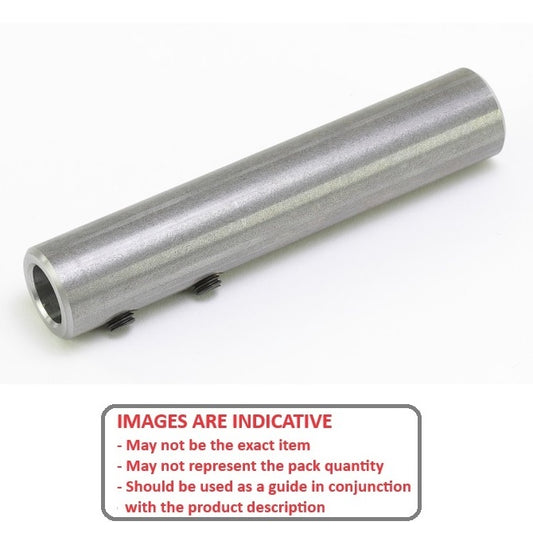

Part Number: SE064-127-445-G3A Extenders Shaft - 6.35x12.7x44.45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$9.00 AUD
Regular price
Unit price
per
Each
|
||||||
| Bore (B) | Shaft Diameter (C) | Overall Length (L) | Shaft Length (E) |
Indicative Image |
||
|
6.350
mm + 0.051 / - 0.000 |
12.7
mm + 0.051 / - 0.000 |
44.45
mm |
31.75
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Bore Depth (D): 11.13 mm Outside Diameter (OD): 12.70 mm Configuration: Set Screw Type | ||||||
|
Part Number: SE064-127-445-G3A Extenders Shaft - 6.35x12.7x44.45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$9.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
9.525
mm + 0.0076 / - 0.0051 |
6.35
mm + 0.0076 / - 0.0051 |
44.45
mm |
25.40
mm |
12.70
mm |
22.10
mm |
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Configuration: Fairloc Type | ||||||
|

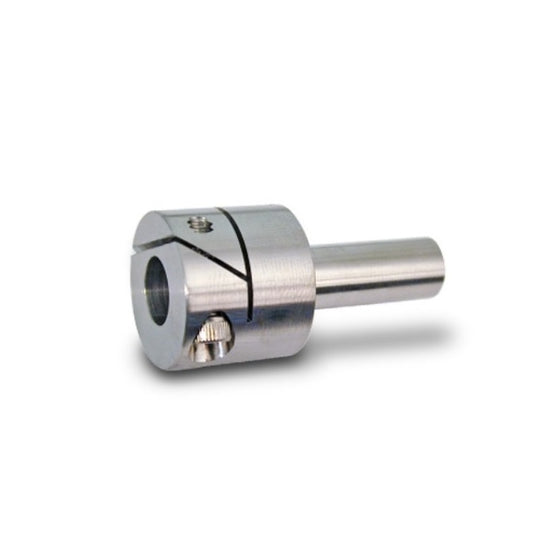

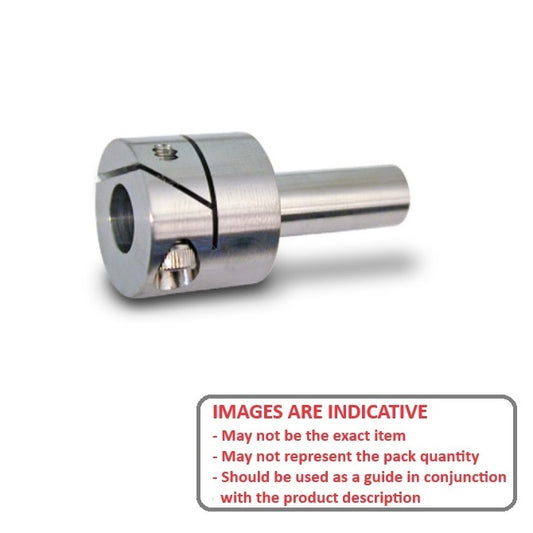

Part Number: SE095-064-445-F3 Extenders Shaft - 9.525x6.35x44.45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
9.525
mm + 0.0076 / - 0.0051 |
6.35
mm + 0.0076 / - 0.0051 |
44.45
mm |
25.40
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Bore Depth (D): 12.70 mm Outside Diameter (OD): 22.10 mm Configuration: Fairloc Type | ||||||
|
Part Number: SE095-064-445-F3 Extenders Shaft - 9.525x6.35x44.45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
12.700
mm + 0.0076 / - 0.0051 |
9.525
mm + 0.0076 / - 0.0051 |
25.40
mm |
25.40
mm |
19.05
mm |
25.40
mm |
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Configuration: Fairloc Type | ||||||
|
Part Number: SE127-095-254-F3 Extenders Shaft - 12.7x9.525x25.4 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
12.700
mm + 0.0076 / - 0.0051 |
9.525
mm + 0.0076 / - 0.0051 |
25.40
mm |
25.40
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Bore Depth (D): 19.05 mm Outside Diameter (OD): 25.40 mm Configuration: Fairloc Type | ||||||
|
Part Number: SE127-095-254-F3 Extenders Shaft - 12.7x9.525x25.4 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
