Retaining Rings - Internal - Snap Rings

Retaining Rings -> Internal -> Snap Rings
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Section (Rd) Groove Width (W) Indicative
Internal Retaining Rings - 165.1x3.96x170.49 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
165.10
mm

(Equiv. 6.5 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
170.49
mm
+/- 0.20
(Equiv. 6.712 in.)
Approx. Loose Circlip OD (Dr)
173.53
mm
+ 4.00 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 165.1x3.96x170.49 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 156.11
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1651-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 165.1x3.96x170.49 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
165.10
mm

(Equiv. 6.5 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
170.49
mm
+/- 0.20
(Equiv. 6.712 in.)
Approx. Loose Circlip OD (Dr)
173.53
mm
+ 4.00 / - 0.00
Internal Retaining Rings - 165.1x3.96x170.49 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 156.11
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1651-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 165.1x3.96x172.47 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
165.10
mm

(Equiv. 6.5 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
172.47
mm
+/- 0.20
(Equiv. 6.79 in.)
Approx. Loose Circlip OD (Dr)
175.39
mm
+ 3.80 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 165.1x3.96x172.47 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 157.97
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1651-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 165.1x3.96x172.47 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
165.10
mm

(Equiv. 6.5 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
172.47
mm
+/- 0.20
(Equiv. 6.79 in.)
Approx. Loose Circlip OD (Dr)
175.39
mm
+ 3.80 / - 0.00
Internal Retaining Rings - 165.1x3.96x172.47 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 157.97
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1651-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 168.28x3.96x173.86 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
168.28
mm

(Equiv. 6.625 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
173.86
mm
+/- 0.20
(Equiv. 6.845 in.)
Approx. Loose Circlip OD (Dr)
177.17
mm
+ 4.00 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 168.28x3.96x173.86 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 159.75
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1683-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 168.28x3.96x173.86 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
168.28
mm

(Equiv. 6.625 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
173.86
mm
+/- 0.20
(Equiv. 6.845 in.)
Approx. Loose Circlip OD (Dr)
177.17
mm
+ 4.00 / - 0.00
Internal Retaining Rings - 168.28x3.96x173.86 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 159.75
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1683-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 168.28x3.96x175.9 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
168.28
mm

(Equiv. 6.625 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
175.90
mm
+/- 0.20
(Equiv. 6.925 in.)
Approx. Loose Circlip OD (Dr)
178.94
mm
+ 3.80 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 168.28x3.96x175.9 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 161.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1683-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 168.28x3.96x175.9 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
168.28
mm

(Equiv. 6.625 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
175.90
mm
+/- 0.20
(Equiv. 6.925 in.)
Approx. Loose Circlip OD (Dr)
178.94
mm
+ 3.80 / - 0.00
Internal Retaining Rings - 168.28x3.96x175.9 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 161.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1683-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
170.00
mm

(Equiv. 6.693 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
172.6
mm
+ 0.25 / - 0.00
(Equiv. 6.795 in.)
Approx. Loose Circlip OD (Dr)
174.30
mm
Section (Rd)
4.00
mm
+ 0 / - 0.10
Groove Width (W)
2.70
mm
Internal Retaining Rings - 170x2.5x172.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 166.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Additional stock available from USA subject to Prior Sale = 18
Part Number: WRI-1700-LS (Each)
50 Available Now | Further orders can be expected around Sat, Jan 24, 2026
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 50 available can be backordered.
Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
170.00
mm

(Equiv. 6.693 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
172.6
mm
+ 0.25 / - 0.00
(Equiv. 6.795 in.)
Approx. Loose Circlip OD (Dr)
174.30
mm
Internal Retaining Rings - 170x2.5x172.6 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 4.00 mm + 0 / - 0.10    Groove Width (W): 2.70 mm    Approx. Loose Clip ID: 166.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Additional stock available from USA subject to Prior Sale = 18
Part Number: WRI-1700-LS (Each)
50 Available Now | Further orders can be expected around Sat, Jan 24, 2026
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

50 Available Now. Backorder if more than 50.
Internal Retaining Rings - 171.45x3.96x177.04 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
171.45
mm

(Equiv. 6.75 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
177.04
mm
+/- 0.20
(Equiv. 6.97 in.)
Approx. Loose Circlip OD (Dr)
180.34
mm
+ 4.00 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 171.45x3.96x177.04 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 162.92
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1715-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 171.45x3.96x177.04 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
171.45
mm

(Equiv. 6.75 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
177.04
mm
+/- 0.20
(Equiv. 6.97 in.)
Approx. Loose Circlip OD (Dr)
180.34
mm
+ 4.00 / - 0.00
Internal Retaining Rings - 171.45x3.96x177.04 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 162.92
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1715-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 171.45x3.96x179.2 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
171.45
mm

(Equiv. 6.75 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
179.20
mm
+/- 0.20
(Equiv. 7.055 in.)
Approx. Loose Circlip OD (Dr)
182.37
mm
+ 3.80 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 171.45x3.96x179.2 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 164.95
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1715-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 171.45x3.96x179.2 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
171.45
mm

(Equiv. 6.75 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
179.20
mm
+/- 0.20
(Equiv. 7.055 in.)
Approx. Loose Circlip OD (Dr)
182.37
mm
+ 3.80 / - 0.00
Internal Retaining Rings - 171.45x3.96x179.2 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 164.95
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1715-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 173x2.5x175.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
173.00
mm

(Equiv. 6.811 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
175.6
mm
+ 0.25 / - 0.00
(Equiv. 6.913 in.)
Approx. Loose Circlip OD (Dr)
177.30
mm
Section (Rd)
4.00
mm
+ 0 / - 0.10
Groove Width (W)
2.70
mm
Internal Retaining Rings - 173x2.5x175.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 169.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1730-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 173x2.5x175.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
173.00
mm

(Equiv. 6.811 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
175.6
mm
+ 0.25 / - 0.00
(Equiv. 6.913 in.)
Approx. Loose Circlip OD (Dr)
177.30
mm
Internal Retaining Rings - 173x2.5x175.6 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 4.00 mm + 0 / - 0.10    Groove Width (W): 2.70 mm    Approx. Loose Clip ID: 169.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1730-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 175x2.5x177.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
175.00
mm

(Equiv. 6.89 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
177.6
mm
+ 0.25 / - 0.00
(Equiv. 6.992 in.)
Approx. Loose Circlip OD (Dr)
179.30
mm
Section (Rd)
4.00
mm
+ 0 / - 0.10
Groove Width (W)
2.70
mm

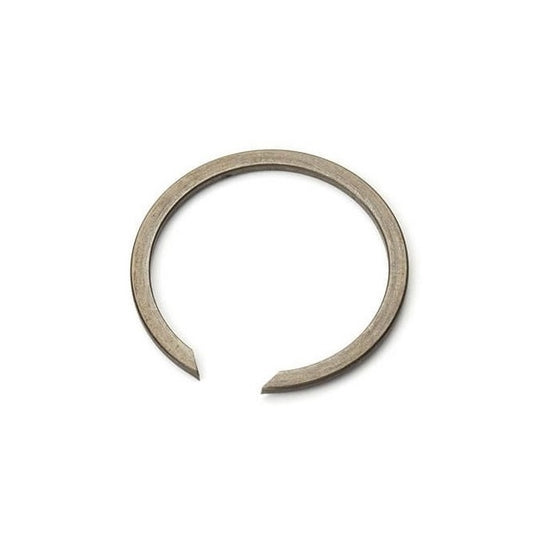

Internal Retaining Rings - 175x2.5x177.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 171.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1750-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 175x2.5x177.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
175.00
mm

(Equiv. 6.89 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
177.6
mm
+ 0.25 / - 0.00
(Equiv. 6.992 in.)
Approx. Loose Circlip OD (Dr)
179.30
mm
Internal Retaining Rings - 175x2.5x177.6 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 4.00 mm + 0 / - 0.10    Groove Width (W): 2.70 mm    Approx. Loose Clip ID: 171.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1750-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 177.8x2.36x181.86 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
181.86
mm
+/- 0.20
(Equiv. 7.16 in.)
Approx. Loose Circlip OD (Dr)
183.90
mm
+ 3.18 / - 0.00
Section (Rd)
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
Internal Retaining Rings - 177.8x2.36x181.86 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 171.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1778-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 177.8x2.36x181.86 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
181.86
mm
+/- 0.20
(Equiv. 7.16 in.)
Approx. Loose Circlip OD (Dr)
183.90
mm
+ 3.18 / - 0.00
Internal Retaining Rings - 177.8x2.36x181.86 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip ID: 171.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1778-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 177.8x3.96x181.23 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
181.23
mm
+/- 0.20
(Equiv. 7.135 in.)
Approx. Loose Circlip OD (Dr)
189.10
mm
+ 3.80 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 177.8x3.96x181.23 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 171.68
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1778-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 177.8x3.96x181.23 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
181.23
mm
+/- 0.20
(Equiv. 7.135 in.)
Approx. Loose Circlip OD (Dr)
189.10
mm
+ 3.80 / - 0.00
Internal Retaining Rings - 177.8x3.96x181.23 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 171.68
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1778-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 177.8x3.96x183.39 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
183.39
mm
+/- 0.20
(Equiv. 7.22 in.)
Approx. Loose Circlip OD (Dr)
186.69
mm
+ 4.00 / - 0.00
Section (Rd)
8.71
mm
+/- 0.13
Groove Width (W)
4.42
mm
Internal Retaining Rings - 177.8x3.96x183.39 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 169.27
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1778-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 177.8x3.96x183.39 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
3.96
mm
+/- 0.05
(Equiv. 0.156 in.)
Groove Dia. (Dg)
183.39
mm
+/- 0.20
(Equiv. 7.22 in.)
Approx. Loose Circlip OD (Dr)
186.69
mm
+ 4.00 / - 0.00
Internal Retaining Rings - 177.8x3.96x183.39 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 8.71 mm +/- 0.13    Groove Width (W): 4.42 mm    Approx. Loose Clip ID: 169.27
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1778-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 183x2.5x185.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
183.00
mm

(Equiv. 7.205 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
185.6
mm
+ 0.29 / - 0.00
(Equiv. 7.307 in.)
Approx. Loose Circlip OD (Dr)
187.50
mm
Section (Rd)
4.00
mm
+ 0 / - 0.10
Groove Width (W)
2.70
mm
Internal Retaining Rings - 183x2.5x185.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 179.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1830-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 183x2.5x185.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
183.00
mm

(Equiv. 7.205 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
185.6
mm
+ 0.29 / - 0.00
(Equiv. 7.307 in.)
Approx. Loose Circlip OD (Dr)
187.50
mm
Internal Retaining Rings - 183x2.5x185.6 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 4.00 mm + 0 / - 0.10    Groove Width (W): 2.70 mm    Approx. Loose Clip ID: 179.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1830-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 184.15x2.36x188.21 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
188.21
mm
+/- 0.20
(Equiv. 7.41 in.)
Approx. Loose Circlip OD (Dr)
190.50
mm
+ 4.75 / - 0.00
Section (Rd)
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
Internal Retaining Rings - 184.15x2.36x188.21 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 177.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1842-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 184.15x2.36x188.21 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
188.21
mm
+/- 0.20
(Equiv. 7.41 in.)
Approx. Loose Circlip OD (Dr)
190.50
mm
+ 4.75 / - 0.00
Internal Retaining Rings - 184.15x2.36x188.21 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip ID: 177.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1842-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 184.15x4.75x190.5 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
190.50
mm
+/- 0.20
(Equiv. 7.5 in.)
Approx. Loose Circlip OD (Dr)
193.80
mm
+ 4.75 / - 0.00
Section (Rd)
9.53
mm
+/- 0.13
Groove Width (W)
5.31
mm
Internal Retaining Rings - 184.15x4.75x190.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 174.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1842-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 184.15x4.75x190.5 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
190.50
mm
+/- 0.20
(Equiv. 7.5 in.)
Approx. Loose Circlip OD (Dr)
193.80
mm
+ 4.75 / - 0.00
Internal Retaining Rings - 184.15x4.75x190.5 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 9.53 mm +/- 0.13    Groove Width (W): 5.31 mm    Approx. Loose Clip ID: 174.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1842-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 184.15x4.75x192.41 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
192.41
mm
+/- 0.20
(Equiv. 7.575 in.)
Approx. Loose Circlip OD (Dr)
195.71
mm
+ 4.60 / - 0.00
Section (Rd)
9.53
mm
+/- 0.13
Groove Width (W)
5.31
mm
Internal Retaining Rings - 184.15x4.75x192.41 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 176.65
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1842-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 184.15x4.75x192.41 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
192.41
mm
+/- 0.20
(Equiv. 7.575 in.)
Approx. Loose Circlip OD (Dr)
195.71
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 184.15x4.75x192.41 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 9.53 mm +/- 0.13    Groove Width (W): 5.31 mm    Approx. Loose Clip ID: 176.65
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1842-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 190x3x193 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
190.00
mm

(Equiv. 7.48 in.)
Clip Thickness (T)
3.00
mm
+ 0 / - 0.10
(Equiv. 0.118 in.)
Groove Dia. (Dg)
193.0
mm
+ 0.29 / - 0.00
(Equiv. 7.598 in.)
Approx. Loose Circlip OD (Dr)
194.90
mm
Section (Rd)
5.00
mm
+ 0 / - 0.10
Groove Width (W)
3.20
mm
Internal Retaining Rings - 190x3x193 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 184.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1900-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 190x3x193 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
190.00
mm

(Equiv. 7.48 in.)
Clip Thickness (T)
3.00
mm
+ 0 / - 0.10
(Equiv. 0.118 in.)
Groove Dia. (Dg)
193.0
mm
+ 0.29 / - 0.00
(Equiv. 7.598 in.)
Approx. Loose Circlip OD (Dr)
194.90
mm
Internal Retaining Rings - 190x3x193 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 5.00 mm + 0 / - 0.10    Groove Width (W): 3.20 mm    Approx. Loose Clip ID: 184.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1900-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 190.5x2.36x194.56 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
194.56
mm
+/- 0.20
(Equiv. 7.66 in.)
Approx. Loose Circlip OD (Dr)
197.10
mm
+ 4.75 / - 0.00
Section (Rd)
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
Internal Retaining Rings - 190.5x2.36x194.56 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 184.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1905-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 190.5x2.36x194.56 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
194.56
mm
+/- 0.20
(Equiv. 7.66 in.)
Approx. Loose Circlip OD (Dr)
197.10
mm
+ 4.75 / - 0.00
Internal Retaining Rings - 190.5x2.36x194.56 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip ID: 184.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1905-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 190.5x4.75x196.85 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
196.85
mm
+/- 0.20
(Equiv. 7.75 in.)
Approx. Loose Circlip OD (Dr)
200.41
mm
+ 4.75 / - 0.00
Section (Rd)
9.53
mm
+/- 0.13
Groove Width (W)
5.31
mm
Internal Retaining Rings - 190.5x4.75x196.85 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 181.35
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1905-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 190.5x4.75x196.85 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
196.85
mm
+/- 0.20
(Equiv. 7.75 in.)
Approx. Loose Circlip OD (Dr)
200.41
mm
+ 4.75 / - 0.00
Internal Retaining Rings - 190.5x4.75x196.85 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 9.53 mm +/- 0.13    Groove Width (W): 5.31 mm    Approx. Loose Clip ID: 181.35
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1905-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 190.5x4.75x199.14 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
199.14
mm
+/- 0.20
(Equiv. 7.84 in.)
Approx. Loose Circlip OD (Dr)
202.57
mm
+ 4.60 / - 0.00
Section (Rd)
9.53
mm
+/- 0.13
Groove Width (W)
5.31
mm
Internal Retaining Rings - 190.5x4.75x199.14 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 183.51
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1905-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 190.5x4.75x199.14 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
199.14
mm
+/- 0.20
(Equiv. 7.84 in.)
Approx. Loose Circlip OD (Dr)
202.57
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 190.5x4.75x199.14 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 9.53 mm +/- 0.13    Groove Width (W): 5.31 mm    Approx. Loose Clip ID: 183.51
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1905-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 195x3x198 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
195.00
mm

(Equiv. 7.677 in.)
Clip Thickness (T)
3.00
mm
+ 0 / - 0.10
(Equiv. 0.118 in.)
Groove Dia. (Dg)
198.0
mm
+ 0.29 / - 0.00
(Equiv. 7.795 in.)
Approx. Loose Circlip OD (Dr)
199.90
mm
Section (Rd)
5.00
mm
+ 0 / - 0.10
Groove Width (W)
3.20
mm
Internal Retaining Rings - 195x3x198 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 189.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1950-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 195x3x198 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
195.00
mm

(Equiv. 7.677 in.)
Clip Thickness (T)
3.00
mm
+ 0 / - 0.10
(Equiv. 0.118 in.)
Groove Dia. (Dg)
198.0
mm
+ 0.29 / - 0.00
(Equiv. 7.795 in.)
Approx. Loose Circlip OD (Dr)
199.90
mm
Internal Retaining Rings - 195x3x198 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 5.00 mm + 0 / - 0.10    Groove Width (W): 3.20 mm    Approx. Loose Clip ID: 189.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1950-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 196.85x4.75x205.74 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
196.85
mm

(Equiv. 7.75 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
205.74
mm
+/- 0.20
(Equiv. 8.1 in.)
Approx. Loose Circlip OD (Dr)
209.30
mm
+ 4.60 / - 0.00
Section (Rd)
9.53
mm
+/- 0.13
Groove Width (W)
5.31
mm
Internal Retaining Rings - 196.85x4.75x205.74 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 190.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1969-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 196.85x4.75x205.74 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
196.85
mm

(Equiv. 7.75 in.)
Clip Thickness (T)
4.75
mm
+/- 0.05
(Equiv. 0.187 in.)
Groove Dia. (Dg)
205.74
mm
+/- 0.20
(Equiv. 8.1 in.)
Approx. Loose Circlip OD (Dr)
209.30
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 196.85x4.75x205.74 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 9.53 mm +/- 0.13    Groove Width (W): 5.31 mm    Approx. Loose Clip ID: 190.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-1969-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 200x3x203 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
200.00
mm

(Equiv. 7.874 in.)
Clip Thickness (T)
3.00
mm
+ 0 / - 0.10
(Equiv. 0.118 in.)
Groove Dia. (Dg)
203.0
mm
+ 0.29 / - 0.00
(Equiv. 7.992 in.)
Approx. Loose Circlip OD (Dr)
205.00
mm
Section (Rd)
5.00
mm
+ 0 / - 0.10
Groove Width (W)
3.20
mm
Internal Retaining Rings - 200x3x203 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 195
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-2000-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 200x3x203 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
200.00
mm

(Equiv. 7.874 in.)
Clip Thickness (T)
3.00
mm
+ 0 / - 0.10
(Equiv. 0.118 in.)
Groove Dia. (Dg)
203.0
mm
+ 0.29 / - 0.00
(Equiv. 7.992 in.)
Approx. Loose Circlip OD (Dr)
205.00
mm
Internal Retaining Rings - 200x3x203 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 5.00 mm + 0 / - 0.10    Groove Width (W): 3.20 mm    Approx. Loose Clip ID: 195
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-2000-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
Internal Retaining Rings - 203.2x2.36x207.26 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
203.20
mm

(Equiv. 8 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
207.26
mm
+/- 0.20
(Equiv. 8.16 in.)
Approx. Loose Circlip OD (Dr)
210.44
mm
+ 4.75 / - 0.00
Section (Rd)
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
Internal Retaining Rings - 203.2x2.36x207.26 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 197.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-2032-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 203.2x2.36x207.26 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
203.20
mm

(Equiv. 8 in.)
Clip Thickness (T)
2.36
mm
+/- 0.06
(Equiv. 0.093 in.)
Groove Dia. (Dg)
207.26
mm
+/- 0.20
(Equiv. 8.16 in.)
Approx. Loose Circlip OD (Dr)
210.44
mm
+ 4.75 / - 0.00
Internal Retaining Rings - 203.2x2.36x207.26 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip ID: 197.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel

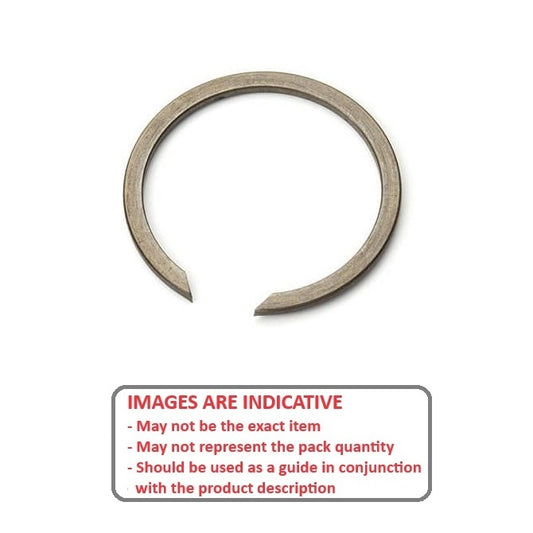

Part Number: WRI-2032-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Sep 14, 2028
