| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

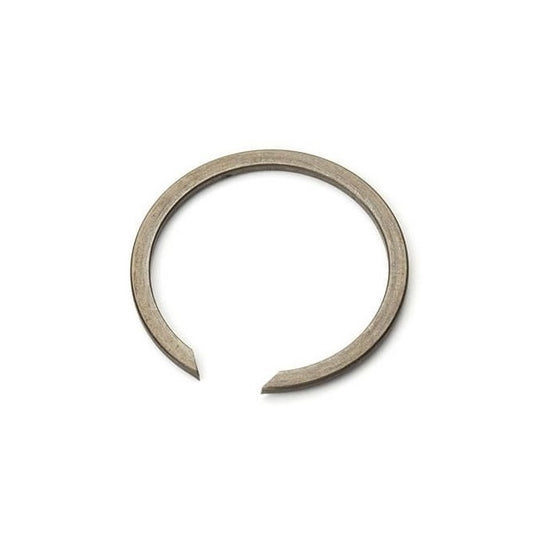

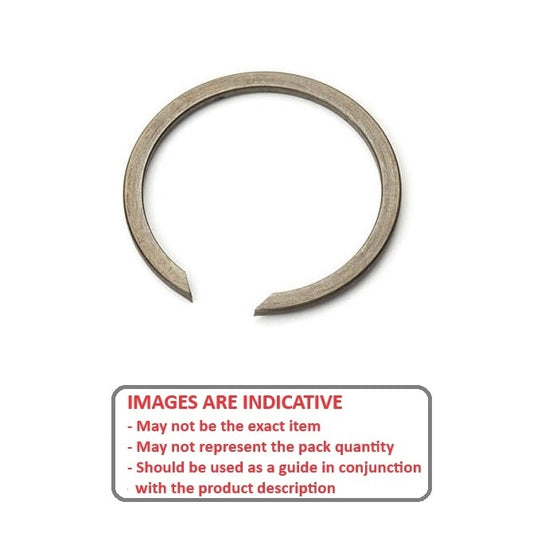

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
133.00
mm (Equiv. 5.236 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
135.3
mm + 0.25 / - 0.00 (Equiv. 5.327 in.) |
Approx. Loose Circlip OD (Dr)
136.60
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 129.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1330-LS (Each)
Internal Retaining Rings - 133x2.5x135.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
133.00
mm (Equiv. 5.236 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
135.3
mm + 0.25 / - 0.00 (Equiv. 5.327 in.) |
Approx. Loose Circlip OD (Dr)
136.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 129.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1330-LS (Each)
Internal Retaining Rings - 133x2.5x135.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.06 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
137.01
mm +/- 0.18 (Equiv. 5.394 in.) |
Approx. Loose Circlip OD (Dr)
138.02
mm + 2.36 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 126.94
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1334-LS-O (Each)
Internal Retaining Rings - 133.35x1.98x137.01 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.06 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
137.01
mm +/- 0.18 (Equiv. 5.394 in.) |
Approx. Loose Circlip OD (Dr)
138.02
mm + 2.36 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 126.94
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1334-LS-O (Each)
Internal Retaining Rings - 133.35x1.98x137.01 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
138.05
mm +/- 0.18 (Equiv. 5.435 in.) |
Approx. Loose Circlip OD (Dr)
140.46
mm + 3.18 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 124.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1334-LS-HO (Each)
Internal Retaining Rings - 133.35x3.18x138.05 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
138.05
mm +/- 0.18 (Equiv. 5.435 in.) |
Approx. Loose Circlip OD (Dr)
140.46
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 124.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1334-LS-HO (Each)
Internal Retaining Rings - 133.35x3.18x138.05 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
136.53
mm (Equiv. 5.375 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
141.35
mm +/- 0.18 (Equiv. 5.565 in.) |
Approx. Loose Circlip OD (Dr)
143.76
mm + 3.18 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 127.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1365-LS-O (Each)
Internal Retaining Rings - 136.53x3.18x141.35 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
136.53
mm (Equiv. 5.375 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
141.35
mm +/- 0.18 (Equiv. 5.565 in.) |
Approx. Loose Circlip OD (Dr)
143.76
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 127.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1365-LS-O (Each)
Internal Retaining Rings - 136.53x3.18x141.35 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
136.53
mm (Equiv. 5.375 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
143.51
mm +/- 0.18 (Equiv. 5.65 in.) |
Approx. Loose Circlip OD (Dr)
145.67
mm + 3.05 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 129.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1365-LS-N (Each)
Internal Retaining Rings - 136.53x3.18x143.51 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
136.53
mm (Equiv. 5.375 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
143.51
mm +/- 0.18 (Equiv. 5.65 in.) |
Approx. Loose Circlip OD (Dr)
145.67
mm + 3.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 129.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1365-LS-N (Each)
Internal Retaining Rings - 136.53x3.18x143.51 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
137.00
mm (Equiv. 5.394 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
139.3
mm + 0.25 / - 0.00 (Equiv. 5.484 in.) |
Approx. Loose Circlip OD (Dr)
140.60
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 133.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1370-LS (Each)
Internal Retaining Rings - 137x2.5x139.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
137.00
mm (Equiv. 5.394 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
139.3
mm + 0.25 / - 0.00 (Equiv. 5.484 in.) |
Approx. Loose Circlip OD (Dr)
140.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 133.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1370-LS (Each)
Internal Retaining Rings - 137x2.5x139.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
146.56
mm +/- 0.18 (Equiv. 5.77 in.) |
Approx. Loose Circlip OD (Dr)
148.84
mm + 3.05 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 132.98
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1397-LS-N (Each)
Internal Retaining Rings - 139.7x3.18x146.56 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
146.56
mm +/- 0.18 (Equiv. 5.77 in.) |
Approx. Loose Circlip OD (Dr)
148.84
mm + 3.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 132.98
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1397-LS-N (Each)
Internal Retaining Rings - 139.7x3.18x146.56 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
144.68
mm +/- 0.18 (Equiv. 5.696 in.) |
Approx. Loose Circlip OD (Dr)
147.22
mm + 3.18 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 131.36
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1397-LS-O (Each)
Internal Retaining Rings - 139.7x3.18x144.68 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
144.68
mm +/- 0.18 (Equiv. 5.696 in.) |
Approx. Loose Circlip OD (Dr)
147.22
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 131.36
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1397-LS-O (Each)
Internal Retaining Rings - 139.7x3.18x144.68 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
142.6
mm + 0.25 / - 0.00 (Equiv. 5.614 in.) |
Approx. Loose Circlip OD (Dr)
144.00
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 136
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1400-LS (Each)
Internal Retaining Rings - 140x2.5x142.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
142.6
mm + 0.25 / - 0.00 (Equiv. 5.614 in.) |
Approx. Loose Circlip OD (Dr)
144.00
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 136
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1400-LS (Each)
Internal Retaining Rings - 140x2.5x142.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
143.00
mm (Equiv. 5.63 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
145.6
mm + 0.25 / - 0.00 (Equiv. 5.732 in.) |
Approx. Loose Circlip OD (Dr)
147.00
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 139
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1430-LS (Each)
Internal Retaining Rings - 143x2.5x145.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
143.00
mm (Equiv. 5.63 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
145.6
mm + 0.25 / - 0.00 (Equiv. 5.732 in.) |
Approx. Loose Circlip OD (Dr)
147.00
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 139
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1430-LS (Each)
Internal Retaining Rings - 143x2.5x145.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
1.98
mm +/- 0.06 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
149.71
mm +/- 0.18 (Equiv. 5.894 in.) |
Approx. Loose Circlip OD (Dr)
150.72
mm + 2.36 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 139.64
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1461-LS-O (Each)
Internal Retaining Rings - 146.05x1.98x149.71 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
1.98
mm +/- 0.06 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
149.71
mm +/- 0.18 (Equiv. 5.894 in.) |
Approx. Loose Circlip OD (Dr)
150.72
mm + 2.36 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 139.64
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1461-LS-O (Each)
Internal Retaining Rings - 146.05x1.98x149.71 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
151.13
mm +/- 0.18 (Equiv. 5.95 in.) |
Approx. Loose Circlip OD (Dr)
153.67
mm + 3.18 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 137.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1461-LS-HO (PK-4)
Internal Retaining Rings - 146.05x3.18x151.13 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
151.13
mm +/- 0.18 (Equiv. 5.95 in.) |
Approx. Loose Circlip OD (Dr)
153.67
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 137.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1461-LS-HO (PK-4)
Internal Retaining Rings - 146.05x3.18x151.13 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
152.91
mm +/- 0.18 (Equiv. 6.02 in.) |
Approx. Loose Circlip OD (Dr)
155.45
mm + 3.05 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 139.59
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1461-LS-N (Each)
Internal Retaining Rings - 146.05x3.18x152.91 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
152.91
mm +/- 0.18 (Equiv. 6.02 in.) |
Approx. Loose Circlip OD (Dr)
155.45
mm + 3.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 139.59
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1461-LS-N (Each)
Internal Retaining Rings - 146.05x3.18x152.91 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
152.6
mm + 0.25 / - 0.00 (Equiv. 6.008 in.) |
Approx. Loose Circlip OD (Dr)
154.10
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 146.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel Additional stock available from USA subject to Prior Sale = 9 |
||||||
|
Part Number: WRI-1500-LS (Each)
Internal Retaining Rings - 150x2.5x152.6 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
152.6
mm + 0.25 / - 0.00 (Equiv. 6.008 in.) |
Approx. Loose Circlip OD (Dr)
154.10
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 146.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel Additional stock available from USA subject to Prior Sale = 9 |
||||||
|
Part Number: WRI-1500-LS (Each)
Internal Retaining Rings - 150x2.5x152.6 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
156.46
mm +/- 0.18 (Equiv. 6.16 in.) |
Approx. Loose Circlip OD (Dr)
157.99
mm + 3.18 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 146.91
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1524-LS-O (Each)
Internal Retaining Rings - 152.4x2.36x156.46 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
156.46
mm +/- 0.18 (Equiv. 6.16 in.) |
Approx. Loose Circlip OD (Dr)
157.99
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 146.91
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1524-LS-O (Each)
Internal Retaining Rings - 152.4x2.36x156.46 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
157.58
mm +/- 0.18 (Equiv. 6.204 in.) |
Approx. Loose Circlip OD (Dr)
160.25
mm + 3.18 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 144.39
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1524-LS-HO (Each)
Internal Retaining Rings - 152.4x3.18x157.58 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
157.58
mm +/- 0.18 (Equiv. 6.204 in.) |
Approx. Loose Circlip OD (Dr)
160.25
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 144.39
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1524-LS-HO (Each)
Internal Retaining Rings - 152.4x3.18x157.58 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
159.26
mm +/- 0.18 (Equiv. 6.27 in.) |
Approx. Loose Circlip OD (Dr)
162.05
mm + 3.05 / - 0.00 |
Section (Rd)
7.93
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 146.19
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1524-LS-N (Each)
Internal Retaining Rings - 152.4x3.18x159.26 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
159.26
mm +/- 0.18 (Equiv. 6.27 in.) |
Approx. Loose Circlip OD (Dr)
162.05
mm + 3.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.93 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip ID: 146.19
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1524-LS-N (Each)
Internal Retaining Rings - 152.4x3.18x159.26 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
153.00
mm (Equiv. 6.024 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
155.6
mm + 0.25 / - 0.00 (Equiv. 6.126 in.) |
Approx. Loose Circlip OD (Dr)
157.10
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 149.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1530-LS (Each)
Internal Retaining Rings - 153x2.5x155.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
153.00
mm (Equiv. 6.024 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
155.6
mm + 0.25 / - 0.00 (Equiv. 6.126 in.) |
Approx. Loose Circlip OD (Dr)
157.10
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 149.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1530-LS (Each)
Internal Retaining Rings - 153x2.5x155.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
158.75
mm (Equiv. 6.25 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
164.03
mm +/- 0.20 (Equiv. 6.458 in.) |
Approx. Loose Circlip OD (Dr)
166.83
mm + 3.18 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 149.41
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1588-LS-O (Each)
Internal Retaining Rings - 158.75x3.96x164.03 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
158.75
mm (Equiv. 6.25 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
164.03
mm +/- 0.20 (Equiv. 6.458 in.) |
Approx. Loose Circlip OD (Dr)
166.83
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 149.41
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1588-LS-O (Each)
Internal Retaining Rings - 158.75x3.96x164.03 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
158.75
mm (Equiv. 6.25 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
165.86
mm +/- 0.20 (Equiv. 6.53 in.) |
Approx. Loose Circlip OD (Dr)
168.66
mm + 3.80 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 151.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1588-LS-N (Each)
Internal Retaining Rings - 158.75x3.96x165.86 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
158.75
mm (Equiv. 6.25 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
165.86
mm +/- 0.20 (Equiv. 6.53 in.) |
Approx. Loose Circlip OD (Dr)
168.66
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 151.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1588-LS-N (Each)
Internal Retaining Rings - 158.75x3.96x165.86 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
160.00
mm (Equiv. 6.299 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
162.6
mm + 0.25 / - 0.00 (Equiv. 6.402 in.) |
Approx. Loose Circlip OD (Dr)
164.20
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 156.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1600-LS (PK-25)
Internal Retaining Rings - 160x2.5x162.6 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 26, 2026 Regular price
$801.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
160.00
mm (Equiv. 6.299 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
162.6
mm + 0.25 / - 0.00 (Equiv. 6.402 in.) |
Approx. Loose Circlip OD (Dr)
164.20
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 156.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1600-LS (PK-25)
Internal Retaining Rings - 160x2.5x162.6 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 26, 2026 Regular price
$801.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
163.00
mm (Equiv. 6.417 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
165.6
mm + 0.25 / - 0.00 (Equiv. 6.52 in.) |
Approx. Loose Circlip OD (Dr)
167.20
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 159.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1630-LS (Each)
Internal Retaining Rings - 163x2.5x165.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
163.00
mm (Equiv. 6.417 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
165.6
mm + 0.25 / - 0.00 (Equiv. 6.52 in.) |
Approx. Loose Circlip OD (Dr)
167.20
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 159.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1630-LS (Each)
Internal Retaining Rings - 163x2.5x165.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
165.00
mm (Equiv. 6.496 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
167.6
mm + 0.25 / - 0.00 (Equiv. 6.598 in.) |
Approx. Loose Circlip OD (Dr)
169.20
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 161.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1650-LS (Each)
Internal Retaining Rings - 165x2.5x167.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.00
mm (Equiv. 6.496 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
167.6
mm + 0.25 / - 0.00 (Equiv. 6.598 in.) |
Approx. Loose Circlip OD (Dr)
169.20
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 161.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1650-LS (Each)
Internal Retaining Rings - 165x2.5x167.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
169.16
mm +/- 0.20 (Equiv. 6.66 in.) |
Approx. Loose Circlip OD (Dr)
170.94
mm + 3.18 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 158.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-O (Each)
Internal Retaining Rings - 165.1x2.36x169.16 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
169.16
mm +/- 0.20 (Equiv. 6.66 in.) |
Approx. Loose Circlip OD (Dr)
170.94
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 158.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-O (Each)
Internal Retaining Rings - 165.1x2.36x169.16 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
