Collection: Retaining Rings - Internal - Snap Rings

Retaining Rings (With Images)

Internal

Basic Carbon Steel

Spiral Rings

318 Products in this selection

This is a combined category of products from Snap Rings Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings
Wire Rings
Snap Rings and Spiral Rings PDF

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Section (Rd)	Groove Width (W)
7.00 mm	0.80 mm +0/-0.10	7.30 mm	7.50 mm	1.00 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Approx. Loose Clip ID: 5.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0070-LS Snap - 7 mm x 0.8 mm x 7.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
7.00 mm	0.80 mm +0/-0.10	7.30 mm	7.50 mm
Material: Spring Steel Section (Rd): 1.00 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Approx. Loose Clip ID: 5.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0070-LS Snap - 7 mm x 0.8 mm x 7.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
8.00 mm	0.80 mm +0/-0.10	8.30 mm	8.50 mm	1.00 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Approx. Loose Clip ID: 6.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0080-LS (30 Pcs) Snap - 8 mm x 0.8 mm x 8.3 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Per 30 View the product page first if you are unsure.
8.00 mm	0.80 mm +0/-0.10	8.30 mm	8.50 mm
Material: Spring Steel Section (Rd): 1.00 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Approx. Loose Clip ID: 6.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0080-LS (30 Pcs) Snap - 8 mm x 0.8 mm x 8.3 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Per 30 View the product page first if you are unsure.
WRI-0080-LS (30 Pcs) --- Snap - 8 mm x 0.8 mm x 8.3 mm Spring Steel WRI-0080-LS (30 Pcs) --- Snap - 8 mm x 0.8 mm x 8.3 mm Spring Steel Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Out of stock! Backorder Now
9.00 mm	0.80 mm +0/-0.10	9.30 mm	9.50 mm	1.10 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Approx. Loose Clip ID: 7.3 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0090-LS Snap - 9 mm x 0.8 mm x 9.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
9.00 mm	0.80 mm +0/-0.10	9.30 mm	9.50 mm
Material: Spring Steel Section (Rd): 1.10 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Approx. Loose Clip ID: 7.3 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0090-LS Snap - 9 mm x 0.8 mm x 9.3 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
9.53 mm	0.64 mm +/-0.05	10.03 mm	10.16 mm +0.51/-0.00	0.89 mm +/-0.08	0.71 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 8.38 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0095-LS-O Ring - 9.53 mm x 0.64 mm x 10.03 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
9.53 mm	0.64 mm +/-0.05	10.03 mm	10.16 mm +0.51/-0.00
Material: Spring Steel Section (Rd): 0.89 mm +/-0.08 Groove Width (W): 0.71 mm +/-0.08 Approx. Loose Clip ID: 8.38 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0095-LS-O Ring - 9.53 mm x 0.64 mm x 10.03 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
10.00 mm	0.80 mm +0/-0.10	10.40 mm	10.60 mm	1.20 mm +0/-0.10	0.90 mm +0.09/-0.00
Material: Spring Steel Approx. Loose Clip ID: 8.2 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0100-LS Snap - 10 mm x 0.8 mm x 10.4 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
10.00 mm	0.80 mm +0/-0.10	10.40 mm	10.60 mm
Material: Spring Steel Section (Rd): 1.20 mm +0/-0.10 Groove Width (W): 0.90 mm +0.09/-0.00 Approx. Loose Clip ID: 8.2 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0100-LS Snap - 10 mm x 0.8 mm x 10.4 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
11.00 mm	1.00 mm +0/-0.10	11.40 mm	11.60 mm	1.30 mm +0/-0.10	1.10 mm +0.11/-0.00
Material: Spring Steel Approx. Loose Clip ID: 9 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0110-LS Snap - 11 mm x 1 mm x 11.4 mm / Retaining Rings 178 Available \| Backorders for more can be expected around Sat, Jan 25, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Each View the product page first if you are unsure.
11.00 mm	1.00 mm +0/-0.10	11.40 mm	11.60 mm
Material: Spring Steel Section (Rd): 1.30 mm +0/-0.10 Groove Width (W): 1.10 mm +0.11/-0.00 Approx. Loose Clip ID: 9 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0110-LS Snap - 11 mm x 1 mm x 11.4 mm / Retaining Rings 178 Available \| \| Backorders for more can be expected around Sat, Jan 25, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Each View the product page first if you are unsure.
WRI-0110-LS --- Snap - 11 mm x 1 mm x 11.4 mm Spring Steel WRI-0110-LS --- Snap - 11 mm x 1 mm x 11.4 mm Spring Steel Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per 178 Available Now
11.13 mm	0.64 mm +/-0.05	11.74 mm	11.86 mm +0.51/-0.00	0.89 mm +/-0.08	0.71 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 10.08 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0111-LS-O Ring - 11.13 mm x 0.64 mm x 11.74 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
11.13 mm	0.64 mm +/-0.05	11.74 mm	11.86 mm +0.51/-0.00
Material: Spring Steel Section (Rd): 0.89 mm +/-0.08 Groove Width (W): 0.71 mm +/-0.08 Approx. Loose Clip ID: 10.08 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0111-LS-O Ring - 11.13 mm x 0.64 mm x 11.74 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
12.00 mm	1.00 mm +0/-0.10	12.40 mm	12.70 mm	1.30 mm +0/-0.10	1.10 mm +0.11/-0.00
Material: Spring Steel Approx. Loose Clip ID: 10.1 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0120-LS (2 Pcs) Snap - 12 mm x 1 mm x 12.4 mm / Retaining Rings 388 units (776 pcs) Available \| Backorders for more can be expected around Fri, Aug 15, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Per 2 View the product page first if you are unsure.
12.00 mm	1.00 mm +0/-0.10	12.40 mm	12.70 mm
Material: Spring Steel Section (Rd): 1.30 mm +0/-0.10 Groove Width (W): 1.10 mm +0.11/-0.00 Approx. Loose Clip ID: 10.1 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0120-LS (2 Pcs) Snap - 12 mm x 1 mm x 12.4 mm / Retaining Rings 388 units (776 pcs) Available \| \| Backorders for more can be expected around Fri, Aug 15, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Per 2 View the product page first if you are unsure.
WRI-0120-LS (2 Pcs) --- Snap - 12 mm x 1 mm x 12.4 mm Spring Steel WRI-0120-LS (2 Pcs) --- Snap - 12 mm x 1 mm x 12.4 mm Spring Steel Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per 388 Available Now
12.70 mm	0.89 mm +/-0.05	13.31 mm	13.46 mm +0.64/-0.00	1.02 mm +/-0.08	0.99 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 11.42 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0127-LS-O Ring - 12.7 mm x 0.89 mm x 13.31 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
12.70 mm	0.89 mm +/-0.05	13.31 mm	13.46 mm +0.64/-0.00
Material: Spring Steel Section (Rd): 1.02 mm +/-0.08 Groove Width (W): 0.99 mm +/-0.08 Approx. Loose Clip ID: 11.42 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0127-LS-O Ring - 12.7 mm x 0.89 mm x 13.31 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
13.00 mm	1.00 mm +0/-0.10	13.50 mm	13.80 mm	1.30 mm +0/-0.10	1.10 mm +0.11/-0.00
Material: Spring Steel Approx. Loose Clip ID: 11.2 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0130-LS (30 Pcs) Snap - 13 mm x 1 mm x 13.5 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Per 30 View the product page first if you are unsure.
13.00 mm	1.00 mm +0/-0.10	13.50 mm	13.80 mm
Material: Spring Steel Section (Rd): 1.30 mm +0/-0.10 Groove Width (W): 1.10 mm +0.11/-0.00 Approx. Loose Clip ID: 11.2 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0130-LS (30 Pcs) Snap - 13 mm x 1 mm x 13.5 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Per 30 View the product page first if you are unsure.
WRI-0130-LS (30 Pcs) --- Snap - 13 mm x 1 mm x 13.5 mm Spring Steel WRI-0130-LS (30 Pcs) --- Snap - 13 mm x 1 mm x 13.5 mm Spring Steel Regular price $150.95 AUD Regular price Sale price $150.95 AUD Unit price per Out of stock! Backorder Now
13.01 mm	0.89 mm +/-0.05	13.61 mm	13.77 mm +0.64/-0.00	1.02 mm +/-0.08	0.99 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 11.73 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0130-LS-O Ring - 13.01 mm x 0.89 mm x 13.61 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
13.01 mm	0.89 mm +/-0.05	13.61 mm	13.77 mm +0.64/-0.00
Material: Spring Steel Section (Rd): 1.02 mm +/-0.08 Groove Width (W): 0.99 mm +/-0.08 Approx. Loose Clip ID: 11.73 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0130-LS-O Ring - 13.01 mm x 0.89 mm x 13.61 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
14.00 mm	1.00 mm +0/-0.10	14.50 mm	14.80 mm	1.30 mm +0/-0.10	1.10 mm +0.11/-0.00
Material: Spring Steel Approx. Loose Clip ID: 12.2 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0140-LS (100 Pcs) Snap - 14 mm x 1 mm x 14.5 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $44.41 AUD Regular price Sale price $44.41 AUD Unit price per Per 100 View the product page first if you are unsure.
14.00 mm	1.00 mm +0/-0.10	14.50 mm	14.80 mm
Material: Spring Steel Section (Rd): 1.30 mm +0/-0.10 Groove Width (W): 1.10 mm +0.11/-0.00 Approx. Loose Clip ID: 12.2 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0140-LS (100 Pcs) Snap - 14 mm x 1 mm x 14.5 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $44.41 AUD Regular price Sale price $44.41 AUD Unit price per Per 100 View the product page first if you are unsure.
WRI-0140-LS (100 Pcs) --- Snap - 14 mm x 1 mm x 14.5 mm Spring Steel WRI-0140-LS (100 Pcs) --- Snap - 14 mm x 1 mm x 14.5 mm Spring Steel Regular price $44.41 AUD Regular price Sale price $44.41 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.89 mm +/-0.05	16.69 mm	17.02 mm +0.64/-0.00	1.22 mm +/-0.08	0.99 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 14.58 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0159-LS-O (200 Pcs) Ring - 15.88 mm x 0.89 mm x 16.69 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
15.88 mm	0.89 mm +/-0.05	16.69 mm	17.02 mm +0.64/-0.00
Material: Spring Steel Section (Rd): 1.22 mm +/-0.08 Groove Width (W): 0.99 mm +/-0.08 Approx. Loose Clip ID: 14.58 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0159-LS-O (200 Pcs) Ring - 15.88 mm x 0.89 mm x 16.69 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
16.00 mm	1.20 mm +0/-0.10	16.50 mm	16.80 mm	1.75 mm +0/-0.10	1.30 mm +0.11/-0.00
Material: Spring Steel Approx. Loose Clip ID: 13.3 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0160-LS (30 Pcs) Snap - 16 mm x 1.2 mm x 16.5 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
16.00 mm	1.20 mm +0/-0.10	16.50 mm	16.80 mm
Material: Spring Steel Section (Rd): 1.75 mm +0/-0.10 Groove Width (W): 1.30 mm +0.11/-0.00 Approx. Loose Clip ID: 13.3 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0160-LS (30 Pcs) Snap - 16 mm x 1.2 mm x 16.5 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
WRI-0160-LS (30 Pcs) --- Snap - 16 mm x 1.2 mm x 16.5 mm Spring Steel WRI-0160-LS (30 Pcs) --- Snap - 16 mm x 1.2 mm x 16.5 mm Spring Steel Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Out of stock! Backorder Now
17.00 mm	1.20 mm +0/-0.10	17.50 mm	17.80 mm	1.75 mm +0/-0.10	1.30 mm +0.11/-0.00
Material: Spring Steel Approx. Loose Clip ID: 14.3 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0170-LS (30 Pcs) Snap - 17 mm x 1.2 mm x 17.5 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
17.00 mm	1.20 mm +0/-0.10	17.50 mm	17.80 mm
Material: Spring Steel Section (Rd): 1.75 mm +0/-0.10 Groove Width (W): 1.30 mm +0.11/-0.00 Approx. Loose Clip ID: 14.3 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0170-LS (30 Pcs) Snap - 17 mm x 1.2 mm x 17.5 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
WRI-0170-LS (30 Pcs) --- Snap - 17 mm x 1.2 mm x 17.5 mm Spring Steel WRI-0170-LS (30 Pcs) --- Snap - 17 mm x 1.2 mm x 17.5 mm Spring Steel Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Out of stock! Backorder Now
17.48 mm	0.89 mm +/-0.05	18.29 mm	18.62 mm +0.64/-0.00	1.22 mm +/-0.08	0.99 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 16.18 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0175-LS-O Ring - 17.48 mm x 0.89 mm x 18.29 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
17.48 mm	0.89 mm +/-0.05	18.29 mm	18.62 mm +0.64/-0.00
Material: Spring Steel Section (Rd): 1.22 mm +/-0.08 Groove Width (W): 0.99 mm +/-0.08 Approx. Loose Clip ID: 16.18 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0175-LS-O Ring - 17.48 mm x 0.89 mm x 18.29 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
18.00 mm	1.20 mm +0/-0.10	18.50 mm	18.90 mm	1.75 mm +0/-0.10	1.30 mm +0.13/-0.00
Material: Spring Steel Approx. Loose Clip ID: 15.4 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0180-LS (30 Pcs) Snap - 18 mm x 1.2 mm x 18.5 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
18.00 mm	1.20 mm +0/-0.10	18.50 mm	18.90 mm
Material: Spring Steel Section (Rd): 1.75 mm +0/-0.10 Groove Width (W): 1.30 mm +0.13/-0.00 Approx. Loose Clip ID: 15.4 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0180-LS (30 Pcs) Snap - 18 mm x 1.2 mm x 18.5 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
WRI-0180-LS (30 Pcs) --- Snap - 18 mm x 1.2 mm x 18.5 mm Spring Steel WRI-0180-LS (30 Pcs) --- Snap - 18 mm x 1.2 mm x 18.5 mm Spring Steel Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Out of stock! Backorder Now
19.00 mm	1.20 mm +0/-0.10	19.60 mm	19.90 mm	1.75 mm +0/-0.10	1.30 mm +0.13/-0.00
Material: Spring Steel Approx. Loose Clip ID: 16.4 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel

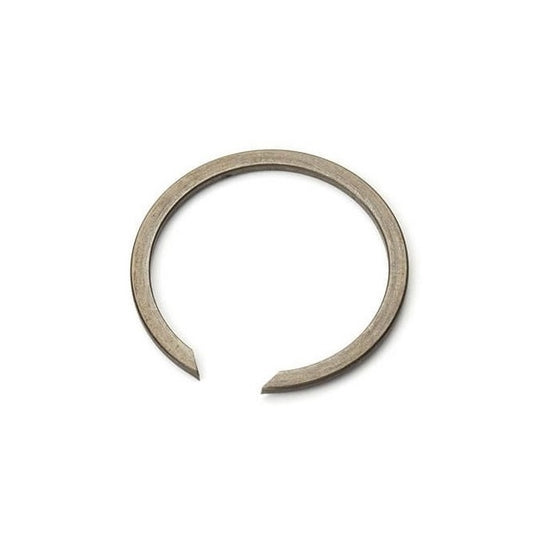

Part Number: WRI-0190-LS Snap - 19 mm x 1.2 mm x 19.6 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
19.00 mm	1.20 mm +0/-0.10	19.60 mm	19.90 mm
Material: Spring Steel Section (Rd): 1.75 mm +0/-0.10 Groove Width (W): 1.30 mm +0.13/-0.00 Approx. Loose Clip ID: 16.4 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0190-LS Snap - 19 mm x 1.2 mm x 19.6 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
19.05 mm	0.89 mm +/-0.05	19.96 mm	20.30 mm +0.64/-0.00	1.22 mm +/-0.08	0.99 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 17.86 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0191-LS-O Ring - 19.05 mm x 0.89 mm x 19.96 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
19.05 mm	0.89 mm +/-0.05	19.96 mm	20.30 mm +0.64/-0.00
Material: Spring Steel Section (Rd): 1.22 mm +/-0.08 Groove Width (W): 0.99 mm +/-0.08 Approx. Loose Clip ID: 17.86 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0191-LS-O Ring - 19.05 mm x 0.89 mm x 19.96 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
19.74 mm	1.07 mm +/-0.05	20.65 mm	21.01 mm +0.64/-0.00	1.58 mm +/-0.08	1.17 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 17.85 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0197-LS-O Ring - 19.74 mm x 1.07 mm x 20.65 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
19.74 mm	1.07 mm +/-0.05	20.65 mm	21.01 mm +0.64/-0.00
Material: Spring Steel Section (Rd): 1.58 mm +/-0.08 Groove Width (W): 1.17 mm +/-0.08 Approx. Loose Clip ID: 17.85 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0197-LS-O Ring - 19.74 mm x 1.07 mm x 20.65 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
20.00 mm	1.20 mm +0/-0.10	20.60 mm	21.00 mm	1.75 mm +0/-0.10	1.30 mm +0.13/-0.00
Material: Spring Steel Approx. Loose Clip ID: 17.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0200-LS (250 Pcs) Snap - 20 mm x 1.2 mm x 20.6 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Per 250 View the product page first if you are unsure.
20.00 mm	1.20 mm +0/-0.10	20.60 mm	21.00 mm
Material: Spring Steel Section (Rd): 1.75 mm +0/-0.10 Groove Width (W): 1.30 mm +0.13/-0.00 Approx. Loose Clip ID: 17.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0200-LS (250 Pcs) Snap - 20 mm x 1.2 mm x 20.6 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Per 250 View the product page first if you are unsure.
WRI-0200-LS (250 Pcs) --- Snap - 20 mm x 1.2 mm x 20.6 mm Spring Steel WRI-0200-LS (250 Pcs) --- Snap - 20 mm x 1.2 mm x 20.6 mm Spring Steel Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Out of stock! Backorder Now
21.00 mm	1.20 mm +0/-0.10	21.60 mm	22.00 mm	1.75 mm +0/-0.10	1.30 mm +0.13/-0.00
Material: Spring Steel Approx. Loose Clip ID: 18.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0210-LS Snap - 21 mm x 1.2 mm x 21.6 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
21.00 mm	1.20 mm +0/-0.10	21.60 mm	22.00 mm
Material: Spring Steel Section (Rd): 1.75 mm +0/-0.10 Groove Width (W): 1.30 mm +0.13/-0.00 Approx. Loose Clip ID: 18.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0210-LS Snap - 21 mm x 1.2 mm x 21.6 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
22.00 mm	1.20 mm +0/-0.10	22.60 mm	23.00 mm	1.75 mm +0/-0.10	1.30 mm +0.13/-0.00
Material: Spring Steel Approx. Loose Clip ID: 19.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0220-LS (30 Pcs) Snap - 22 mm x 1.2 mm x 22.6 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
22.00 mm	1.20 mm +0/-0.10	22.60 mm	23.00 mm
Material: Spring Steel Section (Rd): 1.75 mm +0/-0.10 Groove Width (W): 1.30 mm +0.13/-0.00 Approx. Loose Clip ID: 19.5 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0220-LS (30 Pcs) Snap - 22 mm x 1.2 mm x 22.6 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Mon, Jan 13, 2025 Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Per 30 View the product page first if you are unsure.
WRI-0220-LS (30 Pcs) --- Snap - 22 mm x 1.2 mm x 22.6 mm Spring Steel WRI-0220-LS (30 Pcs) --- Snap - 22 mm x 1.2 mm x 22.6 mm Spring Steel Regular price $162.41 AUD Regular price Sale price $162.41 AUD Unit price per Out of stock! Backorder Now
22.23 mm	1.07 mm +/-0.05	23.34 mm	23.72 mm +0.79/-0.00	1.58 mm +/-0.08	1.17 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 20.56 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0222-LS-O Ring - 22.23 mm x 1.07 mm x 23.34 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
22.23 mm	1.07 mm +/-0.05	23.34 mm	23.72 mm +0.79/-0.00
Material: Spring Steel Section (Rd): 1.58 mm +/-0.08 Groove Width (W): 1.17 mm +/-0.08 Approx. Loose Clip ID: 20.56 Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0222-LS-O Ring - 22.23 mm x 1.07 mm x 23.34 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
