| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
430.00
mm (Equiv. 16.929 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
435.0
mm + 0.40 / - 0.00 (Equiv. 17.126 in.) |
Approx. Loose Circlip OD (Dr)
439.20
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 424.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-4300-LS (Each)

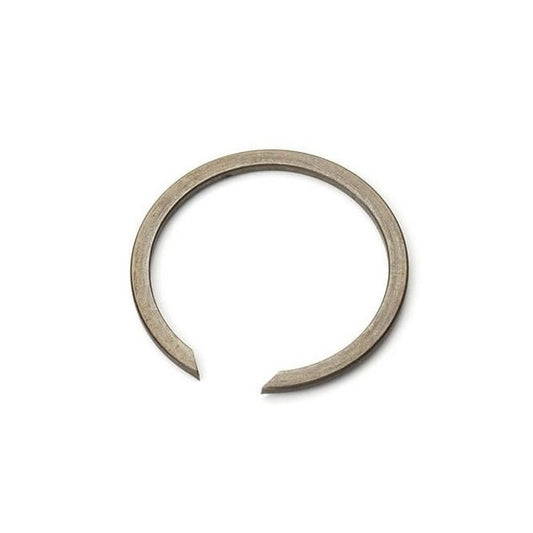

Internal Retaining Rings - 430x4x435 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
430.00
mm (Equiv. 16.929 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
435.0
mm + 0.40 / - 0.00 (Equiv. 17.126 in.) |
Approx. Loose Circlip OD (Dr)
439.20
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 424.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-4300-LS (Each)
Internal Retaining Rings - 430x4x435 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
|
Housing Bore (B)
440.00
mm (Equiv. 17.323 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
445.0
mm + 0.40 / - 0.00 (Equiv. 17.52 in.) |
Approx. Loose Circlip OD (Dr)
449.30
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 434.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-4400-LS (Each)
Internal Retaining Rings - 440x4x445 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
440.00
mm (Equiv. 17.323 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
445.0
mm + 0.40 / - 0.00 (Equiv. 17.52 in.) |
Approx. Loose Circlip OD (Dr)
449.30
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 434.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-4400-LS (Each)
Internal Retaining Rings - 440x4x445 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Aug 31, 2028 |
||||||
