Collection: Retaining Rings - Internal - Snap Rings
318 Products in this selection
This is a combined category of products from Snap Rings Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |
Indicative Image |
---|---|---|---|---|---|---|
241.30 mm |
4.75 mm +/-0.05 |
249.68 mm |
252.86 mm +4.75/-0.00 |
12.70 mm +/-0.13 |
5.31 mm +/-0.20 |
|
Material: Spring Steel
Approx. Loose Clip ID: 227.46
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2413-LS-O Ring - 241.3 mm x 4.75 mm x 249.68 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
241.30 mm |
4.75 mm +/-0.05 |
249.68 mm |
252.86 mm +4.75/-0.00 |
|||
Material: Spring Steel
Section (Rd): 12.70 mm +/-0.13
Groove Width (W): 5.31 mm +/-0.20
Approx. Loose Clip ID: 227.46
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2413-LS-O Ring - 241.3 mm x 4.75 mm x 249.68 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
247.65 mm |
4.75 mm +/-0.05 |
258.83 mm |
263.27 mm +5.60/-0.00 |
12.70 mm +/-0.13 |
5.31 mm +/-0.20 |
|
Material: Spring Steel
Approx. Loose Clip ID: 237.87
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2477-LS-N Ring - 247.65 mm x 4.75 mm x 258.83 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
247.65 mm |
4.75 mm +/-0.05 |
258.83 mm |
263.27 mm +5.60/-0.00 |
|||
Material: Spring Steel
Section (Rd): 12.70 mm +/-0.13
Groove Width (W): 5.31 mm +/-0.20
Approx. Loose Clip ID: 237.87
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2477-LS-N Ring - 247.65 mm x 4.75 mm x 258.83 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
249.94 mm |
4.75 mm +/-0.05 |
258.32 mm |
261.49 mm +4.75/-0.00 |
12.70 mm +/-0.13 |
5.31 mm +/-0.20 |
|
Material: Spring Steel
Approx. Loose Clip ID: 236.09
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2499-LS-O Ring - 249.94 mm x 4.75 mm x 258.32 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
249.94 mm |
4.75 mm +/-0.05 |
258.32 mm |
261.49 mm +4.75/-0.00 |
|||
Material: Spring Steel
Section (Rd): 12.70 mm +/-0.13
Groove Width (W): 5.31 mm +/-0.20
Approx. Loose Clip ID: 236.09
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2499-LS-O Ring - 249.94 mm x 4.75 mm x 258.32 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
250.00 mm |
3.00 mm +0/-0.10 |
253.0 mm |
255.50 mm |
5.00 mm +0/-0.10 |
3.20 mm +0.32/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 245.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2500-LS Snap - 250 mm x 3 mm x 253 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
250.00 mm |
3.00 mm +0/-0.10 |
253.0 mm |
255.50 mm |
|||
Material: Spring Steel
Section (Rd): 5.00 mm +0/-0.10
Groove Width (W): 3.20 mm +0.32/-0.00
Approx. Loose Clip ID: 245.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2500-LS Snap - 250 mm x 3 mm x 253 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
254.00 mm |
4.75 mm +/-0.05 |
262.38 mm |
265.56 mm +0.79/-0.00 |
12.70 mm +/-0.13 |
5.31 mm +/-0.20 |
|
Material: Spring Steel
Approx. Loose Clip ID: 240.16
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2540-LS-O Ring - 254 mm x 4.75 mm x 262.38 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
254.00 mm |
4.75 mm +/-0.05 |
262.38 mm |
265.56 mm +0.79/-0.00 |
|||
Material: Spring Steel
Section (Rd): 12.70 mm +/-0.13
Groove Width (W): 5.31 mm +/-0.20
Approx. Loose Clip ID: 240.16
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2540-LS-O Ring - 254 mm x 4.75 mm x 262.38 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
254.00 mm |
4.75 mm +/-0.05 |
265.43 mm |
270.00 mm +5.60/-0.00 |
12.70 mm +/-0.13 |
5.31 mm +/-0.20 |
|
Material: Spring Steel
Approx. Loose Clip ID: 244.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2540-LS-N Ring - 254 mm x 4.75 mm x 265.43 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
254.00 mm |
4.75 mm +/-0.05 |
265.43 mm |
270.00 mm +5.60/-0.00 |
|||
Material: Spring Steel
Section (Rd): 12.70 mm +/-0.13
Groove Width (W): 5.31 mm +/-0.20
Approx. Loose Clip ID: 244.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2540-LS-N Ring - 254 mm x 4.75 mm x 265.43 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
260.00 mm |
4.00 mm +0/-0.10 |
265.0 mm |
267.60 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.32/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 252.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2600-LS Snap - 260 mm x 4 mm x 265 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
260.00 mm |
4.00 mm +0/-0.10 |
265.0 mm |
267.60 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.32/-0.00
Approx. Loose Clip ID: 252.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2600-LS Snap - 260 mm x 4 mm x 265 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
270.00 mm |
4.00 mm +0/-0.10 |
275.0 mm |
277.70 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.32/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 262.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2700-LS Snap - 270 mm x 4 mm x 275 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
270.00 mm |
4.00 mm +0/-0.10 |
275.0 mm |
277.70 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.32/-0.00
Approx. Loose Clip ID: 262.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2700-LS Snap - 270 mm x 4 mm x 275 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
280.00 mm |
4.00 mm +0/-0.10 |
285.0 mm |
287.80 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.32/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 272.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2800-LS Snap - 280 mm x 4 mm x 285 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
280.00 mm |
4.00 mm +0/-0.10 |
285.0 mm |
287.80 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.32/-0.00
Approx. Loose Clip ID: 272.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2800-LS Snap - 280 mm x 4 mm x 285 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
290.00 mm |
4.00 mm +0/-0.10 |
295.0 mm |
297.90 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.32/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 282.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2900-LS Snap - 290 mm x 4 mm x 295 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
290.00 mm |
4.00 mm +0/-0.10 |
295.0 mm |
297.90 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.32/-0.00
Approx. Loose Clip ID: 282.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-2900-LS Snap - 290 mm x 4 mm x 295 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
300.00 mm |
4.00 mm +0/-0.10 |
305.0 mm |
307.90 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.32/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 292.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3000-LS Snap - 300 mm x 4 mm x 305 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
300.00 mm |
4.00 mm +0/-0.10 |
305.0 mm |
307.90 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.32/-0.00
Approx. Loose Clip ID: 292.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3000-LS Snap - 300 mm x 4 mm x 305 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
310.00 mm |
4.00 mm +0/-0.10 |
315.0 mm |
318.00 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.32/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 303
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3100-LS Snap - 310 mm x 4 mm x 315 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
310.00 mm |
4.00 mm +0/-0.10 |
315.0 mm |
318.00 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.32/-0.00
Approx. Loose Clip ID: 303
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3100-LS Snap - 310 mm x 4 mm x 315 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
320.00 mm |
4.00 mm +0/-0.10 |
325.0 mm |
328.10 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 313.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3200-LS Snap - 320 mm x 4 mm x 325 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
320.00 mm |
4.00 mm +0/-0.10 |
325.0 mm |
328.10 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 313.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3200-LS Snap - 320 mm x 4 mm x 325 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
325.00 mm |
4.00 mm +0/-0.10 |
330.0 mm |
333.10 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 318.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3250-LS Snap - 325 mm x 4 mm x 330 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
325.00 mm |
4.00 mm +0/-0.10 |
330.0 mm |
333.10 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 318.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3250-LS Snap - 325 mm x 4 mm x 330 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
330.00 mm |
4.00 mm +0/-0.10 |
335.0 mm |
338.20 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 323.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||

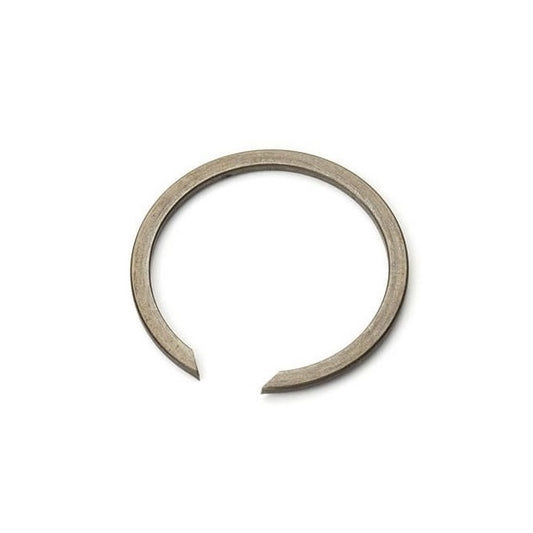

Part Number: WRI-3300-LS Snap - 330 mm x 4 mm x 335 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
330.00 mm |
4.00 mm +0/-0.10 |
335.0 mm |
338.20 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 323.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3300-LS Snap - 330 mm x 4 mm x 335 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
340.00 mm |
4.00 mm +0/-0.10 |
345.0 mm |
348.30 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 333.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3400-LS Snap - 340 mm x 4 mm x 345 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
340.00 mm |
4.00 mm +0/-0.10 |
345.0 mm |
348.30 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 333.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3400-LS Snap - 340 mm x 4 mm x 345 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
350.00 mm |
4.00 mm +0/-0.10 |
355.0 mm |
358.40 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 343.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3500-LS Snap - 350 mm x 4 mm x 355 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
350.00 mm |
4.00 mm +0/-0.10 |
355.0 mm |
358.40 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 343.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3500-LS Snap - 350 mm x 4 mm x 355 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
355.00 mm |
4.00 mm +0/-0.10 |
360.0 mm |
363.40 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 348.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3550-LS Snap - 355 mm x 4 mm x 360 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
355.00 mm |
4.00 mm +0/-0.10 |
360.0 mm |
363.40 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 348.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3550-LS Snap - 355 mm x 4 mm x 360 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
360.00 mm |
4.00 mm +0/-0.10 |
365.0 mm |
368.50 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 353.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3600-LS Snap - 360 mm x 4 mm x 365 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
360.00 mm |
4.00 mm +0/-0.10 |
365.0 mm |
368.50 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 353.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3600-LS Snap - 360 mm x 4 mm x 365 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
370.00 mm |
4.00 mm +0/-0.10 |
375.0 mm |
378.50 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 363.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3700-LS Snap - 370 mm x 4 mm x 375 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
370.00 mm |
4.00 mm +0/-0.10 |
375.0 mm |
378.50 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 363.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3700-LS Snap - 370 mm x 4 mm x 375 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
375.00 mm |
4.00 mm +0/-0.10 |
380.0 mm |
383.50 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 368.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3750-LS Snap - 375 mm x 4 mm x 380 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
375.00 mm |
4.00 mm +0/-0.10 |
380.0 mm |
383.50 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 368.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3750-LS Snap - 375 mm x 4 mm x 380 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
380.00 mm |
4.00 mm +0/-0.10 |
385.0 mm |
388.60 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 373.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3800-LS Snap - 380 mm x 4 mm x 385 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
380.00 mm |
4.00 mm +0/-0.10 |
385.0 mm |
388.60 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 373.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3800-LS Snap - 380 mm x 4 mm x 385 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
390.00 mm |
4.00 mm +0/-0.10 |
395.0 mm |
398.70 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.36/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 383.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3900-LS Snap - 390 mm x 4 mm x 395 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
390.00 mm |
4.00 mm +0/-0.10 |
395.0 mm |
398.70 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.36/-0.00
Approx. Loose Clip ID: 383.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3900-LS Snap - 390 mm x 4 mm x 395 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
||||||
395.00 mm |
4.00 mm +0/-0.10 |
400.0 mm |
403.70 mm |
7.50 mm +0/-0.10 |
4.20 mm +0.40/-0.00 |
|
Material: Spring Steel
Approx. Loose Clip ID: 388.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3950-LS Snap - 395 mm x 4 mm x 400 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity |
||||||
395.00 mm |
4.00 mm +0/-0.10 |
400.0 mm |
403.70 mm |
|||
Material: Spring Steel
Section (Rd): 7.50 mm +0/-0.10
Groove Width (W): 4.20 mm +0.40/-0.00
Approx. Loose Clip ID: 388.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
Part Number: WRI-3950-LS Snap - 395 mm x 4 mm x 400 mm / Retaining Rings
Contact Us Item Discontinued - Please contact us if you need a large quantity | |
SUBSCRIBE TO OUR EMAILS
Be the first to know about new collections and exclusive offers.
