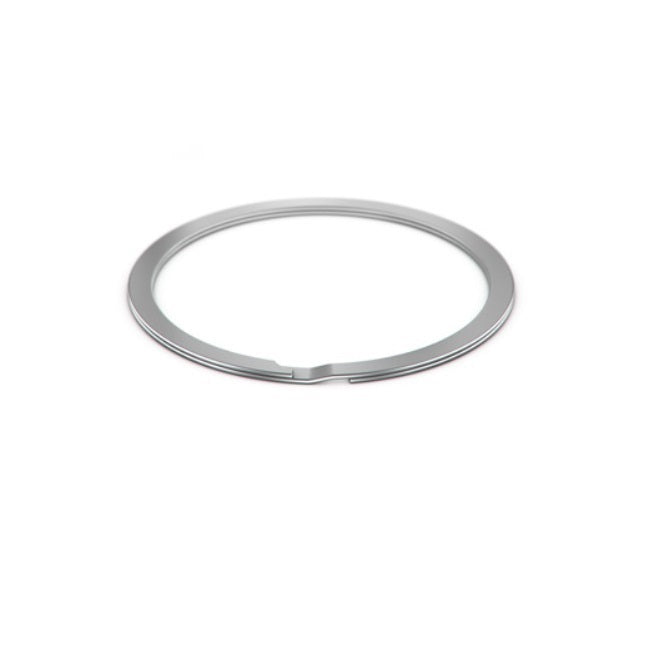

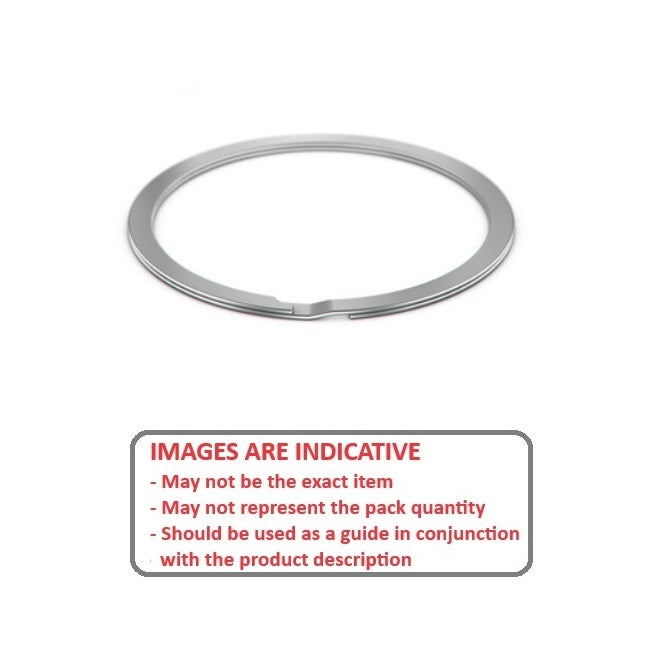

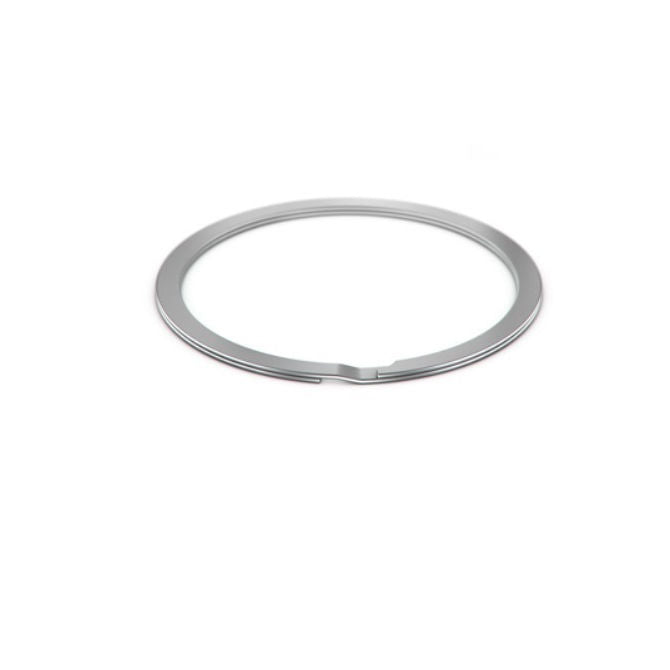

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Spiral - 12.7 mm x 0.64 mm x 14.22 mm
RS-050-S02 (8 Pcs)

MBA

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Price:
$12.50 AUD
$12.50 AUD
per 8
Out Of Stock
Order 50 or more (400 pcs) for $11.25 AUD per 8
Pre-Order now! Backorders for more than the stock quantity are expected before Feb 20, 2025

Base Category: Spiral Rings - External

Top Level Category: Spiral Rings - External - Medium Duty - Stainless Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 7835

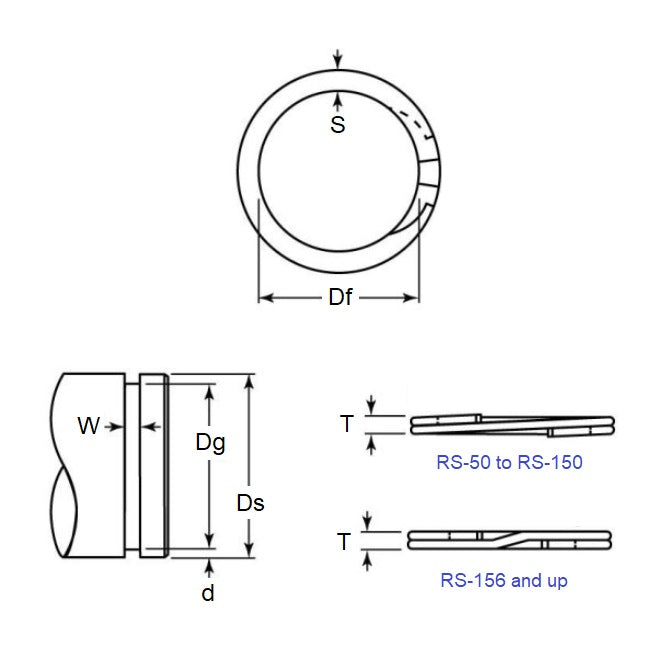

Shaft Dia. (Ds): 12.70mm
302 Stainless Steel
  • Thickness (T): 0.64mm
    +/-0.06
  • Approx. Free OD: 14.22mm
  • Free ID Max. (Df): 11.94mm
    +0.00/-0.33
  • Radial Wall (S): 1.14mm
    +/-0.10
  • Groove Dia. (Dg): 12.04mm
    +/-0.05
  • Groove Width (W): 0.80mm

  • +/-0.04
  • Groove Depth (d): 0.33

Brand: MBA
Country of Origin: US

Alternatives: 93513A110, WS-050-S02

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
