Collection: Retaining Rings - External
Retaining Rings -> ExternalThere are 1595 products in the sub-categories of Retaining Rings - External. Scroll down or follow the link to Retaining Rings - External in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Retaining Rings - External - Circlips
This category includes various types of external retaining rings.An expanded range may...
Retaining Rings - External - Round Wire
A selection of Round Wire External Retaining Rings. DIN7993A / RW /...
Retaining Rings - External - Snap Rings
This category includes various types of external retaining rings.An expanded range may...

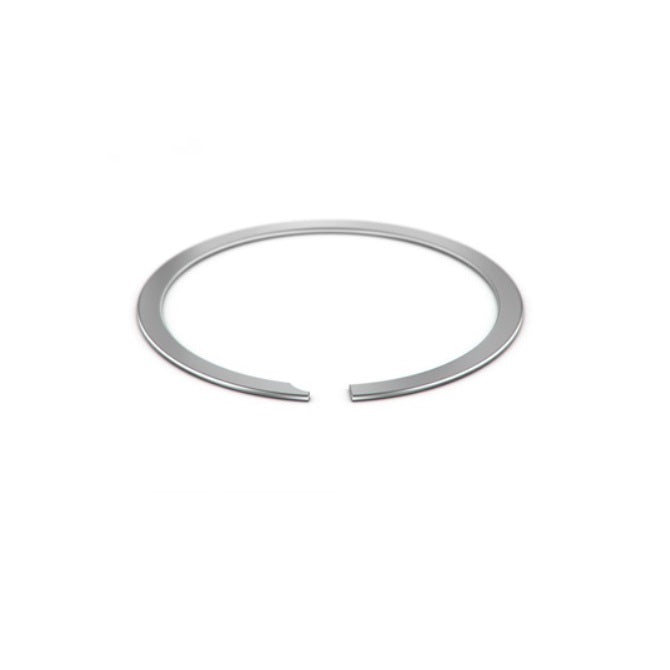

Retaining Rings - External - Spiral Rings
This category includes various types of external retaining rings.An expanded range may...

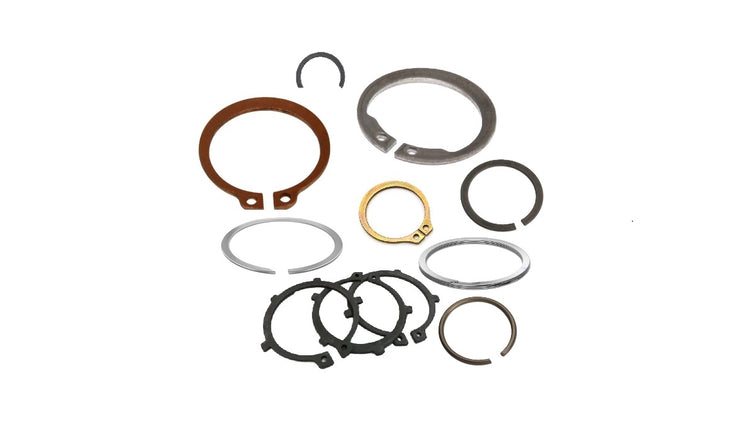

Category Details
This category includes various types of external retaining rings.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Retaining Rings - External category on the Small Parts & Bearings online store.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|

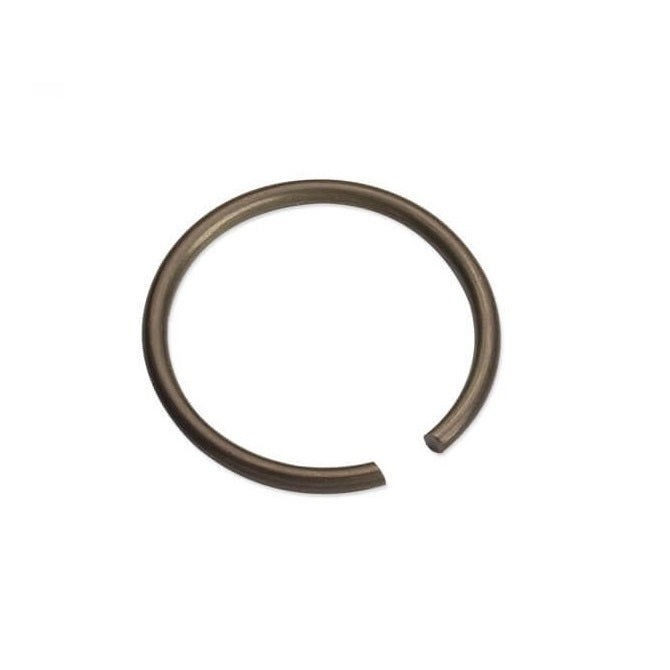

| External Retaining Rings - 1.58x0.23x1.32 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
1.58
mm (Equiv. 0.062 in.) |
Clip Thickness (T)
0.23
mm (Equiv. 0.009 in.) |
Groove Dia. (Dg)
1.32
mm (Equiv. 0.052 in.) |
Approx. Loose Circlip ID (A)
1.30
mm |
Radial Wall (S) Approx.
1.32
mm + 0.08 / - 0.00 |
Groove Width (W)
0.25
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 1.76 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0016-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
| External Retaining Rings - 1.58x0.23x1.32 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
1.58
mm (Equiv. 0.062 in.) |
Clip Thickness (T)
0.23
mm (Equiv. 0.009 in.) |
Groove Dia. (Dg)
1.32
mm (Equiv. 0.052 in.) |
Approx. Loose Circlip ID (A)
1.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.32 mm + 0.08 / - 0.00
Groove Width (W): 0.25 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 1.76 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0016-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 2.11x0.23x1.85 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
2.11
mm (Equiv. 0.083 in.) |
Clip Thickness (T)
0.23
mm (Equiv. 0.009 in.) |
Groove Dia. (Dg)
1.85
mm (Equiv. 0.073 in.) |
Approx. Loose Circlip ID (A)
1.83
mm |
Radial Wall (S) Approx.
1.85
mm + 0.08 / - 0.00 |
Groove Width (W)
0.25
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 2.29 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0021-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 2.11x0.23x1.85 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
2.11
mm (Equiv. 0.083 in.) |
Clip Thickness (T)
0.23
mm (Equiv. 0.009 in.) |
Groove Dia. (Dg)
1.85
mm (Equiv. 0.073 in.) |
Approx. Loose Circlip ID (A)
1.83
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.85 mm + 0.08 / - 0.00
Groove Width (W): 0.25 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 2.29 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0021-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 2.39x0.27x2.08 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
2.39
mm (Equiv. 0.094 in.) |
Clip Thickness (T)
0.27
mm (Equiv. 0.011 in.) |
Groove Dia. (Dg)
2.08
mm (Equiv. 0.082 in.) |
Approx. Loose Circlip ID (A)
2.03
mm |
Radial Wall (S) Approx.
2.08
mm + 0.08 / - 0.00 |
Groove Width (W)
0.28
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 2.57 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0024-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 2.39x0.27x2.08 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
2.39
mm (Equiv. 0.094 in.) |
Clip Thickness (T)
0.27
mm (Equiv. 0.011 in.) |
Groove Dia. (Dg)
2.08
mm (Equiv. 0.082 in.) |
Approx. Loose Circlip ID (A)
2.03
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.08 mm + 0.08 / - 0.00
Groove Width (W): 0.28 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 2.57 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0024-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||

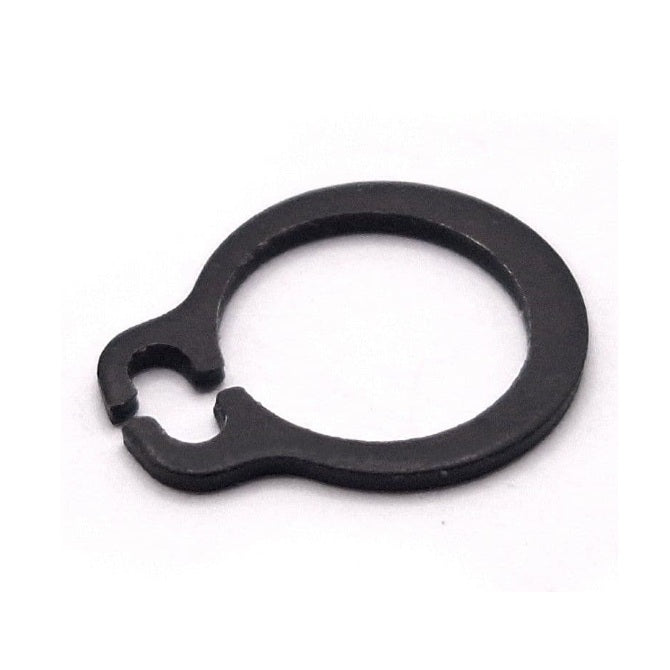

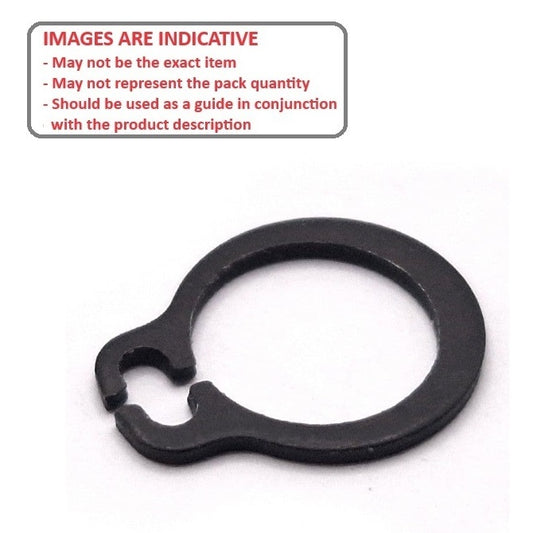

| External Retaining Rings - 2.39x0.64 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05
(Equiv. 0.094 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 1632 |
||||||
|
Part Number: CNG-00239-C (PK-5)
179 units (895 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$1.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 2.39x0.64 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05 (Equiv. 0.094 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 1632 |
||||||
|
Part Number: CNG-00239-C (PK-5)
179 units (895 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$1.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

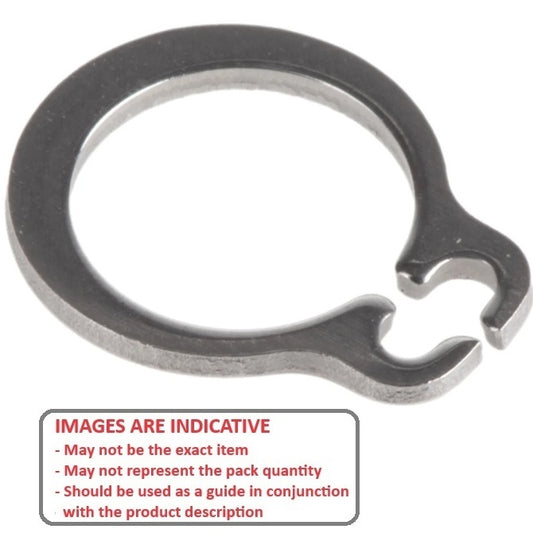

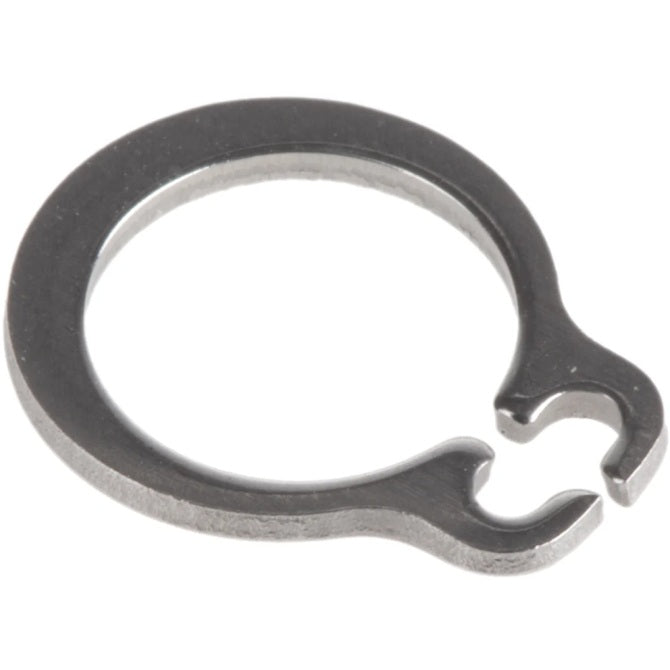

| External Retaining Rings - 2.39x0.64 - - Circlips - Stainless Steel AISI 420C Circlip | ||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05
(Equiv. 0.094 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 33 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 609 |
||||||
|
Part Number: CNG-00239-06-420-2 (Each)
90 Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 2.39x0.64 - - Circlips - Stainless Steel AISI 420C Circlip | ||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05 (Equiv. 0.094 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 33 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 609 |
||||||
|
Part Number: CNG-00239-06-420-2 (Each)
90 Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 2.5x0.6 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
2.50
mm + 0 / - 0.025
(Equiv. 0.098 in.) |
Clip Thickness (T)
0.60
mm (Equiv. 0.024 in.) |
Approx. Loose Circlip ID (A)
2.35
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.50 mm
Clearance in Groove (C1): 60 mm
Category: Retaining Rings - External - Circlips Deleted Item. Available while stocks last. |
||||||
|
Part Number: CNG-00250-C (PK-100)
3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 2.5x0.6 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
2.50
mm + 0 / - 0.025 (Equiv. 0.098 in.) |
Clip Thickness (T)
0.60
mm (Equiv. 0.024 in.) |
Approx. Loose Circlip ID (A)
2.35
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.50 mm
Clearance in Groove (C1): 60 mm
Category: Retaining Rings - External - Circlips Deleted Item. Available while stocks last. |
||||||
|
Part Number: CNG-00250-C (PK-100)
3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 2.54x0.27x2.26 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
2.54
mm (Equiv. 0.1 in.) |
Clip Thickness (T)
0.27
mm (Equiv. 0.011 in.) |
Groove Dia. (Dg)
2.26
mm (Equiv. 0.089 in.) |
Approx. Loose Circlip ID (A)
2.21
mm |
Radial Wall (S) Approx.
2.26
mm + 0.08 / - 0.00 |
Groove Width (W)
0.28
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 2.75 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0025-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 2.54x0.27x2.26 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
2.54
mm (Equiv. 0.1 in.) |
Clip Thickness (T)
0.27
mm (Equiv. 0.011 in.) |
Groove Dia. (Dg)
2.26
mm (Equiv. 0.089 in.) |
Approx. Loose Circlip ID (A)
2.21
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.26 mm + 0.08 / - 0.00
Groove Width (W): 0.28 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 2.75 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0025-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3x0.3x2.7 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring | ||||||
|
Shaft Diameter (Ds)
3.00
mm (Equiv. 0.118 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (Equiv. 0.012 in.) |
Groove Dia. (Dg)
2.70
mm + 0 / - 0.05 (Equiv. 0.106 in.) |
Approx. Loose Circlip ID (A)
2.60
mm |
Radial Wall (S) Approx.
0.50
mm + 0 / - 0.10 |
Groove Width (W)
0.33
mm |
|
|
Material: Stainless Steel 301 S11/S22
Clearance in Groove (C1): 3.6 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0030-LS-S1 (PK-1000)
Out of Stock | Backorder Now | Orders can be expected around Sat, Feb 21, 2026 Regular price
$1,205.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 1000 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 3x0.3x2.7 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring | ||||||
|
Shaft Diameter (Ds)
3.00
mm (Equiv. 0.118 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (Equiv. 0.012 in.) |
Groove Dia. (Dg)
2.70
mm + 0 / - 0.05 (Equiv. 0.106 in.) |
Approx. Loose Circlip ID (A)
2.60
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) Approx.: 0.50 mm + 0 / - 0.10
Groove Width (W): 0.33 mm
Clearance in Groove (C1): 3.6 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0030-LS-S1 (PK-1000)
Out of Stock | Backorder Now | Orders can be expected around Sat, Feb 21, 2026 Regular price
$1,205.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 1000 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.00
mm (Equiv. 0.118 in.) |
Clip Thickness (T)
0.40
mm + 0.00 / - 0.04 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
2.80
mm + 0.00 / - 0.05 (Equiv. 0.11 in.) |
Approx. Loose Circlip ID (A)
2.70
mm |
Groove Width (W)
0.50
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 7.00 mm
Clearance in Groove (C1): 6.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00300-C (PK-100)
33 units (3300 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026 Regular price
$4.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.00
mm (Equiv. 0.118 in.) |
Clip Thickness (T)
0.40
mm + 0.00 / - 0.04 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
2.80
mm + 0.00 / - 0.05 (Equiv. 0.11 in.) |
Approx. Loose Circlip ID (A)
2.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.50 mm
Clearance on Shaft (C1): 7.00 mm
Clearance in Groove (C1): 6.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00300-C (PK-100)
33 units (3300 pcs) Available Now | Further orders can be expected around Thu, Mar 19, 2026 Regular price
$4.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 3x0.6 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.00
mm +/- 0.06
(Equiv. 0.118 in.) |
Clip Thickness (T)
0.60
mm (Equiv. 0.024 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 7.40 mm
Clearance in Groove (C1): 73 mm
Category: Retaining Rings - External - Circlips Deleted Item. Available while stocks last. |
||||||
|
Part Number: CNG-00300-C (PK-100)
1 pack (100 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 3x0.6 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.00
mm +/- 0.06 (Equiv. 0.118 in.) |
Clip Thickness (T)
0.60
mm (Equiv. 0.024 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 7.40 mm
Clearance in Groove (C1): 73 mm
Category: Retaining Rings - External - Circlips Deleted Item. Available while stocks last. |
||||||
|
Part Number: CNG-00300-C (PK-100)
1 pack (100 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (Equiv. 0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (Equiv. 0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
Groove Width (W)
0.30
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips Deleted Item. Available while stocks last. |
||||||
|
Part Number: CCE-00318-C (PK-140)
1 pack (140 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 140 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (Equiv. 0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (Equiv. 0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.30 mm
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips Deleted Item. Available while stocks last. |
||||||
|
Part Number: CCE-00318-C (PK-140)
1 pack (140 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 140 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Zinc Plated Beryllium Copper Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (Equiv. 0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (Equiv. 0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
Groove Width (W)
0.30
mm |
|
|
|
Material: Zinc Plated Beryllium Copper
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-BZ (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Zinc Plated Beryllium Copper Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (Equiv. 0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (Equiv. 0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
|
||
|
Material: Zinc Plated Beryllium Copper
Groove Width (W): 0.30 mm
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-BZ (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Beryllium Copper Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (Equiv. 0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (Equiv. 0.117 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
Groove Width (W)
0.30
mm |
|
|
|
Material: Beryllium Copper
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 7849 |
||||||
|
Part Number: CCE-00318-B (PK-20)
12 units (240 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$8.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Beryllium Copper Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (Equiv. 0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (Equiv. 0.117 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
|
||
|
Material: Beryllium Copper
Groove Width (W): 0.30 mm
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 7849 |
||||||
|
Part Number: CCE-00318-B (PK-20)
12 units (240 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$8.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 3.18x0.32x2.87 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.32
mm (Equiv. 0.013 in.) |
Groove Dia. (Dg)
2.87
mm (Equiv. 0.113 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
Radial Wall (S) Approx.
2.87
mm + 0.08 / - 0.00 |
Groove Width (W)
0.33
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 3.43 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.18x0.32x2.87 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.32
mm (Equiv. 0.013 in.) |
Groove Dia. (Dg)
2.87
mm (Equiv. 0.113 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.87 mm + 0.08 / - 0.00
Groove Width (W): 0.33 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 3.43 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.18x0.56x2.79 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
2.79
mm + 0.08 / - 0.00 (Equiv. 0.11 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
Radial Wall (S) Approx.
2.79
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.18x0.56x2.79 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
2.79
mm + 0.08 / - 0.00 (Equiv. 0.11 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.79 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.18x0.56x2.82 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
2.82
mm + 0.08 / - 0.00 (Equiv. 0.111 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
Radial Wall (S) Approx.
2.82
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.18x0.56x2.82 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
2.82
mm + 0.08 / - 0.00 (Equiv. 0.111 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.82 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.18x0.64 - - Circlips - Stainless Steel AISI 420C Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05
(Equiv. 0.125 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 107 |
||||||
|
Part Number: CNG-00318-06-420-2 (Each)
1 Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$1.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 3.18x0.64 - - Circlips - Stainless Steel AISI 420C Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 107 |
||||||
|
Part Number: CNG-00318-06-420-2 (Each)
1 Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$1.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 3.18x0.64 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05
(Equiv. 0.125 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 81 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 928 |
||||||
|
Part Number: CNG-00318-C (PK-5)
119 units (595 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$0.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 3.18x0.64 - - Circlips - Carbon Steel Circlip | ||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Clip Thickness (T)
0.64
mm (Equiv. 0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 81 mm
Category: Retaining Rings - External - Circlips Additional stock available from USA subject to Prior Sale = 928 |
||||||
|
Part Number: CNG-00318-C (PK-5)
119 units (595 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026 Regular price
$0.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 3.96x0.32x3.63 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.32
mm (Equiv. 0.013 in.) |
Groove Dia. (Dg)
3.63
mm (Equiv. 0.143 in.) |
Approx. Loose Circlip ID (A)
3.51
mm |
Radial Wall (S) Approx.
3.63
mm + 0.08 / - 0.00 |
Groove Width (W)
0.33
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 4.15 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.96x0.32x3.63 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.32
mm (Equiv. 0.013 in.) |
Groove Dia. (Dg)
3.63
mm (Equiv. 0.143 in.) |
Approx. Loose Circlip ID (A)
3.51
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.63 mm + 0.08 / - 0.00
Groove Width (W): 0.33 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 4.15 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
Radial Wall (S) Approx.
0.51
mm +/- 0.08 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.08
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
Radial Wall (S) Approx.
0.51
mm +/- 0.08 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.08
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
| External Retaining Rings - 3.96x0.56x3.61 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
3.61
mm + 0.08 / - 0.00 (Equiv. 0.142 in.) |
Approx. Loose Circlip ID (A)
3.56
mm |
Radial Wall (S) Approx.
3.61
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 4.68 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| External Retaining Rings - 3.96x0.56x3.61 mm Round Wire - Carbon Spring Steel | ||||||
|
Shaft Diameter (Ds)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
3.61
mm + 0.08 / - 0.00 (Equiv. 0.142 in.) |
Approx. Loose Circlip ID (A)
3.56
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.61 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 4.68 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Sep 11, 2028 |
||||||
