Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel

Retaining Rings -> External -> Spiral Rings -> Medium Duty -> Stainless Steel

There are 12 products in the sub-categories of Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel. Browse the Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel products table.

Category Details

A selection of Stainless Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Stainless Steel.

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel category on the Small Parts & Bearings online store.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.04
mm

(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.94
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 14.22 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 7370
Part Number: RS-050-S02 (PK-8)
12 units (96 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$9.95 AUD
$11.95 AUD $9.95 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 12 available can be backordered.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.04
mm

(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.94
mm
+ 0.00 / - 0.33
External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip OD: 14.22 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 7370
Part Number: RS-050-S02 (PK-8)
12 units (96 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$9.95 AUD
$11.95 AUD $9.95 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (96 pcs) Available Now. Backorder if more than 12.
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.10
mm

(Equiv. 0.594 in.)
Approx. Loose Circlip ID (A)
14.93
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.40
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.06
External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 17.73 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 4501
Part Number: RS-062-S02 (PK-5)
19 units (95 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$20.77 AUD
$20.77 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 19 available can be backordered.
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.10
mm

(Equiv. 0.594 in.)
Approx. Loose Circlip ID (A)
14.93
mm
+ 0.00 / - 0.33
External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 1.40 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.06   Approx. Loose Clip OD: 17.73 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 4501
Part Number: RS-062-S02 (PK-5)
19 units (95 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$20.77 AUD
$20.77 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

19 units (95 pcs) Available Now. Backorder if more than 19.
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
18.27
mm

(Equiv. 0.719 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
External Retaining Rings - 19.05x0.79x18.27 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 5770
Part Number: RS-075-S02 (PK-5)
97 units (485 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.23 AUD
$1.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 97 available can be backordered.
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
18.27
mm

(Equiv. 0.719 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
External Retaining Rings - 19.05x0.79x18.27 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 5770
Part Number: RS-075-S02 (PK-5)
97 units (485 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026
$1.23 AUD
$1.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

97 units (485 pcs) Available Now. Backorder if more than 97.
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.51
mm

(Equiv. 1.083 in.)
Approx. Loose Circlip ID (A)
26.87
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 30.69 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 8900
Part Number: RS-112-S02 (PK-8)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$10.68 AUD
$12.82 AUD $10.68 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.51
mm

(Equiv. 1.083 in.)
Approx. Loose Circlip ID (A)
26.87
mm
+ 0.00 / - 0.38
External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip OD: 30.69 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 8900
Part Number: RS-112-S02 (PK-8)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$10.68 AUD
$12.82 AUD $10.68 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
30.53
mm

(Equiv. 1.202 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10

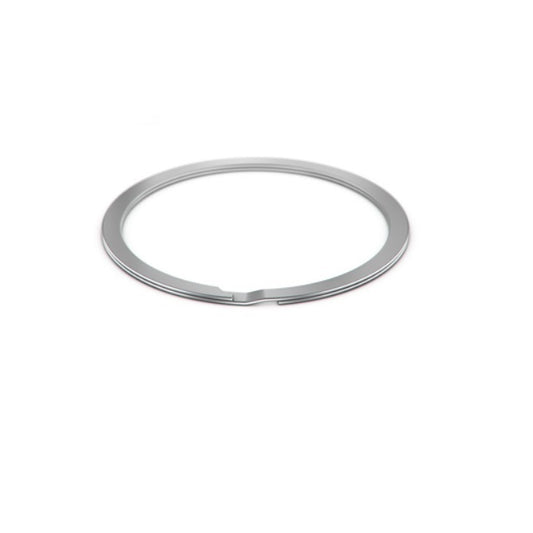

External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 34.17 +/- 0.05   Groove Depth (d): 0.61
Additional stock available from USA subject to Prior Sale = 248
Part Number: RS-125-S02 (Each)
15 Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.68 AUD
$4.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 15 available can be backordered.
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
30.53
mm

(Equiv. 1.202 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip OD: 34.17 +/- 0.05   Groove Depth (d): 0.61
Additional stock available from USA subject to Prior Sale = 248
Part Number: RS-125-S02 (Each)
15 Available Now | Further orders can be expected around Sun, Jan 25, 2026
$4.68 AUD
$4.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

15 Available Now. Backorder if more than 15.
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
39.78
mm

(Equiv. 1.566 in.)
Approx. Loose Circlip ID (A)
38.80
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
2.74
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 44.28 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 587
Part Number: RS-162-S02 (PK-2)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$11.23 AUD
$13.47 AUD $11.23 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
39.78
mm

(Equiv. 1.566 in.)
Approx. Loose Circlip ID (A)
38.80
mm
+ 0.00 / - 0.51
External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 2.74 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 44.28 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 587
Part Number: RS-162-S02 (PK-2)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$11.23 AUD
$13.47 AUD $11.23 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
41.35
mm

(Equiv. 1.628 in.)
Approx. Loose Circlip ID (A)
40.28
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 46.28 +/- 0.05   Groove Depth (d): 0.76
Part Number: RS-168-S02 (PK-8)
Out of Stock | Backorder Now | Orders can be expected around Fri, Feb 06, 2026
$430.05 AUD
$516.05 AUD $430.05 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

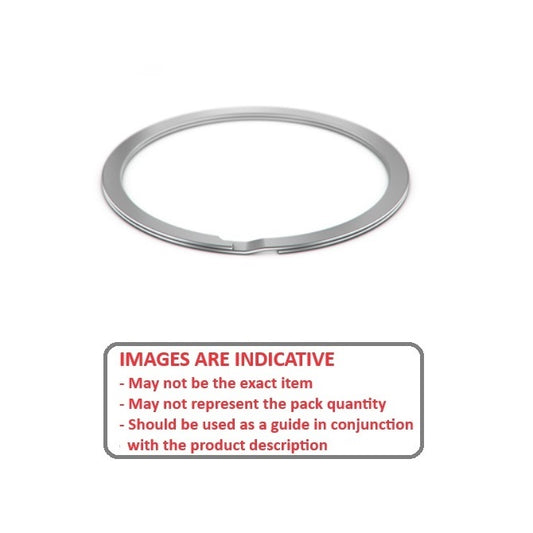

External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
41.35
mm

(Equiv. 1.628 in.)
Approx. Loose Circlip ID (A)
40.28
mm
+ 0.00 / - 0.51
External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 46.28 +/- 0.05   Groove Depth (d): 0.76
Part Number: RS-168-S02 (PK-8)
Out of Stock | Backorder Now | Orders can be expected around Fri, Feb 06, 2026
$430.05 AUD
$516.05 AUD $430.05 AUD
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
52.37
mm

(Equiv. 2.062 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
50.60
mm

(Equiv. 1.992 in.)
Approx. Loose Circlip ID (A)
49.23
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.16
External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 55.73 +/- 0.05   Groove Depth (d): 0.89
Part Number: RS-206-S02 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 27, 2026
$1,066.05 AUD
$1,066.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
52.37
mm

(Equiv. 2.062 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
50.60
mm

(Equiv. 1.992 in.)
Approx. Loose Circlip ID (A)
49.23
mm
+ 0.00 / - 0.51
External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.16   Approx. Loose Clip OD: 55.73 +/- 0.05   Groove Depth (d): 0.89
Part Number: RS-206-S02 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 27, 2026
$1,066.05 AUD
$1,066.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 69.85x1.25x67.57 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
67.57
mm

(Equiv. 2.66 in.)
Approx. Loose Circlip ID (A)
65.66
mm
+ 0.00 / - 0.76
Radial Wall (S) Approx.
4.01
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.16
External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 73.68 +/- 0.05   Groove Depth (d): 1.14
Additional stock available from USA subject to Prior Sale = 6
Part Number: RS-275-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$21.23 AUD
$25.47 AUD $21.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 69.85x1.25x67.57 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
67.57
mm

(Equiv. 2.66 in.)
Approx. Loose Circlip ID (A)
65.66
mm
+ 0.00 / - 0.76
External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 4.01 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.16   Approx. Loose Clip OD: 73.68 +/- 0.05   Groove Depth (d): 1.14
Additional stock available from USA subject to Prior Sale = 6
Part Number: RS-275-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$21.23 AUD
$25.47 AUD $21.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 73.03x1.25x70.64 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
70.64
mm

(Equiv. 2.781 in.)
Approx. Loose Circlip ID (A)
68.65
mm
+ 0.00 / - 0.76
Radial Wall (S) Approx.
4.27
mm
+/- 0.13
Groove Width (W)
1.47
mm
+/- 0.15
External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 77.19 +/- 0.05   Groove Depth (d): 1.19
Deleted Item. Available while stocks last.
Part Number: RS-287-S02 (Each)
16 Available Now | Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

16 Available Now. These are priced to quit. Please contact us for a quote if you require more.
External Retaining Rings - 73.03x1.25x70.64 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
70.64
mm

(Equiv. 2.781 in.)
Approx. Loose Circlip ID (A)
68.65
mm
+ 0.00 / - 0.76
External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 4.27 mm +/- 0.13    Groove Width (W): 1.47 mm +/- 0.15   Approx. Loose Clip OD: 77.19 +/- 0.05   Groove Depth (d): 1.19
Deleted Item. Available while stocks last.
Part Number: RS-287-S02 (Each)
16 Available Now | Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

16 Available Now. These are priced to quit. Please contact us for a quote if you require more.
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
73.76
mm

(Equiv. 2.904 in.)
Approx. Loose Circlip ID (A)
71.63
mm
+ 0.00 / - 0.76
Radial Wall (S) Approx.
4.27
mm
+/- 0.13
Groove Width (W)
1.79
mm
+/- 0.15
External Retaining Rings - 76.2x1.55x73.76 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 80.17 +/- 0.06   Groove Depth (d): 1.22
Part Number: RS-300-S02 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Fri, Feb 06, 2026
$223.59 AUD
$268.31 AUD $223.59 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
73.76
mm

(Equiv. 2.904 in.)
Approx. Loose Circlip ID (A)
71.63
mm
+ 0.00 / - 0.76
External Retaining Rings - 76.2x1.55x73.76 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 4.27 mm +/- 0.13    Groove Width (W): 1.79 mm +/- 0.15   Approx. Loose Clip OD: 80.17 +/- 0.06   Groove Depth (d): 1.22
Part Number: RS-300-S02 (PK-6)
Out of Stock | Backorder Now | Orders can be expected around Fri, Feb 06, 2026
$223.59 AUD
$268.31 AUD $223.59 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 80.95x1.55x78.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
80.95
mm

(Equiv. 3.187 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
78.46
mm

(Equiv. 3.089 in.)
Approx. Loose Circlip ID (A)
76.09
mm
+ 0.00 / - 0.76
Radial Wall (S) Approx.
4.52
mm
+/- 0.13
Groove Width (W)
1.79
mm
+/- 0.15
External Retaining Rings - 80.95x1.55x78.46 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 85.13 +/- 0.06   Groove Depth (d): 1.24
Additional stock available from USA subject to Prior Sale = 85
Part Number: RS-318-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$16.68 AUD
$20.02 AUD $16.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 80.95x1.55x78.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Shaft Diameter (Ds)
80.95
mm

(Equiv. 3.187 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
78.46
mm

(Equiv. 3.089 in.)
Approx. Loose Circlip ID (A)
76.09
mm
+ 0.00 / - 0.76
External Retaining Rings - 80.95x1.55x78.46 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) Approx.: 4.52 mm +/- 0.13    Groove Width (W): 1.79 mm +/- 0.15   Approx. Loose Clip OD: 85.13 +/- 0.06   Groove Depth (d): 1.24
Additional stock available from USA subject to Prior Sale = 85
Part Number: RS-318-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026
$16.68 AUD
$20.02 AUD $16.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
