BTU0010-004-F-Z-SL-FH (Each)

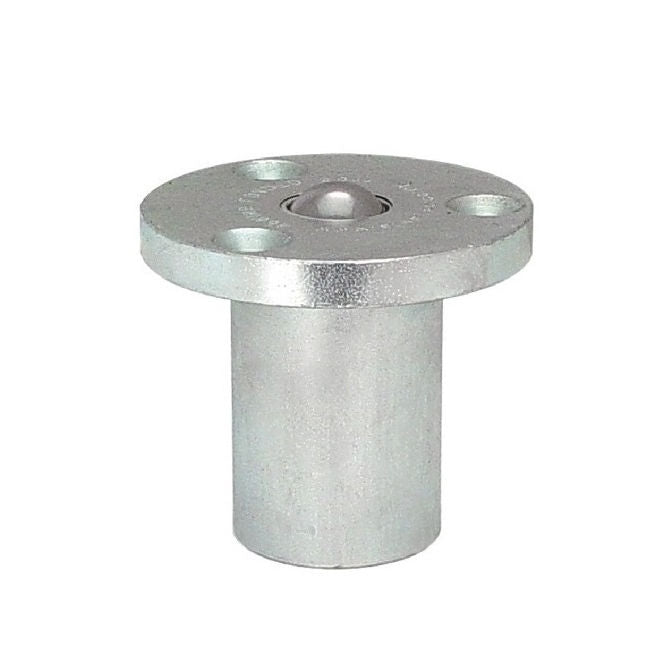

Spring Loaded Ball Transfer Units - 10 kg - 3.5x36.5 mm Flanged - Steel Zinc Plated

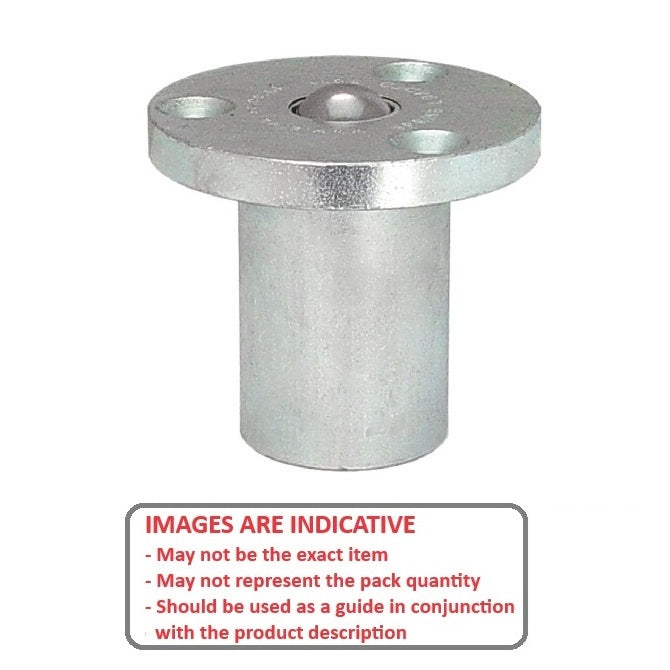

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

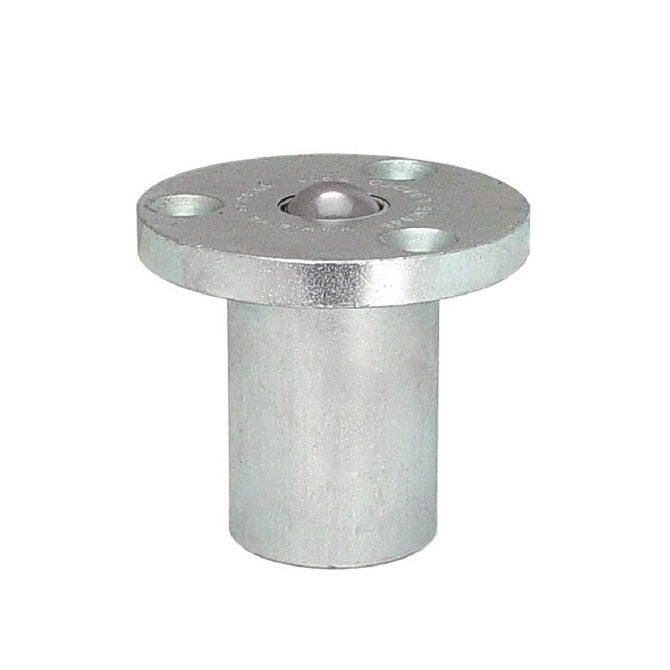

  • Spring Loaded Ball Transfer Units - 10 kg - 3.5x36.5 mm - Steel Zinc Plated
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$576.86 AUD
$576.86 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $519.17 AUD Each
Backorder now! Backorders are expected before Jul 30, 2026

Base Category: Ball Transfer Units - Spring Loaded

Top Level Category: Ball Transfer Units - Spring Loaded - Flanged - Zinc Plated

Product Details

Supp. Load: 10kg

Steel Zinc Plated

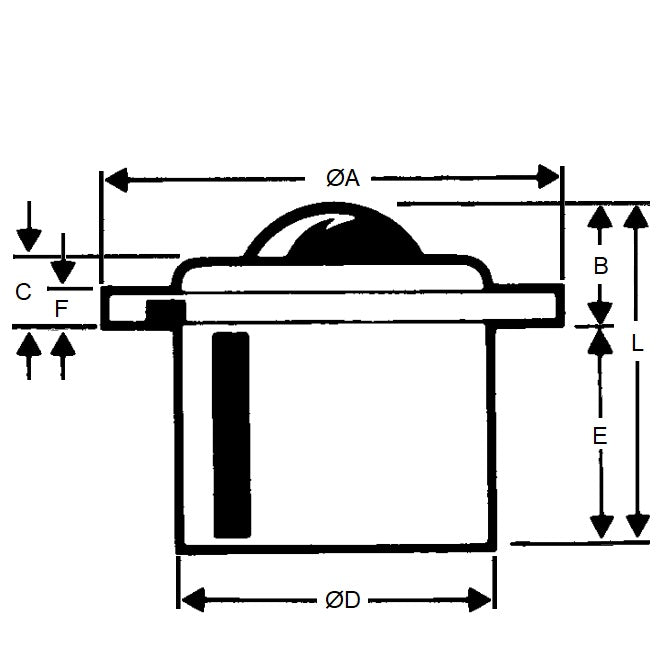

  • Supp. Load: 10kg
  • Height from Base (B): 3.5mm
    (3.5mm is 0.138 in.)
  • Body Diameter (D): 36.5mm
    (36.5mm is 1.437 in.)
  • Overall Height: 63.0mm
  • Ball Diameter: 19.1mm
  • Body Height: 36.6mm
  • Flange Diameter: 66.6mm
  • Flange Thickness: 7.9mm
  • Type: A

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Reid Tool® SKF-3011
  • BTSU19A
  • BTSU-19A
  • SKF3011

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BTU0010004F
View full details
