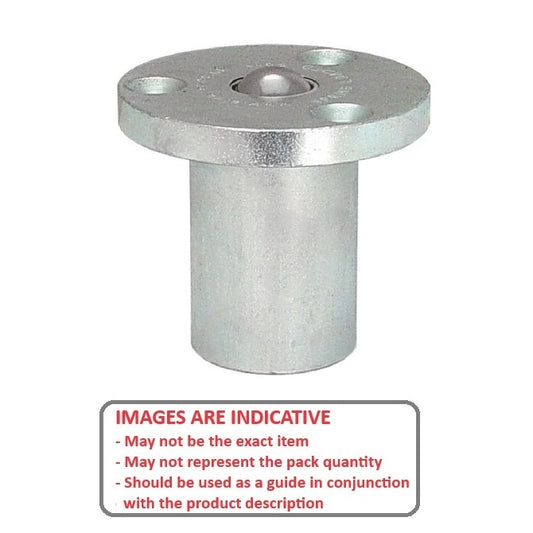

Ball Transfer Units - Spring Loaded - Flanged - Zinc Plated

2 Products in this selection
  • Single ball bearings units for conveyor systems
  • Case: Zinc plated Mild Steel.
  • Ball: Carbon Steel 60-66 HRC.
  • Applications: - Guillotines - Presses - Moulding machines - Base of machines for easy handling - Press brakes - Shock loading.
  • Max Load is applicable when used as a transfer, not as a castor
Supp. Load Height from Base (B) Body Diameter (D) Overall Height Ball Diameter Indicative
10
kg 		3.5
mm 		36.5
mm 		63.0
mm 		19.1
mm 		1090816 | BTU0010-004-F-Z-SL-FH --- Ball - 10 kg x 3.5 mm x 36.5 mm
Material: Steel Zinc Plated    Body Height: 36.6 mm    Flange Diameter: 66.6 mm    Flange Thickness: 7.9 mm    Type: A
Part Number: BTU0010-004-F-Z-SL-FH Ball - 10 kg x 3.5 mm x 36.5 mm / Ball Transfer Units
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$444.86 AUD
$444.86 AUD
Each
Supp. Load Height from Base (B) Body Diameter (D) Overall Height Indicative
10
kg 		3.5
mm 		36.5
mm 		63.0
mm 		1090816 | BTU0010-004-F-Z-SL-FH --- Ball - 10 kg x 3.5 mm x 36.5 mm
Material: Steel Zinc Plated    Ball Diameter: 19.1 mm    Body Height: 36.6 mm    Flange Diameter: 66.6 mm    Flange Thickness: 7.9 mm    Type: A
Part Number: BTU0010-004-F-Z-SL-FH Ball - 10 kg x 3.5 mm x 36.5 mm / Ball Transfer Units
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$444.86 AUD
$444.86 AUD
Each
35
kg 		5.9
mm 		44.5
mm 		67.1
mm 		25.4

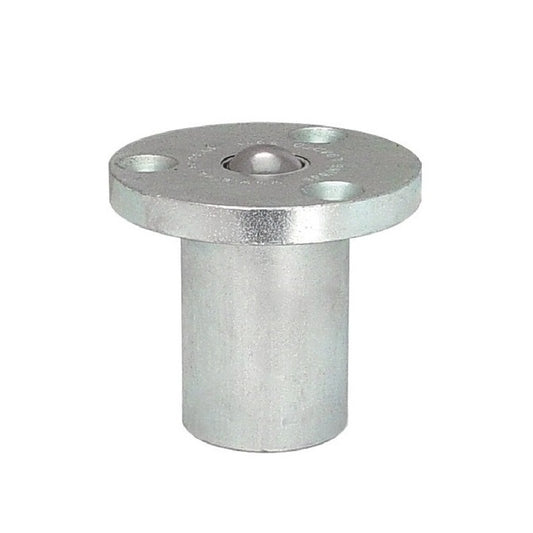

mm 		1147532 | BTU0035-006-F-Z-SL-FH --- Ball - 35 kg x 5.9 mm x 44.5 mm
Material: Steel Zinc Plated    Body Height: 44.5 mm    Flange Diameter: 76.2 mm    Flange Thickness: 7.9 mm    Type: A
Part Number: BTU0035-006-F-Z-SL-FH Ball - 35 kg x 5.9 mm x 44.5 mm / Ball Transfer Units
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$423.86 AUD
$423.86 AUD
Each
35
kg 		5.9
mm 		44.5
mm 		67.1
mm 		1147532 | BTU0035-006-F-Z-SL-FH --- Ball - 35 kg x 5.9 mm x 44.5 mm
Material: Steel Zinc Plated    Ball Diameter: 25.4 mm    Body Height: 44.5 mm    Flange Diameter: 76.2 mm    Flange Thickness: 7.9 mm    Type: A
Part Number: BTU0035-006-F-Z-SL-FH Ball - 35 kg x 5.9 mm x 44.5 mm / Ball Transfer Units
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$423.86 AUD
$423.86 AUD
Each
