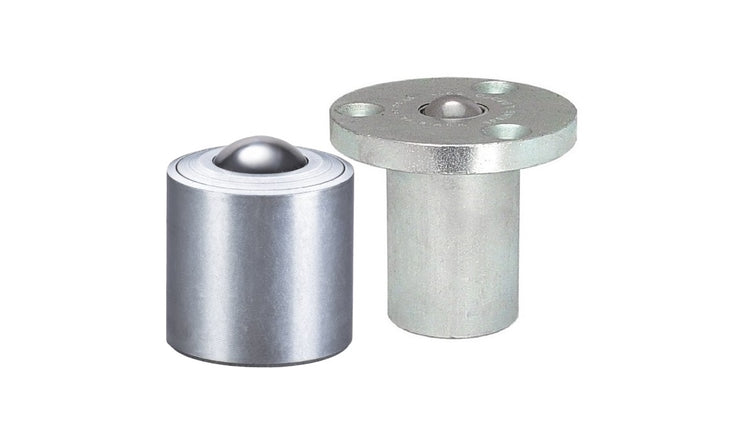

Collection: Ball Transfer Units - Spring Loaded
3 Products in this selection
This is a combined category of Spring Loaded Ball Transfer Units.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
- Single ball bearings units for conveyor systems
- Applications includes guillotines, presses, moulding machines, base of machines for easy handling, press brakes and shock loading.
- Max Load is applicable when used as a transfer, not as a castor
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
A more concise listing may be found on the Smallparts store at Ball Transfer Units - Spring Loaded. Smallparts promote the most popular MBA products.
| Supp. Load | Height from Base (B) | Body Diameter (D) | Overall Height | Ball Diameter |
Indicative Image |
|---|---|---|---|---|---|
|
10
kg |
3.5
mm |
36.5
mm |
63.0
mm |
19.1
mm |
|
|
Material: Steel Zinc Plated
Body Height: 36.6 mm
Flange Diameter: 66.6 mm
Category: Ball Transfer Units - Spring Loaded - Flanged |
|||||
|

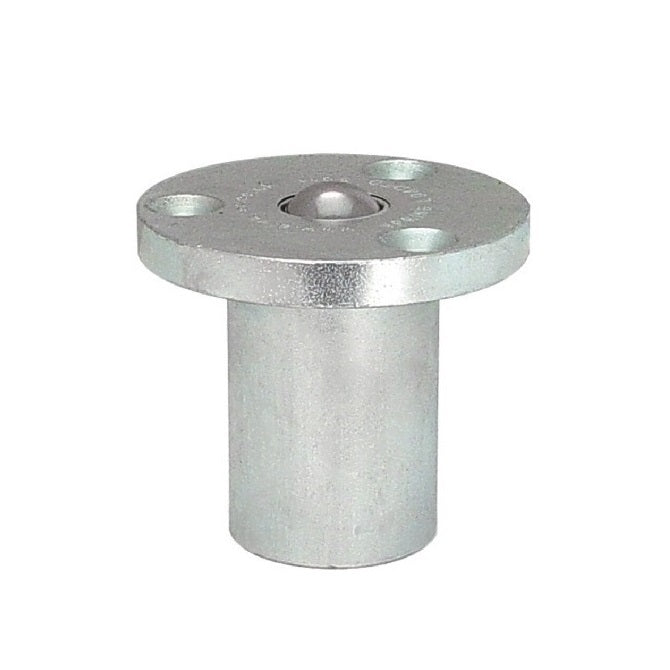

Part Number: BTU0010-004-F-Z-SL-FH Spring Loaded Ball Transfer Units - 10 kg - 3.5x36.5 mm - Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025 Regular price
$543.05 AUD
Regular price
Unit price
per
Each
|
|||||
| Supp. Load | Height from Base (B) | Body Diameter (D) | Overall Height |
Indicative Image |
|
|
10
kg |
3.5
mm |
36.5
mm |
63.0
mm |
|
|
|
Material: Steel Zinc Plated
Ball Diameter: 19.1 mm
Body Height: 36.6 mm
Flange Diameter: 66.6 mm
Category: Ball Transfer Units - Spring Loaded - Flanged |
|||||
|
Part Number: BTU0010-004-F-Z-SL-FH Spring Loaded Ball Transfer Units - 10 kg - 3.5x36.5 mm - Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025 Regular price
$543.05 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
10
kg |
9.5
mm |
36.5
mm |
95.3
mm |
19.1
mm |
|
|
Material: Steel Zinc Plated
Body Height: 10.4 mm
Flange Diameter: C mm
Category: Ball Transfer Units - Spring Loaded - Unflanged |
|||||
|

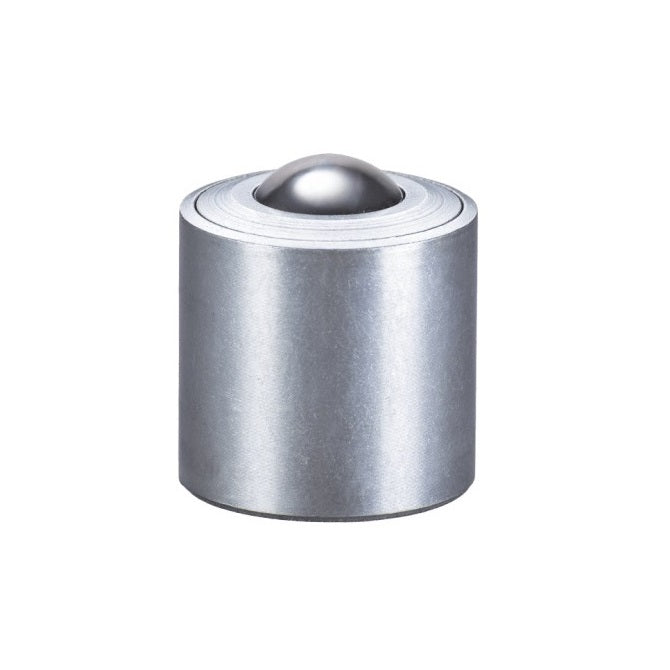

Part Number: BTU0010-010-P-Z-SL Spring Loaded Ball Transfer Units - 10 kg - 9.5x36.5 mm - Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025 Regular price
$277.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
10
kg |
9.5
mm |
36.5
mm |
95.3
mm |
|
|
|
Material: Steel Zinc Plated
Ball Diameter: 19.1 mm
Body Height: 10.4 mm
Flange Diameter: C mm
Category: Ball Transfer Units - Spring Loaded - Unflanged |
|||||
|
Part Number: BTU0010-010-P-Z-SL Spring Loaded Ball Transfer Units - 10 kg - 9.5x36.5 mm - Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025 Regular price
$277.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
35
kg |
5.9
mm |
44.5
mm |
67.1
mm |
25.4
mm |
|
|
Material: Steel Zinc Plated
Body Height: 44.5 mm
Flange Diameter: 76.2 mm
Category: Ball Transfer Units - Spring Loaded - Flanged |
|||||
|
Part Number: BTU0035-006-F-Z-SL-FH Spring Loaded Ball Transfer Units - 35 kg - 5.9x44.5 mm - Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025 Regular price
$517.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
35
kg |
5.9
mm |
44.5
mm |
67.1
mm |
|
|
|
Material: Steel Zinc Plated
Ball Diameter: 25.4 mm
Body Height: 44.5 mm
Flange Diameter: 76.2 mm
Category: Ball Transfer Units - Spring Loaded - Flanged |
|||||
|
Part Number: BTU0035-006-F-Z-SL-FH Spring Loaded Ball Transfer Units - 35 kg - 5.9x44.5 mm - Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025 Regular price
$517.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
