WRE-0480-RD (Each)

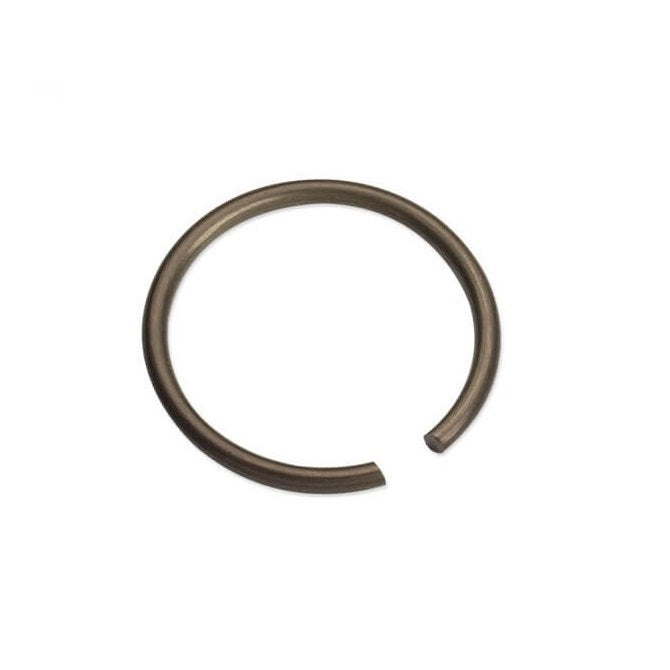

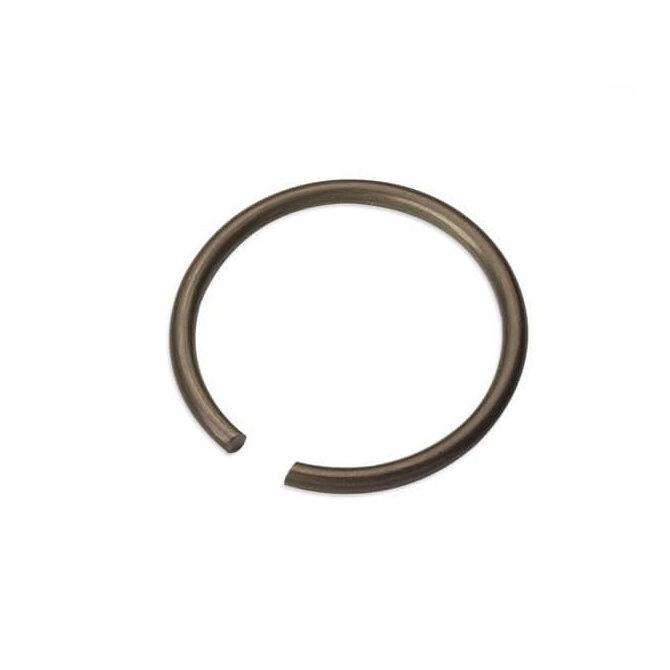

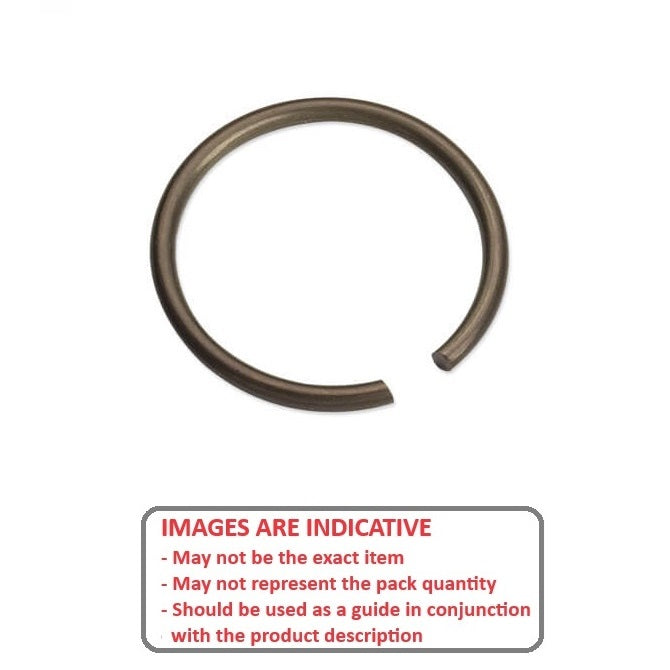

External Retaining Rings - 48x2.5x45.4 mm Round Wire - Carbon Spring Steel Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAnderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
48x2.5x45.4 mm External Retaining Rings - Carbon Spring Steel - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Round Wire
Product Details
Shaft Diameter (Ds): 48.00mm(48.00mm is 1.89 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 48.00mm
(48.00mm is 1.89 in.)
- Clip Thickness (T): 2.50mm
(2.50mm is 0.098 in.)
- Groove Dia. (Dg): 45.4mm
+ 0 / - 0.80
(45.4mm is 1.787 in.)
- Approx. Loose Circlip ID (A): 45.0mm
- Radial Wall (S) Approx.: 45.4mm
+/- 0.10
- Groove Width (W): 2.8mm
Min.
- Free Outside Dia (Dr): 50
- Section Profile: Round Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- NoCor® DRP-048
- DRP048
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0480RD, WRE0480
