WRE-0222-RD-HO

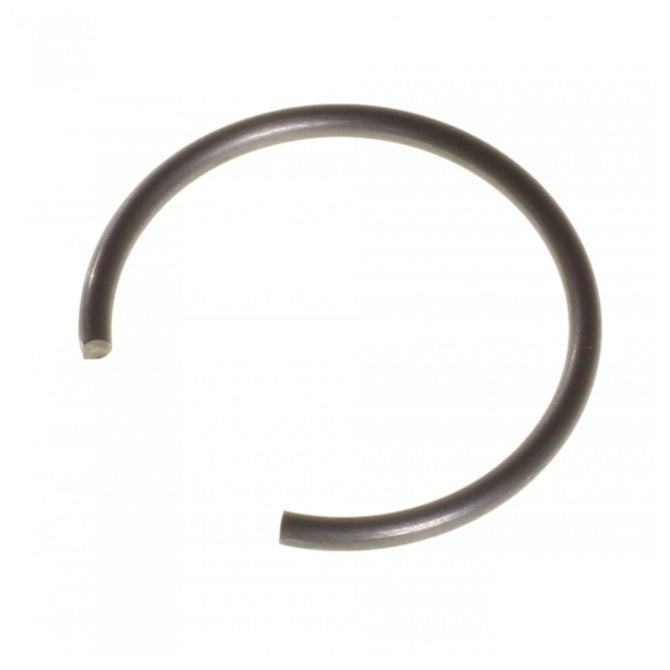

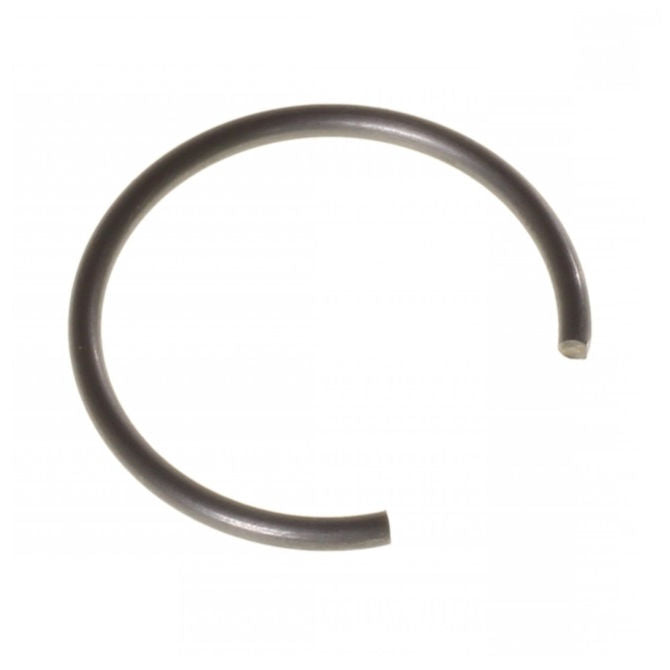

External Retaining Rings - 22.23x2.54x20.65 mm - Spring Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Round Wire

Product Details:

Shaft Diameter (Ds): 22.23mm
(22.23mm is 0.875 in.)

Spring Steel
  • Clip Thickness (T): 2.54mm
    +/- 0.06
    (2.54mm is 0.1 in.)
  • Groove Dia. (Dg): 20.65mm
    + /- 0.08
    (20.65mm is 0.813 in.)
  • Approx. Loose Circlip ID (A): 20.42mm
  • Radial Wall (S) min/max: 20.65mm
  • Groove Width (W): 2.59mm
  • Free Outside Dia (Dr): 25.5
  • Section Profile: Round Section
  • Info: Radial Assembly - Open Gap

Brand: MBA
Country of Origin: USA

Alternative Parts Include: XRO-435, XRO435, WRE0222SRHO, 200435, 200-435, Eaton, Arcon, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
