WRE-0111-RD-C

Name: WRE-0111-RD-C - External Retaining Rings - 11.13x0.89x10.54 mm Round Wire - Carbon Spring Steel
Brand: MBA
SKU: WRE0111RDC
Availability: OutOfStock

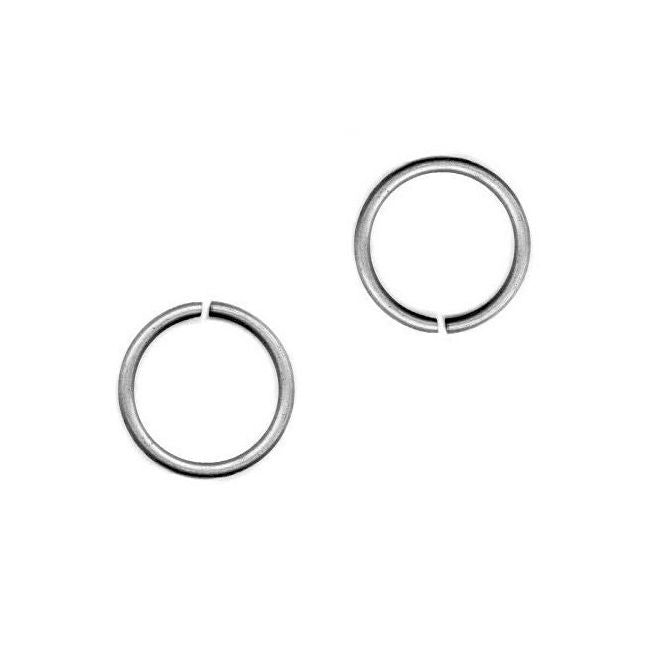

External Retaining Rings - 11.13x0.89x10.54 mm Round Wire - Carbon Spring Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export

Category: Retaining Rings - External - Round Wire

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue

Discontinued

Product Details

Shaft Diameter (Ds): 11.13mm
_{(11.13mm is 0.438 in.)}

Carbon Spring Steel

Clip Thickness (T): 0.89mm
_{+/- 0.10}
_{(0.89mm is 0.035 in.)}
Groove Dia. (Dg): 10.54mm
_{+ 0.08 / - 0.00}
_{(10.54mm is 0.415 in.)}
Approx. Loose Circlip ID (A): 10.47mm
Radial Wall (S) min/max: 10.54mm
Groove Width (W): 0.94mm
Free Outside Dia (Dr): 12.25
Section Profile: Round Section
Info: Axial Assembly - Closed Gap

Brand: MBA
Country of Origin: USA

Product Compliance and Data

Similar to

Eaton 100-320
Arcon XRC-320
NoCor XRC-320
A0900-320
A0900320
XRC320
100320

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
