Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

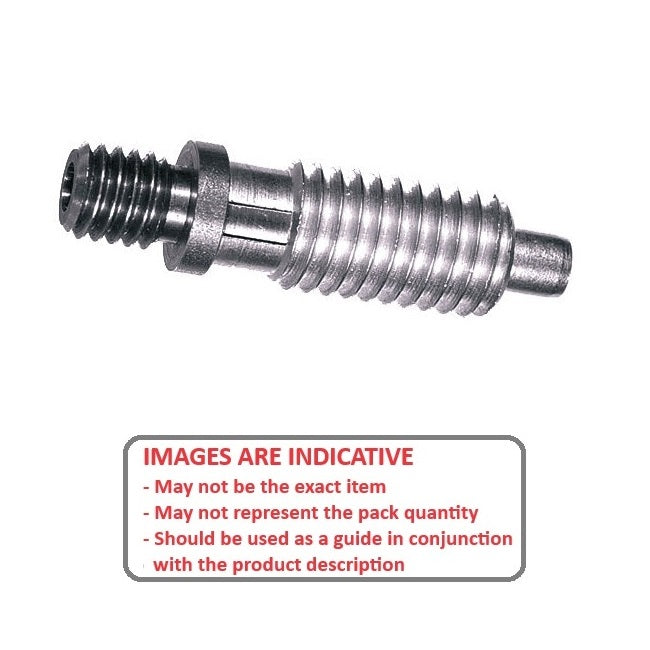

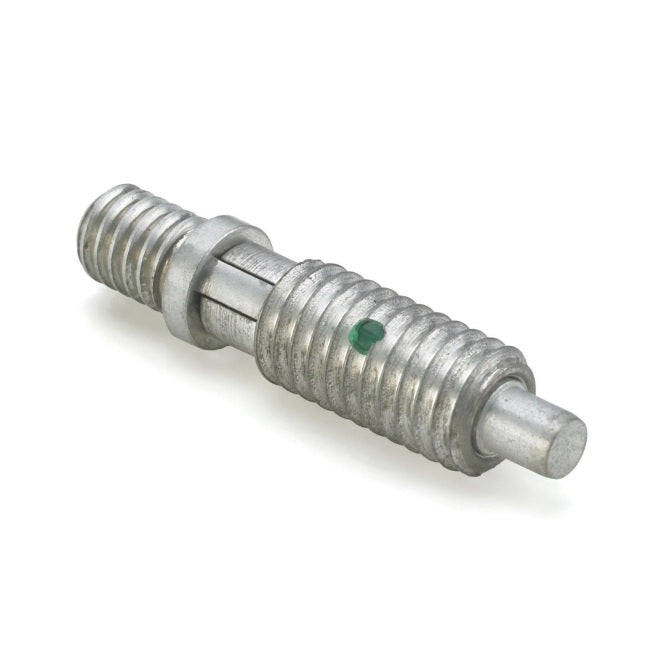

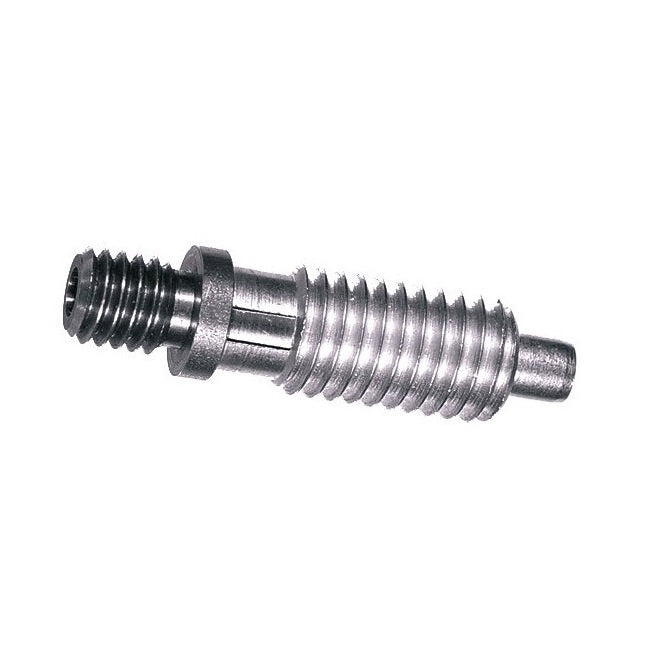

Plungers - M8x1.25 (8mm Standard) x 15.8 mm x 3 N
PLST-080M-158-TACL-013 (125 Pcs)

MBA

Additional resources:
Threaded Ball Plungers
Push Fit Ball Plungers
Price:
$10,180.59 AUD
$10,180.59 AUD
per 125
Out Of Stock
Order 50 or more (6250 pcs) for $9,162.53 AUD per 125
Pre-Order now! Backorders for more than the stock quantity are expected before Dec 22, 2024

Base Category: Plungers - Spring

Top Level Category: Plungers - Spring - Threaded Adapter - Locking - Steel

Product Details:

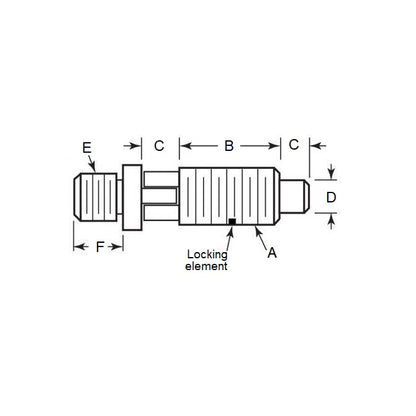

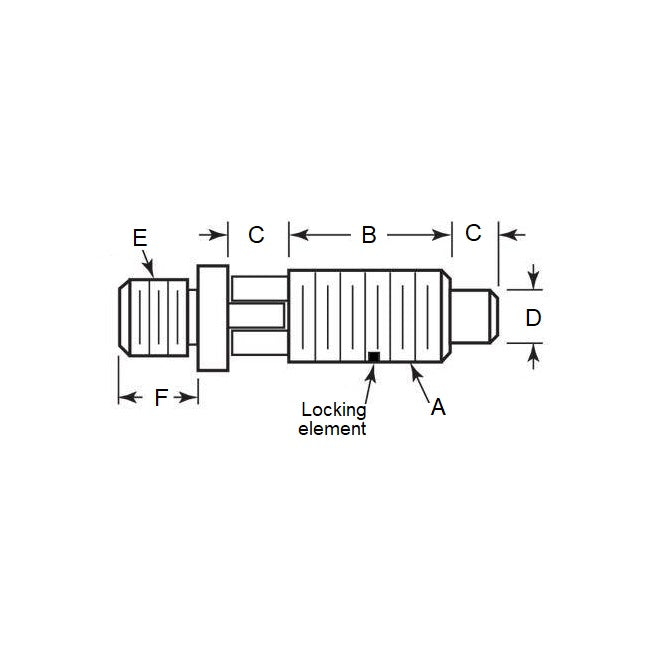

Body Thread Size (A): M8x1.25 (8mm Standard)
Steel
  • Body Thread Length (B): 15.8mm
  • Initial Pressure (F1): 3.0N
  • Final Pressure (F2): 13.0N
  • Tip Diameter (D): 4.0mm
  • Tip Length (C): 4.8mm
  • End Thread Size (E): 1/4-20 UNC (6.350mm)
  • End Thread Length (F): 8.7mm

Brand: MBA
Country of Origin: US

Alternatives: PLST080158TACL013

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
