Collection: Plungers - Ball Push Fit
Plungers -> Ball Push FitThere are 105 products in the sub-categories of Plungers - Ball Push Fit. Scroll down or follow the link to Plungers - Ball Push Fit in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended
A selection of Brass Body Stainless Ball Double Ended Ball Push Fit...
Plungers - Ball Push Fit - Plastic Body
This category includes various types of ball push fit plungers. Non-threaded, spring-loaded...
Plungers - Ball Push Fit - Stainless Body
This category includes various types of ball push fit plungers. Non-threaded, spring-loaded...
Plungers - Ball Push Fit - Steel Body
This category includes various types of ball push fit plungers. Non-threaded, spring-loaded...
Category Details
This category includes various types of ball push fit plungers.
- Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
- Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Plungers - Ball Push Fit category on the Small Parts & Bearings online store.
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |
Indicative Image |
|---|---|---|---|---|---|---|

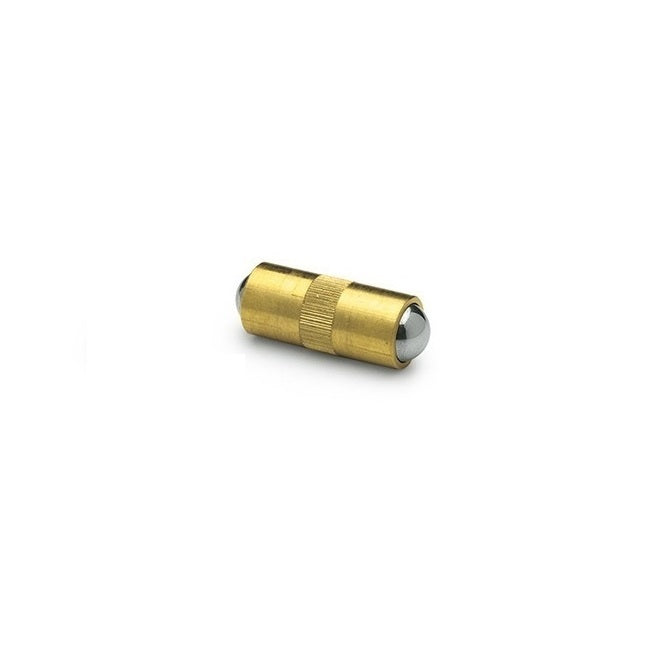

| Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
2.50
mm (Equiv. 0.098 in.) |
Length (L)
5.30
mm (Equiv. 0.209 in.) |
Initial Pressure (F1)
1.30
N |
Final Pressure (F2)
2.50
N |
Ball Diameter (D1)
2.00
mm |
Ball Height (H)
0.65
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Category: Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended Deleted Item. Available while stocks last. |
||||||
|
Part Number: PLBP-025-053-BSD-003 (PK-10)
9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||

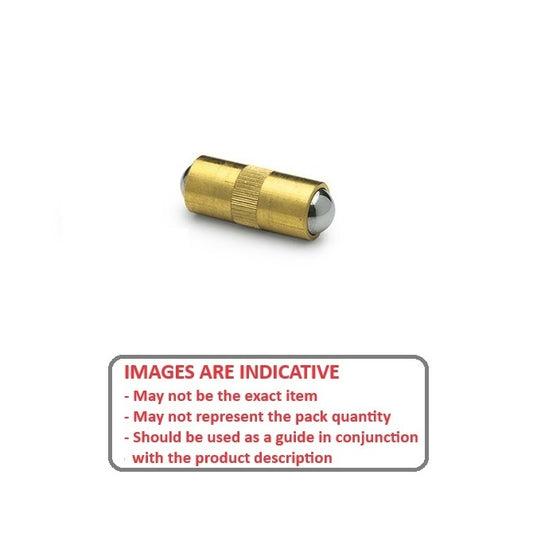

| Ball Push Fit Plungers - 2.5x5.3 mm - 1.3 N Brass Body Stainless Ball Double Ended - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
2.50
mm (Equiv. 0.098 in.) |
Length (L)
5.30
mm (Equiv. 0.209 in.) |
Initial Pressure (F1)
1.30
N |
Final Pressure (F2)
2.50
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.00 mm
Ball Height (H): 0.65 mm
Category: Plungers - Ball Push Fit - Brass Body Stainless Ball Double Ended Deleted Item. Available while stocks last. |
||||||
|
Part Number: PLBP-025-053-BSD-003 (PK-10)
9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

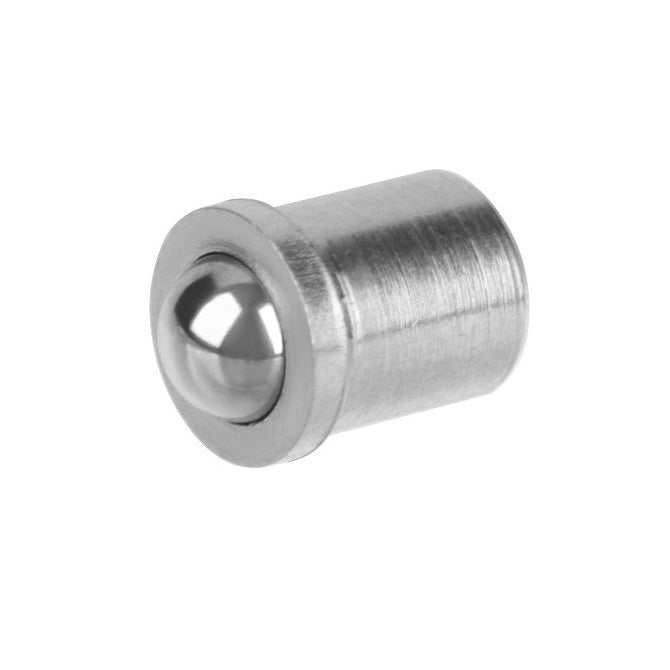

| Ball Push Fit Plungers - 3x4 mm - 2 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.0
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.0
N |
Final Pressure (F2)
4.0
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.8
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-030-040-S3-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3x4 mm - 2 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.0
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.0
N |
Final Pressure (F2)
4.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.8 mm
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-030-040-S3-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

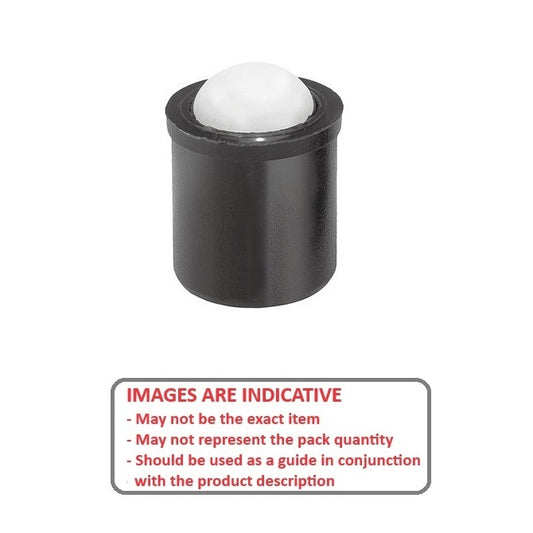

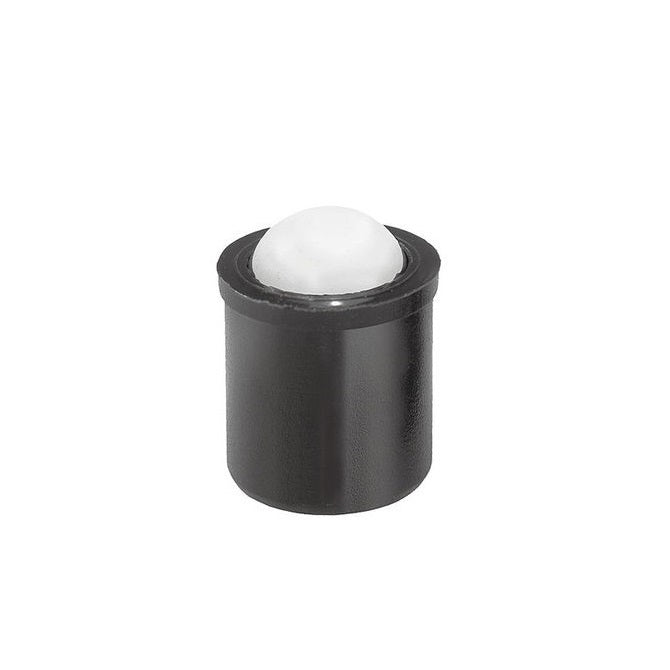

| Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Plastic Plunger | ||||||
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.00
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
4.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.60
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-030-040-PP-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Plastic Plunger | ||||||
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.00
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
4.00
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.60 mm
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-030-040-PP-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

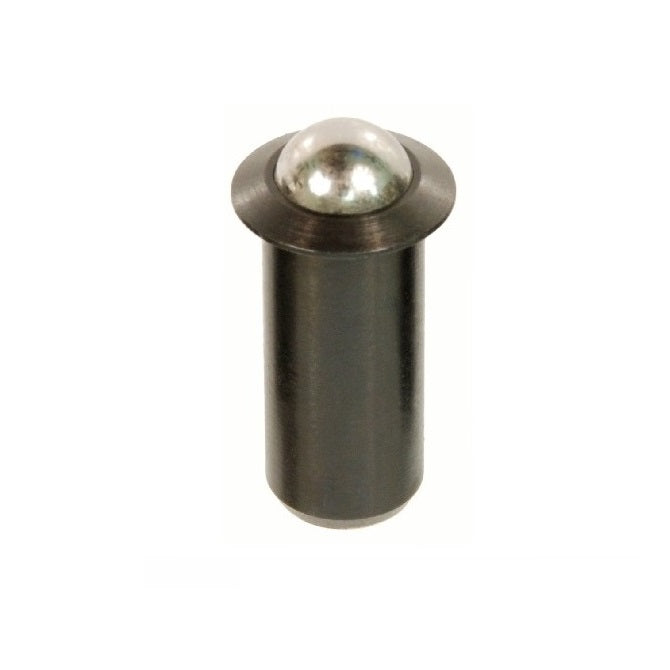

| Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.00
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
4.00
N |
Ball Diameter (D1)
2.38
mm |
Ball Height (H)
0.60
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-030-040-PS-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3x4 mm - 2 N Plastic Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.00
mm (Equiv. 0.118 in.) |
Length (L)
4.00
mm (Equiv. 0.157 in.) |
Initial Pressure (F1)
2.00
N |
Final Pressure (F2)
4.00
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 2.38 mm
Ball Height (H): 0.60 mm
Shoulder Diameter (S): 3.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-030-040-PS-004 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

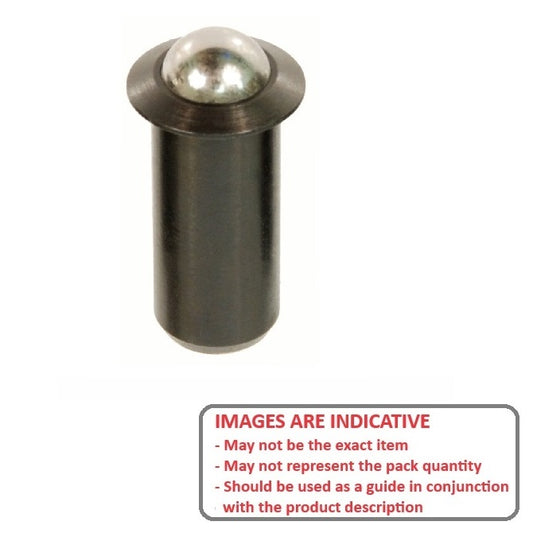

| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CS-006 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CS-006 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-006 (Each)
2 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-006 (Each)
2 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

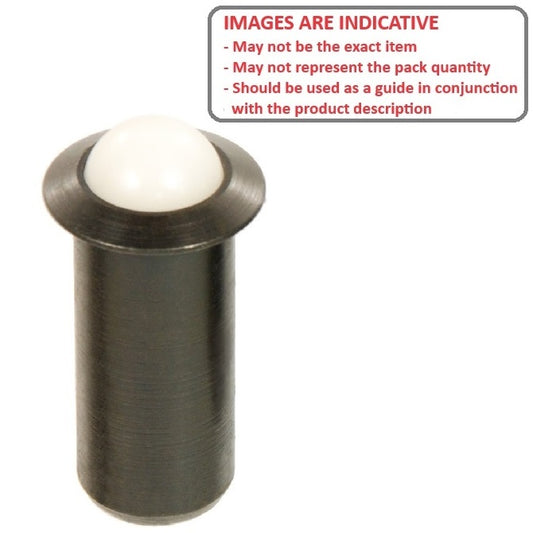

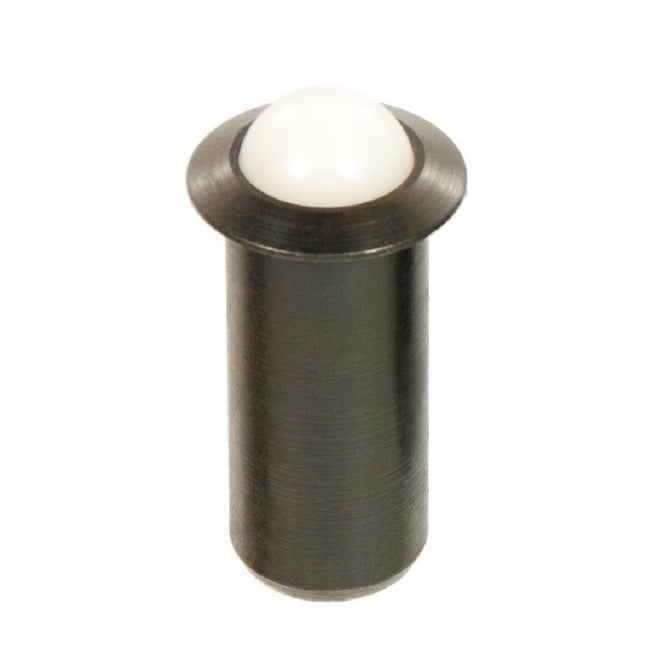

| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CN-006 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CN-006 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SN-006 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SN-006 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SN-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$16.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SN-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$16.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$9.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$9.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CN-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Nylon Polyamide 6/6 Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CN-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CS-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CS-011 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$8.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CS-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CS-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$7.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-S3-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$11.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SA-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Stainless Body - Acetal Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-032-064-SA-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Acetal Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CA-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Acetal Plunger | ||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body |
||||||
|
Part Number: PLBP-032-064-CA-022 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
10.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
1.1
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-010 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
10.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 3.0 mm
Ball Height (H): 1.1 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-010 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
5.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
1.1
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
5.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 3.0 mm
Ball Height (H): 1.1 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger | ||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.7
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PP-007 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$18.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger | ||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.7 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PP-007 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$18.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.7
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PS-007 (Each)
14 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.7 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PS-007 (Each)
14 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic Plunger | ||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.8
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-SP-007 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$216.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Stainless Body - Plastic Plunger | ||||||
|
Body Diameter (D)
4.00
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.8 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-SP-007 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$216.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.00
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
5.00
N |
Ball Diameter (D1)
3.00
mm |
Ball Height (H)
0.90
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PS-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Stainless Steel Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.00
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 3.00 mm
Ball Height (H): 0.90 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PS-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.00
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
5.00
N |
Ball Diameter (D1)
3.00
mm |
Ball Height (H)
0.90
mm |
|
|
Material: Plastic
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PP-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4x5 mm - 3 N Plastic Body - Plastic Plunger | ||||||
|
Body Diameter (D)
4.00
mm (Equiv. 0.157 in.) |
Length (L)
5.00
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.00
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Plastic
Ball Diameter (D1): 3.00 mm
Ball Height (H): 0.90 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Plastic Body |
||||||
|
Part Number: PLBP-040-050-PP-005 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026 Regular price
$30.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Ball Push Fit Plungers - 4.00 - Machined - 5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
4.00 (Machined)
mm + 0.1 / - 0.0
(Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
Ball Diameter (D1)
3.0
mm |
Ball Height (H)
0.7
mm |
|
|
Material: Stainless Steel 400 Series Hardened
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-007 (Each)
15 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Ball Push Fit Plungers - 4.00 - Machined - 5 mm - 3 N Stainless Body - Stainless Steel 400 Series Hardened Plunger | ||||||
|
Body Diameter (D)
4.00 (Machined)
mm + 0.1 / - 0.0 (Equiv. 0.157 in.) |
Length (L)
5.0
mm (Equiv. 0.197 in.) |
Initial Pressure (F1)
3.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel 400 Series Hardened
Ball Diameter (D1): 3.0 mm
Ball Height (H): 0.7 mm
Shoulder Diameter (S): 4.6 mm
Category: Plungers - Ball Push Fit - Stainless Body |
||||||
|
Part Number: PLBP-040-050-S3-007 (Each)
15 Available Now | Further orders can be expected around Sun, Jan 18, 2026 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
