PLBT-200M-300-C-148 (Each)

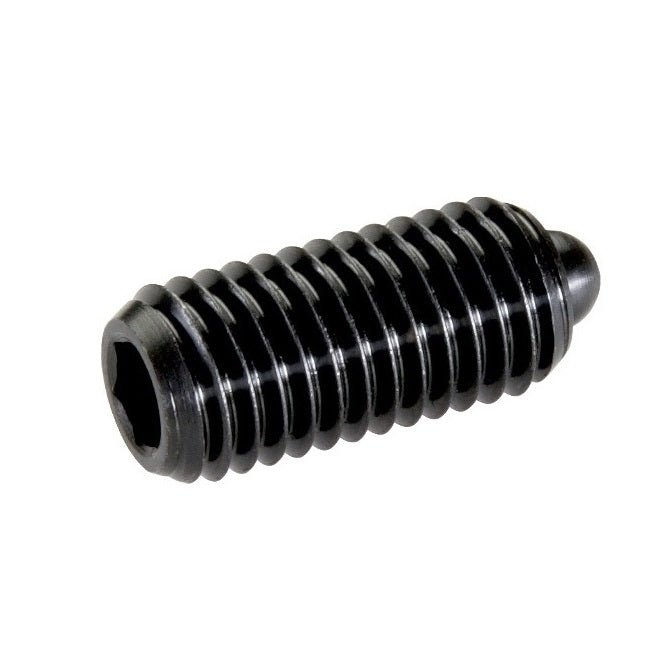

Ball Threaded Plungers - M20 - 20x2.5mm - 30 mm - 78.4 N - Steel Plunger
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spring Plungers
Spring Plunger Wrench
Push Fit Ball Plungers
Order 50 or more
for $12.73 AUD Each
Couldn't load pickup availability
M20 (20x2.5mm) 30 mm - 78.4 N Ball Threaded Plungers - Steel - Sold per Each:
Base Category: Plungers - Ball Threaded
Top Level Category: Plungers - Ball Threaded - Steel - Standard

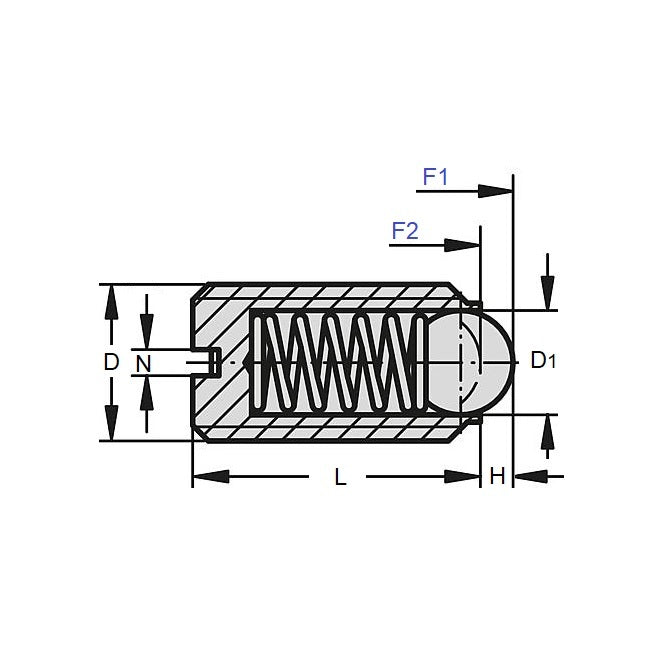

Product Details
Thread Size (D): M20 (20x2.5mm)Steel
- Thread Size (D): M20 (20x2.5mm)
- Body Length (L): 30.0mm
(30.0mm is 1.181 in.)
- Initial Pressure (F1): 78.4N
- Final Pressure (F2): 147.6N
- Ball Diameter (D1): 11.9mm
- Ball Height (H): 4.5mm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Elesa GN615-M20-K
- PLBT200300C160
- BPM20
- GN615M20K
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PLBT200M300C148, PLBT200M300
