PLST-120M-222-HKA-CL-LK-022 (Each)

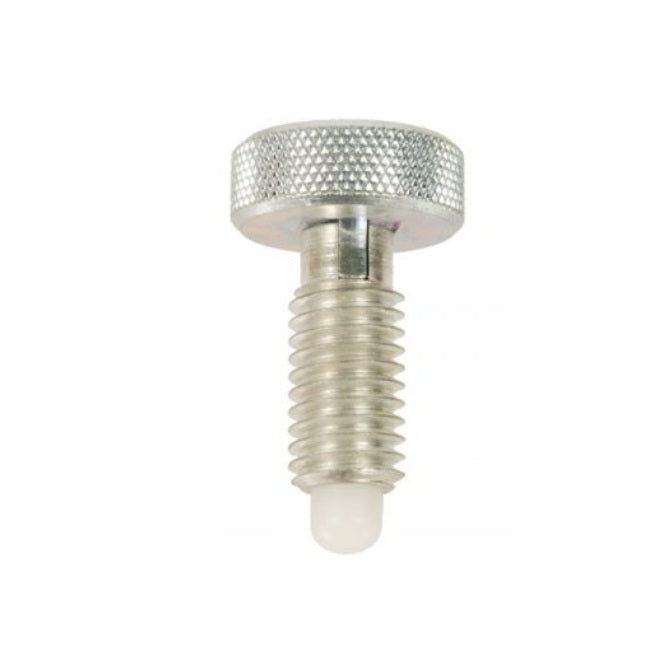

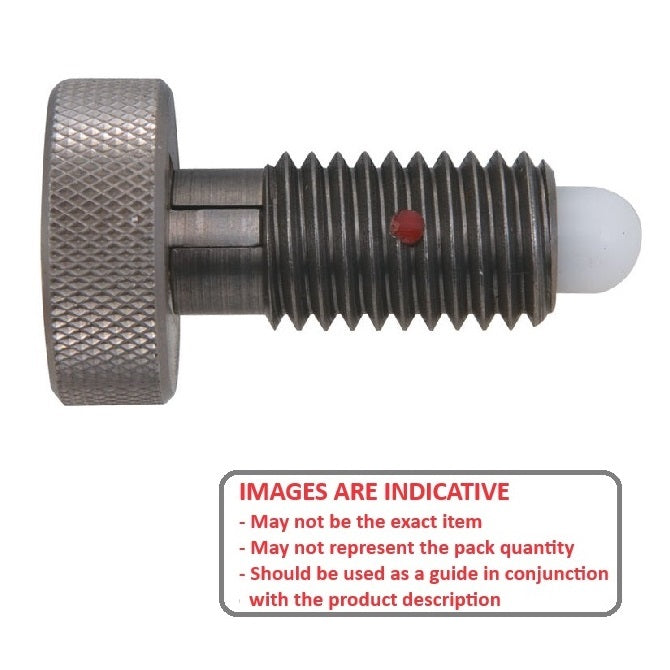

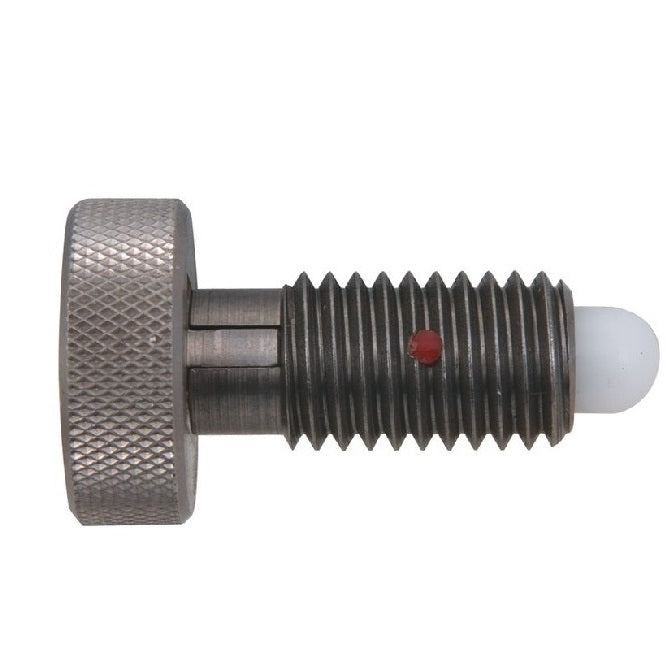

Spring Plungers - M12 - 12x1.75mm - 22.2 mm - 5.5 N Knurled Handle - Steel Body with Acetal Plunger
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Threaded Ball Plungers
Push Fit Ball Plungers
Order 50 or more
for $69.35 AUD Each
M12 (12x1.75mm) 22.2 mm - 5.5 N Spring Plungers - Steel Body with Acetal - Sold per Each:
Base Category: Plungers - Spring
Top Level Category: Plungers - Spring - Knurled Handle - Locking - Steel-Acetal
Product Details

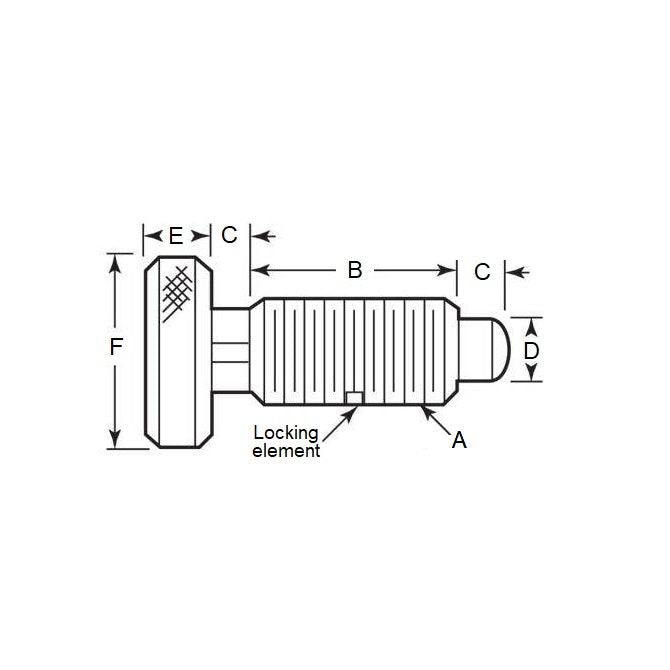

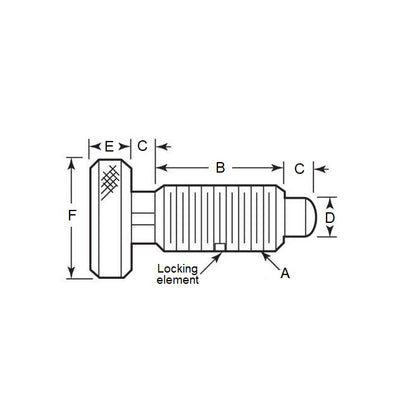

Thread Size (A): M12 (12x1.75mm)Steel Body with Acetal
- Thread Size (A): M12 (12x1.75mm)
- Thread Length (B): 22.2mm
(22.2mm is 0.874 in.)
- Initial Pressure (F1): 5.5N
- Final Pressure (F2): 22.0N
- Tip Diameter (D): 7.9mm
- Tip Length (C): 6.4mm
- Head Height (E): 9.4mm
- Head Diameter (F): 25.4mm
- Additional: With Locking Element
Brand: MBA
Country of Origin: US
