WM1R-050-030-130-S4

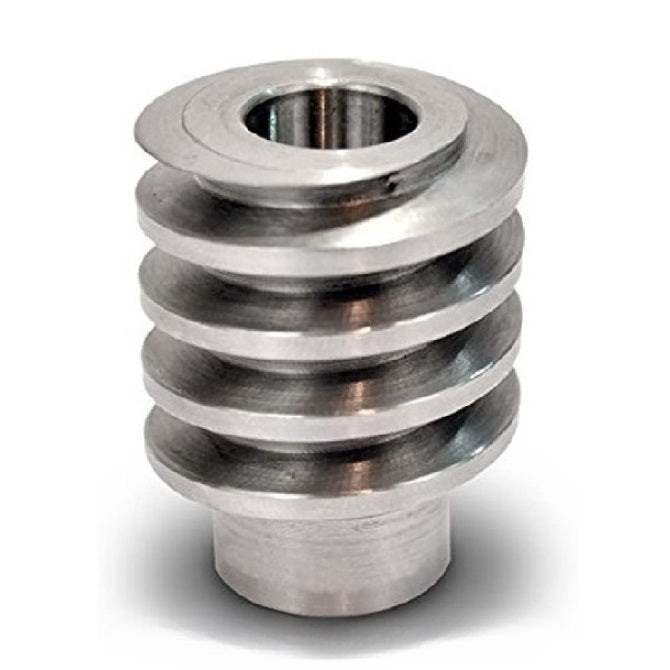

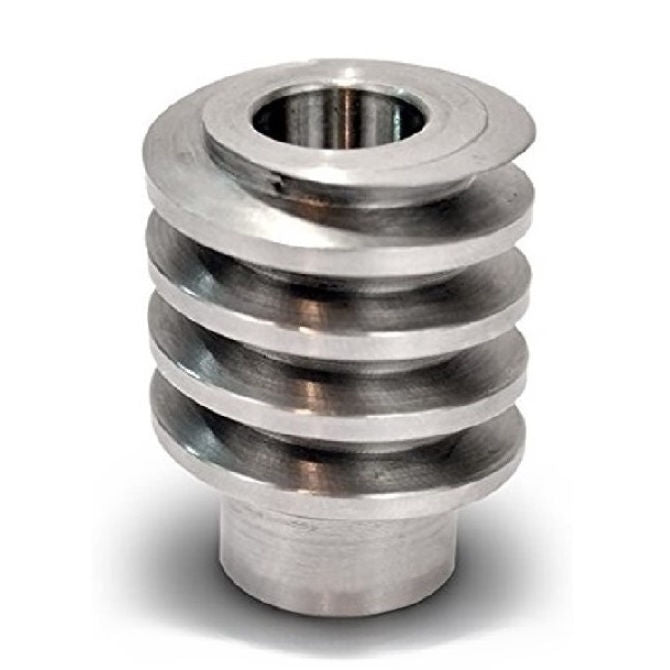

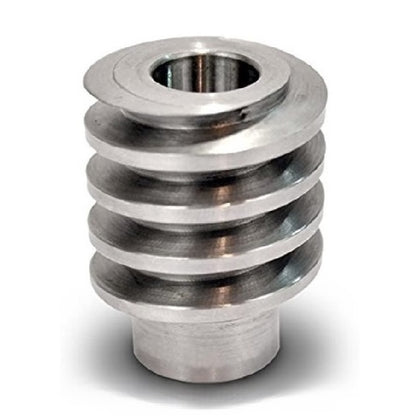

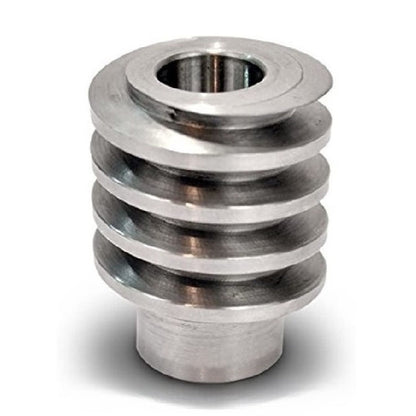

Worm Gears - Pitch Module 0.5 Worm - 1 Start - 3 Deg 11 Min - 304 Stainless

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$54.68 AUD
$54.68 AUD
Each
Out Of Stock
Order 50 or more for $49.21 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 28, 2025

Base Category: Gears - Worm

Top Level Category: Gears - Worm - Module 0.5

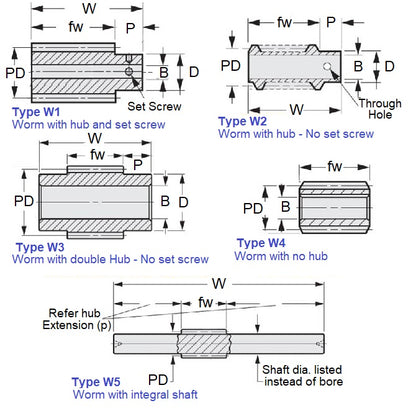

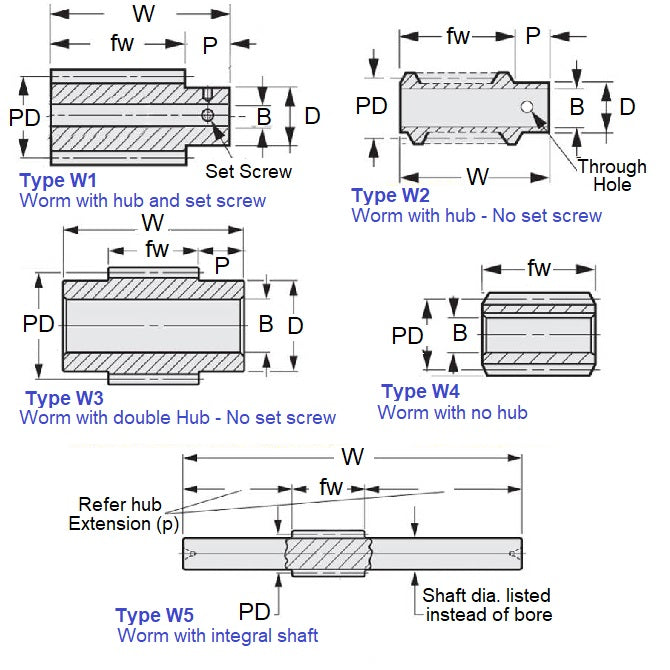

Product Details:

Pitch: Module 0.5

304 Stainless
  • Teeth: Worm - 1 Start
  • Lead Angle: 3 Deg 11 Minmm
    (3 Deg 11 Minmm is 0.118 in.)
  • Direction: Right
  • Bore (B): 13.000
  • Overall Length (l): 18.00
  • Pitch Diameter (C): 9mm
  • Face Width (fw): 3.00mm
  • Bore Type: Finished (H8)
  • Hub Diameter (Dh): 7.60mm
  • Locking Type: Set Screw

Brand: MBA
Country of Origin: JP

Alternative Parts Include: WM1R050030130RS4

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
