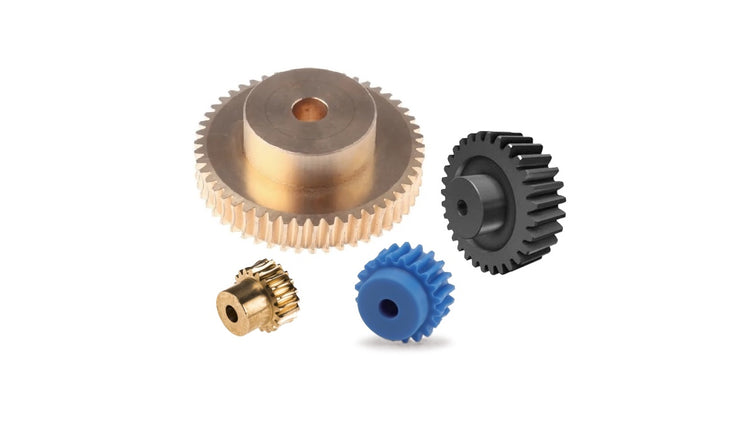

Collection: Gears - Worm

Gears (With Images)

Worm

239 Products in this selection

This is a combined category of Worm Gears.

Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
If there is no matching worm for a stocked gear, please contact us for a special procurement.

Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Gears - Worm

Additional resources:

A more concise listing may be found on the Smallparts store at Gears - Worm. Smallparts promote the most popular MBA products.

Pitch	Teeth	Lead Angle	Direction	Bore (B)	Overall Length (l)	Indicative Image

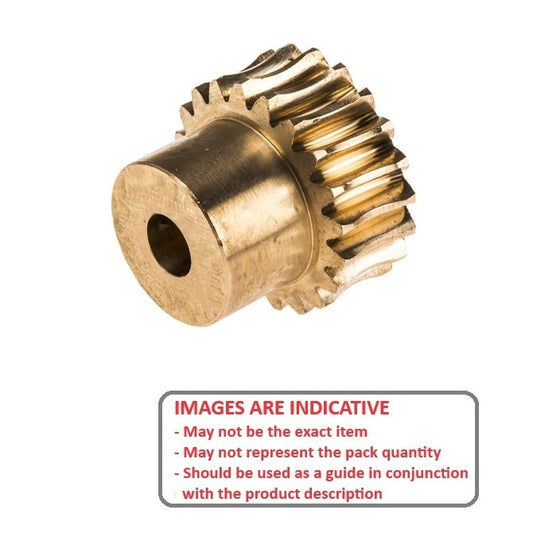

Module 0.5	20	3 Deg 11 Min mm	Right	3.000	11
Material: Brass - C3604B Pitch Diameter (C): 10 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-020-030-BR Worm Gears - Pitch Module 0.5 20 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $54.41 AUD Regular price Sale price $54.41 AUD Unit price per Each
Pitch	Teeth	Lead Angle	Direction	Indicative Image
Module 0.5	20	3 Deg 11 Min mm	Right
Material: Brass - C3604B Bore (B): 3.000 Overall Length (l): 11 Pitch Diameter (C): 10 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-020-030-BR Worm Gears - Pitch Module 0.5 20 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $54.41 AUD Regular price Sale price $54.41 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-020-030-BR --- Worm Gears - Pitch Module 0.5 20 - 3 Deg 11 Min - Brass - C3604B WG1R-050-020-030-BR --- Worm Gears - Pitch Module 0.5 20 - 3 Deg 11 Min - Brass - C3604B Regular price $54.41 AUD Regular price Sale price $54.41 AUD Unit price per Out of stock! Backorder Now
Module 0.5	20	2 Deg 36 Min mm	Right	4.000	12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 10.01 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-020-040-COP Worm Gears - Pitch Module 0.5 20 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Each
Module 0.5	20	2 Deg 36 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 10.01 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-020-040-COP Worm Gears - Pitch Module 0.5 20 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 20 - 2 Deg 36 Min - Copper Alloy - CAC502 WG1R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 20 - 2 Deg 36 Min - Copper Alloy - CAC502 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Out of stock! Backorder Now
Module 0.5	20	5 Deg 13 Min mm	Right	4.000	12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 10.04 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG2R-050-020-040-COP Worm Gears - Pitch Module 0.5 20 - 5 Deg 13 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Each
Module 0.5	20	5 Deg 13 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 10.04 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG2R-050-020-040-COP Worm Gears - Pitch Module 0.5 20 - 5 Deg 13 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Each View the product page first if you are unsure.
WG2R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 20 - 5 Deg 13 Min - Copper Alloy - CAC502 WG2R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 20 - 5 Deg 13 Min - Copper Alloy - CAC502 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Out of stock! Backorder Now
Module 0.5	30	2 Deg 36 Min mm	Right	4.000	12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 15.02 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-030-040-COP Worm Gears - Pitch Module 0.5 30 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Each
Module 0.5	30	2 Deg 36 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 15.02 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-030-040-COP Worm Gears - Pitch Module 0.5 30 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 30 - 2 Deg 36 Min - Copper Alloy - CAC502 WG1R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 30 - 2 Deg 36 Min - Copper Alloy - CAC502 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Out of stock! Backorder Now
Module 0.5	30	3 Deg 11 Min mm	Right	4.000	11
Material: Brass - C3604B Pitch Diameter (C): 15 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-030-040-BR Worm Gears - Pitch Module 0.5 30 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $57.41 AUD Regular price Sale price $57.41 AUD Unit price per Each
Module 0.5	30	3 Deg 11 Min mm	Right
Material: Brass - C3604B Bore (B): 4.000 Overall Length (l): 11 Pitch Diameter (C): 15 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-030-040-BR Worm Gears - Pitch Module 0.5 30 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $57.41 AUD Regular price Sale price $57.41 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-030-040-BR --- Worm Gears - Pitch Module 0.5 30 - 3 Deg 11 Min - Brass - C3604B WG1R-050-030-040-BR --- Worm Gears - Pitch Module 0.5 30 - 3 Deg 11 Min - Brass - C3604B Regular price $57.41 AUD Regular price Sale price $57.41 AUD Unit price per Out of stock! Backorder Now
Module 0.5	30	5 Deg 13 Min mm	Right	4.000	12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 15.06 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG2R-050-030-040-COP Worm Gears - Pitch Module 0.5 30 - 5 Deg 13 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Each
Module 0.5	30	5 Deg 13 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 15.06 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG2R-050-030-040-COP Worm Gears - Pitch Module 0.5 30 - 5 Deg 13 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Each View the product page first if you are unsure.
WG2R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 30 - 5 Deg 13 Min - Copper Alloy - CAC502 WG2R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 30 - 5 Deg 13 Min - Copper Alloy - CAC502 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Out of stock! Backorder Now
Module 0.5	40	2 Deg 36 Min mm	Right	5.000	12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 20.02 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-040-050-COP Worm Gears - Pitch Module 0.5 40 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $62.77 AUD Regular price Sale price $62.77 AUD Unit price per Each
Module 0.5	40	2 Deg 36 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 20.02 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-040-050-COP Worm Gears - Pitch Module 0.5 40 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $62.77 AUD Regular price Sale price $62.77 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-040-050-COP --- Worm Gears - Pitch Module 0.5 40 - 2 Deg 36 Min - Copper Alloy - CAC502 WG1R-050-040-050-COP --- Worm Gears - Pitch Module 0.5 40 - 2 Deg 36 Min - Copper Alloy - CAC502 Regular price $62.77 AUD Regular price Sale price $62.77 AUD Unit price per Out of stock! Backorder Now
Module 0.5	40	3 Deg 11 Min mm	Right	5.000	13
Material: Brass - C3604B Pitch Diameter (C): 20 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-040-050-BR Worm Gears - Pitch Module 0.5 40 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $62.23 AUD Regular price Sale price $62.23 AUD Unit price per Each
Module 0.5	40	3 Deg 11 Min mm	Right
Material: Brass - C3604B Bore (B): 5.000 Overall Length (l): 13 Pitch Diameter (C): 20 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-040-050-BR Worm Gears - Pitch Module 0.5 40 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $62.23 AUD Regular price Sale price $62.23 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-040-050-BR --- Worm Gears - Pitch Module 0.5 40 - 3 Deg 11 Min - Brass - C3604B WG1R-050-040-050-BR --- Worm Gears - Pitch Module 0.5 40 - 3 Deg 11 Min - Brass - C3604B Regular price $62.23 AUD Regular price Sale price $62.23 AUD Unit price per Out of stock! Backorder Now

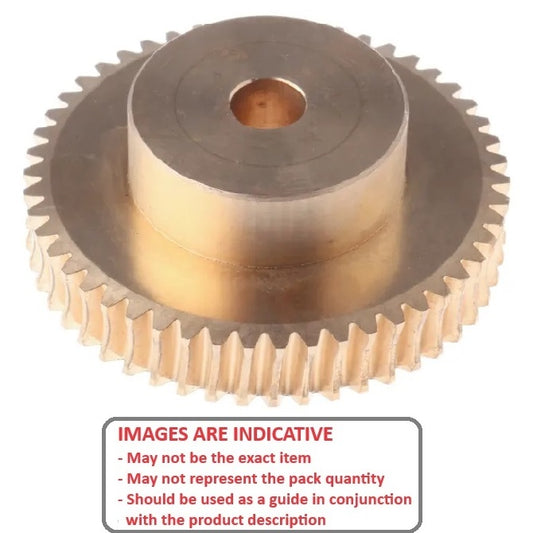

Module 0.5	50	2 Deg 36 Min mm	Right	5.000	12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 25.03 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-050-050-COP Worm Gears - Pitch Module 0.5 50 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $73.32 AUD Regular price Sale price $73.32 AUD Unit price per Each
Module 0.5	50	2 Deg 36 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 25.03 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-050-050-COP Worm Gears - Pitch Module 0.5 50 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $73.32 AUD Regular price Sale price $73.32 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-050-050-COP --- Worm Gears - Pitch Module 0.5 50 - 2 Deg 36 Min - Copper Alloy - CAC502 WG1R-050-050-050-COP --- Worm Gears - Pitch Module 0.5 50 - 2 Deg 36 Min - Copper Alloy - CAC502 Regular price $73.32 AUD Regular price Sale price $73.32 AUD Unit price per Out of stock! Backorder Now
Module 0.5	50	3 Deg 11 Min mm	Right	5.000	13
Material: Brass - C3604B Pitch Diameter (C): 25 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-050-050-BR Worm Gears - Pitch Module 0.5 50 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $68.32 AUD Regular price Sale price $68.32 AUD Unit price per Each
Module 0.5	50	3 Deg 11 Min mm	Right
Material: Brass - C3604B Bore (B): 5.000 Overall Length (l): 13 Pitch Diameter (C): 25 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-050-050-BR Worm Gears - Pitch Module 0.5 50 - 3 Deg 11 Min - Brass - C3604B Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $68.32 AUD Regular price Sale price $68.32 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-050-050-BR --- Worm Gears - Pitch Module 0.5 50 - 3 Deg 11 Min - Brass - C3604B WG1R-050-050-050-BR --- Worm Gears - Pitch Module 0.5 50 - 3 Deg 11 Min - Brass - C3604B Regular price $68.32 AUD Regular price Sale price $68.32 AUD Unit price per Out of stock! Backorder Now
Module 0.5	60	2 Deg 36 Min mm	Right	5.000	12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 30.03 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-060-050-COP Worm Gears - Pitch Module 0.5 60 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $83.86 AUD Regular price Sale price $83.86 AUD Unit price per Each
Module 0.5	60	2 Deg 36 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 30.03 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WG1R-050-060-050-COP Worm Gears - Pitch Module 0.5 60 - 2 Deg 36 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $83.86 AUD Regular price Sale price $83.86 AUD Unit price per Each View the product page first if you are unsure.
WG1R-050-060-050-COP --- Worm Gears - Pitch Module 0.5 60 - 2 Deg 36 Min - Copper Alloy - CAC502 WG1R-050-060-050-COP --- Worm Gears - Pitch Module 0.5 60 - 2 Deg 36 Min - Copper Alloy - CAC502 Regular price $83.86 AUD Regular price Sale price $83.86 AUD Unit price per Out of stock! Backorder Now

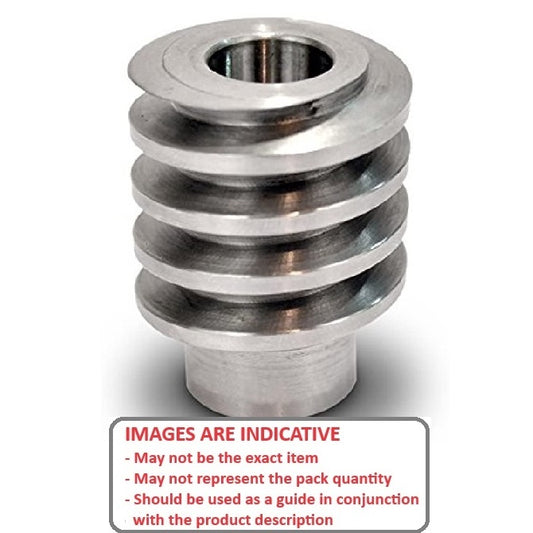

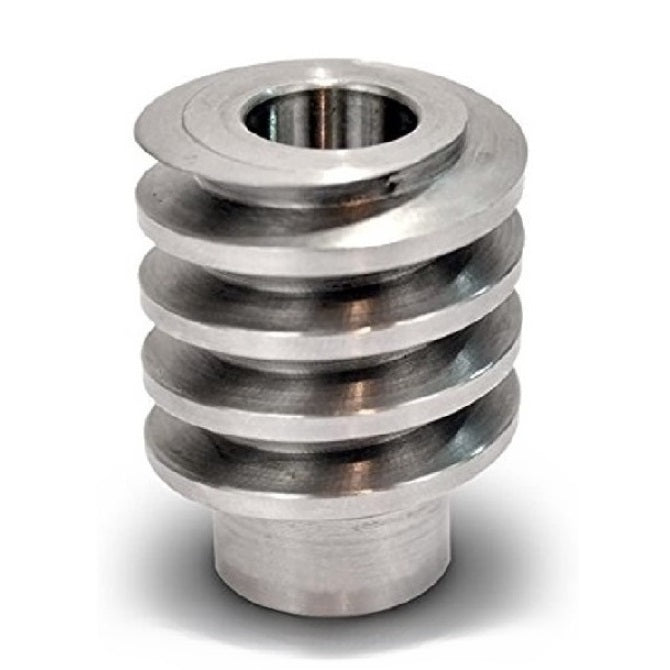

Module 0.5	Worm - 1 Start	3 Deg 11 Min mm	Right	13.000	18.00
Material: 304 Stainless Pitch Diameter (C): 9 mm Face Width (fw): 3.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM1R-050-030-130-S4 Worm Gears - Pitch Module 0.5 Worm - 1 Start - 3 Deg 11 Min - 304 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $54.68 AUD Regular price Sale price $54.68 AUD Unit price per Each
Module 0.5	Worm - 1 Start	3 Deg 11 Min mm	Right
Material: 304 Stainless Bore (B): 13.000 Overall Length (l): 18.00 Pitch Diameter (C): 9 mm Face Width (fw): 3.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM1R-050-030-130-S4 Worm Gears - Pitch Module 0.5 Worm - 1 Start - 3 Deg 11 Min - 304 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $54.68 AUD Regular price Sale price $54.68 AUD Unit price per Each View the product page first if you are unsure.
WM1R-050-030-130-S4 --- Worm Gears - Pitch Module 0.5 Worm - 1 Start - 3 Deg 11 Min - 304 Stainless WM1R-050-030-130-S4 --- Worm Gears - Pitch Module 0.5 Worm - 1 Start - 3 Deg 11 Min - 304 Stainless Regular price $54.68 AUD Regular price Sale price $54.68 AUD Unit price per Out of stock! Backorder Now
Module 0.5	Worm - 1 Start	2 Deg 36 Min mm	Right	18.000	18.00
Material: 303 Stainless Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM1R-050-050-180-S3 Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $64.50 AUD Regular price Sale price $64.50 AUD Unit price per Each
Module 0.5	Worm - 1 Start	2 Deg 36 Min mm	Right
Material: 303 Stainless Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM1R-050-050-180-S3 Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $64.50 AUD Regular price Sale price $64.50 AUD Unit price per Each View the product page first if you are unsure.
WM1R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - 303 Stainless WM1R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - 303 Stainless Regular price $64.50 AUD Regular price Sale price $64.50 AUD Unit price per Out of stock! Backorder Now

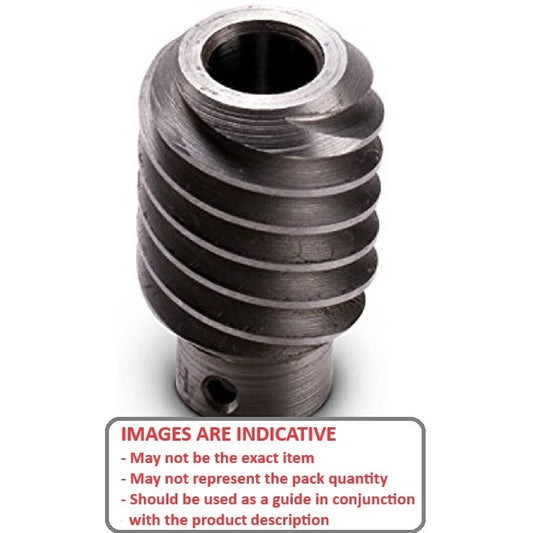

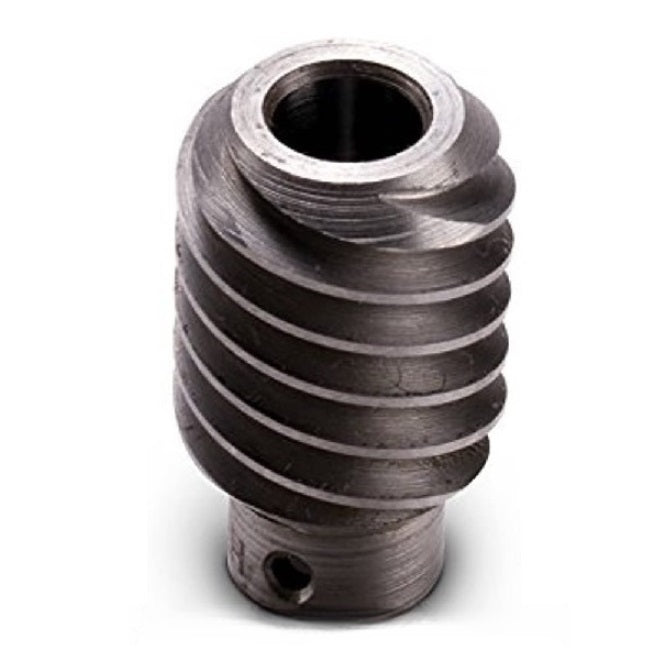

Module 0.5	Worm - 1 Start	2 Deg 36 Min mm	Right	18.000	18.00
Material: Carbon Steel Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM1R-050-050-180-CS Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $32.05 AUD Regular price Sale price $32.05 AUD Unit price per Each
Module 0.5	Worm - 1 Start	2 Deg 36 Min mm	Right
Material: Carbon Steel Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM1R-050-050-180-CS Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $32.05 AUD Regular price Sale price $32.05 AUD Unit price per Each View the product page first if you are unsure.
WM1R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - Carbon Steel WM1R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 Worm - 1 Start - 2 Deg 36 Min - Carbon Steel Regular price $32.05 AUD Regular price Sale price $32.05 AUD Unit price per Out of stock! Backorder Now
Module 0.5	Worm - 2 Start	5 Deg 13 Min mm	Right	18.000	18.00
Material: 303 Stainless Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM2R-050-050-180-S3 Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $63.68 AUD Regular price Sale price $63.68 AUD Unit price per Each
Module 0.5	Worm - 2 Start	5 Deg 13 Min mm	Right
Material: 303 Stainless Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM2R-050-050-180-S3 Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $63.68 AUD Regular price Sale price $63.68 AUD Unit price per Each View the product page first if you are unsure.
WM2R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - 303 Stainless WM2R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - 303 Stainless Regular price $63.68 AUD Regular price Sale price $63.68 AUD Unit price per Out of stock! Backorder Now
Module 0.5	Worm - 2 Start	5 Deg 13 Min mm	Right	18.000	18.00
Material: Carbon Steel Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM2R-050-050-180-CS Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $32.41 AUD Regular price Sale price $32.41 AUD Unit price per Each
Module 0.5	Worm - 2 Start	5 Deg 13 Min mm	Right
Material: Carbon Steel Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Category: Gears - Worm - Module 0.5
Part Number: WM2R-050-050-180-CS Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $32.41 AUD Regular price Sale price $32.41 AUD Unit price per Each View the product page first if you are unsure.
WM2R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - Carbon Steel WM2R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 Worm - 2 Start - 5 Deg 13 Min - Carbon Steel Regular price $32.41 AUD Regular price Sale price $32.41 AUD Unit price per Out of stock! Backorder Now
Module 0.8	20	3 Deg 17 Min mm	Right	5.000	18
Material: Copper Alloy - CAC502 Pitch Diameter (C): 16.03 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-020-050-COP Worm Gears - Pitch Module 0.8 20 - 3 Deg 17 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Each
Module 0.8	20	3 Deg 17 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 18 Pitch Diameter (C): 16.03 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-020-050-COP Worm Gears - Pitch Module 0.8 20 - 3 Deg 17 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Each View the product page first if you are unsure.
WG1R-080-020-050-COP --- Worm Gears - Pitch Module 0.8 20 - 3 Deg 17 Min - Copper Alloy - CAC502 WG1R-080-020-050-COP --- Worm Gears - Pitch Module 0.8 20 - 3 Deg 17 Min - Copper Alloy - CAC502 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Out of stock! Backorder Now
Module 0.8	20	4 Deg 24 Min mm	Right	5.000	12
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-020-050-BZ Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Aluminium Bronze - CAC702 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $64.86 AUD Regular price Sale price $64.86 AUD Unit price per Each
Module 0.8	20	4 Deg 24 Min mm	Right
Material: Aluminium Bronze - CAC702 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-020-050-BZ Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Aluminium Bronze - CAC702 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $64.86 AUD Regular price Sale price $64.86 AUD Unit price per Each View the product page first if you are unsure.
WG1R-080-020-050-BZ --- Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Aluminium Bronze - CAC702 WG1R-080-020-050-BZ --- Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Aluminium Bronze - CAC702 Regular price $64.86 AUD Regular price Sale price $64.86 AUD Unit price per Out of stock! Backorder Now

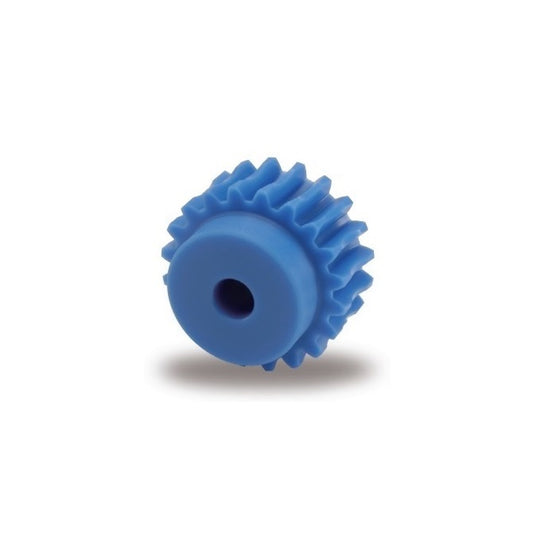

Module 0.8	20	4 Deg 24 Min mm	Right	5.000	12
Material: Polyacetal (White) Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-020-050-ACE Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Polyacetal (White) Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Each
Module 0.8	20	4 Deg 24 Min mm	Right
Material: Polyacetal (White) Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 16 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-020-050-ACE Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Polyacetal (White) Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Each View the product page first if you are unsure.
WG1R-080-020-050-ACE --- Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Polyacetal (White) WG1R-080-020-050-ACE --- Worm Gears - Pitch Module 0.8 20 - 4 Deg 24 Min - Polyacetal (White) Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Out of stock! Backorder Now
Module 0.8	20	6 Deg 34 Min mm	Right	5.000	18
Material: Copper Alloy - CAC502 Pitch Diameter (C): 16.11 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG2R-080-020-050-COP Worm Gears - Pitch Module 0.8 20 - 6 Deg 34 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Each
Module 0.8	20	6 Deg 34 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 18 Pitch Diameter (C): 16.11 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG2R-080-020-050-COP Worm Gears - Pitch Module 0.8 20 - 6 Deg 34 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Each View the product page first if you are unsure.
WG2R-080-020-050-COP --- Worm Gears - Pitch Module 0.8 20 - 6 Deg 34 Min - Copper Alloy - CAC502 WG2R-080-020-050-COP --- Worm Gears - Pitch Module 0.8 20 - 6 Deg 34 Min - Copper Alloy - CAC502 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Out of stock! Backorder Now
Module 0.8	30	3 Deg 17 Min mm	Right	5.000	18
Material: Copper Alloy - CAC502 Pitch Diameter (C): 24.04 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-030-050-COP Worm Gears - Pitch Module 0.8 30 - 3 Deg 17 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $69.05 AUD Regular price Sale price $69.05 AUD Unit price per Each
Module 0.8	30	3 Deg 17 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 18 Pitch Diameter (C): 24.04 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-030-050-COP Worm Gears - Pitch Module 0.8 30 - 3 Deg 17 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $69.05 AUD Regular price Sale price $69.05 AUD Unit price per Each View the product page first if you are unsure.
WG1R-080-030-050-COP --- Worm Gears - Pitch Module 0.8 30 - 3 Deg 17 Min - Copper Alloy - CAC502 WG1R-080-030-050-COP --- Worm Gears - Pitch Module 0.8 30 - 3 Deg 17 Min - Copper Alloy - CAC502 Regular price $69.05 AUD Regular price Sale price $69.05 AUD Unit price per Out of stock! Backorder Now
Module 0.8	30	4 Deg 24 Min mm	Right	5.000	12
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 24 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-030-050-BZ Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Aluminium Bronze - CAC702 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Each
Module 0.8	30	4 Deg 24 Min mm	Right
Material: Aluminium Bronze - CAC702 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 24 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-030-050-BZ Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Aluminium Bronze - CAC702 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Each View the product page first if you are unsure.
WG1R-080-030-050-BZ --- Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Aluminium Bronze - CAC702 WG1R-080-030-050-BZ --- Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Aluminium Bronze - CAC702 Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Out of stock! Backorder Now

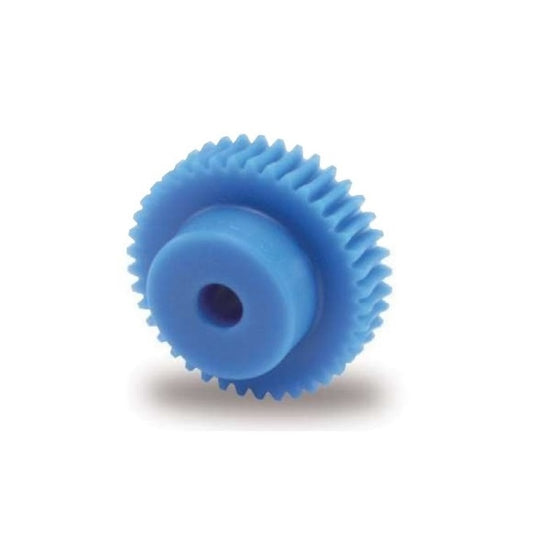

Module 0.8	30	4 Deg 24 Min mm	Right	5.000	12
Material: Polyacetal (White) Pitch Diameter (C): 24 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-030-050-ACE Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Polyacetal (White) Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Each
Module 0.8	30	4 Deg 24 Min mm	Right
Material: Polyacetal (White) Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 24 mm Face Width (fw): 6.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG1R-080-030-050-ACE Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Polyacetal (White) Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Each View the product page first if you are unsure.
WG1R-080-030-050-ACE --- Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Polyacetal (White) WG1R-080-030-050-ACE --- Worm Gears - Pitch Module 0.8 30 - 4 Deg 24 Min - Polyacetal (White) Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Out of stock! Backorder Now
Module 0.8	30	6 Deg 34 Min mm	Right	5.000	18
Material: Copper Alloy - CAC502 Pitch Diameter (C): 24.16 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG2R-080-030-050-COP Worm Gears - Pitch Module 0.8 30 - 6 Deg 34 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $69.05 AUD Regular price Sale price $69.05 AUD Unit price per Each
Module 0.8	30	6 Deg 34 Min mm	Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 18 Pitch Diameter (C): 24.16 mm Face Width (fw): 9.00 mm Category: Gears - Worm - Module 0.8
Part Number: WG2R-080-030-050-COP Worm Gears - Pitch Module 0.8 30 - 6 Deg 34 Min - Copper Alloy - CAC502 Out of Stock \| Backorder Now \| Orders can be expected around Fri, May 23, 2025 Regular price $69.05 AUD Regular price Sale price $69.05 AUD Unit price per Each View the product page first if you are unsure.
WG2R-080-030-050-COP --- Worm Gears - Pitch Module 0.8 30 - 6 Deg 34 Min - Copper Alloy - CAC502 WG2R-080-030-050-COP --- Worm Gears - Pitch Module 0.8 30 - 6 Deg 34 Min - Copper Alloy - CAC502 Regular price $69.05 AUD Regular price Sale price $69.05 AUD Unit price per Out of stock! Backorder Now
