CP-140-140-55-059-K (Each)

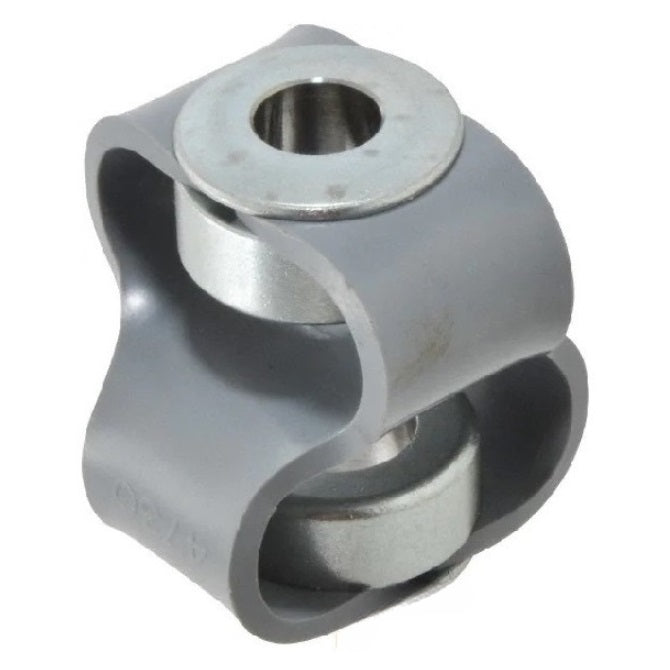

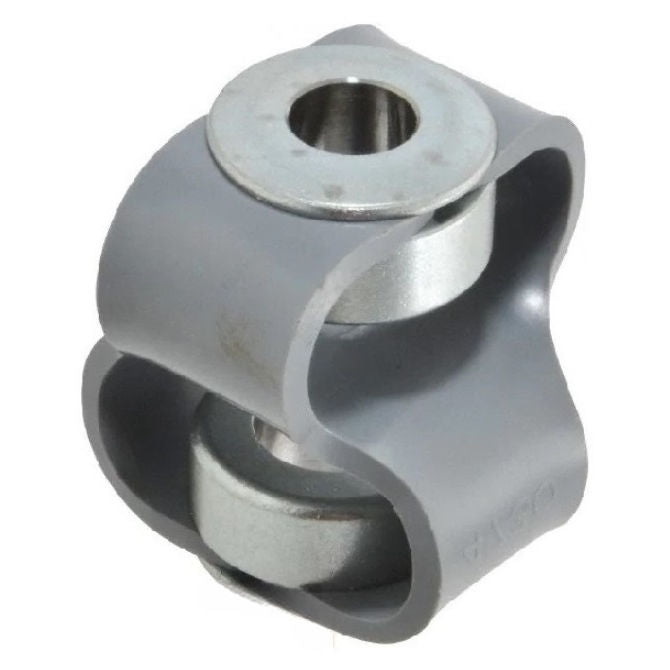

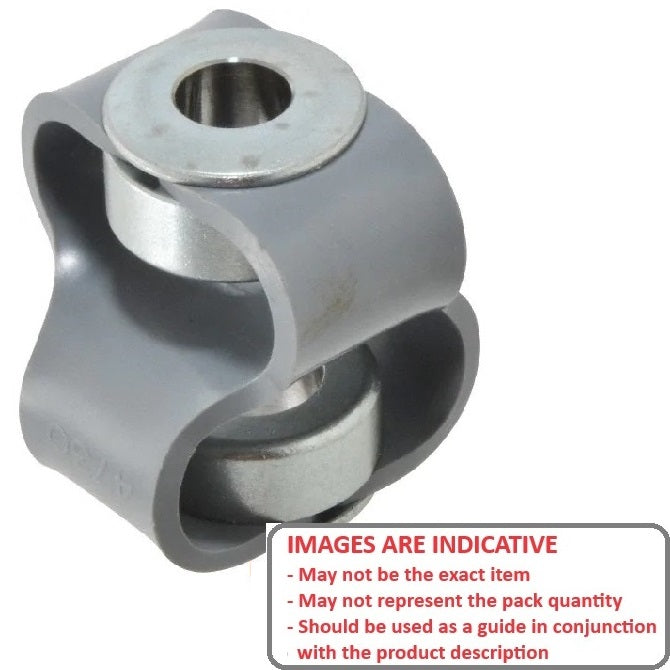

K Type Couplings - 14x14x55 mm
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export14x14x55 mm K Type Couplings - - Sold per Each:
Base Category: Couplings - K Type
Top Level Category: Couplings - K Type
Product Details
Bore (d1): 14.000mm(14.000mm is 0.551 in.)
- Bore (d1): 14.000mm
(14.000mm is 0.551 in.)
- Bore (d1): 14.000mm
(14.000mm is 0.551 in.)
- Major Dia. (D): 55.0mm
(55.0mm is 2.165 in.)
- Overall Length (L): 59.0mm
- Hub Height (H): 9.80mm
- Max Axial Displacement: 8.5mm
- Max Torque Capacity: 3.20N.m
- Max Angular Misalignment: 15.0Deg.
- Max Radial Misalignment: 3.2mm
- Material (Hub / Body): Zinc Plated Steel / Polyurethane

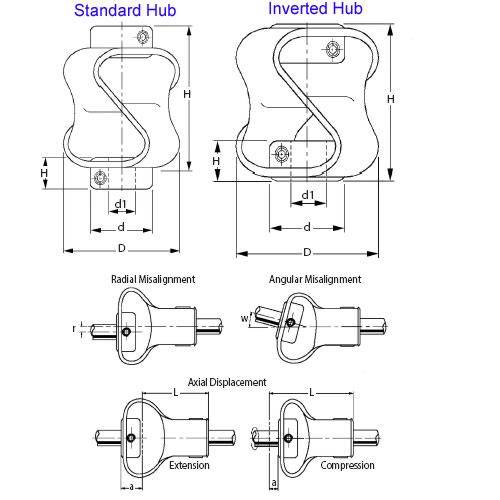

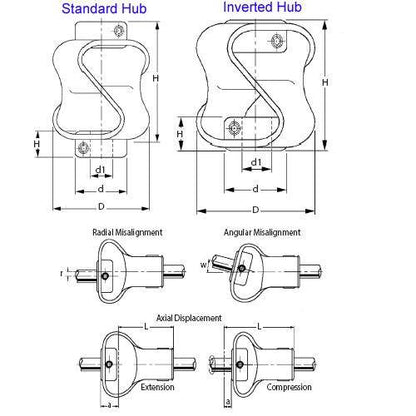

- Figure Number: Figure 2 - Inverted Hub
- Hub Diameter (d): 28.6mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 5384T807
- A5Z7MS41414
- A5Z7M41414
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CP14014055059K, CP140140
