Couplings - K Type

Couplings -> K Type

There are 17 products in the sub-categories of Couplings - K Type. Browse the Couplings - K Type products table.

Category Details

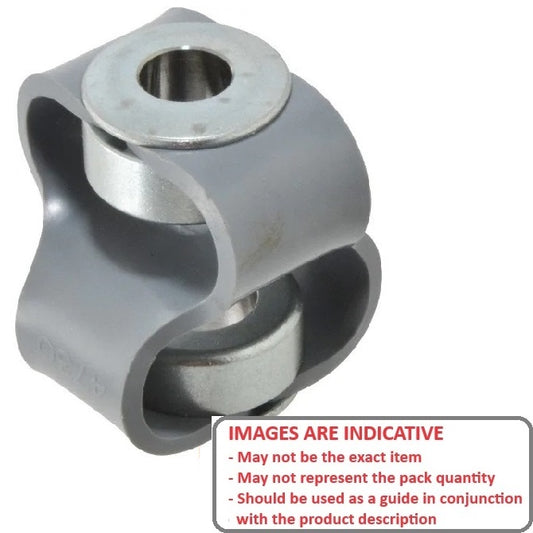

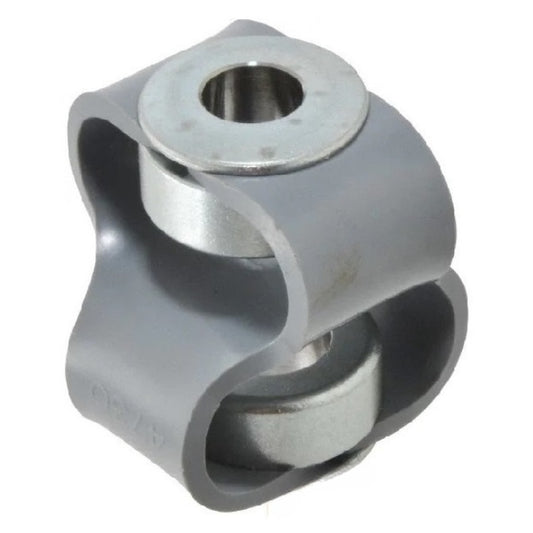

A selection of K Type Couplings. Up to 3600 RPM - Minus 20 to Plus 60o C. 0.34 to 18 Nm.

  • An expanded range may be available on special order. Please enquire.
  • Strong, flexible polyurethane or Hyrtel(R) is cut and tear resistant.
  • Up to 3600 RPM.
  • Urethane: Minus 20 to Plus 60o C / Hyrtel(R) : Minus 40 to Plus 100o C.
  • Precision swaged mechanically crimped hubs.
  • Annealed steel hubs.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Couplings - K Type category on the Small Parts & Bearings online store.
Bore (d1) Bore (d1) Major Dia. (D) Overall Length (L) Hub Height (H) Max Axial Displacement Indicative
K Type Couplings - 4.762x4.762x28 mm
Bore (d1)
4.762
mm
Bore (d1)
4.762
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
K Type Couplings - 4.762x4.762x28 mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-048-048-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Bore (d1) Bore (d1) Major Dia. (D) Overall Length (L) Indicative
K Type Couplings - 4.762x4.762x28 mm
Bore (d1)
4.762
mm
Bore (d1)
4.762
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
K Type Couplings - 4.762x4.762x28 mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-048-048-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 6x6x28 mm
Bore (d1)
6.000
mm
Bore (d1)
6.000
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
K Type Couplings - 6x6x28 mm
Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-060-060-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 6x6x28 mm
Bore (d1)
6.000
mm
Bore (d1)
6.000
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
K Type Couplings - 6x6x28 mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-060-060-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 6.35x6.35x28 mm
Bore (d1)
6.350
mm
Bore (d1)
6.350
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
K Type Couplings - 6.35x6.35x28 mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-064-064-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 6.35x6.35x28 mm
Bore (d1)
6.350
mm
Bore (d1)
6.350
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
K Type Couplings - 6.35x6.35x28 mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-064-064-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber Coupling
Bore (d1)
6.350
mm
Bore (d1)
6.350
mm
Major Dia. (D)
43.0
mm
Overall Length (L)
50.8
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber
Material: Steel and Rubber    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-064-064-47-048-K (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$120.14 AUD
$120.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber Coupling
Bore (d1)
6.350
mm
Bore (d1)
6.350
mm
Major Dia. (D)
43.0
mm
Overall Length (L)
50.8
mm
K Type Couplings - 6.35x6.35x43 mm - Steel and Rubber
Material: Steel and Rubber    Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-064-064-47-048-K (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$120.14 AUD
$120.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
K Type Couplings - 7.938x7.938x28 mm
Bore (d1)
7.938
mm
Bore (d1)
7.938
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
K Type Couplings - 7.938x7.938x28 mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-079-079-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 7.938x7.938x28 mm
Bore (d1)
7.938
mm
Bore (d1)
7.938
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
K Type Couplings - 7.938x7.938x28 mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-079-079-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 7.938x7.938x47 mm
Bore (d1)
7.938
mm
Bore (d1)
7.938
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
K Type Couplings - 7.938x7.938x47 mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-079-079-47-048-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 7.938x7.938x47 mm
Bore (d1)
7.938
mm
Bore (d1)
7.938
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
K Type Couplings - 7.938x7.938x47 mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-079-079-47-048-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 8x8x25.4 mm
Bore (d1)
8.000
mm
Bore (d1)
8.000
mm
Major Dia. (D)
25.4
mm
Overall Length (L)
28.6
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
K Type Couplings - 8x8x25.4 mm
Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-080-080-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 8x8x25.4 mm
Bore (d1)
8.000
mm
Bore (d1)
8.000
mm
Major Dia. (D)
25.4
mm
Overall Length (L)
28.6
mm
K Type Couplings - 8x8x25.4 mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.40 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-080-080-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 9.525x9.525x28 mm
Bore (d1)
9.525
mm
Bore (d1)
9.525
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
Hub Height (H)
5.00
mm
Max Axial Displacement
4.5
mm
K Type Couplings - 9.525x9.525x28 mm
Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-095-095-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 9.525x9.525x28 mm
Bore (d1)
9.525
mm
Bore (d1)
9.525
mm
Major Dia. (D)
28.0
mm
Overall Length (L)
30.0
mm
K Type Couplings - 9.525x9.525x28 mm
Hub Height (H): 5.00 mm    Max Axial Displacement: 4.5 mm    Max Torque Capacity: 0.34 N.m    Max Angular Misalignment: 10.0 Deg.    Max Radial Misalignment: 2.4 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 1 - Standard Hub    Hub Diameter (d): 17.5 mm
Part Number: CP-095-095-28-030-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 9.525x9.525x47 mm
Bore (d1)
9.525
mm
Bore (d1)
9.525
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
K Type Couplings - 9.525x9.525x47 mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-095-095-47-048-K (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$115.59 AUD
$115.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
K Type Couplings - 9.525x9.525x47 mm
Bore (d1)
9.525
mm
Bore (d1)
9.525
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
K Type Couplings - 9.525x9.525x47 mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-095-095-47-048-K (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$115.59 AUD
$115.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
K Type Couplings - 9.525x9.525x55 mm
Bore (d1)
9.525
mm
Bore (d1)
9.525
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
K Type Couplings - 9.525x9.525x55 mm
Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-095-095-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 9.525x9.525x55 mm
Bore (d1)
9.525
mm
Bore (d1)
9.525
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
K Type Couplings - 9.525x9.525x55 mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-095-095-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 11.113x11.113x47 mm
Bore (d1)
11.113
mm
Bore (d1)
11.113
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
K Type Couplings - 11.113x11.113x47 mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-111-111-47-048-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 11.113x11.113x47 mm
Bore (d1)
11.113
mm
Bore (d1)
11.113
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
K Type Couplings - 11.113x11.113x47 mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-111-111-47-048-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 11.113x11.113x55 mm
Bore (d1)
11.113
mm
Bore (d1)
11.113
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
K Type Couplings - 11.113x11.113x55 mm
Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-111-111-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 11.113x11.113x55 mm
Bore (d1)
11.113
mm
Bore (d1)
11.113
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
K Type Couplings - 11.113x11.113x55 mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-111-111-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 12.7x12.7x47 mm
Bore (d1)
12.700
mm
Bore (d1)
12.700
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
Hub Height (H)
8.50
mm
Max Axial Displacement
7.5
mm
K Type Couplings - 12.7x12.7x47 mm
Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-127-127-47-048-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 12.7x12.7x47 mm
Bore (d1)
12.700
mm
Bore (d1)
12.700
mm
Major Dia. (D)
47.0
mm
Overall Length (L)
48.0
mm
K Type Couplings - 12.7x12.7x47 mm
Hub Height (H): 8.50 mm    Max Axial Displacement: 7.5 mm    Max Torque Capacity: 1.36 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 25.4 mm
Part Number: CP-127-127-47-048-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 12.7x12.7x55 mm
Bore (d1)
12.700
mm
Bore (d1)
12.700
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
K Type Couplings - 12.7x12.7x55 mm
Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 12.7x12.7x55 mm
Bore (d1)
12.700
mm
Bore (d1)
12.700
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
K Type Couplings - 12.7x12.7x55 mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.16 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 4.8 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 12.7x12.7x55 mm
Bore (d1)
12.700
mm
Bore (d1)
12.700
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
62.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
K Type Couplings - 12.7x12.7x55 mm
Max Torque Capacity: 4.52 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-062-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 12.7x12.7x55 mm
Bore (d1)
12.700
mm
Bore (d1)
12.700
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
62.0
mm
K Type Couplings - 12.7x12.7x55 mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 4.52 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-127-127-55-062-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 14x14x55 mm
Bore (d1)
14.000
mm
Bore (d1)
14.000
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
K Type Couplings - 14x14x55 mm
Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-140-140-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 14x14x55 mm
Bore (d1)
14.000
mm
Bore (d1)
14.000
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
K Type Couplings - 14x14x55 mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-140-140-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
K Type Couplings - 16x16x55 mm
Bore (d1)
16.000
mm
Bore (d1)
16.000
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
Hub Height (H)
9.80
mm
Max Axial Displacement
8.5
mm
K Type Couplings - 16x16x55 mm
Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-160-160-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
K Type Couplings - 16x16x55 mm
Bore (d1)
16.000
mm
Bore (d1)
16.000
mm
Major Dia. (D)
55.0
mm
Overall Length (L)
59.0
mm
K Type Couplings - 16x16x55 mm
Hub Height (H): 9.80 mm    Max Axial Displacement: 8.5 mm    Max Torque Capacity: 3.20 N.m    Max Angular Misalignment: 15.0 Deg.    Max Radial Misalignment: 3.2 mm    Material (Hub / Body): Zinc Plated Steel / Polyurethane    Figure Number: Figure 2 - Inverted Hub    Hub Diameter (d): 28.6 mm
Part Number: CP-160-160-55-059-K (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029
