CP-095-095-47-048-K (Each)

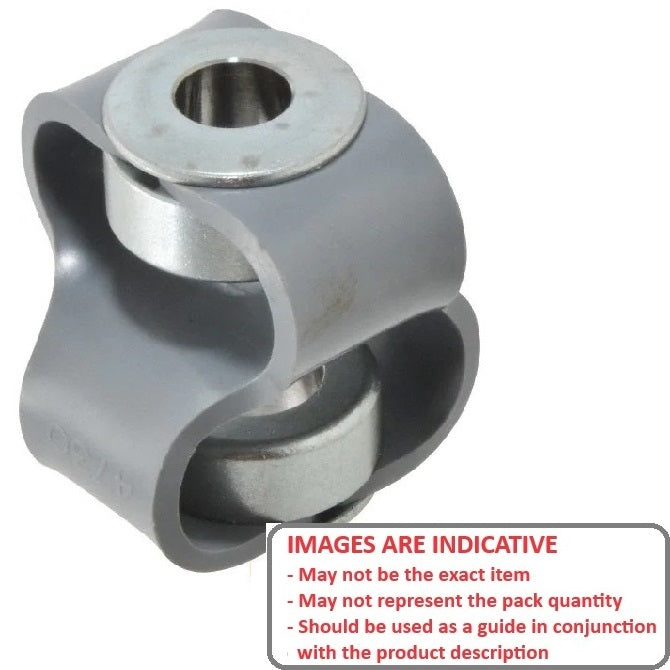

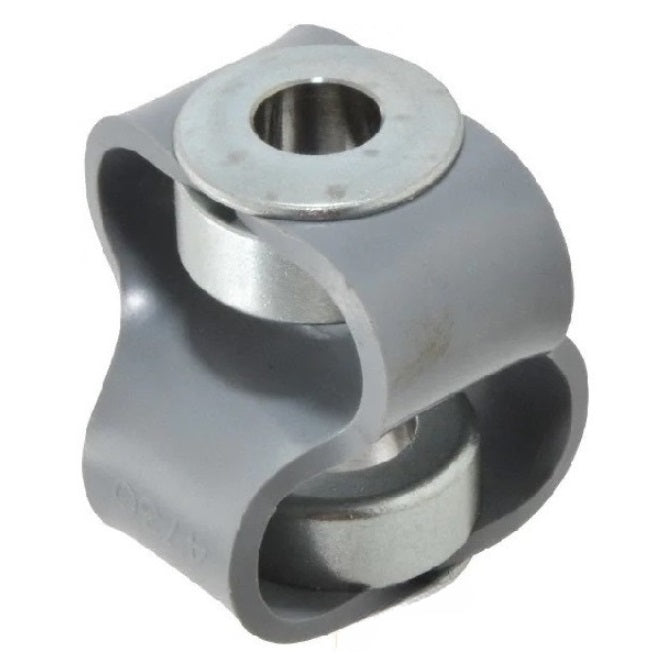

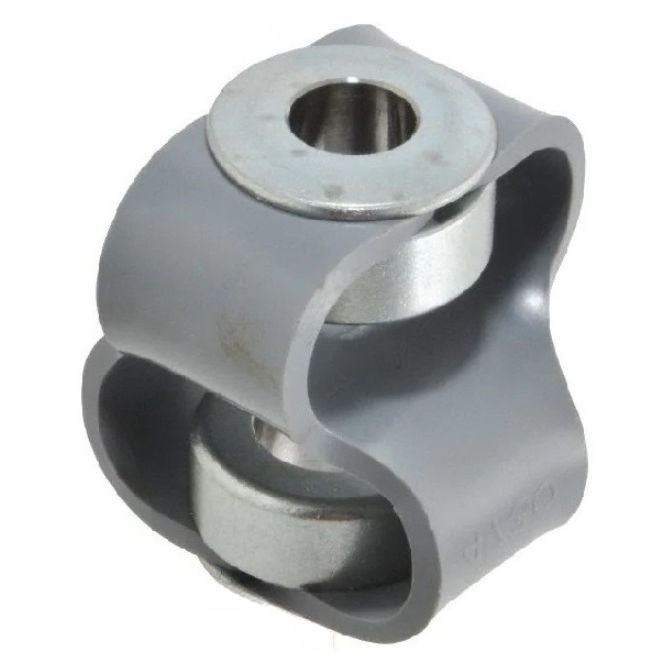

K Type Couplings - 9.525x9.525x47 mm
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $104.03 AUD Each
3/8x3/8 inch Coupling - 9.525x9.525x47 mm K Type Couplings - - Sold per Each:
Base Category: Couplings - K Type
Top Level Category: Couplings - K Type
Product Details
Bore (d1): 9.525mm(9.525mm is 0.375 in.)
- Bore (d1): 9.525mm
(9.525mm is 0.375 in.)
- Bore (d1): 9.525mm
(9.525mm is 0.375 in.)
- Major Dia. (D): 47.0mm
(47.0mm is 1.85 in.)
- Overall Length (L): 48.0mm
- Hub Height (H): 8.50mm
- Max Axial Displacement: 7.5mm
- Max Torque Capacity: 1.36N.m
- Max Angular Misalignment: 15.0Deg.
- Max Radial Misalignment: 3.2mm
- Material (Hub / Body): Zinc Plated Steel / Polyurethane

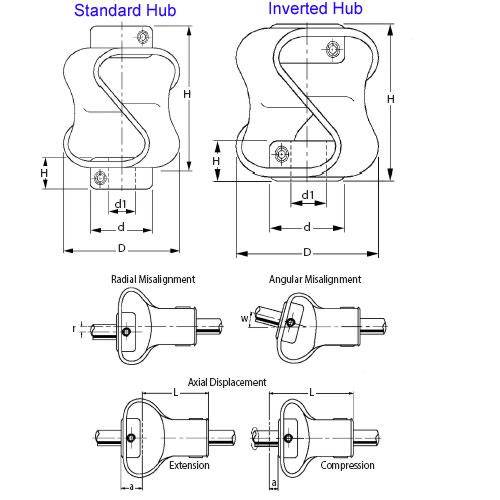

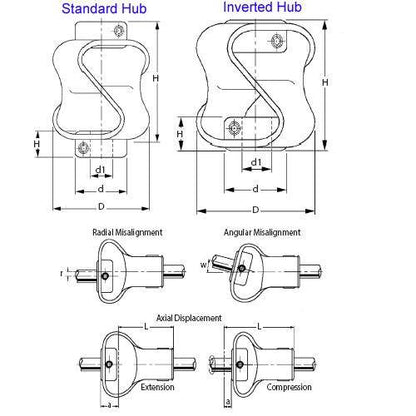

- Figure Number: Figure 2 - Inverted Hub
- Hub Diameter (d): 25.4mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 6183K43
- A5Z721212
- A5Z7-21212
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CP09509547048K, CP095095
