CCE-03300HA-C (Each)

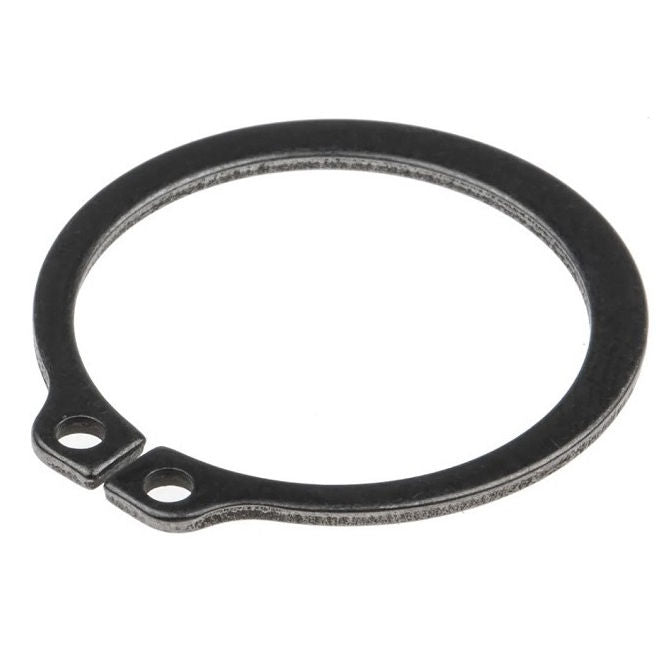

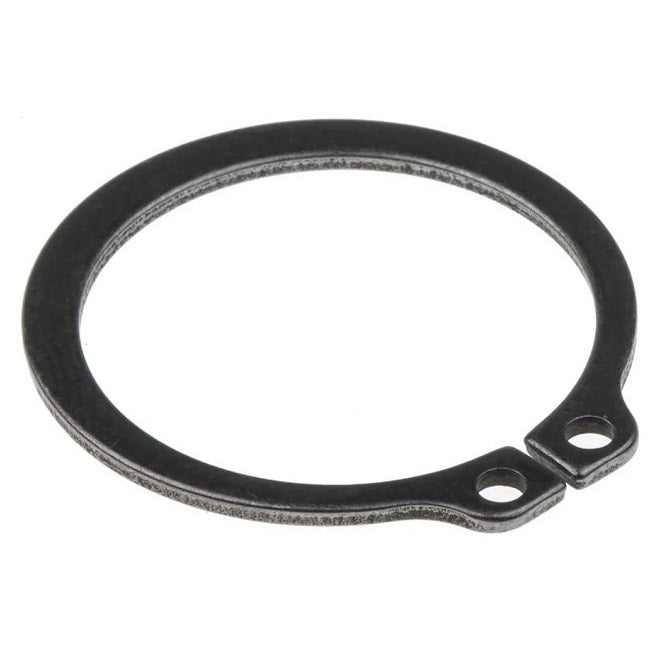

External Retaining Rings - 33x2x31.3 mm Circlips - Carbon Spring Steel Self Finish Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
1x1 inch Circlip - 33x2x31.3 mm External Retaining Rings - Carbon Spring Steel Self Finish - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details

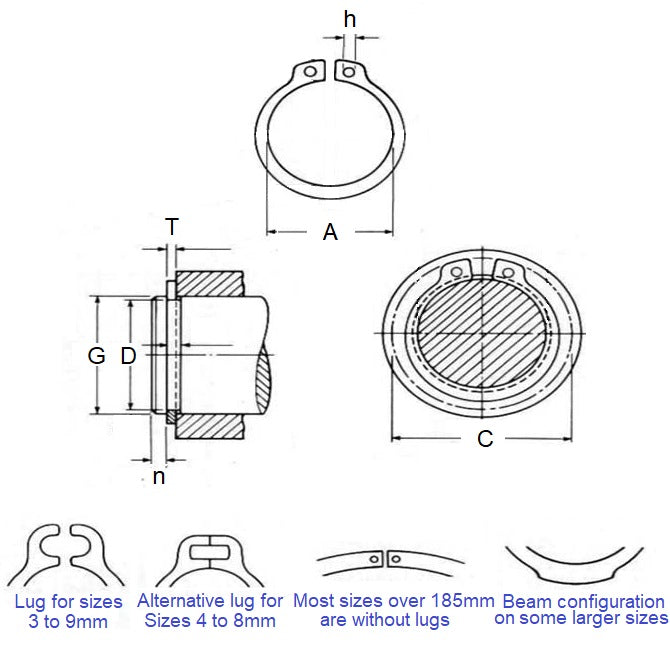

Shaft Diameter (Ds): 33.00mm(33.00mm is 1.299 in.)
Carbon Spring Steel Self Finish
- Shaft Diameter (Ds): 33.00mm
(33.00mm is 1.299 in.)
- Clip Thickness (T): 2.00mm
+ 0.00 / - 0.07
(2.00mm is 0.079 in.)
- Groove Dia. (Dg): 31.30mm
+ 0.00 / - 0.25
(31.30mm is 1.232 in.)
- Approx. Loose Circlip ID (A): 30.50mm
- Groove Width (W): 2.15mm
- Standard: Heavy Duty Variation DIN471 table 2
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Seeger® AS-033A
- Bossard® BN821-033A
- Ellison® EXT-033A
- BN821033A
- D1460-033A
- D1460033A
- EXT033A
- AS033A
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE03300HAC, CCE03300HA
