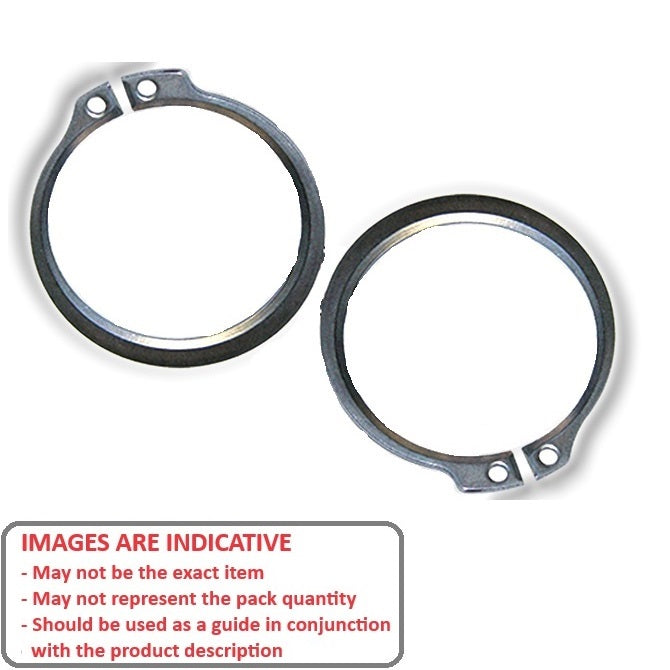

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

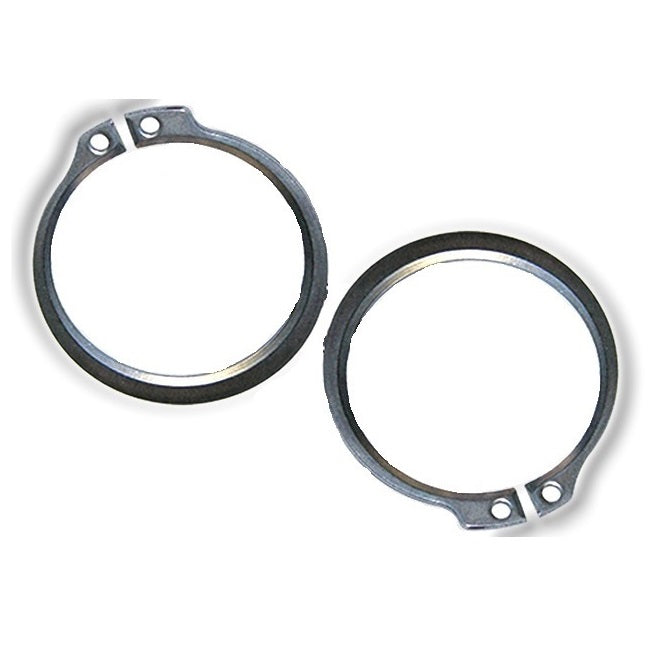

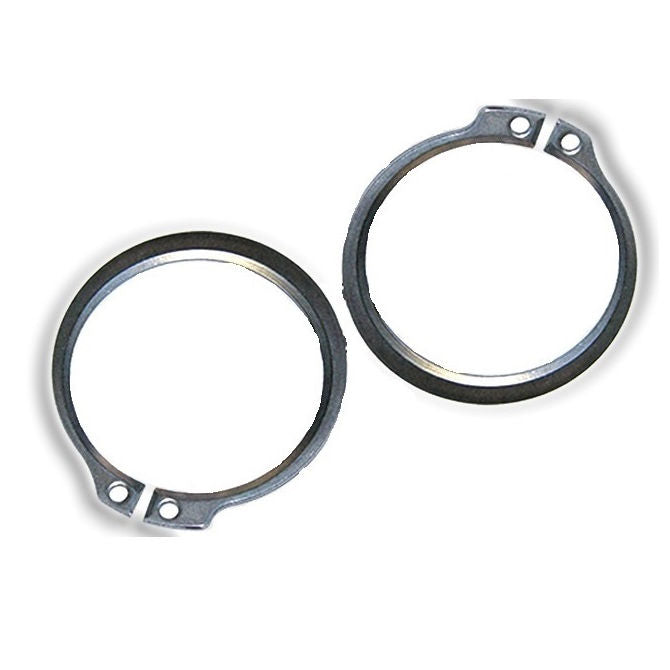

Circlips - 139.7 mm x 3.18 mm x 131.62 mm
CEB-13970-C

Name: 1198249 | CEB-13970-C --- Circlips - 139.7 mm x 3.18 mm x 131.62 mm
Brand: MBA
SKU: CEB13970C
Price: 1030.68 AUD
Availability: InStock

MBA

Category: Circlips - External - Bevelled

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Price:

$1,030.68 AUD

Each
Out Of Stock
Order 50 or more for $927.61 AUD Each

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Mar 06, 2025

Quantity

Base Category: Circlips - External

Top Level Category: Circlips - External - Bevelled

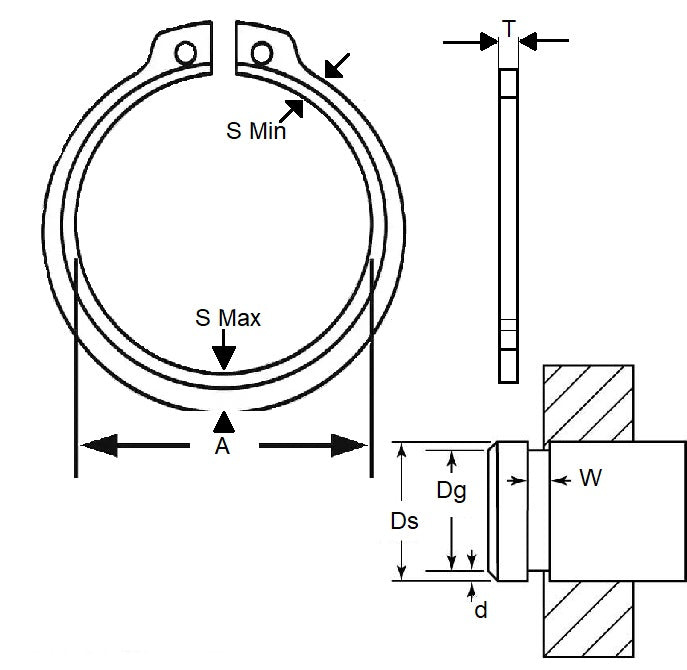

Product Details:

Shaft Diameter (Ds): 139.70mm
Carbon Spring Steel

Clip Thickness (T): 3.18mm
_+0.00/-0.18
Groove Dia. (Dg): 131.62mm
_+/-0.10
Loose Circlip ID (A): 130.10mm
_+1.52/-0.00
Groove Width (W): 2.64mm
_+0.08/-0.00
Radial Wall (S) min/max: 5.31 - 9.91mm
Tool: PRR-E120-X

Brand: MBA
Country of Origin: US

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
