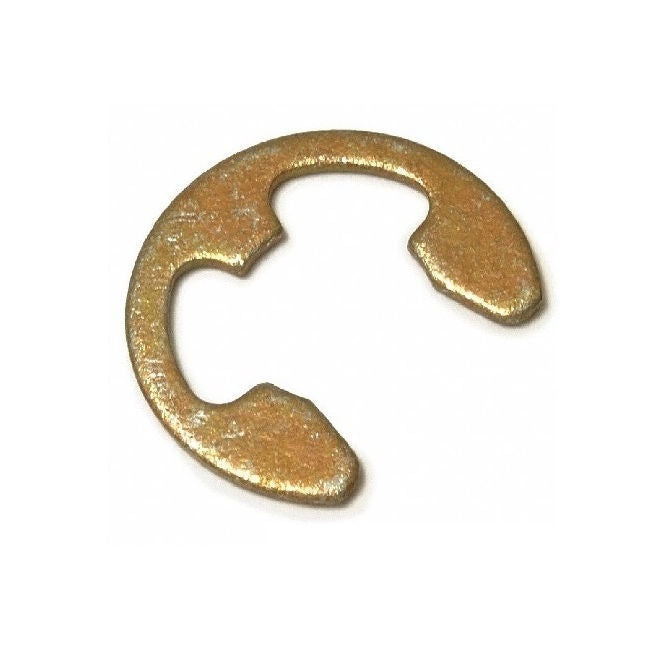

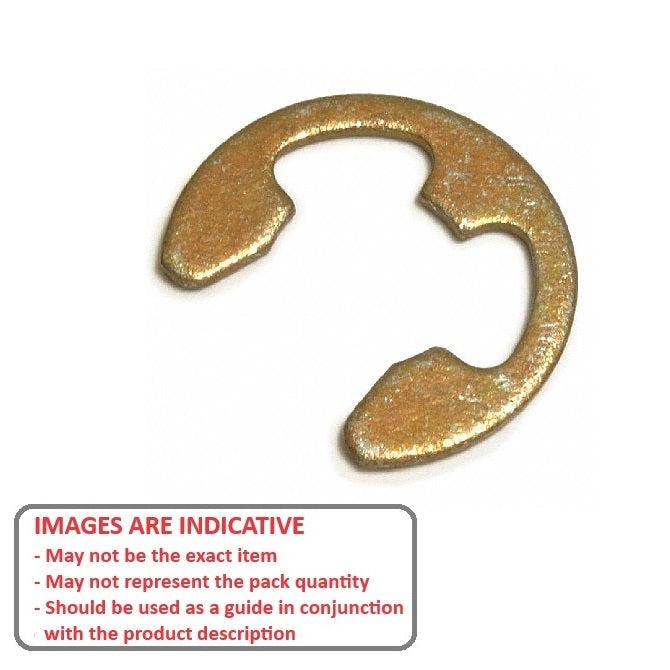

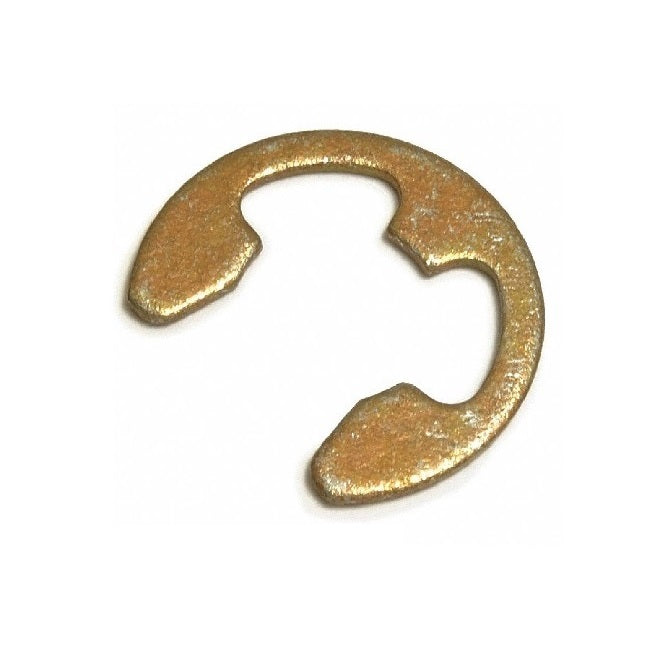

E-Clips - 9 mm x 8 mm x 1 mm
ECL-0080-0090-CZ (10 Pcs)

MBA

Additional resources:
E-Clip Applicators
Price:
$12.86 AUD
$12.86 AUD
per 10
Out Of Stock
Order 50 or more (500 pcs) for $11.57 AUD per 10
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 18, 2025

Base Category: E-Clips - Basic

Top Level Category: E-Clips - Basic - Carbon Steel

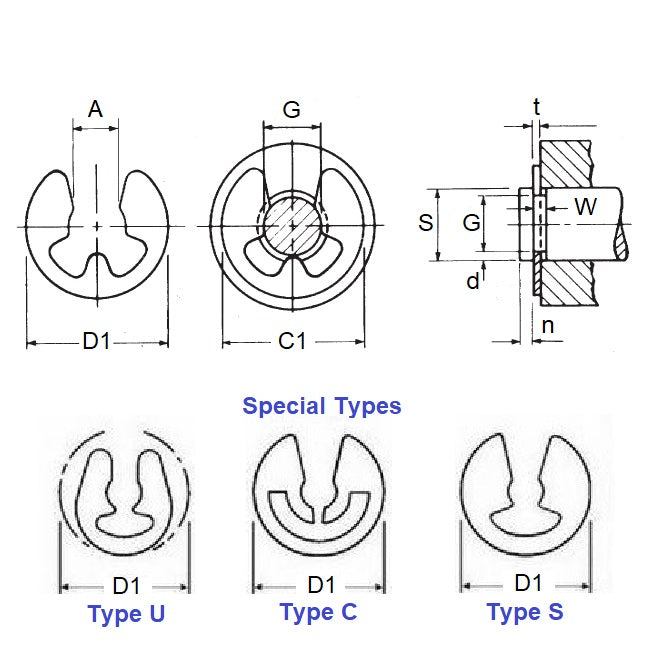

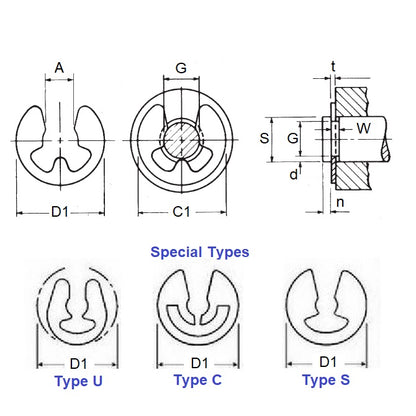

Product Details:

Minimum Rec. Shaft Dia (S): 9.00mm
+3.00/-0.00

Carbon Steel Zinc Plated
  • Groove Dia. (Dg): 8.00mm
    +0.00/-0.09
  • Clip Thickness (T): 1.00mm
    +/-0.03
  • Clip OD Loose (D1): 15.75mm
  • Min. Extension (n): 1.80mm
  • Groove Width (W): 1.05mm
  • Maximum Rec. Shaft Dia (S): 12.00
  • Clip OD in groove (C1): 16.30mm
  • Loose Clip ID (A): 6.52mm

Brand: MBA
Country of Origin: DE

Alternatives: 1500-0080AZG, 90768A108, D1500-0080AZG

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
