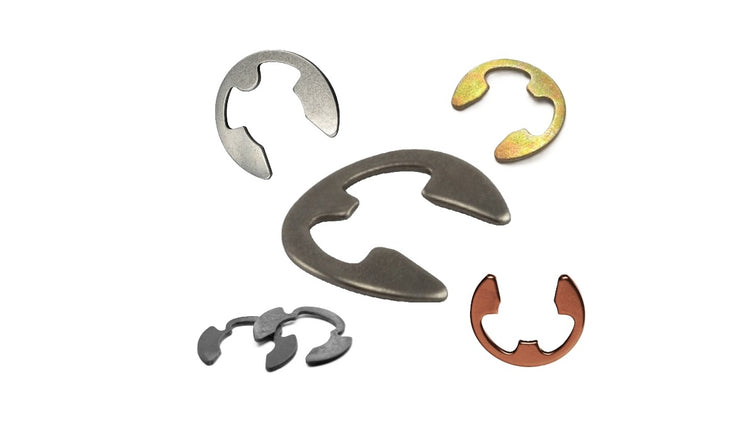

Collection: Retaining Rings - E-Clips

Retaining Rings -> E-Clips

There are 157 products in the sub-categories of Retaining Rings - E-Clips. Scroll down or follow the link to Retaining Rings - E-Clips in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

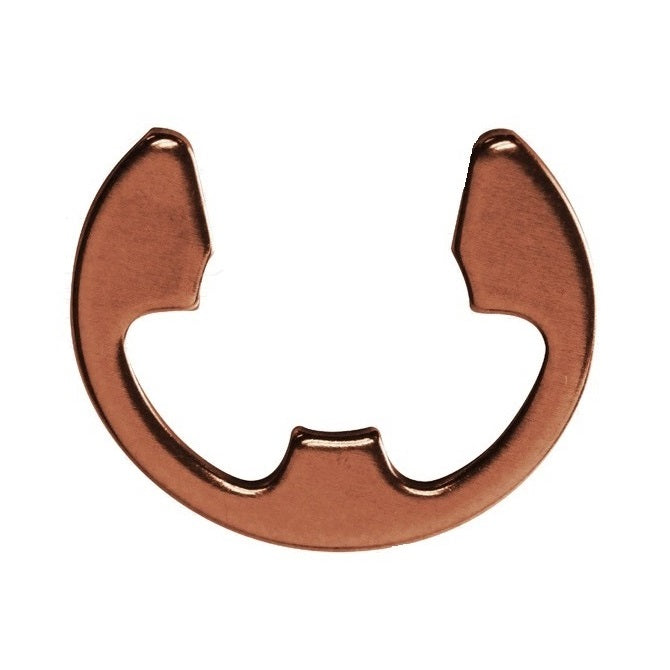

E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper

Retaining Rings - E-Clips - Basic

This category includes various types of e-clips retaining rings.An expanded range may...

Retaining Rings - E-Clips - Basic

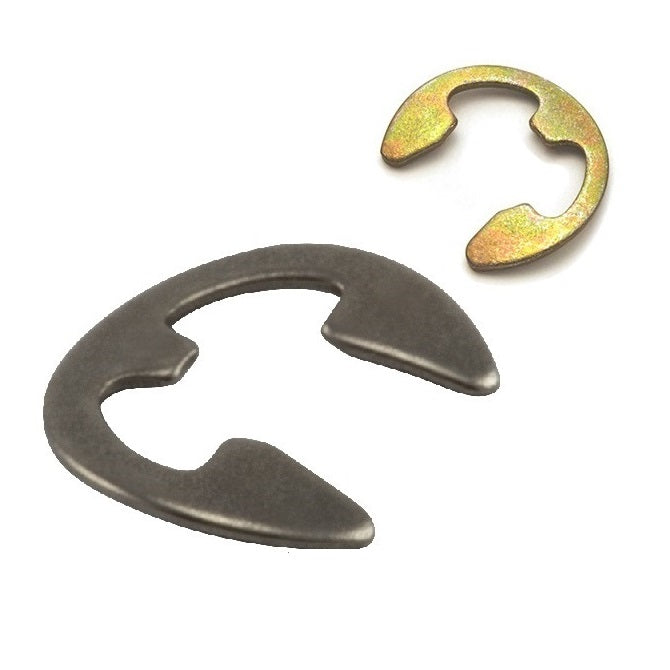

E-Clips Retaining Rings - 3.18x2.41x0.25 mm - Carbon Steel

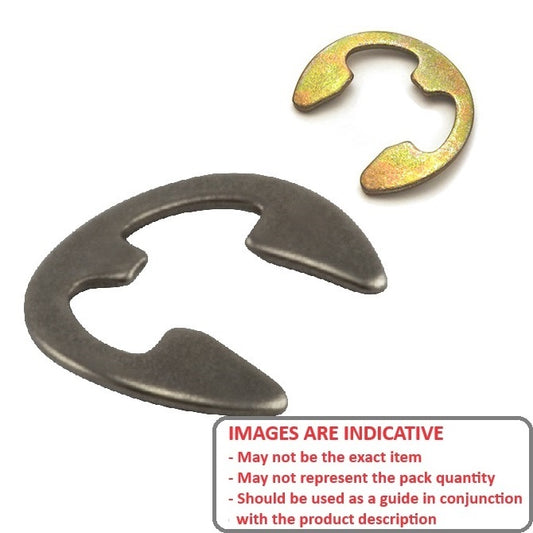

Retaining Rings - E-Clips - Bowed

A selection of Bowed E-Clips Retaining Rings. For end play take up....

Retaining Rings - E-Clips - Bowed

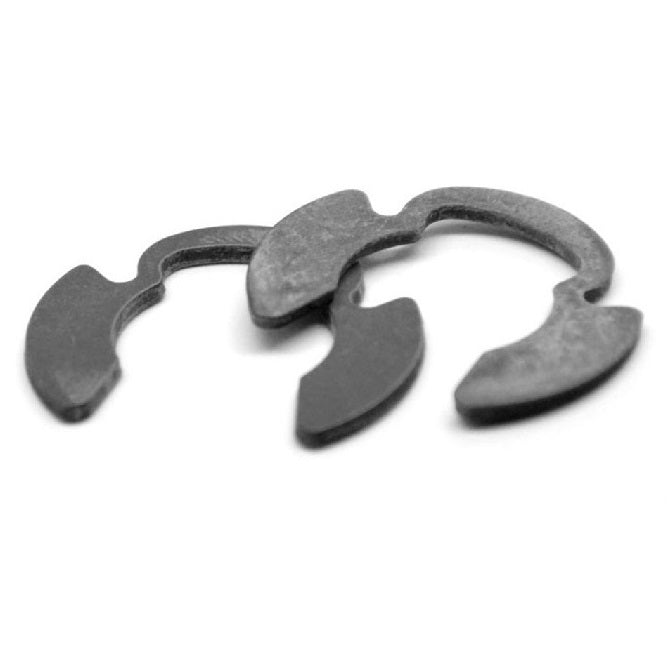

E-Clips Retaining Rings - 3.97x3.01x0.89 mm - Carbon Steel

Retaining Rings - E-Clips - Klipring

A selection of Klipring E-Clips Retaining Rings. Also known as Poodle Rings...

Retaining Rings - E-Clips - Klipring

Category Details

This category includes various types of e-clips retaining rings.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - E-Clips category on the Small Parts & Bearings online store.

Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Groove Width (W)

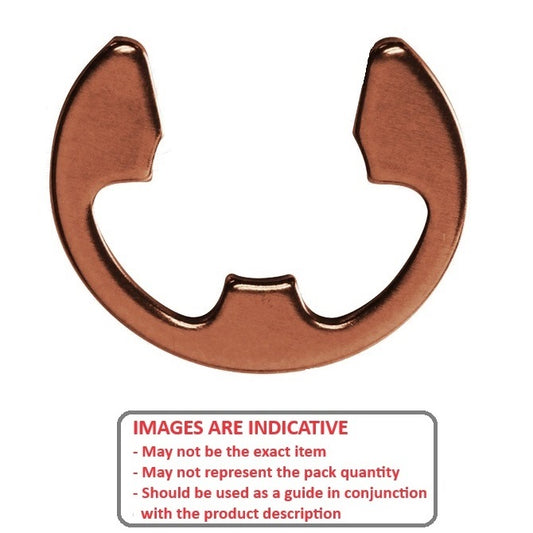

E-Clips Retaining Rings - 1x0.66x0.25 mm Basic - Beryllium Copper E-Clip
Minimum Rec. Shaft Dia (S) 1.00 mm _{+ 0.25 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 0.66 mm _{+ 0.051 / - 0.000} (Equiv. 0.026 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 1.75 mm	Groove Width (W) 0.31 mm
Material: Beryllium Copper Maximum Rec. Shaft Dia (S): 1.25 Clip OD in groove (C1): 2.01 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 554
Part Number: ECL-0007-0010-B (PK-5) 4 units (20 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 4 available can be backordered.
Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Indicative Image
E-Clips Retaining Rings - 1x0.66x0.25 mm Basic - Beryllium Copper E-Clip
Minimum Rec. Shaft Dia (S) 1.00 mm _{+ 0.25 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 0.66 mm _{+ 0.051 / - 0.000} (Equiv. 0.026 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 1.75 mm
Material: Beryllium Copper Groove Width (W): 0.31 mm Maximum Rec. Shaft Dia (S): 1.25 Clip OD in groove (C1): 2.01 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 554
Part Number: ECL-0007-0010-B (PK-5) 4 units (20 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
ECL-0007-0010-B (PK-5) --- E-Clips Retaining Rings - 1x0.66x0.25 mm Basic - Beryllium Copper E-Clip ECL-0007-0010-B (PK-5) --- E-Clips Retaining Rings - 1x0.66x0.25 mm Basic - Beryllium Copper E-Clip Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 4 Available Now

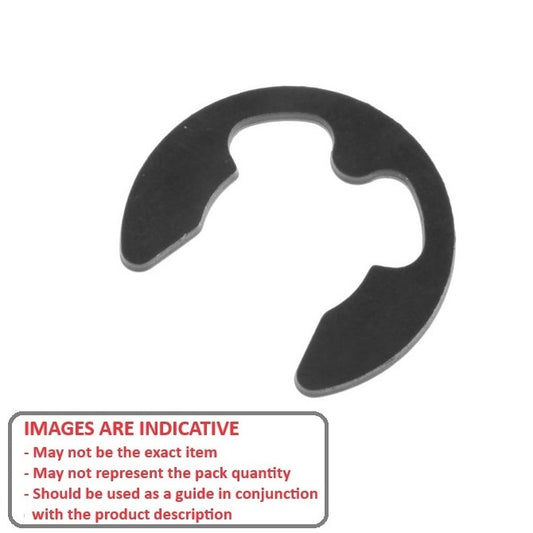

E-Clips Retaining Rings - 1.4x1.2x0.3 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.40 mm _{+ 0.60 / - 0.00} (Equiv. 0.055 in.)	Groove Dia. (Dg) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.02} (Equiv. 0.012 in.)	Clip OD Loose (D1) 2.90 mm	Groove Width (W) 0.34 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.00 Clip OD in groove (C1): 3.25 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 11330
Part Number: ECL-0012-0014-C (PK-100) 27 units (2700 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 27 available can be backordered.
E-Clips Retaining Rings - 1.4x1.2x0.3 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.40 mm _{+ 0.60 / - 0.00} (Equiv. 0.055 in.)	Groove Dia. (Dg) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.02} (Equiv. 0.012 in.)	Clip OD Loose (D1) 2.90 mm
Material: Carbon Steel Groove Width (W): 0.34 mm Maximum Rec. Shaft Dia (S): 2.00 Clip OD in groove (C1): 3.25 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 11330
Part Number: ECL-0012-0014-C (PK-100) 27 units (2700 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 27 units (2700 pcs) Available Now. Backorder if more than 27.
ECL-0012-0014-C (PK-100) --- E-Clips Retaining Rings - 1.4x1.2x0.3 mm Basic - Carbon Steel E-Clip ECL-0012-0014-C (PK-100) --- E-Clips Retaining Rings - 1.4x1.2x0.3 mm Basic - Carbon Steel E-Clip Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 27 Available Now
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.56 mm	Groove Width (W) 0.31 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 3.88 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0013-0016-C (PK-50) 3 units (150 pcs) Available Now \| Further orders can be expected around Thu, Mar 19, 2026 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 3 available can be backordered.
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.56 mm
Material: Carbon Steel Groove Width (W): 0.31 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 3.88 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0013-0016-C (PK-50) 3 units (150 pcs) Available Now \| Further orders can be expected around Thu, Mar 19, 2026 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required 3 units (150 pcs) Available Now. Backorder if more than 3.
ECL-0013-0016-C (PK-50) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip ECL-0013-0016-C (PK-50) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties 3 Available Now
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Beryllium Copper E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm
Material: Beryllium Copper Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 998
Part Number: ECL-0013-0016A-B (PK-5) 14 units (70 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $3.32 AUD Regular price ~~$9.40 AUD~~ Sale price $3.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 14 available can be backordered.
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Beryllium Copper E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 998
Part Number: ECL-0013-0016A-B (PK-5) 14 units (70 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $3.32 AUD Regular price ~~$9.40 AUD~~ Sale price $3.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 14 units (70 pcs) Available Now. Backorder if more than 14.
ECL-0013-0016A-B (PK-5) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Beryllium Copper E-Clip Sale ECL-0013-0016A-B (PK-5) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Beryllium Copper E-Clip Regular price $3.32 AUD Regular price ~~$9.40 AUD~~ Sale price $3.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 14 Available Now Sale
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 134
Part Number: ECL-0013-0016A-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $5.32 AUD Regular price ~~$14.80 AUD~~ Sale price $5.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 134
Part Number: ECL-0013-0016A-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $5.32 AUD Regular price ~~$14.80 AUD~~ Sale price $5.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0013-0016A-C (PK-100) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip Sale ECL-0013-0016A-C (PK-100) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel E-Clip Regular price $5.32 AUD Regular price ~~$14.80 AUD~~ Sale price $5.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

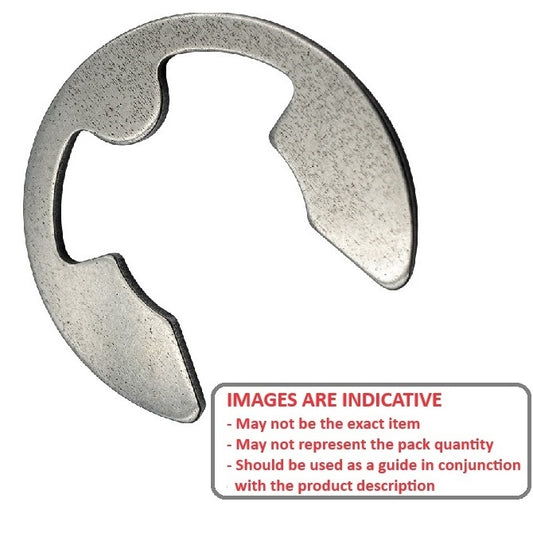

E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0013-0016A-S15 (PK-20) 24 units (480 pcs) Available Now \| Further orders can be expected around Mon, Jan 26, 2026 Regular price $10.50 AUD Regular price ~~$29.68 AUD~~ Sale price $10.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 24 available can be backordered.
E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0013-0016A-S15 (PK-20) 24 units (480 pcs) Available Now \| Further orders can be expected around Mon, Jan 26, 2026 Regular price $10.50 AUD Regular price ~~$29.68 AUD~~ Sale price $10.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 24 units (480 pcs) Available Now. Backorder if more than 24.
ECL-0013-0016A-S15 (PK-20) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0013-0016A-S15 (PK-20) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $10.50 AUD Regular price ~~$29.68 AUD~~ Sale price $10.50 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 24 Available Now Sale
E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.51 mm (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.76 mm	Groove Width (W) 0.58 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 1335
Part Number: ECL-0013-0016C-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $7.77 AUD Regular price ~~$18.00 AUD~~ Sale price $7.77 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.51 mm (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.76 mm
Material: Carbon Steel Groove Width (W): 0.58 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 1335
Part Number: ECL-0013-0016C-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $7.77 AUD Regular price ~~$18.00 AUD~~ Sale price $7.77 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0013-0016C-C (PK-100) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Carbon Steel E-Clip Sale ECL-0013-0016C-C (PK-100) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Carbon Steel E-Clip Regular price $7.77 AUD Regular price ~~$18.00 AUD~~ Sale price $7.77 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.51 mm (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.76 mm	Groove Width (W) 0.58 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0013-0016C-S15 (PK-500) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 26, 2026 Regular price $223.68 AUD Regular price ~~$526.00 AUD~~ Sale price $223.68 AUD Unit price per Priced, Stocked and Sold Per 500 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.51 mm (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.76 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.58 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0013-0016C-S15 (PK-500) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 26, 2026 Regular price $223.68 AUD Regular price ~~$526.00 AUD~~ Sale price $223.68 AUD Unit price per Priced, Stocked and Sold Per 500 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0013-0016C-S15 (PK-500) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0013-0016C-S15 (PK-500) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $223.68 AUD Regular price ~~$526.00 AUD~~ Sale price $223.68 AUD Unit price per Priced, Stocked and Sold Per 500 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 2.00 mm _{+ 0.50 / - 0.00} (Equiv. 0.079 in.)	Groove Dia. (Dg) 1.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.059 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.02} (Equiv. 0.016 in.)	Clip OD Loose (D1) 3.85 mm	Groove Width (W) 0.44 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 743
Part Number: ECL-0015-0020-S15 (Each) 338 Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 338 available can be backordered.
E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 2.00 mm _{+ 0.50 / - 0.00} (Equiv. 0.079 in.)	Groove Dia. (Dg) 1.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.059 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.02} (Equiv. 0.016 in.)	Clip OD Loose (D1) 3.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.44 mm Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 743
Part Number: ECL-0015-0020-S15 (Each) 338 Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 338 Available Now. Backorder if more than 338.
ECL-0015-0020-S15 (Each) --- E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0015-0020-S15 (Each) --- E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 338 Available Now
E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.00 mm _{+ 0.50 / - 0.00} (Equiv. 0.079 in.)	Groove Dia. (Dg) 1.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.059 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.02} (Equiv. 0.016 in.)	Clip OD Loose (D1) 3.85 mm	Groove Width (W) 0.44 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 8189
Part Number: ECL-0015-0020-C (PK-100) 77 units (7700 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $2.14 AUD Regular price ~~$6.00 AUD~~ Sale price $2.14 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 77 available can be backordered.
E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.00 mm _{+ 0.50 / - 0.00} (Equiv. 0.079 in.)	Groove Dia. (Dg) 1.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.059 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.02} (Equiv. 0.016 in.)	Clip OD Loose (D1) 3.85 mm
Material: Carbon Steel Groove Width (W): 0.44 mm Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 8189
Part Number: ECL-0015-0020-C (PK-100) 77 units (7700 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $2.14 AUD Regular price ~~$6.00 AUD~~ Sale price $2.14 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 77 units (7700 pcs) Available Now. Backorder if more than 77.
ECL-0015-0020-C (PK-100) --- E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Carbon Steel E-Clip Sale ECL-0015-0020-C (PK-100) --- E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Carbon Steel E-Clip Regular price $2.14 AUD Regular price ~~$6.00 AUD~~ Sale price $2.14 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 77 Available Now Sale
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.025} (Equiv. 0.015 in.)	Clip OD Loose (D1) 4.75 mm	Groove Width (W) 0.46 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 5131
Part Number: ECL-0018-0024A-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $3.41 AUD Regular price ~~$9.40 AUD~~ Sale price $3.41 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.025} (Equiv. 0.015 in.)	Clip OD Loose (D1) 4.75 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 5131
Part Number: ECL-0018-0024A-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $3.41 AUD Regular price ~~$9.40 AUD~~ Sale price $3.41 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0018-0024A-C (PK-50) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip Sale ECL-0018-0024A-C (PK-50) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip Regular price $3.41 AUD Regular price ~~$9.40 AUD~~ Sale price $3.41 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.025} (Equiv. 0.015 in.)	Clip OD Loose (D1) 4.75 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 32965
Part Number: ECL-0018-0024A-S15 (PK-20) 46 units (920 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 46 available can be backordered.
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.025} (Equiv. 0.015 in.)	Clip OD Loose (D1) 4.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 32965
Part Number: ECL-0018-0024A-S15 (PK-20) 46 units (920 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 46 units (920 pcs) Available Now. Backorder if more than 46.
ECL-0018-0024A-S15 (PK-20) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0018-0024A-S15 (PK-20) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 46 Available Now
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.052} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.23 mm	Groove Width (W) 0.51 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.56 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0018-0024D-C (PK-1500) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 26, 2026 Regular price $125.05 AUD Regular price ~~$294.00 AUD~~ Sale price $125.05 AUD Unit price per Priced, Stocked and Sold Per 1500 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.052} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.23 mm
Material: Carbon Steel Groove Width (W): 0.51 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.56 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0018-0024D-C (PK-1500) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 26, 2026 Regular price $125.05 AUD Regular price ~~$294.00 AUD~~ Sale price $125.05 AUD Unit price per Priced, Stocked and Sold Per 1500 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0018-0024D-C (PK-1500) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip Sale ECL-0018-0024D-C (PK-1500) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip Regular price $125.05 AUD Regular price ~~$294.00 AUD~~ Sale price $125.05 AUD Unit price per Priced, Stocked and Sold Per 1500 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 6.22 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 105
Part Number: ECL-0018-0024-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $3.32 AUD Regular price ~~$9.20 AUD~~ Sale price $3.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.84 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 6.22 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 105
Part Number: ECL-0018-0024-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $3.32 AUD Regular price ~~$9.20 AUD~~ Sale price $3.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0018-0024-C (PK-50) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip Sale ECL-0018-0024-C (PK-50) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel E-Clip Regular price $3.32 AUD Regular price ~~$9.20 AUD~~ Sale price $3.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 2.50 mm _{+ 0.50 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 1.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.075 in.)	Clip Thickness (T) 0.50 mm _{+/- 0.02} (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.40 mm	Groove Width (W) 0.54 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 19197
Part Number: ECL-0019-0025-S15 (PK-10) 4 units (40 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $12.68 AUD Regular price Sale price $12.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 4 available can be backordered.
E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 2.50 mm _{+ 0.50 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 1.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.075 in.)	Clip Thickness (T) 0.50 mm _{+/- 0.02} (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.54 mm Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 19197
Part Number: ECL-0019-0025-S15 (PK-10) 4 units (40 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $12.68 AUD Regular price Sale price $12.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 4 units (40 pcs) Available Now. Backorder if more than 4.
ECL-0019-0025-S15 (PK-10) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0019-0025-S15 (PK-10) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $12.68 AUD Regular price Sale price $12.68 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 4 Available Now
E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.50 mm _{+ 0.50 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 1.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.075 in.)	Clip Thickness (T) 0.50 mm _{+/- 0.02} (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.40 mm	Groove Width (W) 0.54 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 23451
Part Number: ECL-0019-0025-C (PK-100) 34 units (3400 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 34 available can be backordered.
E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.50 mm _{+ 0.50 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 1.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.075 in.)	Clip Thickness (T) 0.50 mm _{+/- 0.02} (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.40 mm
Material: Carbon Steel Groove Width (W): 0.54 mm Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 23451
Part Number: ECL-0019-0025-C (PK-100) 34 units (3400 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 34 units (3400 pcs) Available Now. Backorder if more than 34.
ECL-0019-0025-C (PK-100) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Carbon Steel E-Clip ECL-0019-0025-C (PK-100) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Carbon Steel E-Clip Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 34 Available Now
E-Clips Retaining Rings - 2.79x1.98x0.51 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.79 mm _{+ 1.02 / - 0.00} (Equiv. 0.11 in.)	Groove Dia. (Dg) 1.98 mm _{+ 0.051 / - 0.000} (Equiv. 0.078 in.)	Clip Thickness (T) 0.51 mm _{+/- 0.038} (Equiv. 0.02 in.)	Clip OD Loose (D1) 10.82 mm	Groove Width (W) 0.58 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 10.92 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0020-0028-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $18.41 AUD Regular price ~~$43.11 AUD~~ Sale price $18.41 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 2.79x1.98x0.51 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.79 mm _{+ 1.02 / - 0.00} (Equiv. 0.11 in.)	Groove Dia. (Dg) 1.98 mm _{+ 0.051 / - 0.000} (Equiv. 0.078 in.)	Clip Thickness (T) 0.51 mm _{+/- 0.038} (Equiv. 0.02 in.)	Clip OD Loose (D1) 10.82 mm
Material: Carbon Steel Groove Width (W): 0.58 mm Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 10.92 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0020-0028-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $18.41 AUD Regular price ~~$43.11 AUD~~ Sale price $18.41 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0020-0028-C (PK-100) --- E-Clips Retaining Rings - 2.79x1.98x0.51 mm Basic - Carbon Steel E-Clip Sale ECL-0020-0028-C (PK-100) --- E-Clips Retaining Rings - 2.79x1.98x0.51 mm Basic - Carbon Steel E-Clip Regular price $18.41 AUD Regular price ~~$43.11 AUD~~ Sale price $18.41 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 2.79x2.01x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.79 mm _{+ 1.02 / - 0.00} (Equiv. 0.11 in.)	Groove Dia. (Dg) 2.01 mm _{+ 0.051 / - 0.000} (Equiv. 0.079 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 9.53 mm	Groove Width (W) 0.61 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 9.91 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 3581
Part Number: ECL-0020-0028A-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $9.50 AUD Regular price ~~$22.00 AUD~~ Sale price $9.50 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 2.79x2.01x0.38 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 2.79 mm _{+ 1.02 / - 0.00} (Equiv. 0.11 in.)	Groove Dia. (Dg) 2.01 mm _{+ 0.051 / - 0.000} (Equiv. 0.079 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 9.53 mm
Material: Carbon Steel Groove Width (W): 0.61 mm Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 9.91 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 3581
Part Number: ECL-0020-0028A-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $9.50 AUD Regular price ~~$22.00 AUD~~ Sale price $9.50 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECL-0020-0028A-C (PK-100) --- E-Clips Retaining Rings - 2.79x2.01x0.38 mm Basic - Carbon Steel E-Clip Sale ECL-0020-0028A-C (PK-100) --- E-Clips Retaining Rings - 2.79x2.01x0.38 mm Basic - Carbon Steel E-Clip Regular price $9.50 AUD Regular price ~~$22.00 AUD~~ Sale price $9.50 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

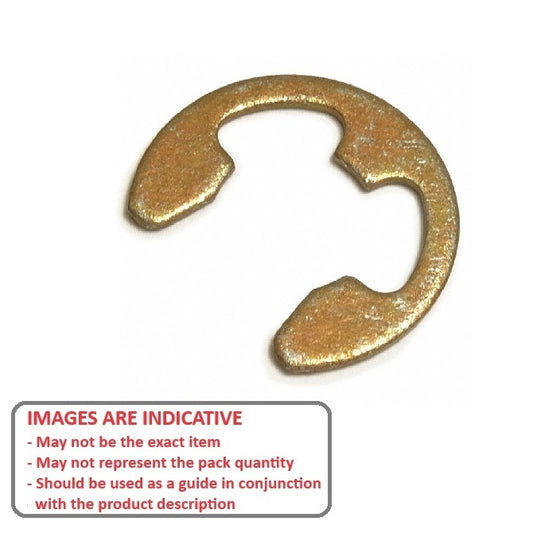

E-Clips Retaining Rings - 2.79x2.18x0.56 mm Basic - Carbon Steel Zinc Plated E-Clip
Minimum Rec. Shaft Dia (S) 2.79 mm _{+ 1.02 / - 0.00} (Equiv. 0.11 in.)	Groove Dia. (Dg) 2.18 mm _{+ 0.051 / - 0.000} (Equiv. 0.086 in.)	Clip Thickness (T) 0.56 mm _{+/- 0.051} (Equiv. 0.022 in.)	Clip OD Loose (D1) 7.16 mm	Groove Width (W) 0.64 mm
Material: Carbon Steel Zinc Plated Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 7.54 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0022-0028-CZ (PK-20) 2 units (40 pcs) Available Now \| Further orders can be expected around Tue, Feb 03, 2026 Regular price $4.41 AUD Regular price ~~$12.29 AUD~~ Sale price $4.41 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 2 available can be backordered.
E-Clips Retaining Rings - 2.79x2.18x0.56 mm Basic - Carbon Steel Zinc Plated E-Clip
Minimum Rec. Shaft Dia (S) 2.79 mm _{+ 1.02 / - 0.00} (Equiv. 0.11 in.)	Groove Dia. (Dg) 2.18 mm _{+ 0.051 / - 0.000} (Equiv. 0.086 in.)	Clip Thickness (T) 0.56 mm _{+/- 0.051} (Equiv. 0.022 in.)	Clip OD Loose (D1) 7.16 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 7.54 mm Category: Retaining Rings - E-Clips - Basic
Part Number: ECL-0022-0028-CZ (PK-20) 2 units (40 pcs) Available Now \| Further orders can be expected around Tue, Feb 03, 2026 Regular price $4.41 AUD Regular price ~~$12.29 AUD~~ Sale price $4.41 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (40 pcs) Available Now. Backorder if more than 2.
ECL-0022-0028-CZ (PK-20) --- E-Clips Retaining Rings - 2.79x2.18x0.56 mm Basic - Carbon Steel Zinc Plated E-Clip Sale ECL-0022-0028-CZ (PK-20) --- E-Clips Retaining Rings - 2.79x2.18x0.56 mm Basic - Carbon Steel Zinc Plated E-Clip Regular price $4.41 AUD Regular price ~~$12.29 AUD~~ Sale price $4.41 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 2 Available Now Sale
E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 3.00 mm _{+ 1.00 / - 0.00} (Equiv. 0.118 in.)	Groove Dia. (Dg) 2.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.091 in.)	Clip Thickness (T) 0.60 mm _{+/- 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 5.90 mm	Groove Width (W) 0.64 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 8034
Part Number: ECL-0023-0030-S15 (PK-10) 28 units (280 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 28 available can be backordered.
E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 3.00 mm _{+ 1.00 / - 0.00} (Equiv. 0.118 in.)	Groove Dia. (Dg) 2.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.091 in.)	Clip Thickness (T) 0.60 mm _{+/- 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 5.90 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 8034
Part Number: ECL-0023-0030-S15 (PK-10) 28 units (280 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 28 units (280 pcs) Available Now. Backorder if more than 28.
ECL-0023-0030-S15 (PK-10) --- E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0023-0030-S15 (PK-10) --- E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 28 Available Now
E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 3.00 mm _{+ 1.00 / - 0.00} (Equiv. 0.118 in.)	Groove Dia. (Dg) 2.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.091 in.)	Clip Thickness (T) 0.60 mm _{+/- 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 5.90 mm	Groove Width (W) 0.64 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 10759
Part Number: ECL-0023-0030-C (PK-100) 21 units (2100 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 21 available can be backordered.
E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 3.00 mm _{+ 1.00 / - 0.00} (Equiv. 0.118 in.)	Groove Dia. (Dg) 2.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.091 in.)	Clip Thickness (T) 0.60 mm _{+/- 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 5.90 mm
Material: Carbon Steel Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 10759
Part Number: ECL-0023-0030-C (PK-100) 21 units (2100 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required 21 units (2100 pcs) Available Now. Backorder if more than 21.
ECL-0023-0030-C (PK-100) --- E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Carbon Steel E-Clip ECL-0023-0030-C (PK-100) --- E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Carbon Steel E-Clip Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties 21 Available Now
E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 3.18 mm (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.36 mm
Material: Carbon Steel Category: Retaining Rings - E-Clips - Bowed
Part Number: ECB-0024-0032-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $30.05 AUD Regular price ~~$70.37 AUD~~ Sale price $30.05 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel E-Clip
Minimum Rec. Shaft Dia (S) 3.18 mm (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 5.84 mm
Material: Carbon Steel Groove Width (W): 0.36 mm Category: Retaining Rings - E-Clips - Bowed
Part Number: ECB-0024-0032-C (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $30.05 AUD Regular price ~~$70.37 AUD~~ Sale price $30.05 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECB-0024-0032-C (PK-100) --- E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel E-Clip Sale ECB-0024-0032-C (PK-100) --- E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel E-Clip Regular price $30.05 AUD Regular price ~~$70.37 AUD~~ Sale price $30.05 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 3.18 mm (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.56 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - E-Clips - Bowed Additional stock available from USA subject to Prior Sale = 2161
Part Number: ECB-0024-0032-S15 (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $36.32 AUD Regular price ~~$85.20 AUD~~ Sale price $36.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 3.18 mm (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 5.84 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.56 mm Category: Retaining Rings - E-Clips - Bowed Additional stock available from USA subject to Prior Sale = 2161
Part Number: ECB-0024-0032-S15 (PK-100) Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 23, 2026 Regular price $36.32 AUD Regular price ~~$85.20 AUD~~ Sale price $36.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
ECB-0024-0032-S15 (PK-100) --- E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECB-0024-0032-S15 (PK-100) --- E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $36.32 AUD Regular price ~~$85.20 AUD~~ Sale price $36.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 3.18 mm _{+ 1.02 / - 0.00} (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 7190
Part Number: ECL-0024-0032A-S15 (PK-20) 88 units (1760 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 88 available can be backordered.
E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip
Minimum Rec. Shaft Dia (S) 3.18 mm _{+ 1.02 / - 0.00} (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.84 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic Additional stock available from USA subject to Prior Sale = 7190
Part Number: ECL-0024-0032A-S15 (PK-20) 88 units (1760 pcs) Available Now \| Further orders can be expected around Fri, Jan 23, 2026 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties Quantity Required 88 units (1760 pcs) Available Now. Backorder if more than 88.
ECL-0024-0032A-S15 (PK-20) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0024-0032A-S15 (PK-20) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Priced, Stocked and Sold Per 20 Units Excludes GST and overseas Taxes & Duties 88 Available Now

Country/region

Miniature Bearings Australia

Collection: Retaining Rings - E-Clips

Category Details

Filter

Filter

Subscribe to our emails
