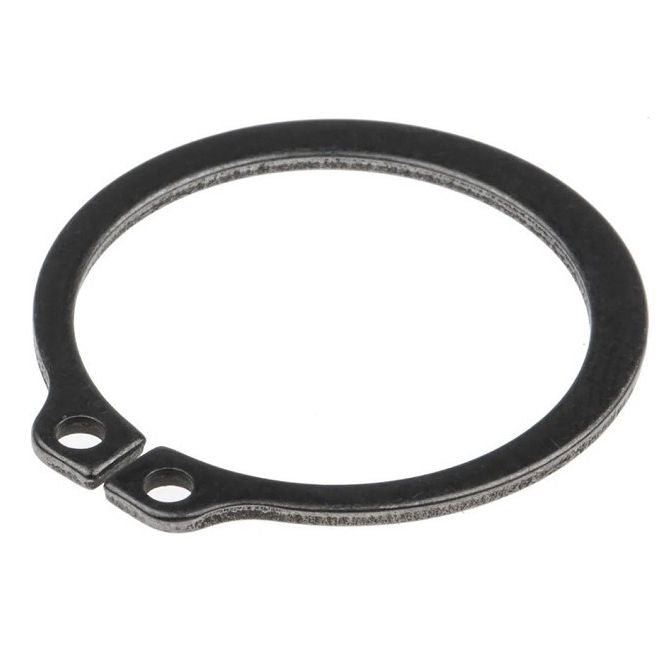

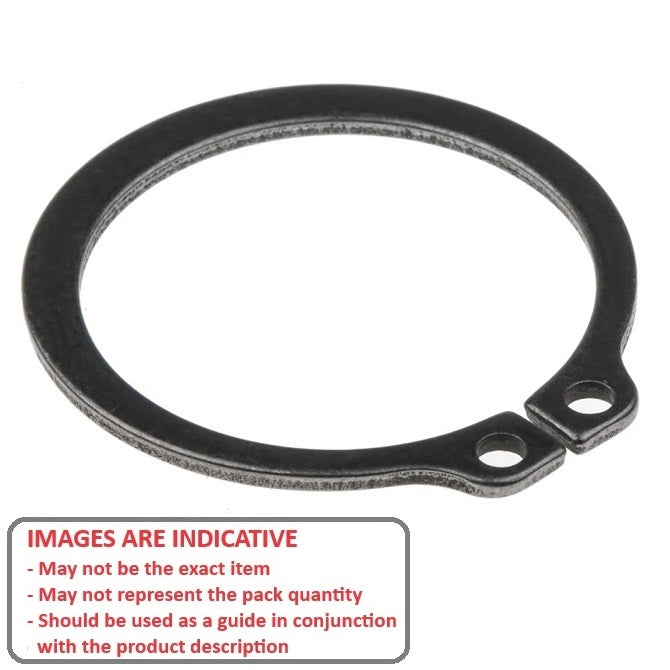

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Circlips - 9.53 mm x 0.64 mm x 8.94 mm
CCE-00953-C (20 Pcs)

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Price:
$5.32 AUD
$5.32 AUD
per 20
Qty: 27 available now (540 pcs)
Order 50 or more (1000 pcs) for $4.79 AUD per 20
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 03, 2025

Base Category: Circlips - External

Top Level Category: Circlips - External - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 23736

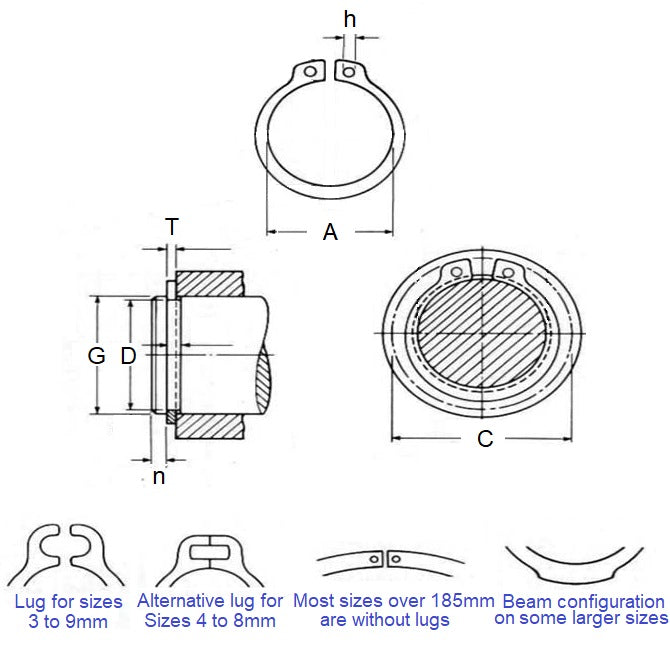

Shaft Diameter (Ds): 9.53mm
Carbon Steel
  • Clip Thickness (T): 0.64mm
    +/-0.051
  • Groove Dia. (Dg): 8.94mm
    +/-0.051
  • Loose Circlip ID (A): 8.59mm
  • Min. Extension (n): 0.97mm
  • Groove Width (W): 0.74mm
  • Clearance on Shaft (C1): 15.49mm
  • Clearance in Groove (C1): 14.99mm
  • Min. Lug Diameter (h): 0.99mm
  • Standard: MIL-16624

Brand: MBA
Country of Origin: US

Alternatives: 97633A170, A9Q27-037, N1400-0037, SH-037

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
