DP095-044-CH-1E

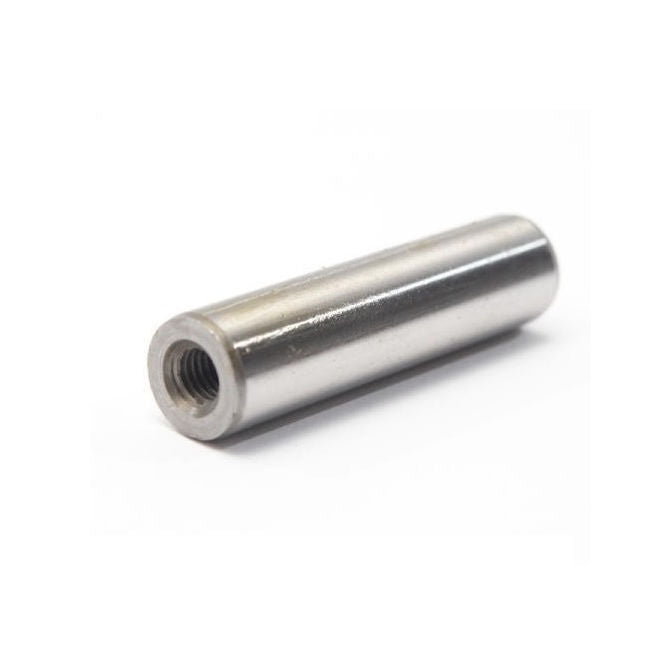

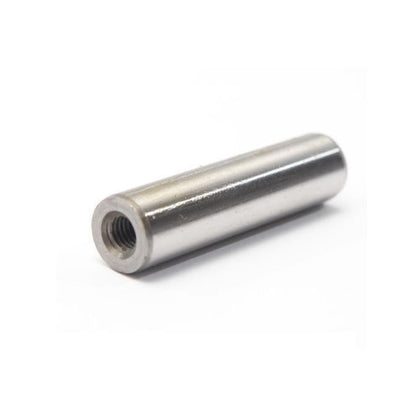

Dowel Pins - 9.525x44.45x44.45 mm - Carbon Steel Rc 58-62

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$17.77 AUD
$17.77 AUD
Each
Backorder
Order 50 or more for $15.99 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Jul 09, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Extractable - Carbon Steel

Product Details:

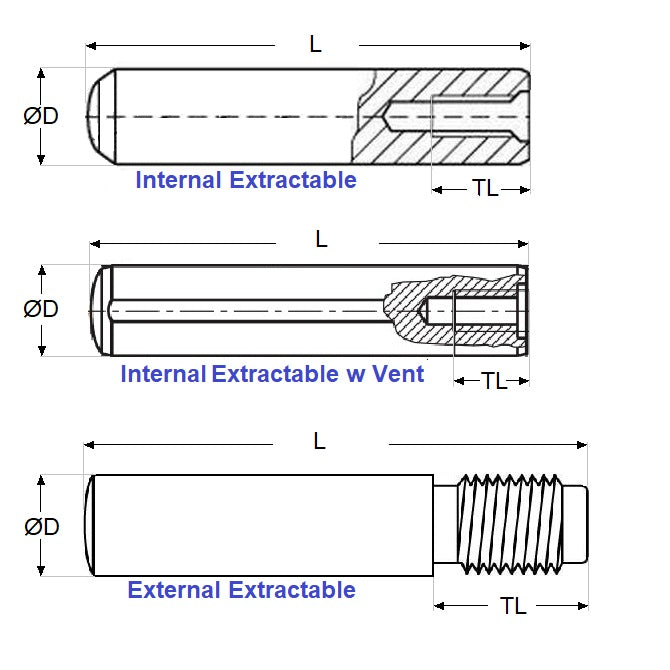

Diameter (D): 9.525mm
+ 0.006 / + 0.015
(9.525mm is 0.375 in.)

Carbon Steel Rc 58-62
  • Length (L): 44.45mm
    +/- 0.500
    (44.45mm is 1.75 in.)
  • Approx. Overall Length: 44.45mm
    +/ - 0.500
    (44.45mm is 1.75 in.)
  • Type: 1 (Chamfer One End)
  • Thread Size: 10-32
  • DIN 6325

Brand: NoCor
Country of Origin: US

Alternative Parts Include: PD-100, PD100

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
