Collection: Pins - Dowel - Extractable - Carbon Steel

Pins (With Images)

Dowel

Extractable

Carbon Steel
With Vent

33 Products in this selection

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
Hardened and Ground Steel 100 Cr6. Din 7979.
Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes.
Hardness 55-62 HRC, HV550-650
Extractable pins may or may not have a flat to vent pressure when pulling

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more concise listing may be found on the Smallparts store at Pins - Dowel - Extractable - Carbon Steel. Smallparts promote the most popular MBA products.

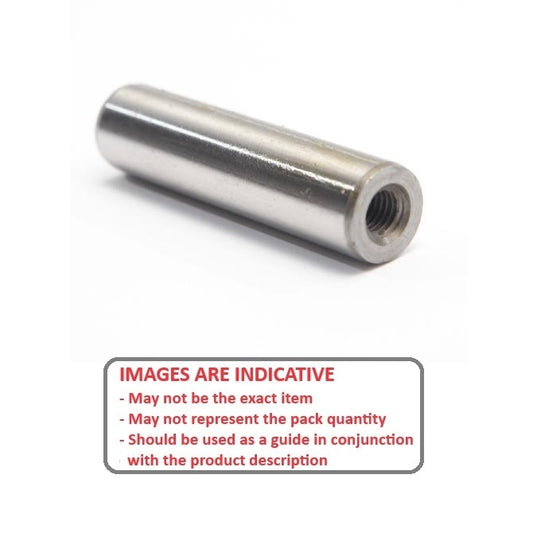

Diameter (D)	Length (L)	Approx. Overall Length	Type	Indicative Image
6.000 mm + 0.006 / + 0.015	30.00 mm +/- 0.500	30.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: M4 (4x0.7mm)
Part Number: DP060-030-CH-1E Dowel Pins - 6x30x30 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
6.000 mm + 0.006 / + 0.015	30.00 mm +/- 0.500	30.00 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: M4 (4x0.7mm)
Part Number: DP060-030-CH-1E Dowel Pins - 6x30x30 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each View the product page first if you are unsure.
DP060-030-CH-1E --- Dowel Pins - 6x30x30 mm - Carbon Steel Rc 58-62 DP060-030-CH-1E --- Dowel Pins - 6x30x30 mm - Carbon Steel Rc 58-62 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Out of stock! Backorder Now
6.350 mm + 0.006 / + 0.015	12.70 mm +/- 0.350	12.70 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-013-CH-1E (5 Pcs) Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Per 5
6.350 mm + 0.006 / + 0.015	12.70 mm +/- 0.350	12.70 mm +/ - 0.350
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-013-CH-1E (5 Pcs) Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Per 5 View the product page first if you are unsure.
DP064-013-CH-1E (5 Pcs) --- Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 DP064-013-CH-1E (5 Pcs) --- Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Out of stock! Backorder Now
6.350 mm + 0.006 / + 0.015	19.05 mm +/- 0.420	19.05 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-019-CH-1E (5 Pcs) Dowel Pins - 6.35x19.05x19.05 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 5
6.350 mm + 0.006 / + 0.015	19.05 mm +/- 0.420	19.05 mm +/ - 0.420
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-019-CH-1E (5 Pcs) Dowel Pins - 6.35x19.05x19.05 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 5 View the product page first if you are unsure.
DP064-019-CH-1E (5 Pcs) --- Dowel Pins - 6.35x19.05x19.05 mm - Carbon Steel Rc 58-62 DP064-019-CH-1E (5 Pcs) --- Dowel Pins - 6.35x19.05x19.05 mm - Carbon Steel Rc 58-62 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Out of stock! Backorder Now
6.350 mm + 0.006 / + 0.015	25.40 mm +/- 0.420	25.40 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-025-CH-1E (5 Pcs) Dowel Pins - 6.35x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Per 5
6.350 mm + 0.006 / + 0.015	25.40 mm +/- 0.420	25.40 mm +/ - 0.420
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-025-CH-1E (5 Pcs) Dowel Pins - 6.35x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Per 5 View the product page first if you are unsure.
DP064-025-CH-1E (5 Pcs) --- Dowel Pins - 6.35x25.4x25.4 mm - Carbon Steel Rc 58-62 DP064-025-CH-1E (5 Pcs) --- Dowel Pins - 6.35x25.4x25.4 mm - Carbon Steel Rc 58-62 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Out of stock! Backorder Now
6.350 mm + 0.006 / + 0.015	31.75 mm +/- 0.500	31.75 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-032-CH-1E (5 Pcs) Dowel Pins - 6.35x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Per 5
6.350 mm + 0.006 / + 0.015	31.75 mm +/- 0.500	31.75 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-032-CH-1E (5 Pcs) Dowel Pins - 6.35x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Per 5 View the product page first if you are unsure.
DP064-032-CH-1E (5 Pcs) --- Dowel Pins - 6.35x31.75x31.75 mm - Carbon Steel Rc 58-62 DP064-032-CH-1E (5 Pcs) --- Dowel Pins - 6.35x31.75x31.75 mm - Carbon Steel Rc 58-62 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Out of stock! Backorder Now
6.350 mm + 0.006 / + 0.015	38.10 mm +/- 0.500	38.10 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-038-CH-1E Dowel Pins - 6.35x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
6.350 mm + 0.006 / + 0.015	38.10 mm +/- 0.500	38.10 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-038-CH-1E Dowel Pins - 6.35x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
DP064-038-CH-1E --- Dowel Pins - 6.35x38.1x38.1 mm - Carbon Steel Rc 58-62 DP064-038-CH-1E --- Dowel Pins - 6.35x38.1x38.1 mm - Carbon Steel Rc 58-62 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Out of stock! Backorder Now
6.350 mm + 0.006 / + 0.015	50.80 mm +/- 0.600	50.80 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-051-CH-1E (5 Pcs) Dowel Pins - 6.35x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 5
6.350 mm + 0.006 / + 0.015	50.80 mm +/- 0.600	50.80 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-051-CH-1E (5 Pcs) Dowel Pins - 6.35x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 5 View the product page first if you are unsure.
DP064-051-CH-1E (5 Pcs) --- Dowel Pins - 6.35x50.8x50.8 mm - Carbon Steel Rc 58-62 DP064-051-CH-1E (5 Pcs) --- Dowel Pins - 6.35x50.8x50.8 mm - Carbon Steel Rc 58-62 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Out of stock! Backorder Now
6.350 mm + 0.006 / + 0.015	63.50 mm +/- 0.600	63.50 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-064-CH-1E (5 Pcs) Dowel Pins - 6.35x63.5x63.5 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 5
6.350 mm + 0.006 / + 0.015	63.50 mm +/- 0.600	63.50 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-064-CH-1E (5 Pcs) Dowel Pins - 6.35x63.5x63.5 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 5 View the product page first if you are unsure.
DP064-064-CH-1E (5 Pcs) --- Dowel Pins - 6.35x63.5x63.5 mm - Carbon Steel Rc 58-62 DP064-064-CH-1E (5 Pcs) --- Dowel Pins - 6.35x63.5x63.5 mm - Carbon Steel Rc 58-62 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Out of stock! Backorder Now
7.938 mm + 0.006 / + 0.015	31.75 mm +/- 0.500	31.75 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP079-032-CH-1E (5 Pcs) Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $26.86 AUD Regular price Sale price $26.86 AUD Unit price per Per 5
7.938 mm + 0.006 / + 0.015	31.75 mm +/- 0.500	31.75 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP079-032-CH-1E (5 Pcs) Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $26.86 AUD Regular price Sale price $26.86 AUD Unit price per Per 5 View the product page first if you are unsure.
DP079-032-CH-1E (5 Pcs) --- Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 DP079-032-CH-1E (5 Pcs) --- Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 Regular price $26.86 AUD Regular price Sale price $26.86 AUD Unit price per Out of stock! Backorder Now
7.938 mm + 0.006 / + 0.015	38.10 mm +/- 0.500	38.10 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP079-038-CH-1E (5 Pcs) Dowel Pins - 7.938x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 5
7.938 mm + 0.006 / + 0.015	38.10 mm +/- 0.500	38.10 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP079-038-CH-1E (5 Pcs) Dowel Pins - 7.938x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 5 View the product page first if you are unsure.
DP079-038-CH-1E (5 Pcs) --- Dowel Pins - 7.938x38.1x38.1 mm - Carbon Steel Rc 58-62 DP079-038-CH-1E (5 Pcs) --- Dowel Pins - 7.938x38.1x38.1 mm - Carbon Steel Rc 58-62 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
9.525 mm + 0.006 / + 0.015	25.40 mm +/- 0.420	25.40 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-025-CH-1E Dowel Pins - 9.525x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Each
9.525 mm + 0.006 / + 0.015	25.40 mm +/- 0.420	25.40 mm +/ - 0.420
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-025-CH-1E Dowel Pins - 9.525x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Each View the product page first if you are unsure.
DP095-025-CH-1E --- Dowel Pins - 9.525x25.4x25.4 mm - Carbon Steel Rc 58-62 DP095-025-CH-1E --- Dowel Pins - 9.525x25.4x25.4 mm - Carbon Steel Rc 58-62 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Out of stock! Backorder Now
9.525 mm + 0.006 / + 0.015	31.75 mm +/- 0.500	31.75 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-032-CH-1E (5 Pcs) Dowel Pins - 9.525x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Per 5
9.525 mm + 0.006 / + 0.015	31.75 mm +/- 0.500	31.75 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-032-CH-1E (5 Pcs) Dowel Pins - 9.525x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Per 5 View the product page first if you are unsure.
DP095-032-CH-1E (5 Pcs) --- Dowel Pins - 9.525x31.75x31.75 mm - Carbon Steel Rc 58-62 DP095-032-CH-1E (5 Pcs) --- Dowel Pins - 9.525x31.75x31.75 mm - Carbon Steel Rc 58-62 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Out of stock! Backorder Now
9.525 mm + 0.006 / + 0.015	38.10 mm +/- 0.500	38.10 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-038-CH-1E (5 Pcs) Dowel Pins - 9.525x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5
9.525 mm + 0.006 / + 0.015	38.10 mm +/- 0.500	38.10 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-038-CH-1E (5 Pcs) Dowel Pins - 9.525x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 View the product page first if you are unsure.
DP095-038-CH-1E (5 Pcs) --- Dowel Pins - 9.525x38.1x38.1 mm - Carbon Steel Rc 58-62 DP095-038-CH-1E (5 Pcs) --- Dowel Pins - 9.525x38.1x38.1 mm - Carbon Steel Rc 58-62 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
9.525 mm + 0.006 / + 0.015	44.45 mm +/- 0.500	44.45 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-044-CH-1E Dowel Pins - 9.525x44.45x44.45 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each
9.525 mm + 0.006 / + 0.015	44.45 mm +/- 0.500	44.45 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-044-CH-1E Dowel Pins - 9.525x44.45x44.45 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each View the product page first if you are unsure.
DP095-044-CH-1E --- Dowel Pins - 9.525x44.45x44.45 mm - Carbon Steel Rc 58-62 DP095-044-CH-1E --- Dowel Pins - 9.525x44.45x44.45 mm - Carbon Steel Rc 58-62 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Out of stock! Backorder Now
9.525 mm + 0.006 / + 0.015	50.80 mm +/- 0.600	50.80 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32

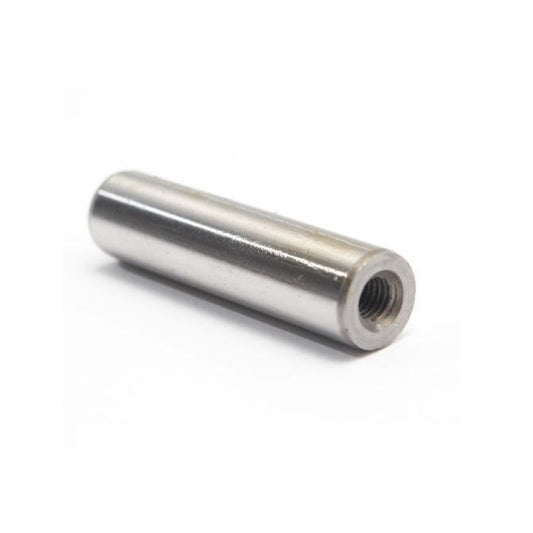

Part Number: DP095-051-CH-1E Dowel Pins - 9.525x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Each
9.525 mm + 0.006 / + 0.015	50.80 mm +/- 0.600	50.80 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-051-CH-1E Dowel Pins - 9.525x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Each View the product page first if you are unsure.
DP095-051-CH-1E --- Dowel Pins - 9.525x50.8x50.8 mm - Carbon Steel Rc 58-62 DP095-051-CH-1E --- Dowel Pins - 9.525x50.8x50.8 mm - Carbon Steel Rc 58-62 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Out of stock! Backorder Now
9.525 mm + 0.006 / + 0.015	63.50 mm +/- 0.600	63.50 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-064-CH-1E Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 10 Available Immediately \| Further orders can be expected around Wed, May 14, 2025 Regular price $4.68 AUD Regular price ~~$5.62 AUD~~ Sale price $4.68 AUD Unit price per Each
9.525 mm + 0.006 / + 0.015	63.50 mm +/- 0.600	63.50 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-064-CH-1E Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 10 Available Immediately \| Further orders can be expected around Wed, May 14, 2025 Regular price $4.68 AUD Regular price ~~$5.62 AUD~~ Sale price $4.68 AUD Unit price per Each View the product page first if you are unsure.
DP095-064-CH-1E --- Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 Sale DP095-064-CH-1E --- Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 Regular price $4.68 AUD Regular price ~~$5.62 AUD~~ Sale price $4.68 AUD Unit price per 10 Available Now Sale
9.525 mm + 0.006 / + 0.015	76.20 mm +/- 0.600	76.20 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-076-CH-1E (5 Pcs) Dowel Pins - 9.525x76.2x76.2 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $24.86 AUD Regular price Sale price $24.86 AUD Unit price per Per 5
9.525 mm + 0.006 / + 0.015	76.20 mm +/- 0.600	76.20 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-076-CH-1E (5 Pcs) Dowel Pins - 9.525x76.2x76.2 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $24.86 AUD Regular price Sale price $24.86 AUD Unit price per Per 5 View the product page first if you are unsure.
DP095-076-CH-1E (5 Pcs) --- Dowel Pins - 9.525x76.2x76.2 mm - Carbon Steel Rc 58-62 DP095-076-CH-1E (5 Pcs) --- Dowel Pins - 9.525x76.2x76.2 mm - Carbon Steel Rc 58-62 Regular price $24.86 AUD Regular price Sale price $24.86 AUD Unit price per Out of stock! Backorder Now
11.113 mm + 0.007 / + 0.018	50.80 mm +/- 0.600	50.80 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP111-051-CH-1E Dowel Pins - 11.113x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each
11.113 mm + 0.007 / + 0.018	50.80 mm +/- 0.600	50.80 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP111-051-CH-1E Dowel Pins - 11.113x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each View the product page first if you are unsure.
DP111-051-CH-1E --- Dowel Pins - 11.113x50.8x50.8 mm - Carbon Steel Rc 58-62 DP111-051-CH-1E --- Dowel Pins - 11.113x50.8x50.8 mm - Carbon Steel Rc 58-62 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Out of stock! Backorder Now
12.700 mm + 0.007 / + 0.018	25.40 mm +/- 0.420	25.40 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-025-CH-1E Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each
12.700 mm + 0.007 / + 0.018	25.40 mm +/- 0.420	25.40 mm +/ - 0.420
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-025-CH-1E Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
DP127-025-CH-1E --- Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 DP127-025-CH-1E --- Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Out of stock! Backorder Now
12.700 mm + 0.007 / + 0.018	38.10 mm +/- 0.500	38.10 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-038-CH-1E (20 Pcs) Dowel Pins - 12.7x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $111.23 AUD Regular price Sale price $111.23 AUD Unit price per Per 20
12.700 mm + 0.007 / + 0.018	38.10 mm +/- 0.500	38.10 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-038-CH-1E (20 Pcs) Dowel Pins - 12.7x38.1x38.1 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $111.23 AUD Regular price Sale price $111.23 AUD Unit price per Per 20 View the product page first if you are unsure.
DP127-038-CH-1E (20 Pcs) --- Dowel Pins - 12.7x38.1x38.1 mm - Carbon Steel Rc 58-62 DP127-038-CH-1E (20 Pcs) --- Dowel Pins - 12.7x38.1x38.1 mm - Carbon Steel Rc 58-62 Regular price $111.23 AUD Regular price Sale price $111.23 AUD Unit price per Out of stock! Backorder Now
12.700 mm + 0.007 / + 0.018	44.45 mm +/- 0.500	44.45 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-044-CH-1E Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 8 Available Immediately \| Further orders can be expected around Mon, May 19, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each
12.700 mm + 0.007 / + 0.018	44.45 mm +/- 0.500	44.45 mm +/ - 0.500
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-044-CH-1E Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 8 Available Immediately \| Further orders can be expected around Mon, May 19, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each View the product page first if you are unsure.
DP127-044-CH-1E --- Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 DP127-044-CH-1E --- Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per 8 Available Now
12.700 mm + 0.007 / + 0.018	50.80 mm +/- 0.600	50.80 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-051-CH-1E (20 Pcs) Dowel Pins - 12.7x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $116.68 AUD Regular price Sale price $116.68 AUD Unit price per Per 20
12.700 mm + 0.007 / + 0.018	50.80 mm +/- 0.600	50.80 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-051-CH-1E (20 Pcs) Dowel Pins - 12.7x50.8x50.8 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $116.68 AUD Regular price Sale price $116.68 AUD Unit price per Per 20 View the product page first if you are unsure.
DP127-051-CH-1E (20 Pcs) --- Dowel Pins - 12.7x50.8x50.8 mm - Carbon Steel Rc 58-62 DP127-051-CH-1E (20 Pcs) --- Dowel Pins - 12.7x50.8x50.8 mm - Carbon Steel Rc 58-62 Regular price $116.68 AUD Regular price Sale price $116.68 AUD Unit price per Out of stock! Backorder Now
12.700 mm + 0.007 / + 0.018	63.50 mm +/- 0.600	63.50 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-064-CH-1E Dowel Pins - 12.7x63.5x63.5 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each
12.700 mm + 0.007 / + 0.018	63.50 mm +/- 0.600	63.50 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-064-CH-1E Dowel Pins - 12.7x63.5x63.5 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each View the product page first if you are unsure.
DP127-064-CH-1E --- Dowel Pins - 12.7x63.5x63.5 mm - Carbon Steel Rc 58-62 DP127-064-CH-1E --- Dowel Pins - 12.7x63.5x63.5 mm - Carbon Steel Rc 58-62 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Out of stock! Backorder Now
12.700 mm + 0.007 / + 0.018	76.20 mm +/- 0.600	76.20 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-076-CH-1E Dowel Pins - 12.7x76.2x76.2 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
12.700 mm + 0.007 / + 0.018	76.20 mm +/- 0.600	76.20 mm +/ - 0.600
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-076-CH-1E Dowel Pins - 12.7x76.2x76.2 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 14, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
DP127-076-CH-1E --- Dowel Pins - 12.7x76.2x76.2 mm - Carbon Steel Rc 58-62 DP127-076-CH-1E --- Dowel Pins - 12.7x76.2x76.2 mm - Carbon Steel Rc 58-62 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now

Auto Translate Language • EA
