DP080-020-CH-1EF (5 Pcs)

Dowel Pins - 8x20 Extractable - Carbon Steel Pin

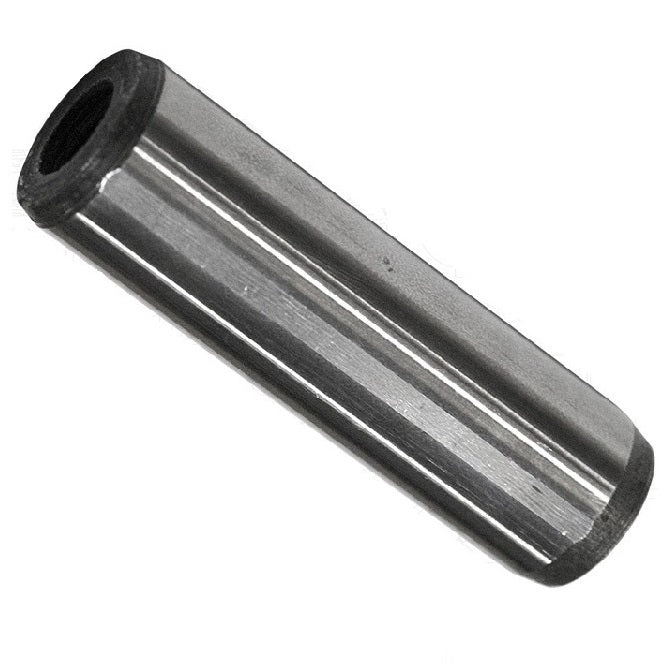

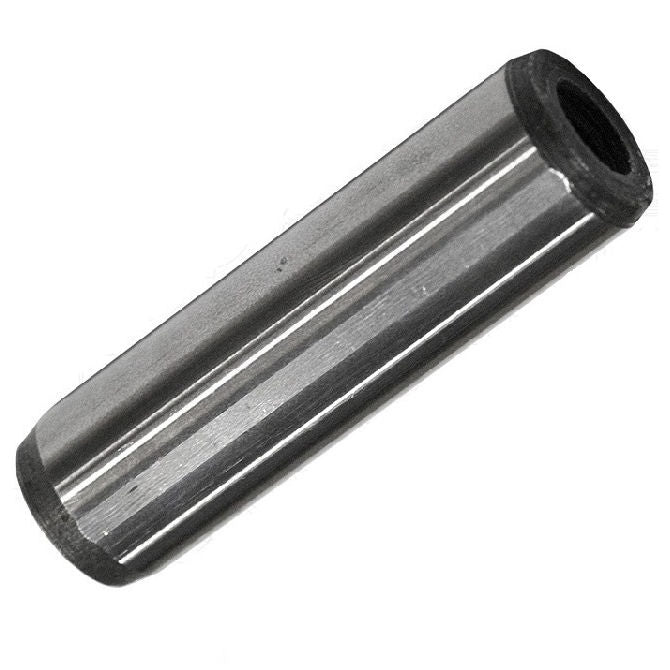

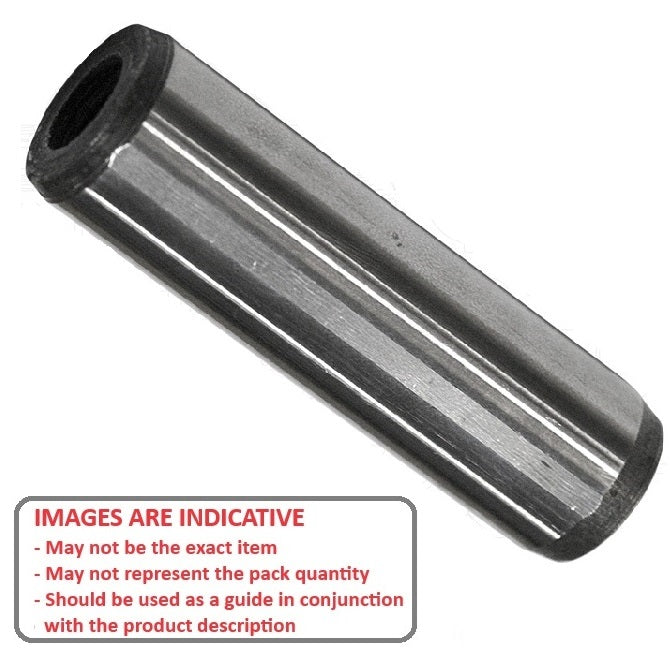

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

NoCor

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$4.14 AUD
$4.14 AUD
per 5
Qty: 70 packs (350 pcs) available now
Order 50 or more packs (250 pcs) for $3.73 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 17, 2025

Pickup available at Shop location

Usually Ready in 4 Hours (If ordered Mon-Fri 8am to 1pm)

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Extractable - With Vent

Product Details


Additional stock available from USA subject to Prior Sale = 9440

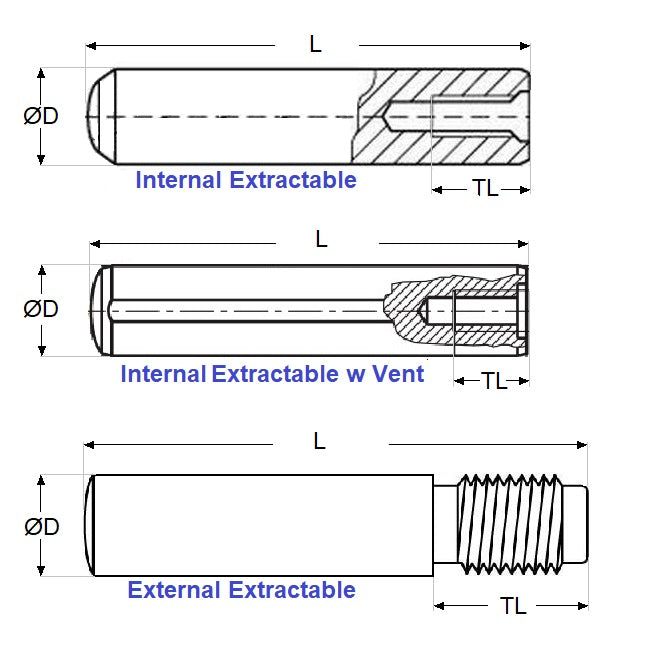

Diameter (D): 8.000mm
+ 0.006 / + 0.015
(8.000mm is 0.315 in.)

Carbon Steel
  • Length (L): 20.00mm
    +/- 0.420
    (20.00mm is 0.787 in.)
  • Approx. Overall Length: 20.00mm
    +/ - 0.420
    (20.00mm is 0.787 in.)
  • Type: 1 (Chamfer One End)
  • Hardness: Heat Treated and Ground Rc 58-62
  • Thread Size: M5 (5x0.8mm)
  • DIN 6325

Brand: NoCor
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor DOWPFM-080-020
  • NoCor DOWPM-080-020
  • PD305
  • PD-305
  • DOWPM080020
  • DOWPFM080020
  • DHX8-20
  • DHX820

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
