Collection: Pins - Dowel - Extractable - With Vent

Pins (With Images)

Dowel

Extractable

Carbon Steel
With Vent

161 Products in this selection

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
Hardened and Ground Steel 100 Cr6 with a ground flat along one edge. DIN7979D.

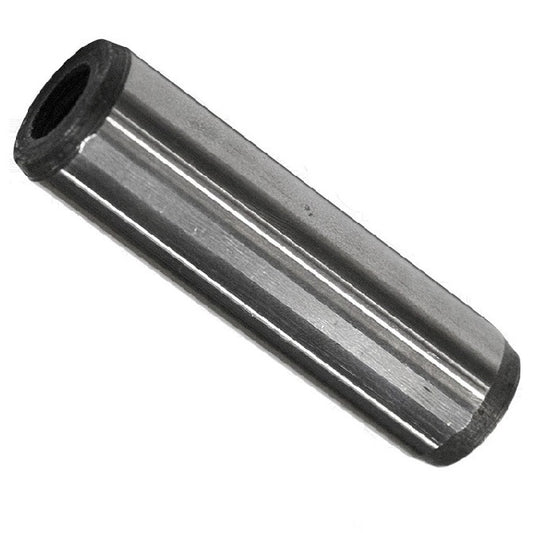

Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes
Hardness 55-62 HRC, HV550-650
An air release flat is ground along the full length of the pin to overcome the problem of pressure build up by trapped air.

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more concise listing may be found on the Smallparts store at Pins - Dowel - Extractable - With Vent. Smallparts promote the most popular MBA products.

Diameter (D)	Length (L)	Approx. Overall Length	Type
4.000 mm + 0.004 / + 0.012	10.00 mm +/- 0.350	10.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-010-CH-1EF Dowel Pins - 4x10x10 mm - Carbon Steel 1 Available Immediately \| Further orders can be expected around Mon, May 19, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each

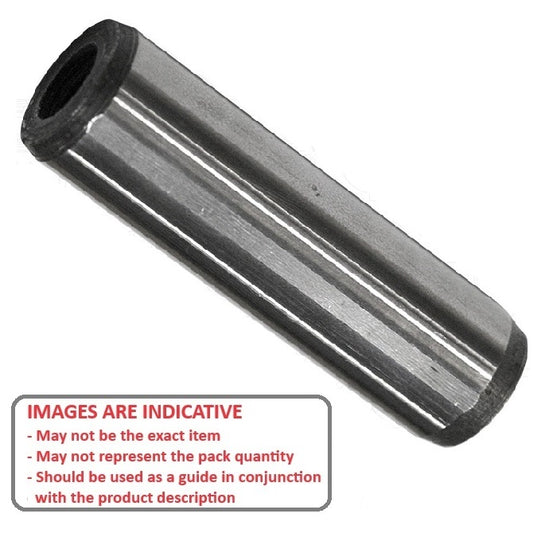

Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
4.000 mm + 0.004 / + 0.012	10.00 mm +/- 0.350	10.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-010-CH-1EF Dowel Pins - 4x10x10 mm - Carbon Steel 1 Available Immediately \| Further orders can be expected around Mon, May 19, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each View the product page first if you are unsure.
DP040-010-CH-1EF --- Dowel Pins - 4x10x10 mm - Carbon Steel DP040-010-CH-1EF --- Dowel Pins - 4x10x10 mm - Carbon Steel Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per 1 Available Now
4.000 mm + 0.004 / + 0.012	12.00 mm +/- 0.350	12.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-012-CH-1EF (2 Pcs) Dowel Pins - 4x12x12 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Per 2
4.000 mm + 0.004 / + 0.012	12.00 mm +/- 0.350	12.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-012-CH-1EF (2 Pcs) Dowel Pins - 4x12x12 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Per 2 View the product page first if you are unsure.
DP040-012-CH-1EF (2 Pcs) --- Dowel Pins - 4x12x12 mm - Carbon Steel DP040-012-CH-1EF (2 Pcs) --- Dowel Pins - 4x12x12 mm - Carbon Steel Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Out of stock! Backorder Now
4.000 mm + 0.004 / + 0.012	14.00 mm +/- 0.350	14.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-014-CH-1EF (2 Pcs) Dowel Pins - 4x14x14 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Per 2
4.000 mm + 0.004 / + 0.012	14.00 mm +/- 0.350	14.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-014-CH-1EF (2 Pcs) Dowel Pins - 4x14x14 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Per 2 View the product page first if you are unsure.
DP040-014-CH-1EF (2 Pcs) --- Dowel Pins - 4x14x14 mm - Carbon Steel DP040-014-CH-1EF (2 Pcs) --- Dowel Pins - 4x14x14 mm - Carbon Steel Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Out of stock! Backorder Now
4.000 mm + 0.004 / + 0.012	16.00 mm +/- 0.350	16.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-016-CH-1EF (2 Pcs) Dowel Pins - 4x16x16 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Per 2
4.000 mm + 0.004 / + 0.012	16.00 mm +/- 0.350	16.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-016-CH-1EF (2 Pcs) Dowel Pins - 4x16x16 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Per 2 View the product page first if you are unsure.
DP040-016-CH-1EF (2 Pcs) --- Dowel Pins - 4x16x16 mm - Carbon Steel DP040-016-CH-1EF (2 Pcs) --- Dowel Pins - 4x16x16 mm - Carbon Steel Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Out of stock! Backorder Now
4.000 mm + 0.004 / + 0.012	20.00 mm +/- 0.420	20.00 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-020-CH-1EF (2 Pcs) Dowel Pins - 4x20x20 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Per 2
4.000 mm + 0.004 / + 0.012	20.00 mm +/- 0.420	20.00 mm +/ - 0.420
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-020-CH-1EF (2 Pcs) Dowel Pins - 4x20x20 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Per 2 View the product page first if you are unsure.
DP040-020-CH-1EF (2 Pcs) --- Dowel Pins - 4x20x20 mm - Carbon Steel DP040-020-CH-1EF (2 Pcs) --- Dowel Pins - 4x20x20 mm - Carbon Steel Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Out of stock! Backorder Now
4.000 mm + 0.004 / + 0.012	24.00 mm +/- 0.420	24.00 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-024-CH-1EF (2 Pcs) Dowel Pins - 4x24x24 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Per 2
4.000 mm + 0.004 / + 0.012	24.00 mm +/- 0.420	24.00 mm +/ - 0.420
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-024-CH-1EF (2 Pcs) Dowel Pins - 4x24x24 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Per 2 View the product page first if you are unsure.
DP040-024-CH-1EF (2 Pcs) --- Dowel Pins - 4x24x24 mm - Carbon Steel DP040-024-CH-1EF (2 Pcs) --- Dowel Pins - 4x24x24 mm - Carbon Steel Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Out of stock! Backorder Now
4.000 mm + 0.004 / + 0.012	25.00 mm +/- 0.420	25.00 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-025-CH-1EF (6 Pcs) Dowel Pins - 4x25x25 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
4.000 mm + 0.004 / + 0.012	25.00 mm +/- 0.420	25.00 mm +/ - 0.420
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-025-CH-1EF (6 Pcs) Dowel Pins - 4x25x25 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
4.000 mm + 0.004 / + 0.012	30.00 mm +/- 0.500	30.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-030-CH-1EF (2 Pcs) Dowel Pins - 4x30x30 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 2
4.000 mm + 0.004 / + 0.012	30.00 mm +/- 0.500	30.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-030-CH-1EF (2 Pcs) Dowel Pins - 4x30x30 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 2 View the product page first if you are unsure.
DP040-030-CH-1EF (2 Pcs) --- Dowel Pins - 4x30x30 mm - Carbon Steel DP040-030-CH-1EF (2 Pcs) --- Dowel Pins - 4x30x30 mm - Carbon Steel Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Out of stock! Backorder Now
4.000 mm + 0.004 / + 0.012	36.00 mm +/- 0.500	36.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-036-CH-1EF Dowel Pins - 4x36x36 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
4.000 mm + 0.004 / + 0.012	36.00 mm +/- 0.500	36.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-036-CH-1EF Dowel Pins - 4x36x36 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
4.000 mm + 0.004 / + 0.012	40.00 mm +/- 0.500	40.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-040-CH-1EF Dowel Pins - 4x40x40 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
4.000 mm + 0.004 / + 0.012	40.00 mm +/- 0.500	40.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP040-040-CH-1EF Dowel Pins - 4x40x40 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	10.00 mm +/- 0.350	10.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-010-CH-1EF (3 Pcs) Dowel Pins - 5x10x10 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 3
5.000 mm + 0.004 / + 0.012	10.00 mm +/- 0.350	10.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-010-CH-1EF (3 Pcs) Dowel Pins - 5x10x10 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 3 View the product page first if you are unsure.
DP050-010-CH-1EF (3 Pcs) --- Dowel Pins - 5x10x10 mm - Carbon Steel DP050-010-CH-1EF (3 Pcs) --- Dowel Pins - 5x10x10 mm - Carbon Steel Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Out of stock! Backorder Now
5.000 mm + 0.004 / + 0.012	12.00 mm +/- 0.350	12.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-012-CH-1EF Dowel Pins - 5x12x12 mm - Carbon Steel 18 Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per Each
5.000 mm + 0.004 / + 0.012	12.00 mm +/- 0.350	12.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-012-CH-1EF Dowel Pins - 5x12x12 mm - Carbon Steel 18 Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per Each View the product page first if you are unsure.
DP050-012-CH-1EF --- Dowel Pins - 5x12x12 mm - Carbon Steel DP050-012-CH-1EF --- Dowel Pins - 5x12x12 mm - Carbon Steel Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per 18 Available Now
5.000 mm + 0.004 / + 0.012	14.00 mm +/- 0.350	14.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-014-CH-1EF (100 Pcs) Dowel Pins - 5x14x14 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	14.00 mm +/- 0.350	14.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-014-CH-1EF (100 Pcs) Dowel Pins - 5x14x14 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	16.00 mm +/- 0.350	16.00 mm +/ - 0.350	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-016-CH-1EF (10 Pcs) Dowel Pins - 5x16x16 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 10
5.000 mm + 0.004 / + 0.012	16.00 mm +/- 0.350	16.00 mm +/ - 0.350
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-016-CH-1EF (10 Pcs) Dowel Pins - 5x16x16 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 10 View the product page first if you are unsure.
DP050-016-CH-1EF (10 Pcs) --- Dowel Pins - 5x16x16 mm - Carbon Steel DP050-016-CH-1EF (10 Pcs) --- Dowel Pins - 5x16x16 mm - Carbon Steel Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Out of stock! Backorder Now
5.000 mm + 0.004 / + 0.012	18.00 mm +/- 0.420	18.00 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-018-CH-1EF Dowel Pins - 5x18x18 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	18.00 mm +/- 0.420	18.00 mm +/ - 0.420
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-018-CH-1EF Dowel Pins - 5x18x18 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	20.00 mm +/- 0.420	20.00 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-020-CH-1EF (10 Pcs) Dowel Pins - 5x20x20 mm - Carbon Steel 3 units (30 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 10
5.000 mm + 0.004 / + 0.012	20.00 mm +/- 0.420	20.00 mm +/ - 0.420
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-020-CH-1EF (10 Pcs) Dowel Pins - 5x20x20 mm - Carbon Steel 3 units (30 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 10
DP050-020-CH-1EF (10 Pcs) --- Dowel Pins - 5x20x20 mm - Carbon Steel Sale DP050-020-CH-1EF (10 Pcs) --- Dowel Pins - 5x20x20 mm - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 3 Available Now Sale
5.000 mm + 0.004 / + 0.012	24.00 mm +/- 0.420	24.00 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-024-CH-1EF (50 Pcs) Dowel Pins - 5x24x24 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $268.50 AUD Regular price Sale price $268.50 AUD Unit price per Per 50
5.000 mm + 0.004 / + 0.012	24.00 mm +/- 0.420	24.00 mm +/ - 0.420
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-024-CH-1EF (50 Pcs) Dowel Pins - 5x24x24 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $268.50 AUD Regular price Sale price $268.50 AUD Unit price per Per 50 View the product page first if you are unsure.
DP050-024-CH-1EF (50 Pcs) --- Dowel Pins - 5x24x24 mm - Carbon Steel DP050-024-CH-1EF (50 Pcs) --- Dowel Pins - 5x24x24 mm - Carbon Steel Regular price $268.50 AUD Regular price Sale price $268.50 AUD Unit price per Out of stock! Backorder Now
5.000 mm + 0.004 / + 0.012	25.00 mm +/- 0.420	25.00 mm +/ - 0.420	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-025-CH-1EF (5 Pcs) Dowel Pins - 5x25x25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 5
5.000 mm + 0.004 / + 0.012	25.00 mm +/- 0.420	25.00 mm +/ - 0.420
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-025-CH-1EF (5 Pcs) Dowel Pins - 5x25x25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 5 View the product page first if you are unsure.
DP050-025-CH-1EF (5 Pcs) --- Dowel Pins - 5x25x25 mm - Carbon Steel DP050-025-CH-1EF (5 Pcs) --- Dowel Pins - 5x25x25 mm - Carbon Steel Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Out of stock! Backorder Now
5.000 mm + 0.004 / + 0.012	30.00 mm +/- 0.500	30.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-030-CH-1EF (4 Pcs) Dowel Pins - 5x30x30 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 14, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 4
5.000 mm + 0.004 / + 0.012	30.00 mm +/- 0.500	30.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-030-CH-1EF (4 Pcs) Dowel Pins - 5x30x30 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Dec 14, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 4 View the product page first if you are unsure.
DP050-030-CH-1EF (4 Pcs) --- Dowel Pins - 5x30x30 mm - Carbon Steel DP050-030-CH-1EF (4 Pcs) --- Dowel Pins - 5x30x30 mm - Carbon Steel Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Out of stock! Backorder Now
5.000 mm + 0.004 / + 0.012	32.00 mm +/- 0.500	32.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-032-CH-1EF (4 Pcs) Dowel Pins - 5x32x32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 4
5.000 mm + 0.004 / + 0.012	32.00 mm +/- 0.500	32.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-032-CH-1EF (4 Pcs) Dowel Pins - 5x32x32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 19, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 4 View the product page first if you are unsure.
DP050-032-CH-1EF (4 Pcs) --- Dowel Pins - 5x32x32 mm - Carbon Steel DP050-032-CH-1EF (4 Pcs) --- Dowel Pins - 5x32x32 mm - Carbon Steel Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Out of stock! Backorder Now
5.000 mm + 0.004 / + 0.012	36.00 mm +/- 0.500	36.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-036-CH-1EF Dowel Pins - 5x36x36 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	36.00 mm +/- 0.500	36.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-036-CH-1EF Dowel Pins - 5x36x36 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	40.00 mm +/- 0.500	40.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-040-CH-1EF (5 Pcs) Dowel Pins - 5x40x40 mm - Carbon Steel 1 pack (5 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 5
5.000 mm + 0.004 / + 0.012	40.00 mm +/- 0.500	40.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-040-CH-1EF (5 Pcs) Dowel Pins - 5x40x40 mm - Carbon Steel 1 pack (5 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 5
DP050-040-CH-1EF (5 Pcs) --- Dowel Pins - 5x40x40 mm - Carbon Steel Sale DP050-040-CH-1EF (5 Pcs) --- Dowel Pins - 5x40x40 mm - Carbon Steel Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now Sale
5.000 mm + 0.004 / + 0.012	45.00 mm +/- 0.500	45.00 mm +/ - 0.500	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-045-CH-1EF Dowel Pins - 5x45x45 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	45.00 mm +/- 0.500	45.00 mm +/ - 0.500
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-045-CH-1EF Dowel Pins - 5x45x45 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	50.00 mm +/- 0.600	50.00 mm +/ - 0.600	1 (Chamfer One End)
Material: Carbon Steel Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-050-CH-1EF (100 Pcs) Dowel Pins - 5x50x50 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
5.000 mm + 0.004 / + 0.012	50.00 mm +/- 0.600	50.00 mm +/ - 0.600
Material: Carbon Steel Type: 1 (Chamfer One End) Hardness: Heat Treated and Ground Rc 58-62 Thread Size: M3 (3x0.5mm)
Part Number: DP050-050-CH-1EF (100 Pcs) Dowel Pins - 5x50x50 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
