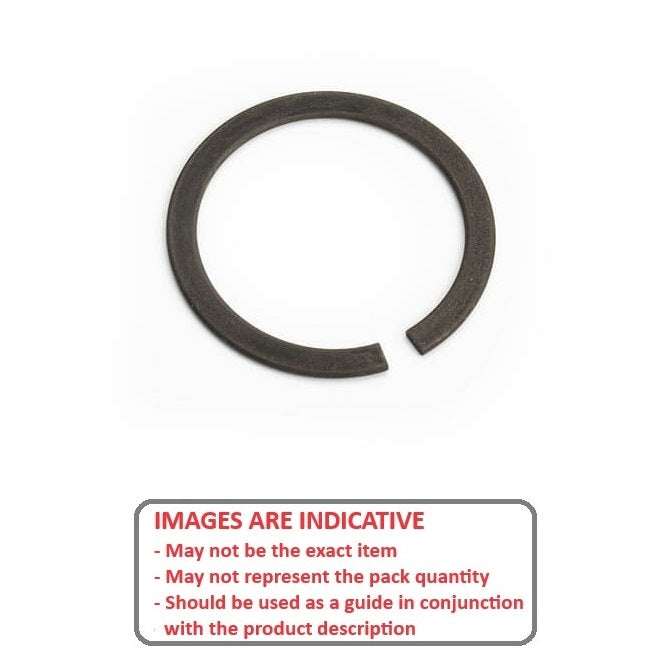

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

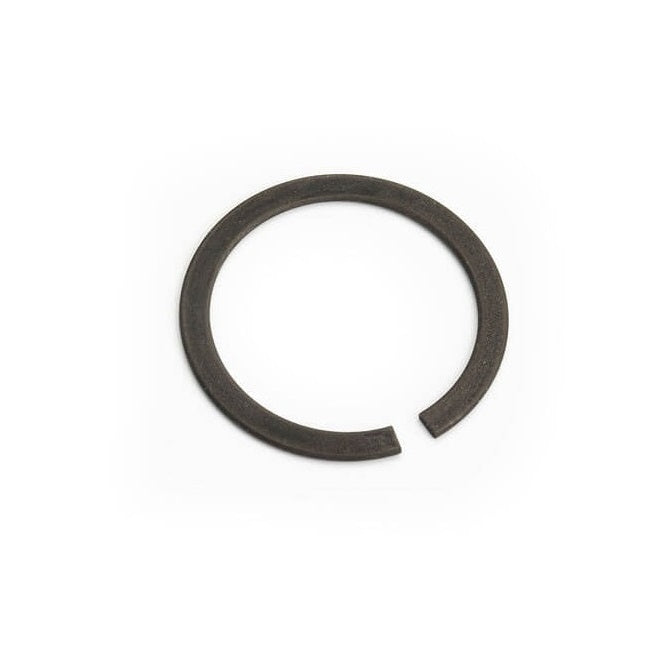

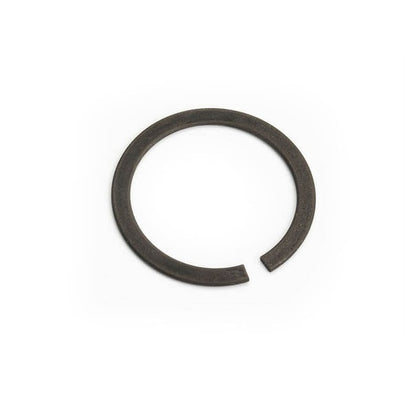

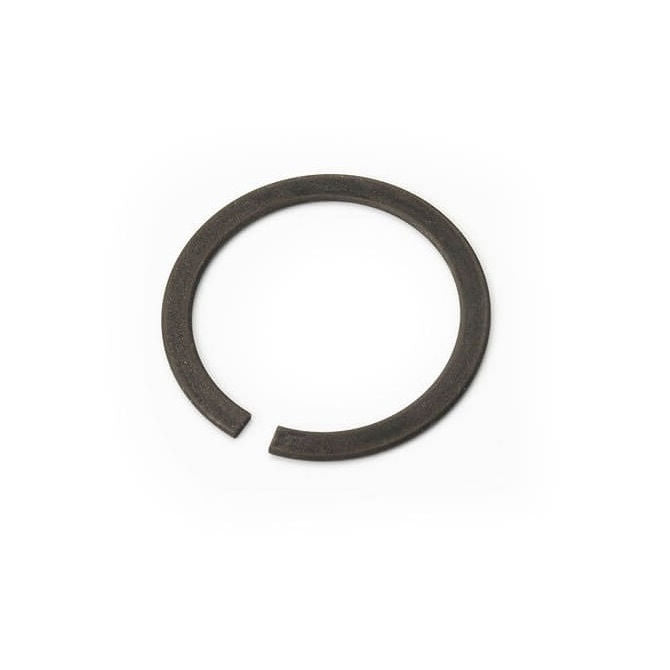

Myonic - 8 mm x 0.5 mm x 9.15 mm
WRE-0080-LS-S1 (500 Pcs)

Name: 1080634 | WRE-0080-LS-S1 (500 Pcs) --- Myonic - 8 mm x 0.5 mm x 9.15 mm
Brand: MBA
SKU: WRE0080LSS1
Price: 917.86 AUD
Availability: InStock

MBA

Category: Snap Rings - External - Basic -Stainless Steel

Additional resources:
Spiral Rings
Wire Rings
Snap Rings and Spiral Rings PDF

Price:

$917.86 AUD

per 500
Out Of Stock
Order 50 or more (25000 pcs) for $826.07 AUD per 500

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 27, 2025

Quantity

Base Category: Snap Rings - External

Top Level Category: Snap Rings - External - Basic -Stainless Steel

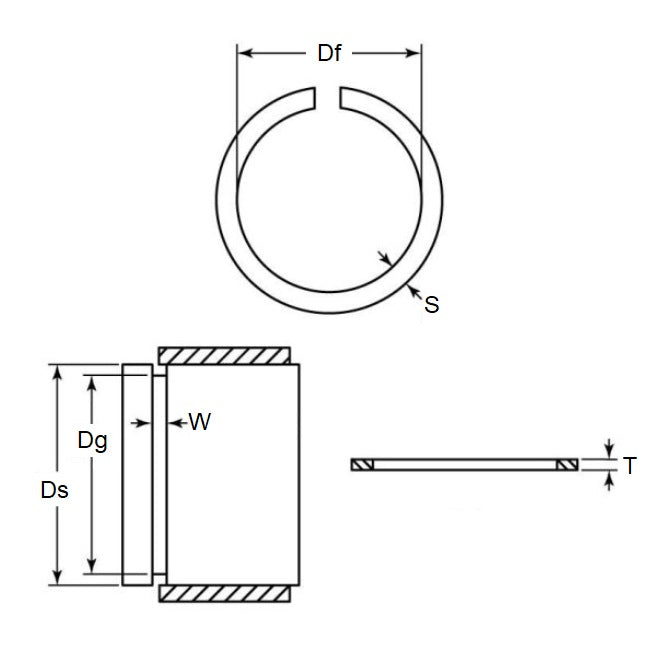

Product Details:

Shaft or Bearing OD (d1): 8.00mm
301 S11/S22 Stainless Steel

Clip Thickness (s): 0.50mm
_+/-0.02
Approx. Free OD: 9.15mm
Free ID Max (d3): 7.35mm
Section (b): 0.90mm
_+0/-0.10
Groove Dia (d2): 7.50mm
_+0/-0.05
Groove Width (m): 0.55
Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: DE

Alternatives: WRE0080SQS1, WSR08, WSR8

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
