CEB-08499-C (PK-62)

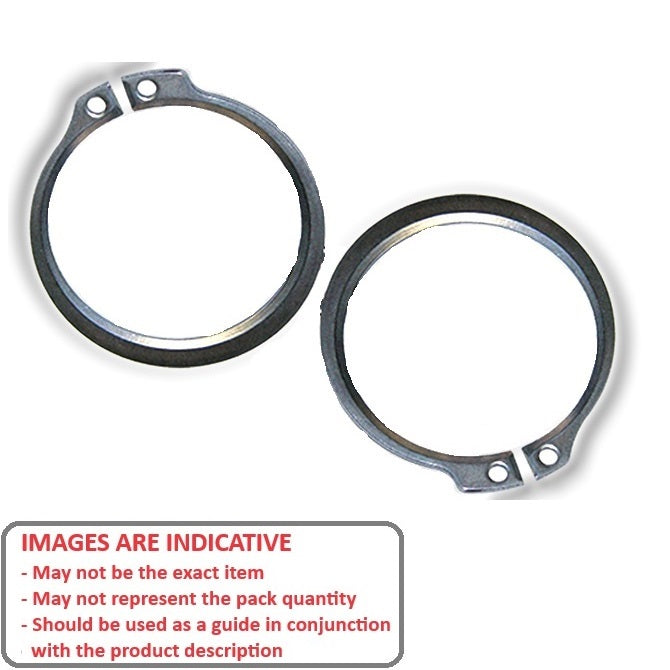

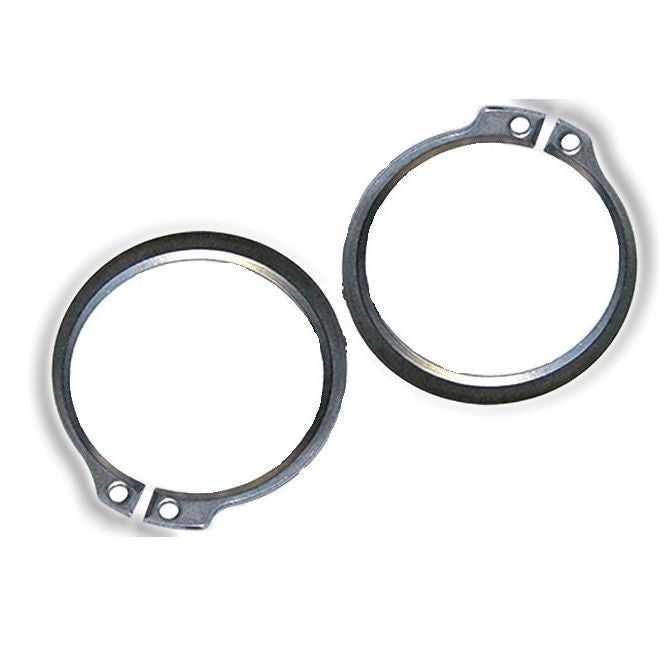

External Retaining Rings - 84.99x2.36x79.04 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 62 (3100 pcs)
for $3,910.87 AUD per 62 pack
84.99x2.36x79.04 mm External Retaining Rings - Carbon Steel - Sold per pack of 62:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Bevelled
Product Details

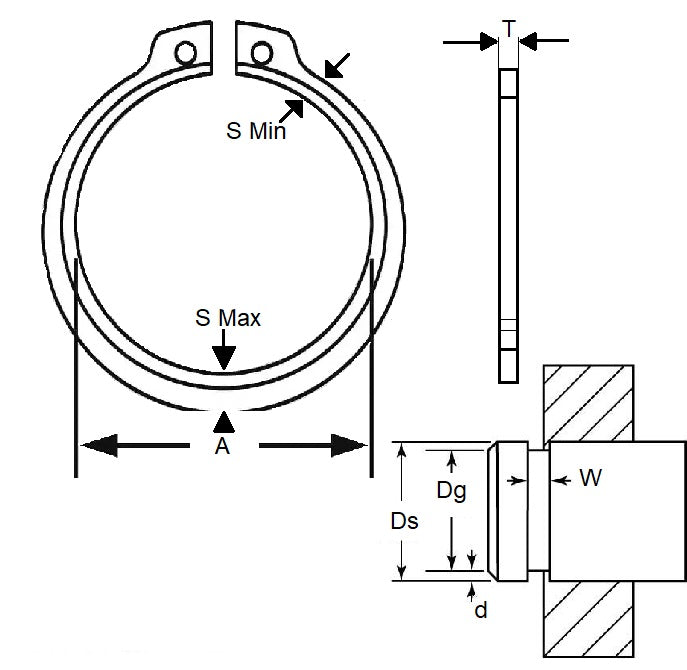

Shaft Diameter (Ds): 84.99mm(84.99mm is 3.346 in.)
Carbon Steel
- Shaft Diameter (Ds): 84.99mm
(84.99mm is 3.346 in.)
- Clip Thickness (T): 2.36mm
+/- 0.08
(2.36mm is 0.093 in.)
- Groove Dia. (Dg): 79.04mm
+ 0.00 / - 0.15
(79.04mm is 3.112 in.)
- Approx. Loose Circlip ID (A): 77.77mm
+ 1.27 / - 0.00
- Groove Width (W): 1.91mm
+ 0.06 / - 0.00
- Tool: PRS-E115
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® VSH-334
- NoCor® VSH-334
- N14020334
- N1402-0334
- VSH334
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CEB08499C, CEB08499
