CCE-00899-B (PK-100)

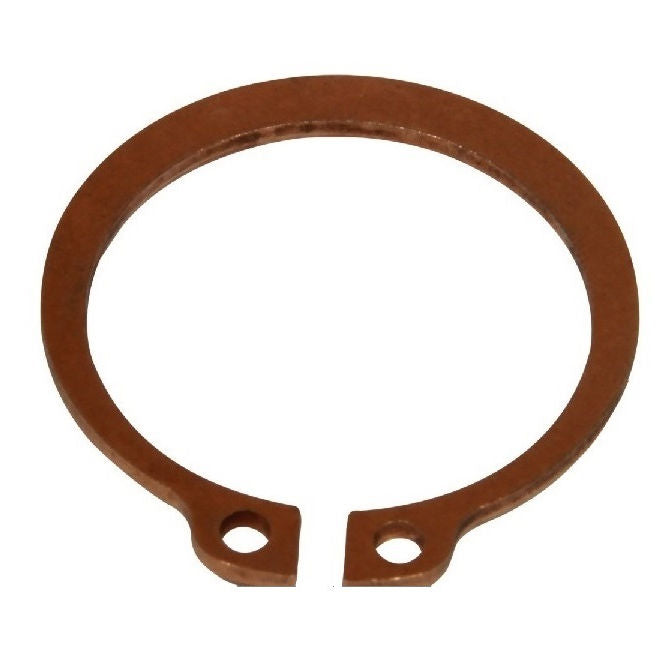

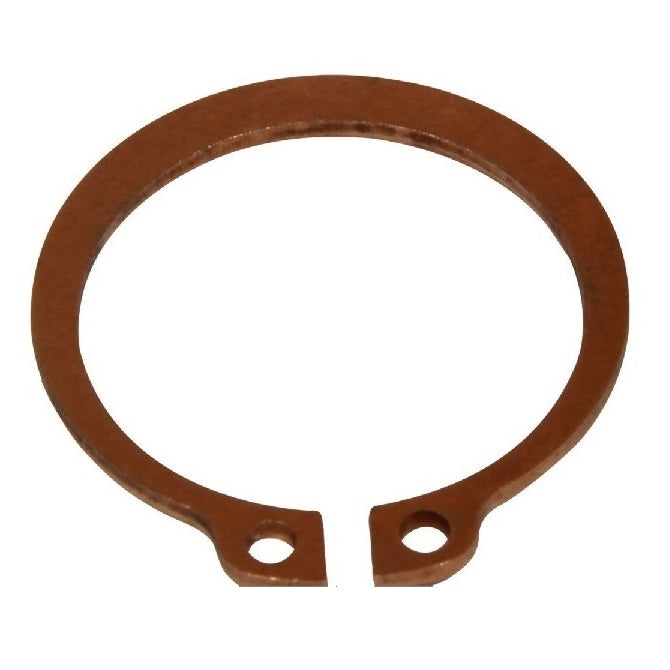

External Retaining Rings - 8.99x0.64x8.4 mm Circlips - Beryllium Copper Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 100 (5000 pcs)
for $228.39 AUD per 100 pack
8.99x0.64x8.4 mm External Retaining Rings - Beryllium Copper - Sold per pack of 100:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Product Details
Additional stock available from USA subject to Prior Sale = 500

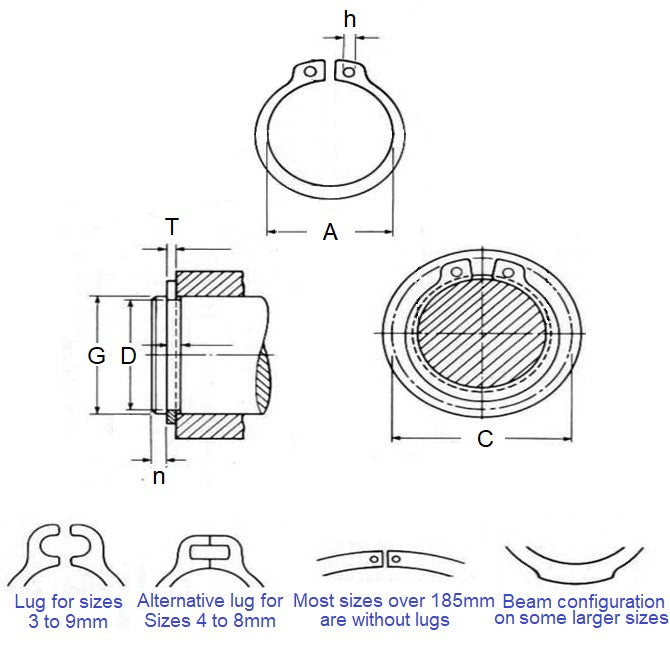

Shaft Diameter (Ds): 8.99mm
(8.99mm is 0.354 in.)
Beryllium Copper
- Shaft Diameter (Ds): 8.99mm
(8.99mm is 0.354 in.)
- Clip Thickness (T): 0.64mm
+/- 0.051
(0.64mm is 0.025 in.)
- Groove Dia. (Dg): 8.40mm
+/- 0.051
(8.40mm is 0.331 in.)
- Approx. Loose Circlip ID (A): 8.13mm
- Groove Width (W): 0.70mm
- Clearance on Shaft (C1): 14.99mm
- Clearance in Groove (C1): 14.73mm
- Min. Lug Diameter (h): 0.99mm
- Min. Extension (n): 0.97
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® SH-035-BC
- NoCor® SH-035-BC
- SH035BC
- N14000035BC
- N1400-0035BC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE00899B, CCE00899
