ECL-0069-0079-S15-KR (PK-5)

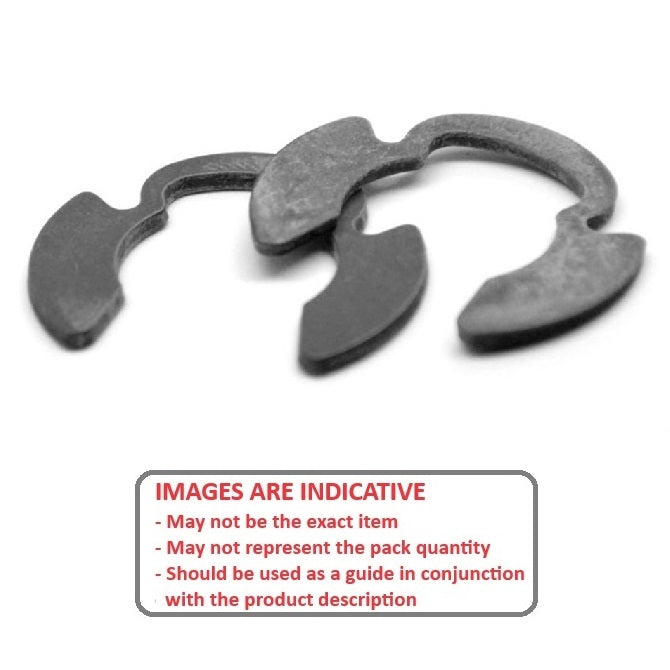

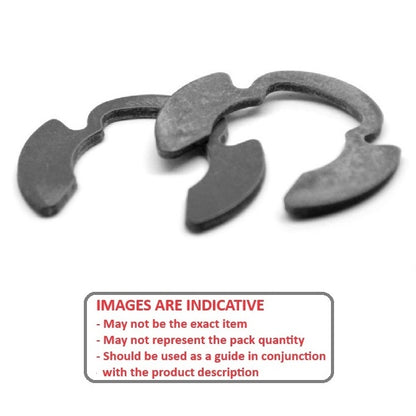

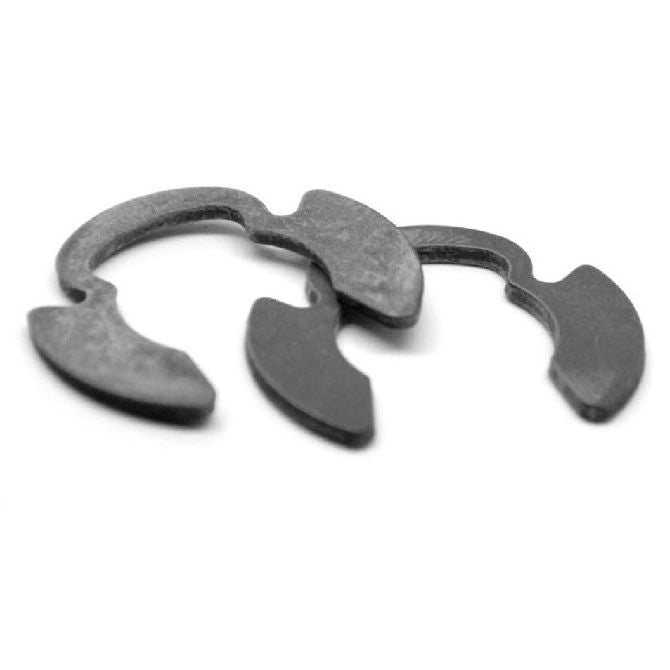

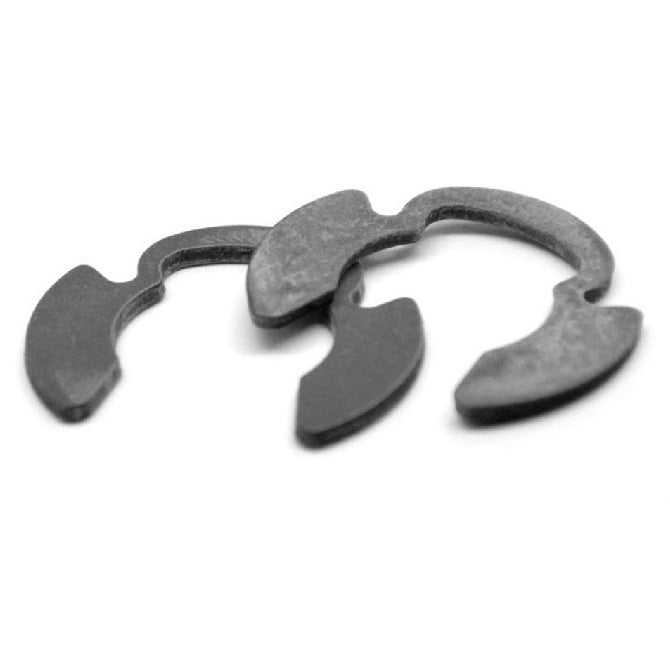

E-Clips Retaining Rings - 7.94x6.91x1.07 mm Klipring - Stainless Steel Grade PH15-7 Mo E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAssortment Kits
Order 50 or more packs of 5 (250 pcs)
for $11.17 AUD per 5 pack
5/16 inch E-Clip - 7.94x6.91x1.07 mm E-Clips Retaining Rings - Stainless Steel Grade PH15-7 Mo - Sold per pack of 5:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Klipring
Product Details
Minimum Rec. Shaft Dia (S): 7.94mm+ 2.54 / - 0.00
(7.94mm is 0.313 in.)
Stainless Steel Grade PH15-7 Mo
- Minimum Rec. Shaft Dia (S): 7.94mm
+ 2.54 / - 0.00
(7.94mm is 0.313 in.)
- Groove Dia. (Dg): 6.91mm
+/- 0.152
(6.91mm is 0.272 in.)
- Clip Thickness (T): 1.07mm
+/- 0.052
(1.07mm is 0.042 in.)
- Clip OD Loose (D1): 14.94mm
- Groove Width (W): 1.17mm
- Maximum Rec. Shaft Dia (S): 10.48
- Clip OD in groove (C1): 16.00mm
- Loose Clip ID (A): 6.35mm
- Min. Extension (n): 1.02
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5304-031-SS
- ALTPART
- 94751A761
- Huyett® PO-031-SS
- NoCor® PO-031-SS
- Rotor Clip® PO-031-SS
- PO031SS
- 5304031SS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00690079S15KR, ECL00690079
