ECL-0064-0079C-C (PK-10)

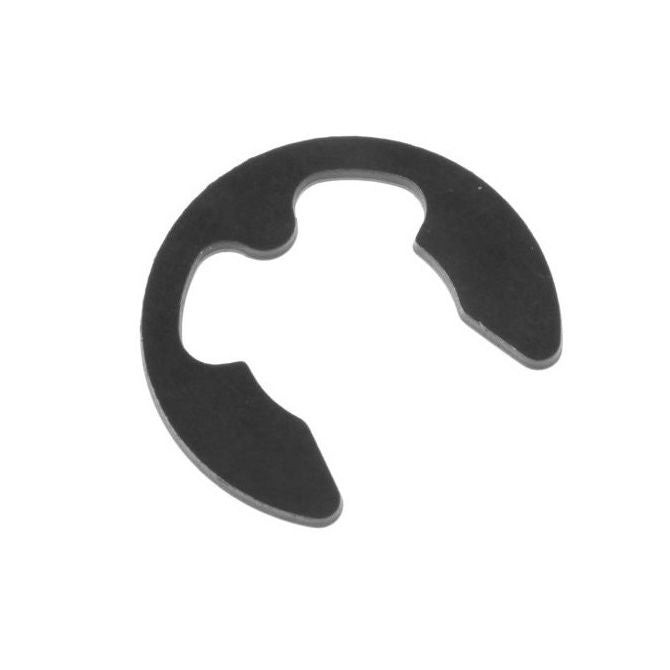

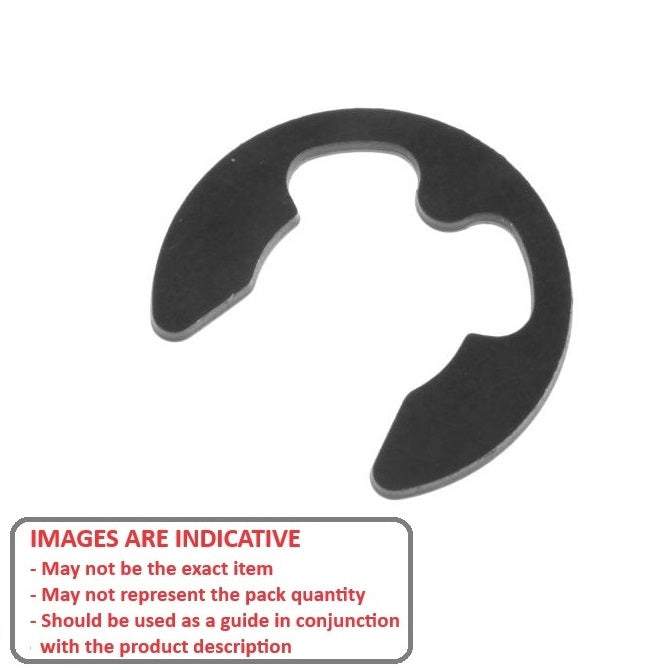

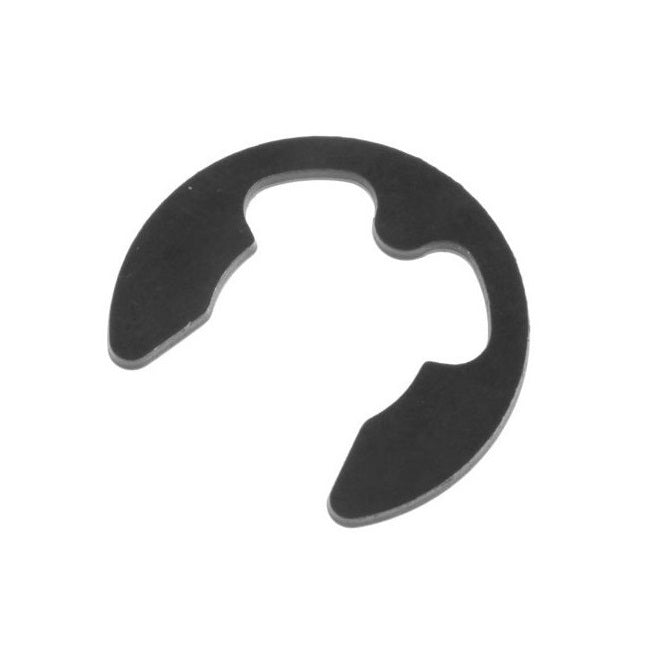

E-Clips Retaining Rings - 7.94x6.35x0.89 mm Basic - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Assortment Kits
E-Clip Applicators
Couldn't load pickup availability
5/16x1/4 inch E-Clip - 7.94x6.35x0.89 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 10:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details
Deleted Item. Available while stocks last.

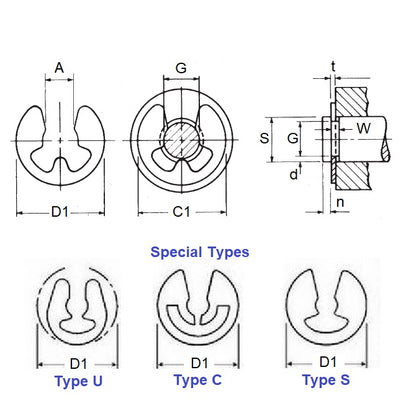

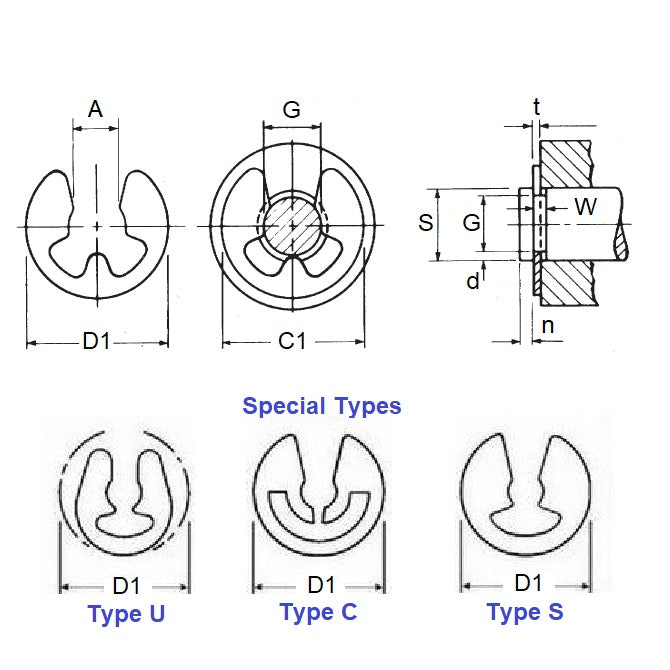

Minimum Rec. Shaft Dia (S): 7.94mm
+ 2.54 / - 0.00
(7.94mm is 0.313 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 7.94mm
+ 2.54 / - 0.00
(7.94mm is 0.313 in.)
- Groove Dia. (Dg): 6.35mm
(6.35mm is 0.25 in.)
- Clip Thickness (T): 0.89mm
(0.89mm is 0.035 in.)
- Clip OD Loose (D1): 14.94mm
- Groove Width (W): 0.99mm
- Maximum Rec. Shaft Dia (S): 10.48
- Clip OD in groove (C1): 15.49mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- IRR 1200-031
- Military 3215-031
- Waldes® 5144-031
- RotorClip® RE-031
- RE031
- N1540031
- N1540-0031
- N15400031APP
- N1540-0031APP
- N1540-031
- 1200031
- 3215031
- 5144031
- B1500A250APP
- B1500-A250
- B1500-A250APP
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00640079CC, ECL00640079C
