REF-079-L-CB (Each)
Female Rod Ends - 7.938x46.02 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $19.11 AUD Each
5/16x1-13/16 inch Rod End - 7.938x46.02 mm - 5/16-24 UNF Left Female Rod Ends - Bronze Lined Steel - Sold per Each:
Base Category: Rod Ends - Female
Top Level Category: Rod Ends - Female - Steel - Plain - Bronze Lined

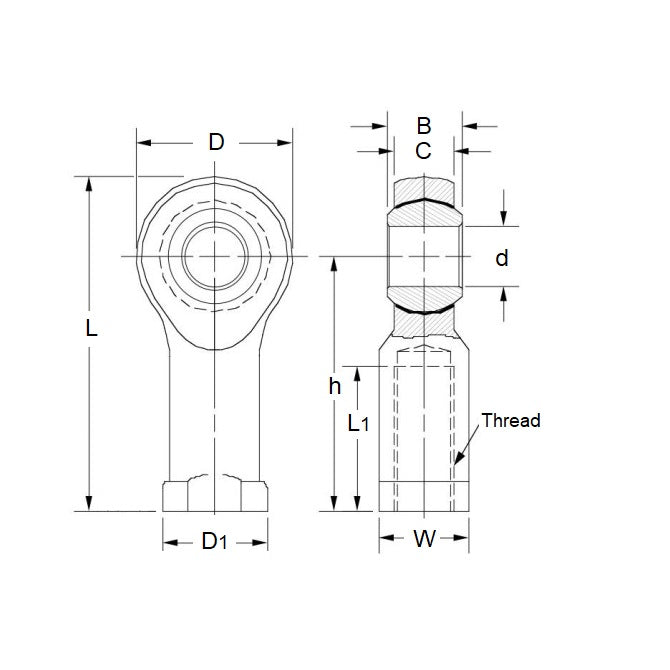

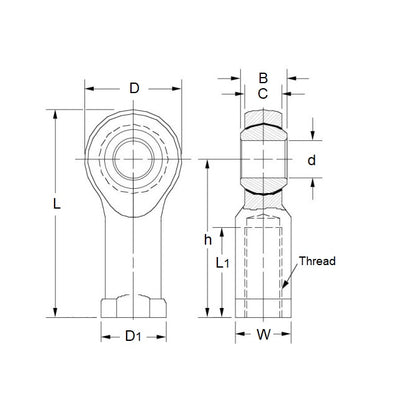

Product Details
Eye Size (d1): 7.938mm(7.938mm is 0.313 in.)
Bronze Lined Steel
- Eye Size (d1): 7.938mm
(7.938mm is 0.313 in.)
- Overall Length (L): 46.02mm
(46.02mm is 1.812 in.)
- Thread Size (T): 5/16-24 UNF Left
- Thread Length (l2): 19.05mm
- Head Width (W): 8.74mm
- Eye Width (W1): 11.10mm
- Head Diameter (D): 22.23mm
- Centre Height (l1): 34.93mm
- Grease Nipple: No
- Body Width/Flange Width(W2/D3): 11.10 / 12.70mm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- ALTPART
- 6072K164-LEFT
- ASAHI® JAFB5L
- KWK KFB5L
- IKO PHSB5L
- Nachi® PHSB-5L
- NTN® SFI-B5L
- SFIB5L
- 6072K164LEFT
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REF079LCB, REF079
