ECL-0050-0060-C (PK-100)
E-Clips Retaining Rings - 6x5x0.7 mm Basic - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 100 (5000 pcs)
for $7.97 AUD per 100 pack
6x5x0.7 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 100:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 45975

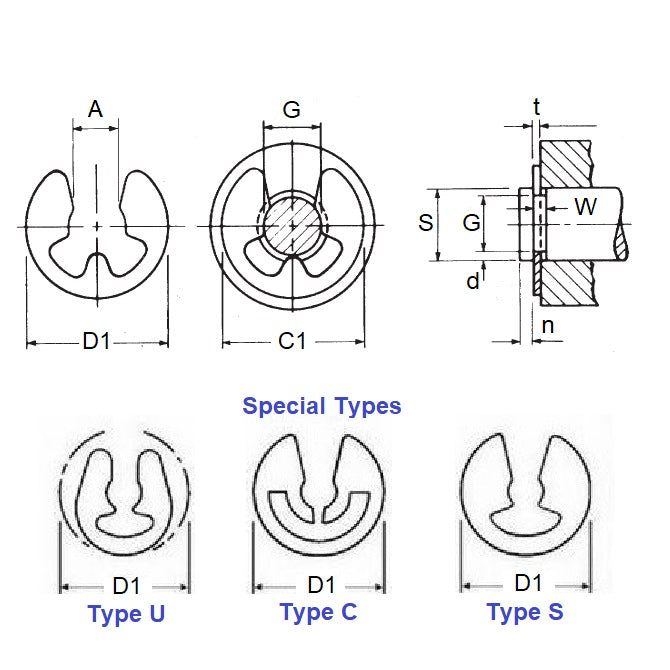

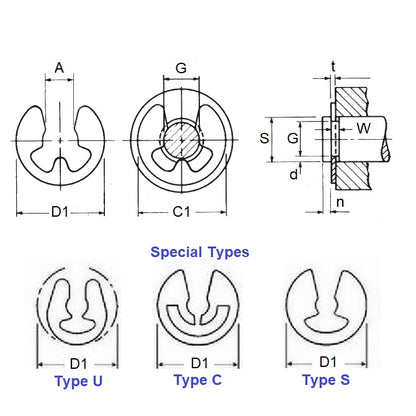

Minimum Rec. Shaft Dia (S): 6.00mm
+ 2.00 / - 0.00
(6.00mm is 0.236 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 6.00mm
+ 2.00 / - 0.00
(6.00mm is 0.236 in.)
- Groove Dia. (Dg): 5.00mm
+ 0.00 / - 0.075
(5.00mm is 0.197 in.)
- Clip Thickness (T): 0.70mm
+/- 0.02
(0.70mm is 0.028 in.)
- Clip OD Loose (D1): 10.75mm
- Groove Width (W): 0.74mm
- Maximum Rec. Shaft Dia (S): 8.00
- Clip OD in groove (C1): 11.30mm
- Loose Clip ID (A): 4.11mm
- Min. Extension (n): 1.20
- Additional Info: RRA-605 Applicator
- Standard: DIN6799
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ATA 140-310175
- ATA 170.474006.03
- ALTPART
- 98543A113
- Huyett® DE-050
- NoCor® DE-050
- Cirteq RA5.0
- DE050
- D1500-0050
- D15000050
- 140310175
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00500060C, ECL0050
