CCE-00635-CZ (PK-1250)

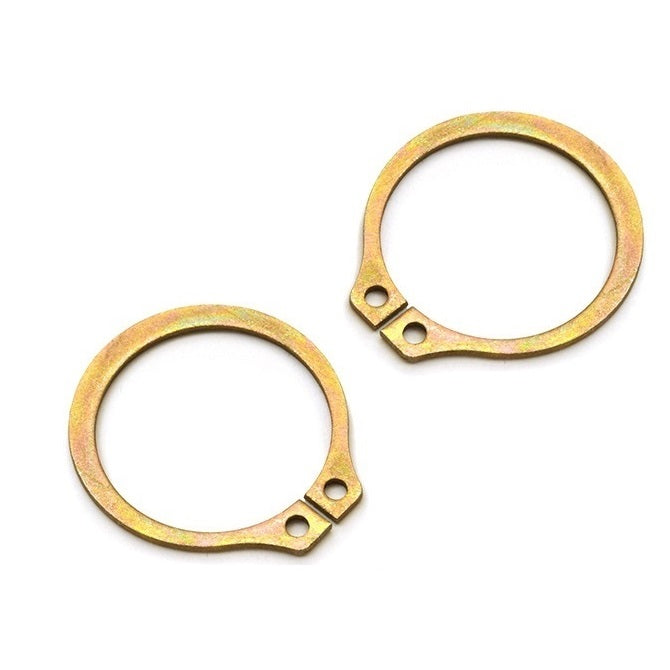

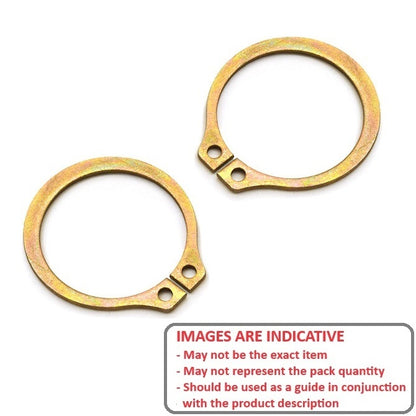

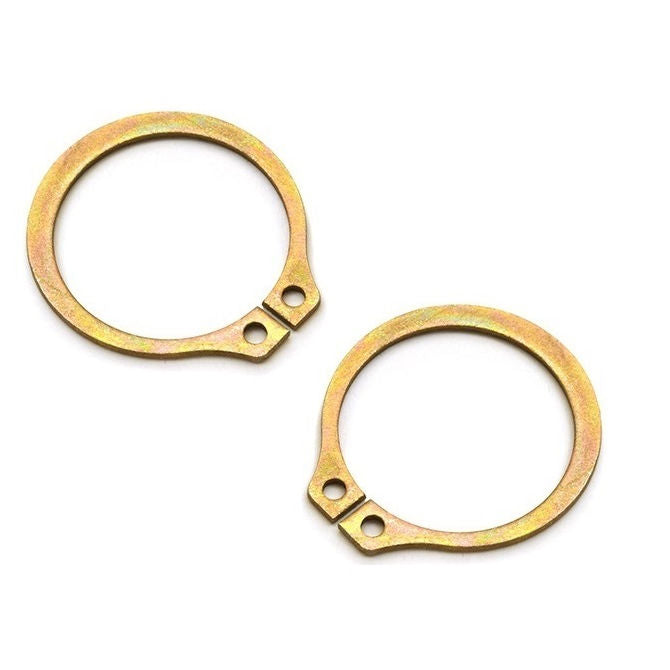

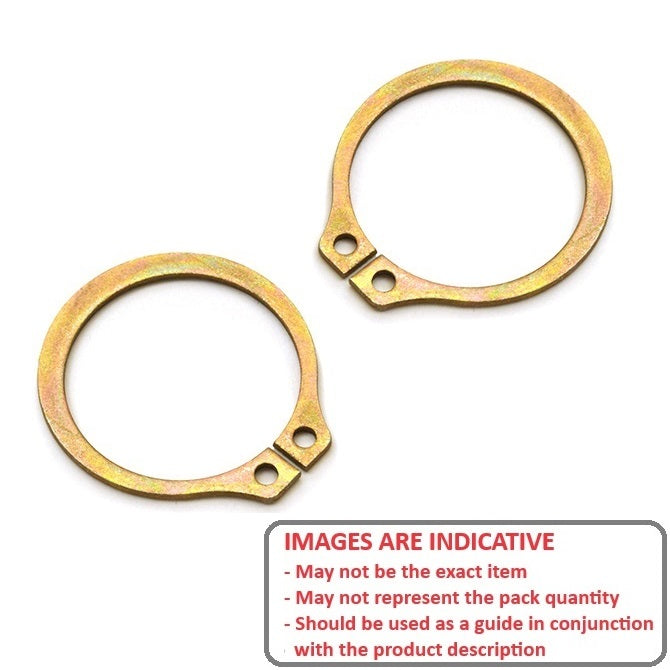

External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 1250 (62500 pcs)
for $343.85 AUD per 1250 pack
1/4 inch Circlip - 6.35x0.64x5.84 mm External Retaining Rings - Carbon Steel Zinc Plated - Sold per pack of 1250:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Product Details

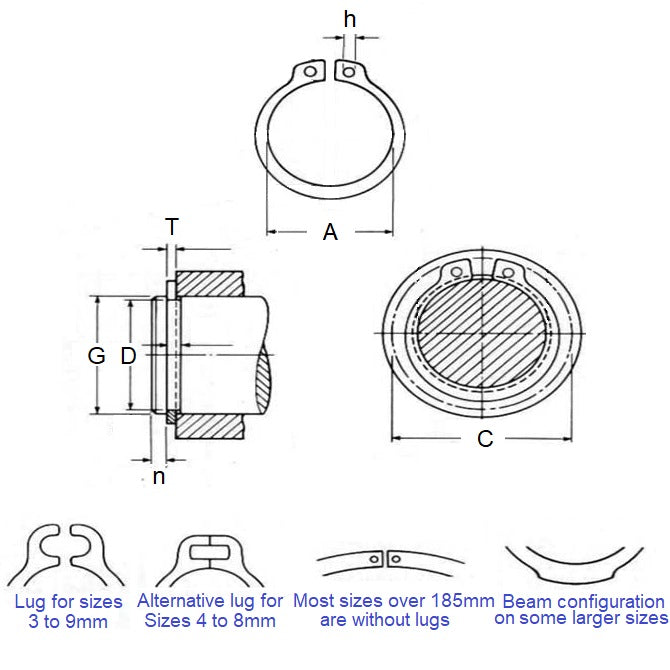

Shaft Diameter (Ds): 6.35mm(6.35mm is 0.25 in.)
Carbon Steel Zinc Plated
- Shaft Diameter (Ds): 6.35mm
(6.35mm is 0.25 in.)
- Clip Thickness (T): 0.64mm
+/- 0.051
(0.64mm is 0.025 in.)
- Groove Dia. (Dg): 5.84mm
+/- 0.038
(5.84mm is 0.23 in.)
- Approx. Loose Circlip ID (A): 5.72mm
- Groove Width (W): 0.74mm
- Clearance on Shaft (C1): 11.43mm
- Clearance in Groove (C1): 10.92mm
- Min. Extension (n): 0.81
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Small Parts RE-4
- Huyett® SH-025-Z3
- NoCor® SH-025-Z3
- SH025Z3
- RE4
- N14000025AZD
- N1400-0025AZD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE00635CZ, CCE00635
