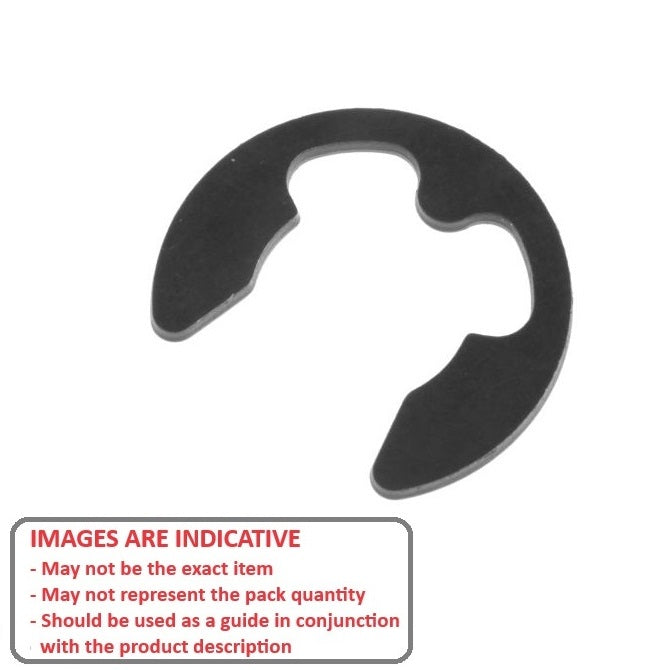

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

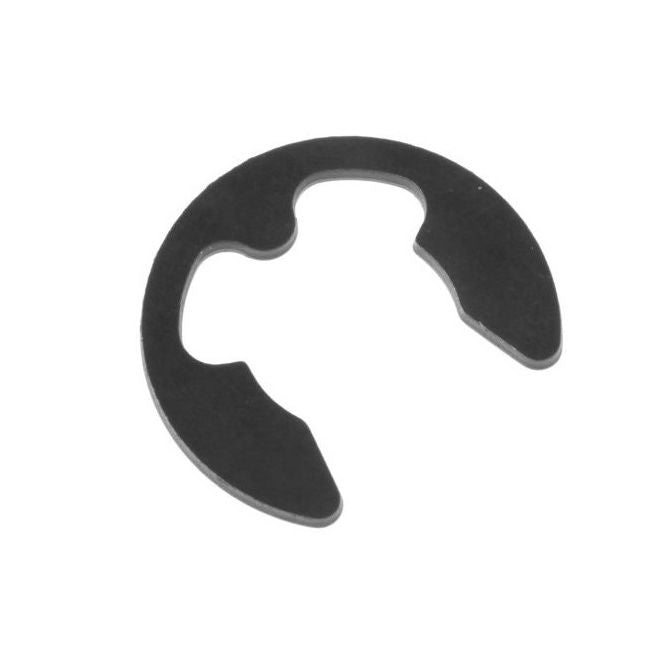

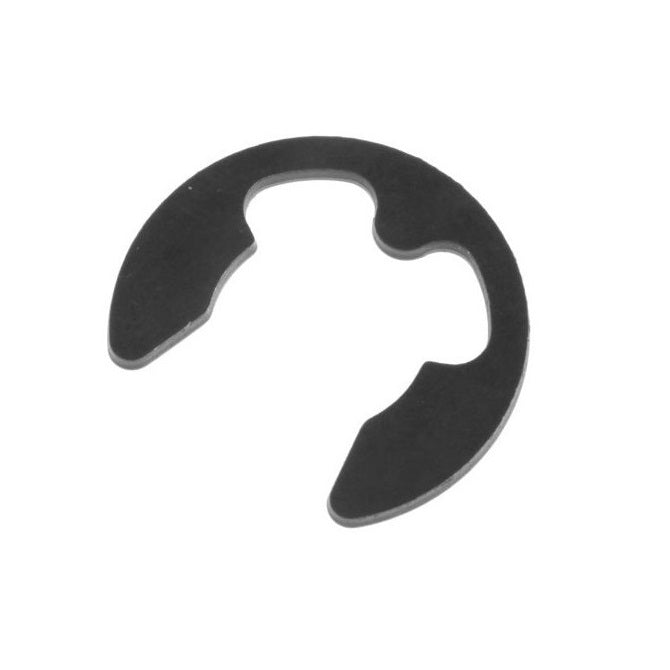

E-Clips - 6.35 mm x 5.33 mm x 0.64 mm
ECL-0053-0064A-CZY (100 Pcs)

MBA

Additional resources:
E-Clip Applicators
Price:
$30.50 AUD
$30.50 AUD
per 100
Out Of Stock
Order 50 or more (5000 pcs) for $27.45 AUD per 100
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 18, 2025

Base Category: E-Clips - Basic

Top Level Category: E-Clips - Basic - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 39366

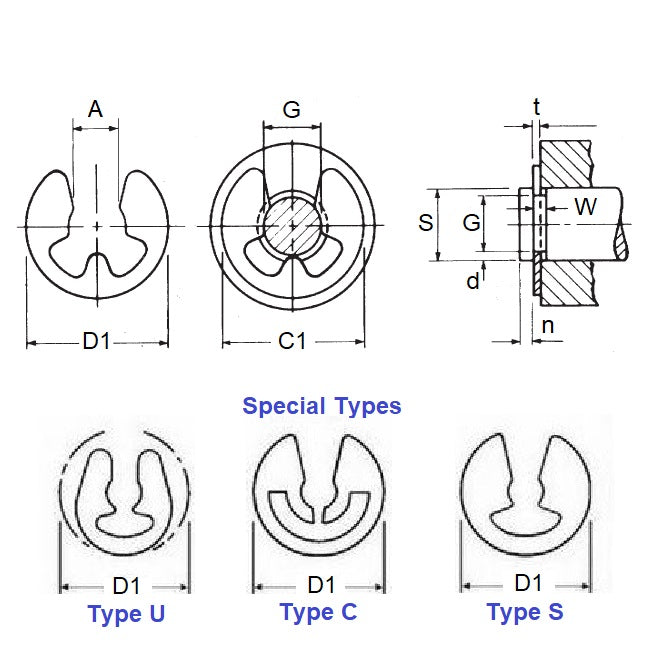

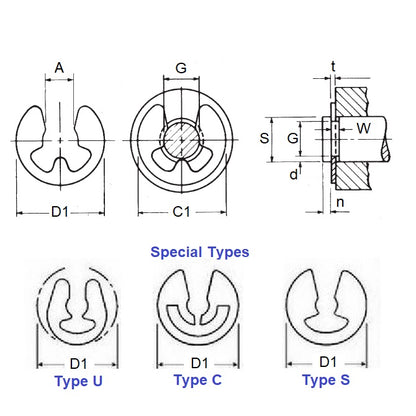

Minimum Rec. Shaft Dia (S): 6.35mm
+2.54/-0.00

Zinc Plated Yellow
  • Groove Dia. (Dg): 5.33mm
    +0.076/-0.000
  • Clip Thickness (T): 0.64mm
    +/-0.050
  • Clip OD Loose (D1): 13.39mm
  • Min. Extension (n): 1.20mm
  • Groove Width (W): 0.74mm
  • Maximum Rec. Shaft Dia (S): 8.89
  • Clip OD in groove (C1): 13.72mm
  • Standard: MIL-16633

Brand: MBA
Country of Origin: US

Alternatives: 98407A120, E-025-ZD

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
