ECL-0053-0064-B (PK-125)

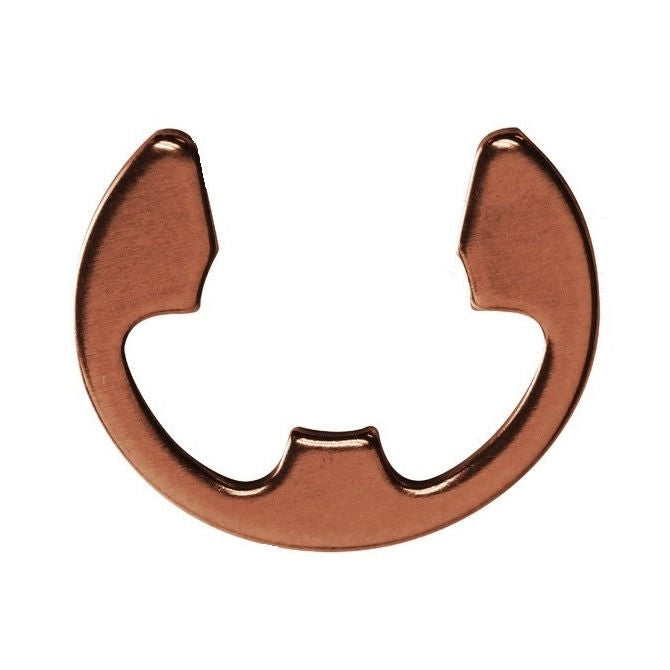

E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Beryllium Copper E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 125 (6250 pcs)
for $245.66 AUD per 125 pack
1/4 inch E-Clip - 6.35x5.33x0.64 mm E-Clips Retaining Rings - Beryllium Copper - Sold per pack of 125:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Beryllium Copper
Product Details
Minimum Rec. Shaft Dia (S): 6.35mm+ 2.54 / - 0.00
(6.35mm is 0.25 in.)
Beryllium Copper
- Minimum Rec. Shaft Dia (S): 6.35mm
+ 2.54 / - 0.00
(6.35mm is 0.25 in.)
- Groove Dia. (Dg): 5.33mm
+/- 0.051
(5.33mm is 0.21 in.)
- Clip Thickness (T): 0.64mm
+/- 0.052
(0.64mm is 0.025 in.)
- Clip OD Loose (D1): 13.11mm
- Groove Width (W): 0.74mm
- Maximum Rec. Shaft Dia (S): 8.89
- Clip OD in groove (C1): 13.46mm
- SAE1065-1090
- RRA-160 Applicator
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- IRR 1200-025-BC
- Military 3215-025-BC
- Waldes® 5144-025-BC
- Huyett® RE-025-BC
- N1540025BC
- N1540-025-BC
- 1200025BC
- 3215025BC
- 5144025BC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00530064B, ECL0053
