S316-R4-TF-TTS

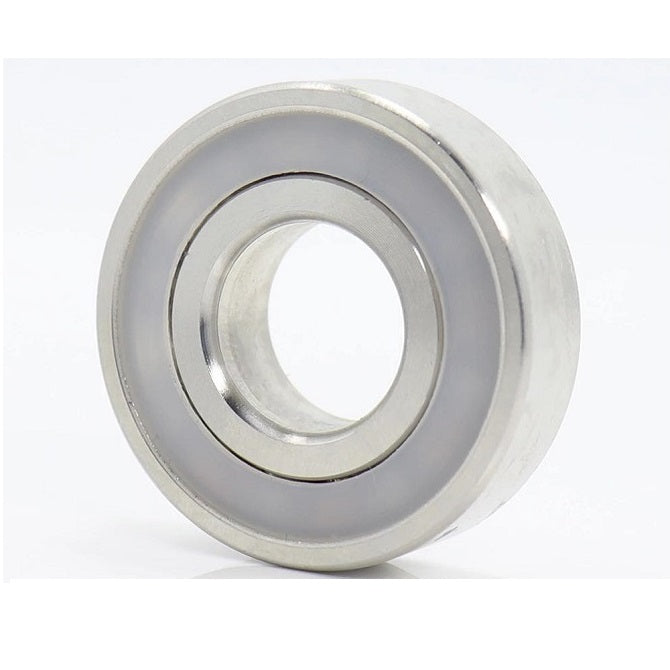

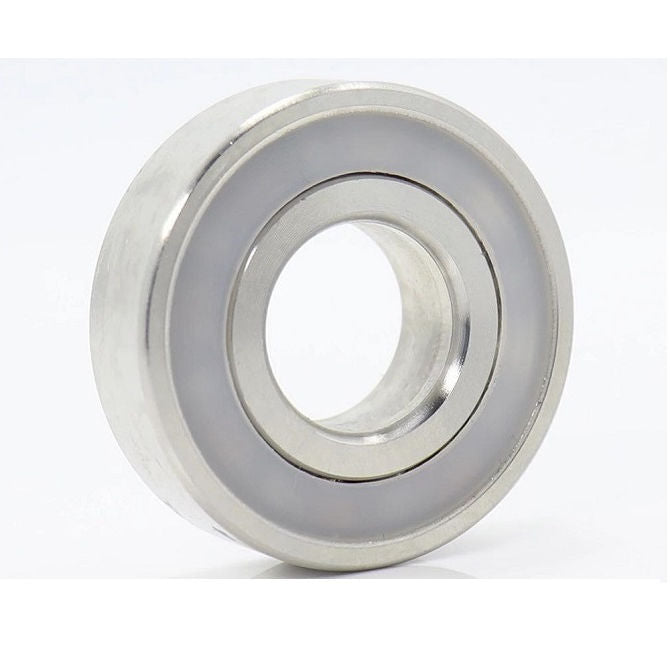

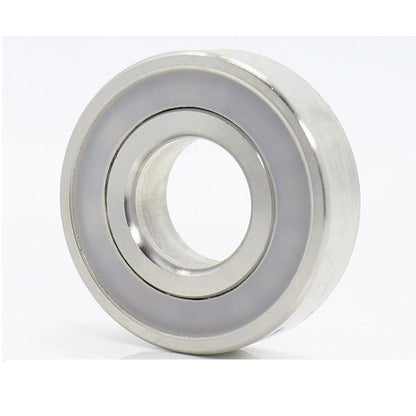

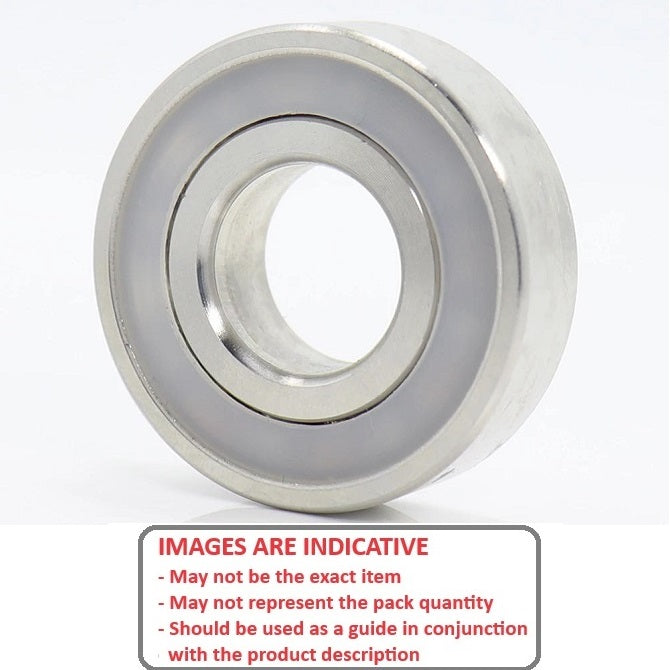

Single Row Ball Bearings - 6.35x15.875x4.978 mm Unflanged - Stainless Steel 316 Similar to A4, 18-10 Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Qty: 34 available now
Couldn't load pickup availability
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 316 Stainless - Sealed
Product Details

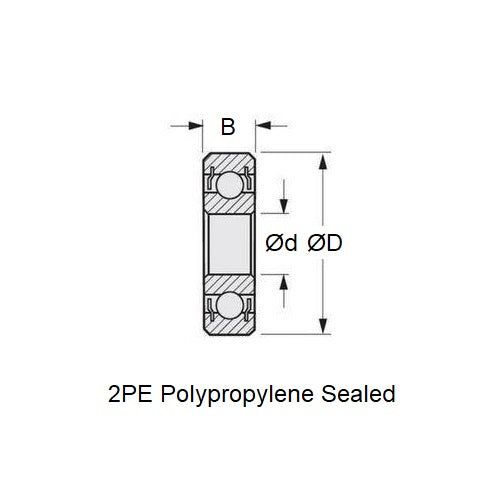

ID (d): 6.350mm+ 0.076 / - 0.000
(6.350mm is 0.25 in.)
Stainless Steel 316 (Similar to A4, 18-10)
- OD (D): 15.875mm
+ 0.000 / - 0.076
(15.875mm is 0.625 in.)
- Width (B): 4.978mm
+ 0.127 / - 0.000
(4.978mm is 0.196 in.)
- Precision Grade: Semi-Precision
- Closure Type: 2PE
- Bearing Type: Radial
- Lubricant: Unlubricated
Brand: MBA
Country of Origin: TW
Product Compliance and Data
Similar to
- R4
- S316R4TF2TF
- R4BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
