WRE-0064-RD-C (PK-5)

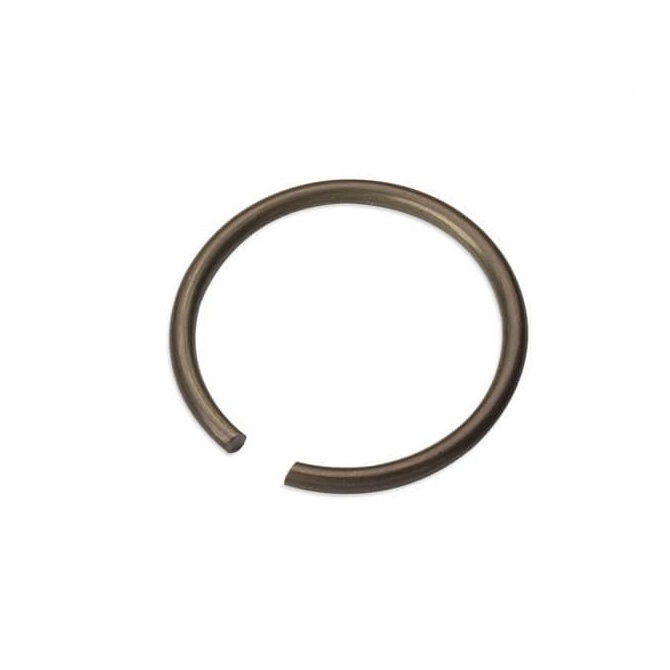

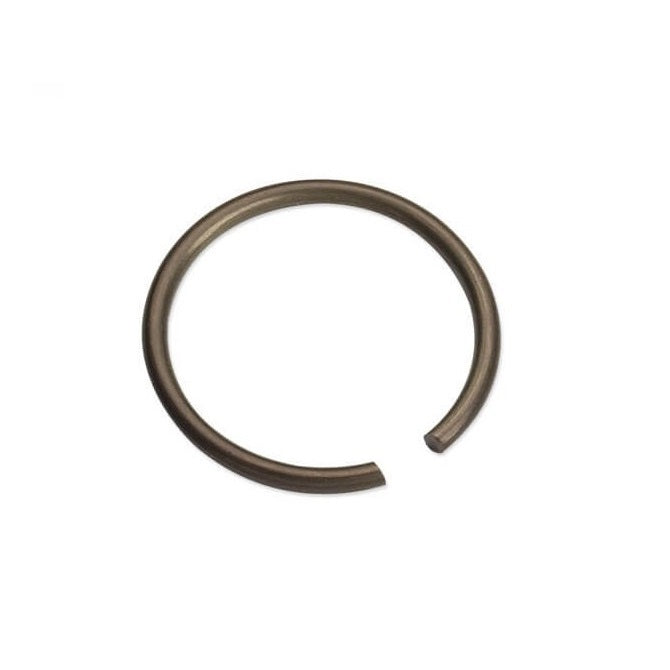

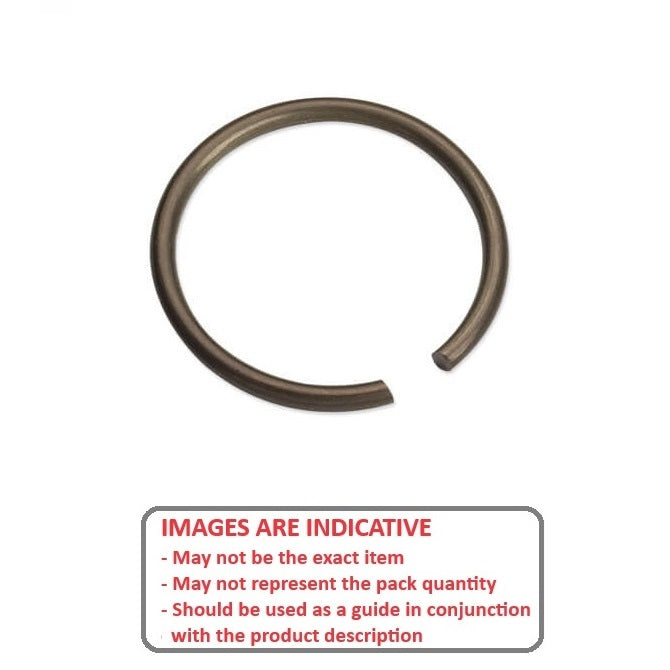

External Retaining Rings - 6.35x0.74x5.89 mm Round Wire - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAnderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Order 50 or more packs of 5 (250 pcs)
for $3.47 AUD per 5 pack
1/4 inch Ring - 6.35x0.74x5.89 mm External Retaining Rings - Carbon Spring Steel - Sold per pack of 5:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Round Wire
Product Details
Additional stock available from USA subject to Prior Sale = 1412

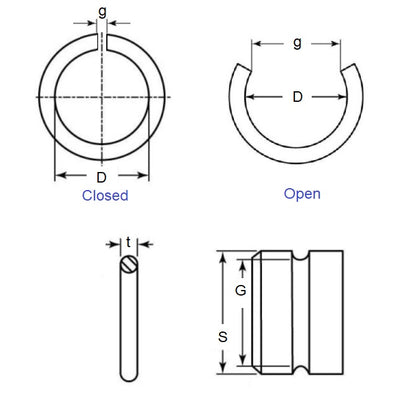

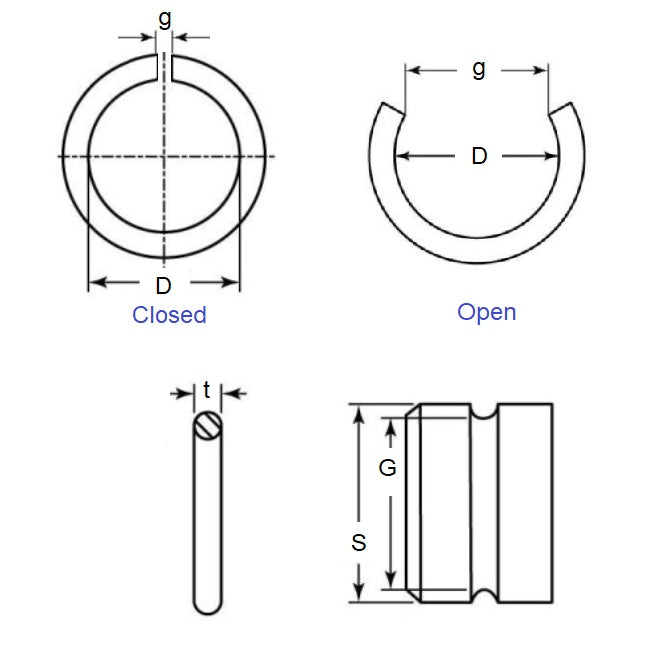

Shaft Diameter (Ds): 6.35mm
(6.35mm is 0.25 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 6.35mm
(6.35mm is 0.25 in.)
- Clip Thickness (T): 0.74mm
+/- 0.10
(0.74mm is 0.029 in.)
- Groove Dia. (Dg): 5.89mm
+ 0.08 / - 0.00
(5.89mm is 0.232 in.)
- Approx. Loose Circlip ID (A): 5.84mm
- Radial Wall (S) Approx.: 5.89mm
- Groove Width (W): 0.79mm
- Free Outside Dia (Dr): 7.32
- Section Profile: Round Section
- Info: Axial Assembly - Closed Gap
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Eaton 100-315
- Arcon® XRC-315
- Huyett® XRC-315
- NoCor® XRC-315
- XRC315
- A0900315
- A0900-315
- 100315
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0064RDC, WRE0064
